When dealing with electronic devices such as laptops, smartphones, tablets, or cameras, a common question arises: does the LCD come attached to the screen? This question is particularly relevant when considering repairs or replacements of damaged displays. To clarify, the term "LCD" (Liquid Crystal Display) often refers to the actual display panel that produces the image, while "screen" can sometimes be used interchangeably but may also refer to the entire front assembly including the glass, digitizer (touch layer), and frame.
This article will explore the relationship between the LCD and the screen, explain how LCDs are constructed and attached, and clarify what you can expect when purchasing or repairing screens. We will also discuss common scenarios involving LCD attachment and replacement, and provide a detailed FAQ section to address related queries.

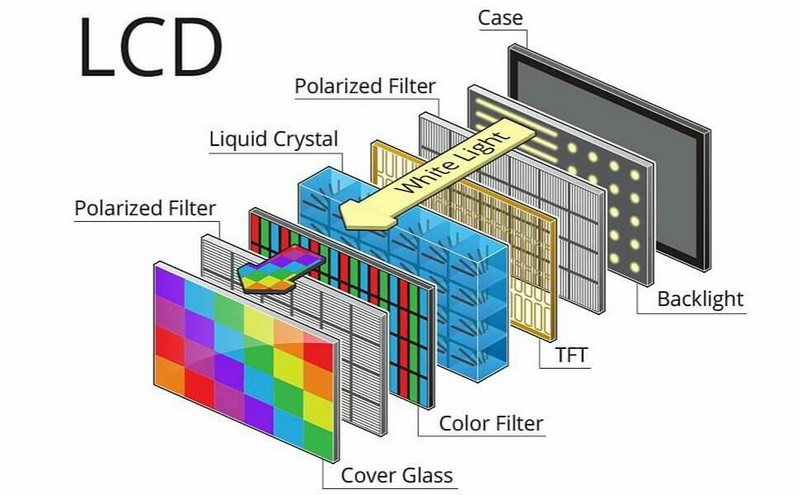

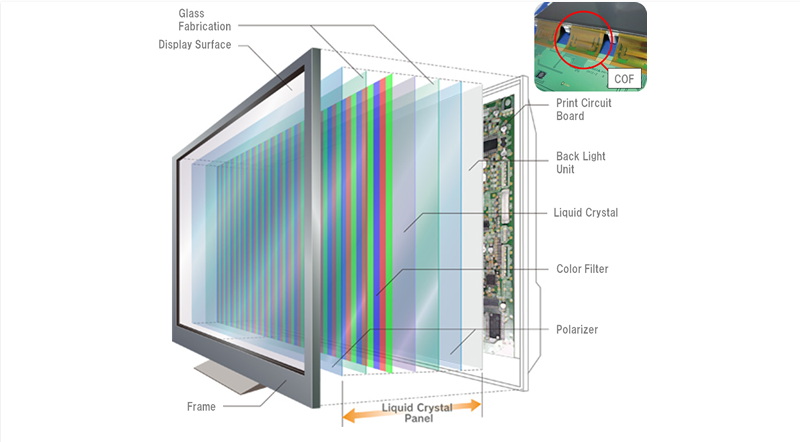

An LCD is a flat-panel display technology that uses liquid crystals modulated by electric fields to control light and create images. The LCD itself is a delicate panel consisting of multiple layers, including glass substrates, liquid crystal material, electrodes, color filters, and a backlight system. The LCD does not emit light on its own but modulates the light from the backlight to display images.
The term "screen" can refer to:
- The LCD panel alone (the core display component showing images).
- The entire front assembly, which may include the LCD, a protective glass layer, a digitizer (touch-sensitive layer), frame, bezel, cables, and sometimes hinges or other mounting hardware.
Because of this ambiguity, the question "does the LCD come attached to the screen?" depends on what is meant by "screen."
In many devices, especially smartphones and tablets, the LCD panel is not sold separately from the digitizer (the touchscreen layer). Instead, the LCD and digitizer are fused together in a single assembly. This means when you buy a replacement screen, you usually receive the LCD already attached to the digitizer and sometimes the protective glass.
For example, when purchasing an LCD+digitizer assembly for a laptop or smartphone, the LCD does come attached to the touchscreen. However, if you purchase just an LCD panel, it will be a bare panel without the digitizer or glass attached.
Laptop screens often come in two forms:
- Bare LCD panel only: This is just the LCD without any touch layer or glass. It does not include hinges, cables, webcam, bezel, or other parts.
- LCD+digitizer assembly: This is the LCD with the touchscreen attached, but still usually excludes hinges, cables, or other hardware.
Therefore, if you are replacing a laptop screen and ask "does the LCD come attached to the screen," the answer depends on what you order. If you order a full assembly (LCD+digitizer), yes, the LCD is attached to the screen. If you order just the LCD panel, no, it is not attached to any glass or digitizer.
In smartphones and tablets, the LCD and digitizer are almost always fused together at the factory. The glass, digitizer, and LCD form a single laminated unit. This design improves display quality and touch responsiveness but makes repairs more complex and costly. In such devices, the LCD always comes attached to the screen (meaning the glass and digitizer).
In devices like cameras, the LCD screen is usually attached to the body via a hinge or swivel mechanism. For example, the Canon EOS R50 features a 3-inch LCD screen that is hinged and attached to the camera body, allowing it to flip out for flexible viewing angles. The LCD is integrated into the screen assembly and attached to the device.
At the manufacturing level, LCD panels are carefully matched with their drivers and digitizers using advanced bonding techniques:
- Chip-On-Glass (COG): The driver chips are directly bonded to the glass substrate of the LCD.
- Tape Automated Bonding (TAB): A tape with conductive pathways connects the LCD to the driver circuits.
The LCD panel is a thin glass substrate with conductive pathways and liquid crystals sandwiched inside. It is usually not possible to solder or manually attach the LCD to a separate circuit board or digitizer without specialized equipment.
For touchscreens that are separate from the LCD, such as some laptop models, a thin double-sided foam tape is used to create a small gap between the LCD and the digitizer to ensure proper touch functionality.
In many modern devices, the glass is bonded to the LCD panel. If the glass is cracked but the display underneath works fine, sometimes only the glass can be replaced. However, this process is complex and less common because the glass and LCD are fused.
More often, replacing the LCD screen means replacing the entire screen assembly, which includes the LCD, digitizer, and glass. This ensures reliability and avoids damage during repair. So, in most cases, when you replace the LCD screen, you are also replacing the glass and digitizer attached to it.

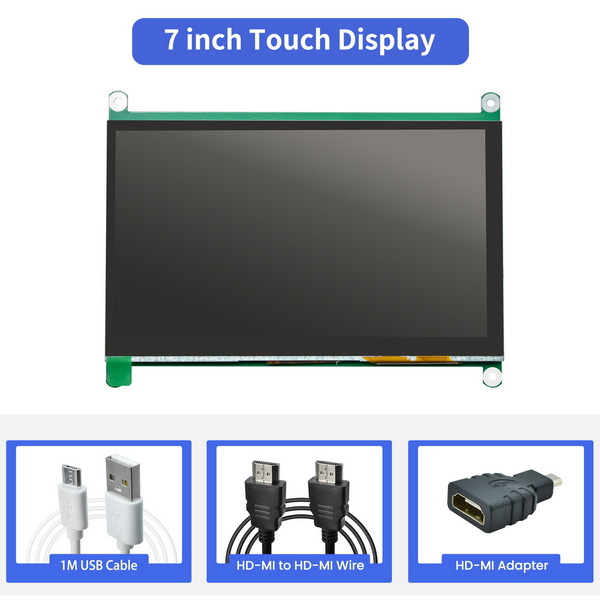

When you buy a new screen for a laptop or smartphone, the package contents vary:
- LCD panel only: Just the display panel, no digitizer, glass, bezel, or cables.
- LCD + digitizer assembly: The LCD comes attached to the touchscreen glass, but usually no hinges, cables, or other parts.
- Complete screen assembly: Includes LCD, digitizer, glass, bezel, cables, and sometimes hinges.
It is important to verify what is included before purchasing.
To answer the question "does the LCD come attached to the screen?" the key point is that it depends on the device and the specific part being referred to:
- For smartphones and tablets, the LCD almost always comes attached to the glass and digitizer as a single assembly.
- For laptops, you can buy either just the LCD panel or the LCD attached to the digitizer, but hinges, cables, and other parts are usually sold separately.
- For cameras, the LCD screen is typically attached to the body with a hinge and integrated as a single unit.
- In repair scenarios, replacing the LCD screen usually means replacing the entire screen assembly, including glass and digitizer, because they are fused together.
Understanding these distinctions helps consumers and technicians make informed decisions about repairs and replacements.
Usually, laptops have two options: a bare LCD panel or an LCD+digitizer assembly where the LCD is attached to the touchscreen. The touchscreen and LCD are often sold together as an assembly, but other parts like hinges and cables are separate.
In some cases, if the LCD underneath is undamaged, only the glass can be replaced. However, this process is difficult because the glass is bonded to the LCD. Most repair shops prefer to replace the entire screen assembly.
For devices with separate digitizers and LCDs, a thin double-sided foam tape is used to create a small gap between the LCD and digitizer to ensure proper touch functionality.
In cameras like the Canon EOS R50, the LCD screen is hinged and attached to the body as a single unit. The LCD is integrated into the screen assembly and can swivel or flip out for flexible use.
Replacement screens may come as just the LCD panel, an LCD+digitizer assembly, or a full screen assembly including bezel and cables. It is important to check the product description carefully to know what is included.
