In the modern world of electronic devices, the terms LCD screen and touch screen are often used interchangeably by many users, leading to confusion. The question "Does the LCD screen use the touch screen?" is common, especially for people trying to understand how their smartphones, tablets, laptops, or monitors work. This article provides a comprehensive explanation of the relationship between LCD screens and touch screens, clarifying their differences, how they work together, and the technologies involved in integrating touch capabilities with LCD displays.
An LCD (Liquid Crystal Display) screen is a type of display technology that produces images by manipulating liquid crystals sandwiched between layers of glass or plastic. These crystals align in response to electrical currents to control the passage of light, creating the images you see on the screen. LCDs are widely used in devices such as laptops, monitors, smartphones, and televisions.
- The LCD itself is purely a visual output device; it shows images, videos, and text but does not have any built-in capability to detect touch.
- Since liquid crystals do not emit light, LCDs require backlighting, commonly provided by LEDs, to illuminate the display.
- Modern LCDs often use TFT (Thin-Film Transistor) technology for sharper and more responsive visuals.
A touch screen is an input device layered on top of a display that detects and responds to touch input from fingers, styluses, or other objects.
- The touch-sensitive layer is called a digitizer. It is a transparent layer that senses touch by converting analog touch signals into digital signals that the device's processor can interpret.
- Touch screens enable direct interaction with the visual content displayed on the screen, allowing users to tap, swipe, and perform gestures.
- There are various touch technologies, including resistive, capacitive, and infrared touchscreens. Capacitive touchscreens dominate modern devices due to their clarity, multi-touch support, and sensitivity.
The direct answer to "does the LCD screen use the touch screen?" is no in the strict technical sense. The LCD screen and the touch screen are two distinct components with different functions:
- The LCD screen is responsible for displaying images.
- The touch screen (digitizer) is responsible for detecting touch input.
However, in most modern devices, these two components are integrated together physically and functionally to form what users commonly call a "touchscreen display." This integration allows users to see images and interact with them directly on the same surface.
- The LCD screen displays the visual content, such as icons, text, videos, and images.
- The touch screen digitizer detects where the user touches on the screen and sends this information to the device's processor.
- The processor then responds by updating the display or performing other actions based on the touch input.
If either the LCD or the touch screen digitizer is damaged, the device's usability is affected differently:
- If the touch screen is damaged but the LCD is intact, the display will still show images, but touch input will not work.
- If the LCD is damaged but the touch screen digitizer works, touch input may register, but the display will be distorted or invisible.
There are several methods and technologies used to combine the LCD screen with the touch screen layer:
- The touch panel and LCD display are glued together with an air gap between them.
- This method is simpler and cheaper but can cause reflections, reduce screen clarity, and make the display thicker.
- The touch panel is glued directly onto the LCD screen using an optical adhesive, eliminating the air gap.
- This improves screen clarity, reduces reflections, and results in a thinner display.
- Optical bonding is more expensive and used in higher-end devices.
There are three main types of capacitive touch screen technologies that relate to how the touch sensor is integrated with the LCD:
- In-Cell Technology: The touch sensor is embedded inside the LCD pixels themselves. This results in a thinner display with better sunlight readability.
- On-Cell Technology: The touch sensor is placed on top of the LCD panel but beneath the protective glass. Easier to manufacture than In-Cell but can have thickness and color uniformity issues.
- One Glass Solution (OGS): The touch sensor is integrated with the protective glass, reducing thickness and cost while improving touch sensitivity.
Each technology has trade-offs in terms of thickness, touch responsiveness, clarity, production complexity, and cost.
Many users assume that because a device has an LCD, it must have touch capabilities. This is incorrect. Many devices have LCDs without any touch functionality, such as traditional monitors and some laptops.
The touch screen is a separate transparent layer placed on top of the LCD. They function independently but work together to create an interactive display.
It is possible for only one component to be damaged. For example, a cracked glass digitizer might still allow the LCD to display images perfectly, or a faulty LCD might show distorted images while the touch screen still responds to input.
- Interactive User Experience: Combining LCD with touch screens enables intuitive control of devices.
- Multi-Touch Support: Capacitive touchscreens support gestures like pinch, zoom, and swipe.
- High Clarity: Modern integration technologies maintain excellent display quality.

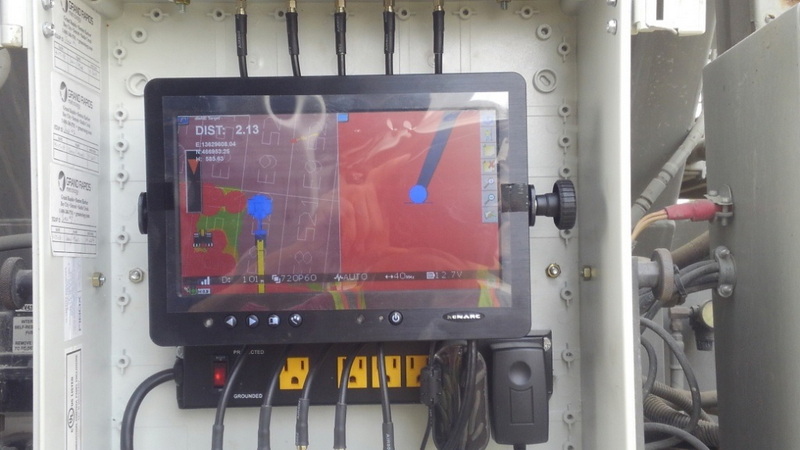

- Versatility: Used in smartphones, tablets, kiosks, industrial controls, and more.
- Increased Cost: Touch-enabled LCDs are more expensive to produce and repair.
- Fragility: Touch layers can be more fragile and prone to damage.
- Potential Clarity Reduction: Additional layers can slightly reduce brightness and clarity compared to non-touch LCDs.
- Repair Complexity: Repairing the touch screen often requires replacing the entire front assembly.
To answer the question "Does the LCD screen use the touch screen?" precisely: The LCD screen itself does not use the touch screen because they are separate components with distinct functions. The LCD is responsible for displaying images, while the touch screen digitizer detects and processes touch input. However, in most modern devices, these two components are integrated into a single assembly to provide a seamless interactive experience.
Understanding this distinction is crucial for troubleshooting, device repair, and making informed decisions when purchasing or using electronic devices. The integration technologies continue to evolve, making touch-enabled LCDs thinner, clearer, and more responsive, shaping the future of interactive displays.
An LCD screen displays images, videos, and text, while a touch screen is a transparent layer that detects touch input. They are separate components but often integrated together in modern devices.
Yes, many devices have LCD screens without touch functionality, such as traditional monitors and some laptops.
You will still see images on the screen, but you won't be able to interact with the device via touch.
In-Cell embeds the touch sensor inside the LCD pixels, making the screen thinner. On-Cell places the touch sensor on top of the LCD panel but beneath the protective glass.
Because adding a touch-sensitive layer adds more glass or plastic layers, which can cause reflections or reduce brightness slightly, especially if air bonding is used instead of optical bonding.
