Connecting and calibrating the Raspberry Pi 3 touchscreen display is an essential skill for anyone who wants to add an interactive visual interface to their Raspberry Pi projects. The official 7-inch Raspberry Pi touchscreen display offers a compact, responsive, and versatile way to interact with your Raspberry Pi without needing an external monitor, keyboard, or mouse. This comprehensive guide will take you through every step of the process, from physically connecting the touchscreen to your Raspberry Pi 3, to calibrating it for precise touch input. By the end of this article, you will have a fully functional touchscreen setup that enhances your project's usability and appeal.
Before diving into the connection process, it is important to understand the components involved. The official Raspberry Pi 7-inch touchscreen display comes with several key parts: the display panel itself, an adapter board attached to the back of the screen, a DSI (Display Serial Interface) ribbon cable, four jumper wires, and mounting screws. The adapter board acts as the interface between the touchscreen and the Raspberry Pi, handling power and data signals.
The Raspberry Pi 3 model is particularly well-suited for this display because it has the correct mounting holes and sufficient processing power to handle the touchscreen interface smoothly. The DSI port on the Pi 3 is designed to connect directly to the display's ribbon cable, enabling high-speed communication between the two devices.
Before you begin connecting the touchscreen, prepare a clean, static-free workspace. Place a soft towel or cloth on your work surface to protect the delicate touchscreen from scratches or damage. It is also advisable to power down your Raspberry Pi 3 safely and disconnect it from any power source to avoid electrical shorts or damage during assembly.
Taking anti-static precautions, such as grounding yourself or using an anti-static wrist strap, can help protect the sensitive electronic components from static discharge.

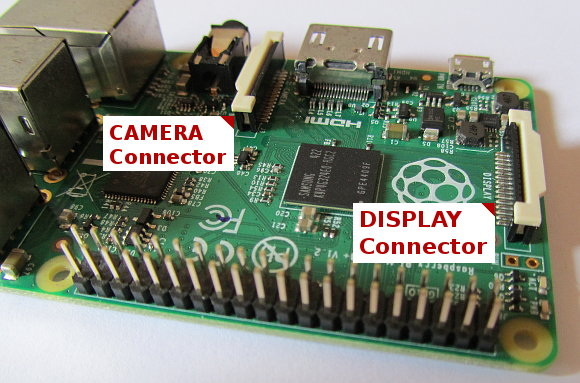

The first physical connection involves the DSI ribbon cable, which transmits video data from the Raspberry Pi to the touchscreen. To connect it, gently flip the touchscreen display face down on the towel. Locate the DSI ribbon cable and the connector on the adapter board attached to the back of the screen.
The connector has small black plastic clips that lock the ribbon cable in place. Carefully open these clips by sliding them outward. Insert the ribbon cable into the connector with the blue side facing down toward the circuit board. It is important to insert the cable fully and evenly to ensure a solid connection. Once inserted, press the clips back to secure the cable firmly.

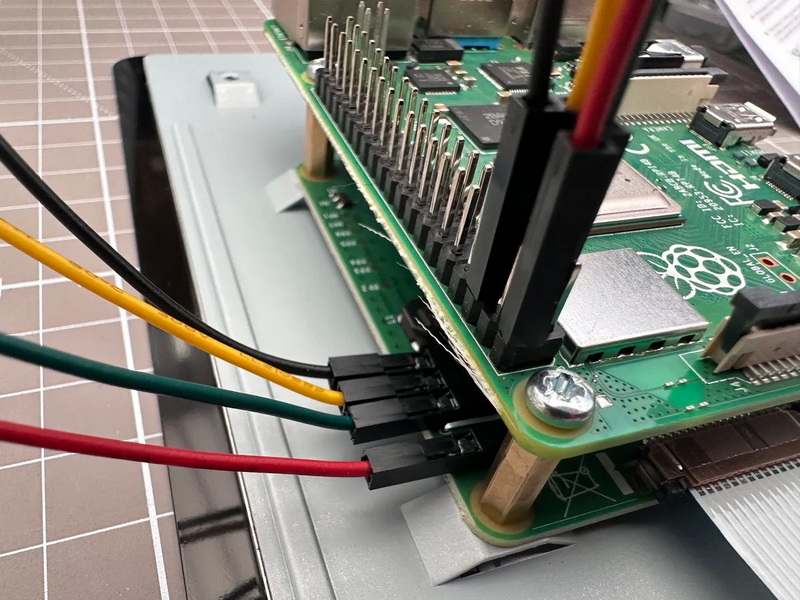

The touchscreen's adapter board requires power and communication signals from the Raspberry Pi's GPIO (General Purpose Input/Output) pins. Four jumper wires are used to connect the adapter board to the Pi's GPIO header.
Each wire has a specific function: two wires provide 5V power and ground, while the other two handle I2C communication signals (SDA and SCL). The 5V wire connects to one of the Pi's 5V pins, and the ground wire connects to a ground pin. The SDA and SCL wires connect to the corresponding I2C data and clock pins on the Pi.
It is crucial to connect these wires correctly to avoid damaging the display or the Raspberry Pi. Double-check the pinout of the Raspberry Pi 3 GPIO header before making connections.

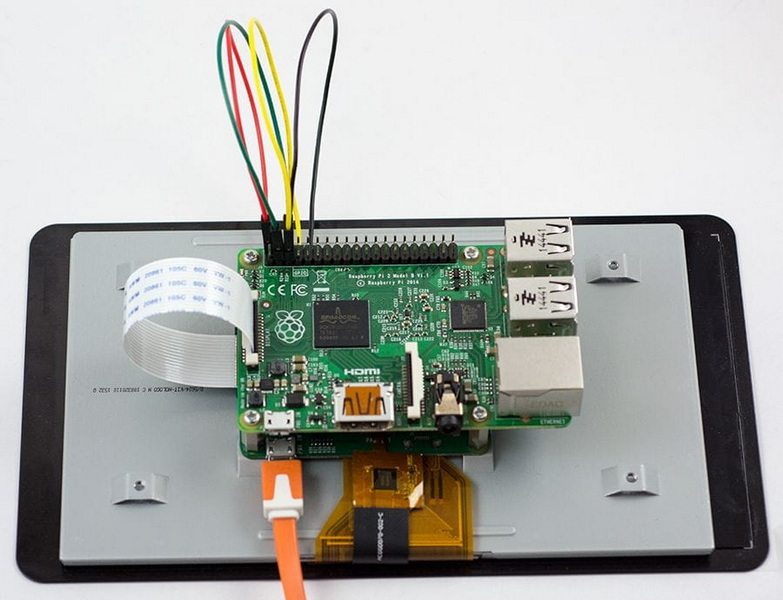

Once the ribbon cable and jumper wires are connected, the next step is to physically mount the Raspberry Pi 3 to the back of the touchscreen's adapter board. Align the mounting holes on the Pi with those on the adapter board.
Using the screws provided, secure the Raspberry Pi to the adapter board. This mounting not only keeps the assembly compact and stable but also ensures that the ribbon cable and jumper wires remain properly connected during use.
After securing the Raspberry Pi to the adapter board, place the white frame or enclosure around the back of the screen and the Pi assembly. This frame protects the components and gives the setup a finished look.
Connect the power supply to the display board's micro USB port or use a suitable power source for the Raspberry Pi 3. It is important to use a power supply that can provide sufficient current to power both the Pi and the touchscreen display reliably.
When you power on the system, the Raspberry Pi should boot up, and the touchscreen display will show the desktop environment. At this point, the hardware connection is complete, and you can move on to calibrating the touchscreen for accurate input.
Calibration is a critical step that aligns the touchscreen's input coordinates with the display output. Without calibration, the touchscreen may register touches inaccurately, causing the cursor or pointer to appear offset from where you actually touch. This misalignment can make the touchscreen frustrating or even unusable.
Calibration ensures that when you touch a specific point on the screen, the system correctly interprets that input and responds accordingly. This is especially important for applications requiring precise touch input, such as drawing, gaming, or user interface navigation.
Before starting the calibration process, ensure your Raspberry Pi 3 is running the latest version of its operating system. Keeping the system updated guarantees that you have the most recent drivers and software necessary for touchscreen functionality.
It is also helpful to close any unnecessary applications to avoid interference during calibration. A clean desktop environment allows the calibration tools to run smoothly and display the calibration interface clearly.
To calibrate the touchscreen, you need specialized software tools designed to measure and adjust the touchscreen's response. The most commonly used tool is a graphical calibration utility that guides you through touching specific points on the screen.
There are also more advanced calibration libraries and utilities available that provide fine-tuning options for sensitivity and accuracy. Installing these tools is straightforward and can be done through the Raspberry Pi's package management system.
Once the calibration tool is installed, launch it from the desktop environment. The tool will display a series of targets, usually crosses or dots, at various points on the screen, typically near the corners and center.
You will be prompted to touch each target as accurately as possible. The calibration software records the raw touch input data and compares it to the expected screen coordinates. This process allows the software to calculate correction parameters that align the touch input with the display output.
It is important to follow the on-screen instructions carefully and touch the targets precisely. Rushing or missing targets can result in poor calibration and inaccurate touch response.
After completing the calibration process, the software generates calibration parameters that must be saved to a configuration file. This step ensures that the calibration settings persist across reboots and are applied automatically whenever the Raspberry Pi starts.
Depending on the calibration tool used, the configuration file may be created or updated automatically, or you may need to manually copy the calibration data into the appropriate system file.
Once the calibration data is saved, reboot your Raspberry Pi to apply the new settings. After rebooting, test the touchscreen by touching various points on the screen and observing whether the pointer or cursor aligns correctly with your touch.
In some cases, the touchscreen may appear upside down or rotated incorrectly relative to your physical setup. This can happen if the display orientation does not match the default configuration.
To fix this, you can adjust the screen rotation settings in the Raspberry Pi's configuration files. By specifying the correct rotation angle, you can ensure that the display and touchscreen input are aligned with your physical orientation.
Common rotation angles include 0 degrees (default), 90 degrees (clockwise), 180 degrees (upside down), and 270 degrees (counterclockwise). After changing the rotation setting, reboot the Raspberry Pi to apply the change.
Even with careful assembly and calibration, you may encounter issues with your Raspberry Pi 3 touchscreen display. Understanding common problems and their solutions can save time and frustration.
If the touchscreen does not respond to touch input, first verify that all jumper wires are connected correctly and firmly to the GPIO pins. Loose or incorrect connections are a frequent cause of unresponsive touchscreens.
If the display remains blank or shows no image, check the ribbon cable connection. The ribbon cable must be fully inserted and secured with the locking clips. Also, ensure that the power supply is adequate and properly connected.
Calibration tools may sometimes fail to launch or crash unexpectedly. This can be due to missing dependencies, incorrect permissions, or conflicts with other software. Reinstalling the calibration software and running it with appropriate privileges often resolves these issues.
If the touchscreen input is offset or inaccurate after calibration, consider recalibrating carefully, ensuring you touch the calibration targets precisely. Also, verify that the calibration data is saved correctly and applied on reboot.
Once your touchscreen is connected and calibrated, you can explore various ways to enhance your Raspberry Pi projects. The touchscreen enables intuitive user interfaces for applications such as media centers, home automation controls, portable gaming consoles, and educational tools.
You can customize the desktop environment to be more touch-friendly by increasing icon sizes, enabling on-screen keyboards, and optimizing window layouts. Many software packages and programming libraries support touchscreen input, allowing you to create interactive applications with buttons, sliders, and gestures.
For developers, integrating the touchscreen with Python libraries or other programming languages opens up possibilities for custom graphical user interfaces tailored to specific project needs.
Connecting and calibrating the Raspberry Pi 3 touchscreen display is a rewarding process that transforms your Raspberry Pi into a versatile, interactive device. By carefully assembling the hardware—connecting the ribbon cable, jumper wires, and mounting the Pi to the display—you establish a solid foundation for touchscreen functionality.
Calibrating the touchscreen ensures accurate and responsive input, enhancing the user experience and enabling precise control. Adjusting screen rotation and troubleshooting common issues further refine the setup.
With a properly connected and calibrated touchscreen, your Raspberry Pi 3 becomes a powerful platform for a wide range of projects, from portable computers to smart home interfaces. The skills learned through this process empower you to create engaging, user-friendly applications that leverage the full potential of the Raspberry Pi touchscreen display.
The ribbon cable should be inserted with the blue side facing the circuit board, and the black clips on the connector should be fully pressed down to secure the cable. If the display does not show an image, recheck the connection and ensure the cable is fully seated.
Yes, the touchscreen display can be powered via its own micro USB power input. However, it is common to power both the Pi and the display from the same power supply by bridging the 5V and ground pins between the display and the Pi using jumper wires.
First, verify all jumper wires are connected correctly to the GPIO pins. Then, check that the touchscreen drivers are installed and up to date. Running calibration tools can also help fix responsiveness issues.
Calibration is usually a one-time process unless you change the display orientation, update the operating system, or notice inaccurate touch responses. Recalibrate if you experience persistent touch inaccuracies.
The official 7-inch touchscreen is compatible with Raspberry Pi models A+, B+, 2, 3, and later. Older models may lack the correct mounting holes or I2C support, which can limit touchscreen functionality.
