Replacing the LCD screen on your Dell Inspiron 17R laptop can seem like a daunting task, but with the right tools, careful preparation, and step-by-step guidance, you can do it yourself efficiently and safely. This comprehensive guide will walk you through the entire process of how do I replace my Inspiron 17R LCD screen, covering everything from initial preparation to reassembly, troubleshooting, and answering common questions.
To successfully replace your Inspiron 17R LCD screen, gather the following tools:
- Small Phillips head screwdriver
- Small flathead screwdriver or plastic scribe (for prying)
- Tweezers (optional but helpful)
- Replacement LCD screen compatible with your Inspiron 17R model
- Anti-static wrist strap (recommended to prevent static damage)
Before starting, ensure your laptop is powered off and unplugged from any power source. Remove the battery to avoid any electrical hazards. Work on a clean, flat surface with good lighting. Handle all components, especially the LCD screen and cables, with care to avoid damage.
Slide the latches to release and remove the battery from your Inspiron 17R. This is critical to ensure no power is running through the system during the repair.
Remove the screw securing the optical drive and slide the DVD drive out of the laptop. Then, loosen screws holding any access doors on the bottom to expose internal components.
Slide the hard drive out after removing its screws. Then, remove all screws on the bottom of the laptop, including those under the optical drive and any wafer screws.
Turn the laptop over and open it. Use a flathead screwdriver or plastic scribe to gently pry the keyboard from its tabs on the palm rest. Carefully turn the keyboard over and unplug the keyboard cable before removing it completely.
Unplug antenna cables connected to the wireless card. Remove the screws securing the wireless WLAN card and take it out.
Unplug all palmrest cables and remove screws securing the palmrest touchpad. Lift the palmrest off the laptop.
Unplug all motherboard cables and remove screws securing the motherboard. Carefully lift the motherboard out to access the LCD cable. Unplug the LCD cable from the motherboard.

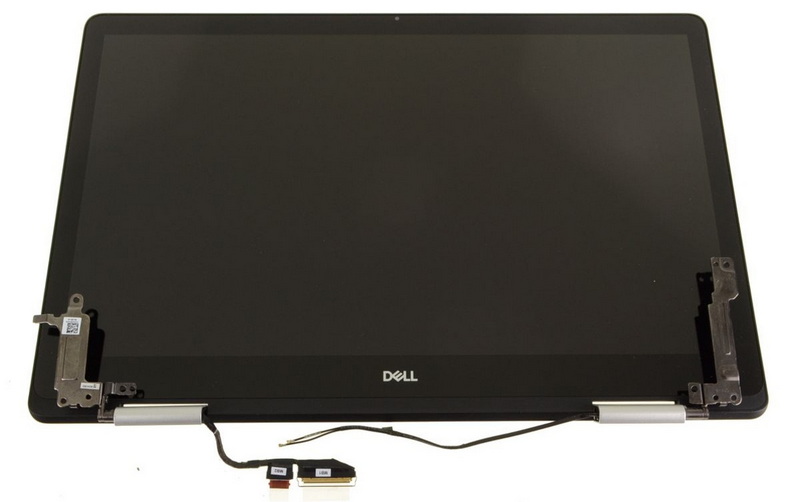

Remove screws securing the left and right hinges. Lift the entire LCD display assembly off the laptop base.
Using a plastic scribe or your fingers, carefully unsnap the LCD bezel by working around the edges. Be gentle to avoid breaking the plastic clips.
Remove screws holding the hinge covers and then remove the covers themselves.
Remove screws securing the LCD screen to the back cover. Carefully lift the screen out and turn it over to access the LCD cable connection on the back.
Peel off any tape securing the LCD cable connector. Unlock the connector by lifting its metal bracket and unplug the cable from the screen.

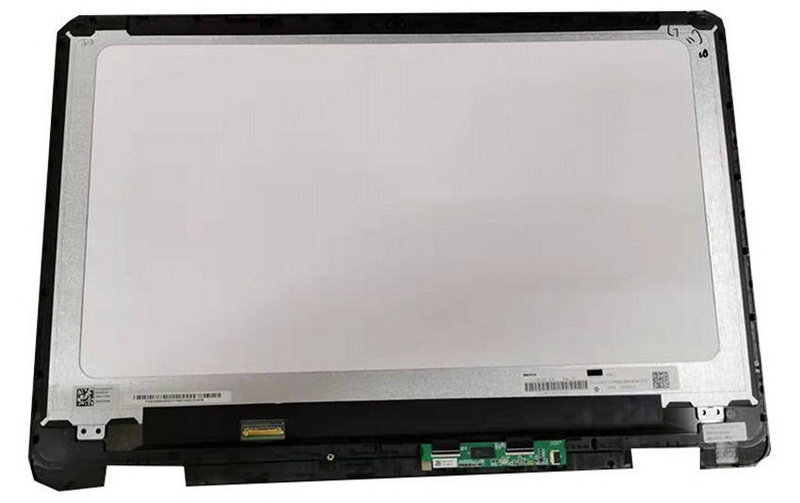

Connect the LCD cable to the new screen, secure it with the metal bracket, and tape if necessary. Position the new screen into the back cover and secure it with screws.
Reverse the disassembly steps: replace hinge covers and screws, snap the bezel back on, attach the LCD assembly to the laptop base, secure hinges, reinstall motherboard, palmrest, wireless card, keyboard, hard drive, optical drive, access doors, and battery.
- Use a compatible replacement screen by checking the part number on the back of your original LCD panel.
- Handle the LCD screen and cables gently to avoid damage.
- Keep track of all screws and their locations during disassembly.
- Work slowly and methodically to avoid missing any steps.
- Use an anti-static wrist strap to protect internal components from static electricity.
- Ensure the laptop is completely powered off and unplugged before starting.
- Screen does not turn on: Check the LCD cable connection is secure and undamaged.
- Flickering or lines on screen: Ensure the screen is properly seated and the cable is not loose or damaged.
- Backlight not working: Verify the inverter (if applicable) and screen compatibility.
- Laptop does not boot after reassembly: Double-check all internal connections, especially the motherboard and battery.
Replacing your Inspiron 17R LCD screen is a manageable DIY project that can save you significant repair costs. By following the detailed steps on how do I replace my Inspiron 17R LCD screen, preparing properly, and working carefully, you can restore your laptop's display to full functionality. Always use the correct replacement parts and tools, and take your time to ensure a successful repair.
You will need a small Phillips head screwdriver, a small flathead screwdriver or plastic scribe, tweezers (optional), and an anti-static wrist strap is recommended.
Check the part number on the back of your original LCD screen. It usually starts with "CN" followed by a combination of letters and numbers. Search this part number online to find a compatible replacement.
Yes, as long as you power off the laptop, remove the battery, and handle components carefully, it is safe to replace the screen yourself.
For someone with basic technical skills, it usually takes between 30 minutes to an hour.
Double-check all cable connections and ensure the screen is compatible with your model. If the problem persists, the replacement screen might be defective or there could be an issue with the LCD cable or motherboard.
