Touchscreen display modules have become ubiquitous in modern technology, seamlessly integrating visual display and touch interaction into a single interface. From smartphones and tablets to industrial machines and automotive systems, these modules enable intuitive, direct user engagement with devices. This comprehensive article explores the working principles, technologies, applications, and future trends of touchscreen display modules, providing a detailed understanding of how they function and their significance in today's digital world.
A touchscreen display module is a specialized component that combines a display screen with a touch-sensitive layer, allowing users to interact with devices by touching the screen directly. Unlike traditional displays that only show images or information, touchscreen modules detect and respond to touch inputs such as taps, swipes, and gestures, converting them into commands that control the device's functions[1][8].
The module typically consists of three core parts: the display panel, the touch sensor, and the controller. The display panel is responsible for rendering images, videos, and interfaces. The touch sensor detects the location and nature of the touch on the screen surface. The controller processes the sensor's electrical signals and translates them into instructions that the device's software can execute[1][4].
The fundamental working principle of touchscreen display modules involves detecting changes in electrical properties caused by a user's touch and interpreting these changes to determine the touch location and gesture type.
When a user touches the screen, the touch sensor registers this interaction by sensing variations in electrical signals such as capacitance, resistance, or interruption of light beams, depending on the technology used. These signals are then sent to the controller, which processes them and relays commands to the device's software to perform the desired action, such as opening an app, zooming an image, or typing on a virtual keyboard[1][4].
The touch sensor layer is designed to detect physical contact or proximity. For example, in capacitive touchscreens, the sensor detects changes in the electrostatic field caused by the conductive properties of the human finger. In resistive touchscreens, pressure causes two conductive layers to make contact, altering electrical resistance[4][6].
The controller is a dedicated hardware component that receives raw electrical signals from the touch sensor. It filters noise, identifies the exact coordinates of the touch point, and interprets multi-touch gestures if supported. The controller then converts this data into digital signals that the device's operating system or application can understand and respond to[1][4].
Once the controller sends the processed touch data, the software layer interprets the input and triggers corresponding actions. This can include UI responses like button presses, scrolling, zooming, or more complex commands in specialized applications[4].
Several touchscreen technologies exist, each with unique mechanisms for detecting touch inputs. The most common types used in modern touchscreen display modules include resistive, capacitive, projected capacitive, infrared, and surface acoustic wave technologies.
Resistive touchscreens consist of two flexible layers coated with conductive material separated by tiny spacer dots. When the screen is pressed, the top layer bends to touch the bottom layer, causing a change in electrical resistance. This change is detected and processed to determine the touch location[4][6].
Resistive screens are cost-effective and can be operated with fingers, styluses, or gloves. However, they generally support only single-touch input and have lower sensitivity and clarity compared to capacitive screens. They are commonly used in industrial and specialized applications where input flexibility is necessary[4].

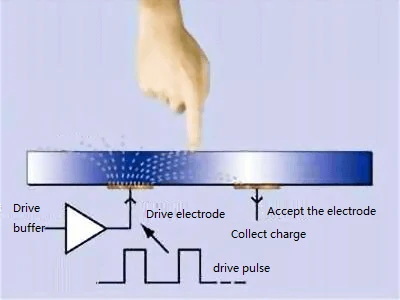

Capacitive touchscreens detect touch by sensing changes in the screen's electrostatic field when a conductive object, such as a finger, touches the surface. The screen is coated with a transparent conductor like indium tin oxide (ITO). Touching the screen causes a measurable change in capacitance, which the controller interprets to locate the touch point[4][6][9].
Capacitive screens are highly sensitive, support multi-touch gestures, and offer excellent clarity. They are widely used in smartphones, tablets, and consumer electronics. However, they may not respond to non-conductive objects like regular styluses or gloves without special adaptations[4][6].
Projected capacitive touchscreens are an advanced form of capacitive technology that use a grid of electrodes arranged in rows and columns on a glass panel. When a finger approaches the screen, it disturbs the electric field projected by these electrodes, allowing precise detection of touch location and multiple simultaneous touches[4][7].
P-Cap screens provide high accuracy, durability, and multi-touch support, making them the standard in modern mobile devices and high-end industrial panels[4].
Infrared touchscreens utilize arrays of infrared LEDs and photodetectors positioned along the edges of the screen. These create invisible light beams across the display surface. When a finger or object interrupts the beams, the sensors detect the location of the interruption and register the touch[4][6].
IR touchscreens are durable and can detect any object, including gloved fingers or styluses. They maintain excellent image quality since no additional layers are placed over the display. However, they are typically used in larger displays and indoor environments due to sensitivity to ambient light[4].
SAW technology employs ultrasonic waves transmitted across the screen surface. When the screen is touched, part of the wave is absorbed or reflected, and sensors detect this disturbance to determine the touch location[4][6].
SAW touchscreens offer high clarity and responsiveness but are more expensive and less resistant to contaminants like dust and water, limiting their use in harsh environments[4].
Touchscreen display modules have revolutionized human-computer interaction and are embedded in a wide range of devices across multiple industries.
In consumer electronics, they are the core interface for smartphones, tablets, smartwatches, and digital cameras, enabling intuitive navigation and control[1][5][8]. Automotive systems use touch modules in infotainment and navigation displays, enhancing driver convenience and safety[5]. Retail and hospitality sectors employ interactive kiosks and point-of-sale systems with touchscreens to streamline customer service[5].
Industrial control panels and medical equipment also rely on robust touchscreen modules for precise input and monitoring in demanding environments[1][5]. The versatility and ease of use of touchscreen modules make them indispensable in modern technology.
Touchscreen display modules offer several benefits that have driven their widespread adoption:
They provide an intuitive and direct interaction method, allowing users to operate devices naturally without external peripherals[1][8]. The integration of display and input reduces device size and complexity, enabling sleek and modern designs[1][8]. Advances in technology have improved response speed, accuracy, and multi-touch capability, resulting in smooth and natural user experiences[1][3][4]. Their adaptability allows use in diverse applications, from consumer gadgets to industrial controls[1][5].
The evolution of touchscreen display modules continues with ongoing research and development focused on enhancing functionality and user experience.
One promising advancement is the integration of haptic feedback, which provides tactile sensations to simulate physical button presses or textures, enriching user interaction[3]. Foldable and flexible touchscreen displays are emerging, allowing devices to change form factors dynamically, combining portability with large screen real estate[3].
Improvements in responsiveness and accuracy aim to detect even the lightest touches and complex gestures with minimal latency[3]. Durability is also being enhanced through strengthened glass, scratch-resistant coatings, and water resistance to extend device lifespan[3][5].
Advanced gesture recognition and 3D touch technologies are enabling pressure-sensitive inputs and more nuanced controls, expanding the possibilities of touch interaction beyond traditional taps and swipes[3].
Touchscreen display modules are a cornerstone of modern technology, seamlessly blending visual output and user input into a unified interface. By leveraging various sensing technologies such as resistive, capacitive, infrared, and surface acoustic wave methods, these modules detect and interpret touch interactions with high precision and responsiveness.
Their widespread adoption across consumer electronics, automotive, industrial, and medical applications underscores their versatility and importance. Continuous innovations in materials, sensing techniques, and integration promise even more immersive, durable, and adaptive touchscreen experiences in the future.
As technology progresses, touchscreen display modules will remain vital in shaping how humans interact with digital devices, making technology more accessible, intuitive, and engaging.
Resistive touchscreens detect touch through pressure that brings two conductive layers into contact, allowing use with any object but generally supporting only single-touch input. Capacitive touchscreens detect changes in the electrostatic field caused by conductive objects like fingers, offering higher sensitivity, multi-touch support, and better clarity but requiring conductive input[4][6].
Capacitive touchscreens typically do not respond well to regular gloves because they block the electrical interaction needed for touch detection. However, specialized capacitive gloves or resistive touchscreens can be used effectively with gloves[8][6].
Projected capacitive touchscreens provide high accuracy, multi-touch capability, durability, and excellent optical clarity. They are widely used in smartphones and tablets due to their responsiveness and robustness[4][7].
Infrared touchscreens use arrays of infrared LEDs and photodetectors around the screen edges. Touching the screen interrupts the infrared light beams, and the system calculates the touch location based on which beams are broken[4][6].
Future improvements include haptic feedback integration for tactile sensations, foldable and flexible displays for new device form factors, enhanced responsiveness and accuracy, increased durability with stronger materials, and advanced gesture and 3D touch recognition for richer interactions[3].
