A resistive touchscreen display is a widely used type of touch-sensitive interface that detects user input through physical pressure applied to its surface. This technology has been fundamental in human-computer interaction for decades, offering a versatile and cost-effective solution for various applications ranging from industrial controls to consumer electronics. This article explores in depth what a resistive touchscreen display is, how it works, its components, advantages, disadvantages, and its relevance in today's technology landscape.
A resistive touchscreen display consists of two thin, flexible layers coated with a resistive material, separated by a small gap filled with air or microdots. The top layer is usually a flexible plastic film, while the bottom layer can be either glass or another plastic substrate. Both layers have a transparent conductive coating, typically made of Indium Tin Oxide (ITO), which allows electrical current to flow across their surfaces.

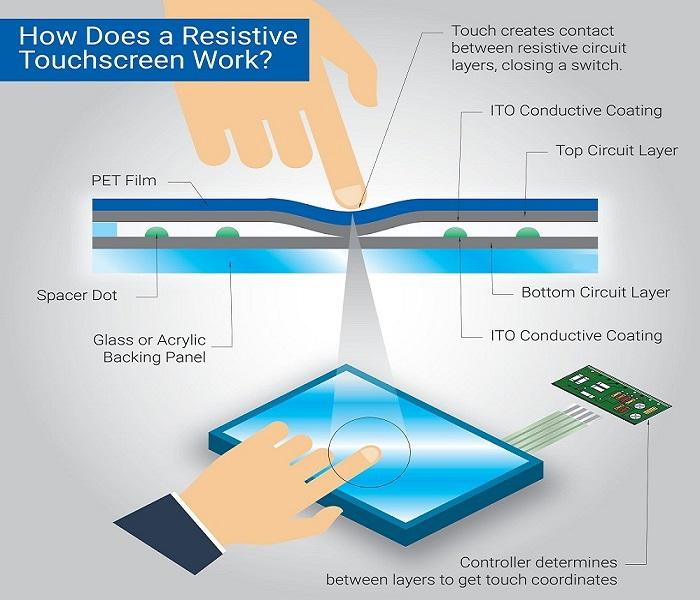

When the screen is untouched, the two layers remain separated by the gap. When a user applies pressure to the screen, the top layer bends and makes contact with the bottom layer at the point of touch. This contact causes a change in electrical resistance, which the touchscreen controller detects and interprets as a touch event. Because the technology relies on pressure, it can be operated with a finger, stylus, gloved hand, or any other object, making it highly versatile.
The operation of a resistive touchscreen is based on the principle of electrical resistance and pressure detection. The two conductive layers form a voltage gradient along the X and Y axes. When pressure causes the layers to touch, the controller measures the voltage at the contact point to determine the precise coordinates of the touch.
Initially, a uniform voltage gradient is applied across one of the conductive layers, for example, the bottom layer. When the top layer is pressed down and contacts the bottom layer, the voltage at the point of contact is measured by the controller, which corresponds to the X coordinate. Then, the voltage gradient is applied to the other layer (the top layer), and the voltage at the contact point is measured again to determine the Y coordinate. This process happens rapidly, typically within milliseconds, allowing the device to register the exact location of the touch.
There are different wiring configurations for resistive touchscreens, the most common being the 4-wire and 5-wire types. The 4-wire resistive touchscreen uses four electrodes, two for each axis, to detect touch coordinates. It is simpler and more cost-effective but may have slightly lower accuracy. The 5-wire resistive touchscreen adds an extra wire for improved durability and accuracy, as it measures voltage from the bottom layer only, making it less susceptible to wear on the top layer.

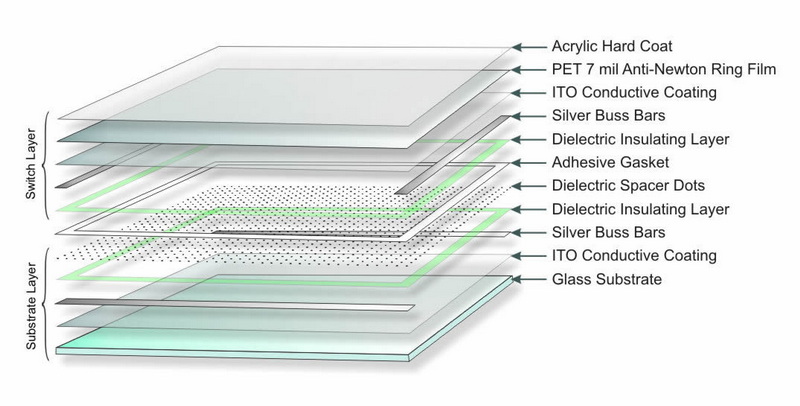

The main components of a resistive touchscreen include:
- Top Flexible Layer: Usually made of a transparent plastic film coated with a conductive material. This is the layer that users physically touch.
- Bottom Rigid Layer: Made of glass or plastic, also coated with a conductive material. It provides structural support and forms the second electrode.
- Spacer Dots: Tiny insulating dots placed between the two layers to keep them apart when not pressed, preventing false touches.
- Controller: An electronic circuit that applies voltage gradients, detects changes in resistance, calculates touch coordinates, and communicates with the device's processor.
Resistive touchscreens offer several benefits that make them suitable for specific environments and applications.
One significant advantage is their versatility in input methods. Unlike capacitive touchscreens, which require conductive input such as a finger or specialized stylus, resistive screens respond to any object that applies pressure. This means users can operate them with gloved hands, fingernails, or any stylus, which is particularly useful in industrial or medical settings.
Cost-effectiveness is another key benefit. Resistive touchscreens are generally less expensive to manufacture than capacitive screens, making them ideal for budget-sensitive projects or devices.
They also exhibit good durability against contaminants such as dust, dirt, and moisture. Because the technology relies on pressure rather than electrical properties of the touch object, resistive screens maintain functionality in environments where capacitive screens might fail.
Resistive touchscreens can achieve high resolution, sometimes up to 4096 x 4096 pixels, allowing for precise touch control. Additionally, they typically consume less power than capacitive touchscreens due to their simpler construction and operation.
Despite their advantages, resistive touchscreens have some limitations.
One drawback is the need for physical pressure to register a touch, which can make the user experience less smooth compared to capacitive screens that respond to light touches. This can also lead to faster wear and tear on the flexible top layer, potentially reducing the lifespan of the screen.
Resistive touchscreens generally support only single-touch input, although some modern variants have introduced limited multi-touch capabilities. This restricts the use of gestures like pinch-to-zoom, which are common on capacitive devices.
The flexible top layer can be prone to scratches and damage, which may affect visibility and touch accuracy over time. Additionally, resistive screens tend to have lower light transmission rates, resulting in reduced brightness and clarity compared to capacitive screens, especially under bright ambient light.
The concept of resistive touch technology dates back to the early 20th century. In 1923, French inventor Émile Dufresne proposed a "conductive interaction panel" that used a conductive metal layer beneath a glass plate to detect touch by electrical signals. Although this early design was not widely adopted at the time, it laid the groundwork for later resistive touchscreen developments.
The modern resistive touchscreen technology began to take shape in the 1960s and 1970s, evolving through improvements in materials and manufacturing processes. The introduction of Indium Tin Oxide (ITO) coatings allowed for transparent conductive layers, enabling the creation of touchscreens that could be integrated with display panels.
Over the decades, resistive touchscreens have been refined to improve sensitivity, durability, and resolution. Innovations such as anti-glare coatings and enhanced scratch resistance have extended their usability in various environments.
Resistive touchscreens are widely used in many industries due to their robustness and versatility.
In industrial settings, they are favored for control panels and human-machine interfaces (HMIs) because they can be operated with gloves and withstand harsh conditions involving dust, moisture, and temperature variations.
Medical devices often use resistive touchscreens for similar reasons, as they allow precise input with a stylus or gloved hand and can be easily cleaned and sterilized.
Point-of-sale (POS) terminals, kiosks, and ATM machines frequently employ resistive touchscreens because of their cost-effectiveness and reliability.
Consumer electronics such as early smartphones, GPS devices, and handheld gaming consoles have also utilized resistive touch technology, although capacitive screens have largely supplanted them in this market due to superior multi-touch support and sensitivity.
While capacitive touchscreens dominate the consumer market, resistive touchscreen technology continues to evolve. Research into new materials like graphene and flexible substrates promises to enhance durability and responsiveness while maintaining low production costs.
Advancements in multi-touch capabilities for resistive screens are also underway, potentially expanding their functionality in applications that require gesture recognition.
The integration of resistive touchscreens with flexible and foldable displays may open new possibilities in wearable technology and other emerging fields.
A resistive touchscreen display is a pressure-sensitive interface composed of two conductive layers separated by a gap. When pressure is applied, the layers contact each other, causing a change in electrical resistance that the device interprets as a touch input. This technology offers versatility in input methods, cost-effectiveness, and durability in challenging environments, making it suitable for industrial, medical, and certain consumer applications.
Despite some limitations such as the need for physical pressure, lower sensitivity, and limited multi-touch support, resistive touchscreens remain relevant due to their unique advantages. Ongoing innovations in materials and design continue to improve their performance and expand their potential uses.
Yes, resistive touchscreens respond to pressure and can be operated with gloves, styluses, fingernails, or any object that applies pressure to the screen. This makes them ideal for environments where users must wear gloves, such as medical or industrial settings[2][4][7].
Traditional resistive touchscreens, such as 4-wire and 5-wire types, generally support only single-touch input. However, some modern resistive multi-touch variants can detect multiple touch points simultaneously, enabling limited multi-touch functionality[4][5][7].
Resistive touchscreens can be very accurate because they detect the exact point where two layers make contact. In some cases, they offer higher precision than capacitive screens, which detect changes in an electrostatic field rather than physical contact points[7].
The lifespan varies depending on quality and usage, but high-quality resistive touchscreens can endure over 200,000 touches. Some 4-wire resistive screens guarantee around 12 million touches, while 5-wire types can last up to 37 million touches before significant wear occurs[5][9].
A 4-wire resistive touchscreen uses four electrodes to detect touch coordinates and is simpler and less expensive but may have lower accuracy. A 5-wire resistive touchscreen uses five wires, with four on the bottom layer and one on the top, providing enhanced accuracy and durability by measuring voltage from the bottom layer only[3][9].
