Character LCD screens are a fundamental component in many electronic devices, providing a simple and efficient way to display alphanumeric characters and symbols. Understanding how does a character LCD screen work involves exploring the technology behind liquid crystal displays, the controller mechanisms, and the way characters are formed and displayed. This article will delve deeply into these aspects, explaining the structure, operation, and customization capabilities of character LCDs.
x
A character LCD screen is a type of liquid crystal display specifically designed to show characters—letters, numbers, and symbols—in a fixed grid format. Unlike graphical LCDs, which can display arbitrary images pixel by pixel, character LCDs display a limited number of characters arranged in rows and columns, such as 16×2 or 20×4 configurations. Each character is formed within a matrix of pixels, typically 5×8 or 5×7 dots.
At the core of a character LCD is the liquid crystal technology. LCD stands for Liquid Crystal Display, which uses the light-modulating properties of liquid crystals combined with polarizing filters to control the passage of light and create visible images.
- Liquid crystals themselves do not emit light but manipulate light from a backlight or reflector.
- The display consists of several layers: two polarized glass layers sandwiching the liquid crystal layer.
- When an electric field is applied, the orientation of the liquid crystals changes, affecting the polarization of light passing through.
- This change either blocks or allows light to pass through the second polarizer, creating dark or light pixels on the screen.
This principle is the foundation of how does a character LCD screen work, as the pixels that form characters are controlled by selectively applying voltage to specific segments of the liquid crystal layer.
Most character LCDs use the twisted nematic effect, where liquid crystals are naturally twisted 90 degrees. Without voltage, the crystals rotate the polarized light, allowing it to pass through the second polarizer, making the pixel appear bright. When voltage is applied, the crystals untwist, blocking the light and making the pixel appear dark. This contrast forms the visible characters on the screen.
Each character on a character LCD is displayed within a fixed-size grid of pixels, commonly 5 columns wide and 8 rows tall. For example:
- A 16×2 LCD can display 16 characters per line and has 2 lines.
- Each character is made up of 40 pixels (5×8).
- The pixels are arranged in small rectangles that can be individually controlled to create the shape of letters and symbols.
A key component that enables how does a character LCD screen work is the built-in controller chip, most commonly the Hitachi HD44780 or compatible variants.
- This controller contains a character generator ROM with a built-in font table storing predefined character bitmaps.
- It receives commands and data from a microcontroller or processor and controls which pixels within each character cell are activated.
- The controller also manages the timing and refreshing of the display.
Besides the built-in characters, character LCDs allow users to create custom characters by programming the CGRAM (Character Generator RAM).
- CGRAM typically holds up to 8 custom characters.
- Each custom character is defined by an 8-byte pattern corresponding to the 5×8 pixel matrix.
- Users can upload custom bitmaps to CGRAM and then display these characters by referencing their CGRAM address.
When powered on, the LCD controller initializes the display, setting the number of lines, font size, and clearing the screen.

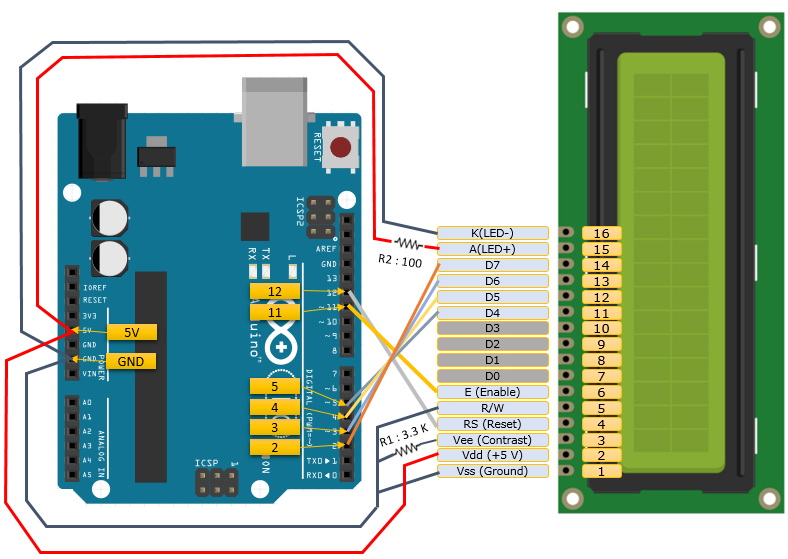

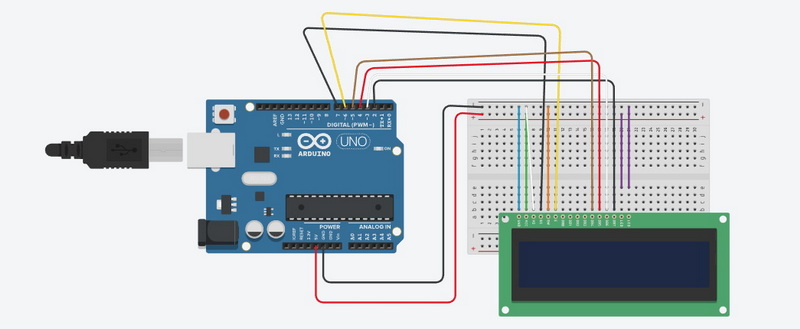

The microcontroller sends instructions and data to the LCD via a set of pins:
- RS (Register Select): Selects whether the data is a command or character data.
- RW (Read/Write): Selects reading or writing mode.
- EN (Enable): Enables data transfer.
- Data pins (usually 4 or 8 bits): Carry the actual data or command.
- The controller reads the data byte sent by the microcontroller.
- It looks up the corresponding character pattern in the ROM or CGRAM.
- The pattern defines which pixels in the 5×8 matrix should be turned on (dark) or off (light).
- The controller applies voltage to the liquid crystal segments accordingly.
- The pixels block or allow light to pass through, forming the visible character.
The LCD controller continuously refreshes the screen by scanning through rows and columns, updating the pixel states to maintain a stable image.
- Simplicity: Easier to interface and program compared to graphical LCDs.
- Low Power Consumption: Liquid crystal technology uses minimal power.
- Readability: High contrast and good visibility even in direct sunlight.
- Customization: Ability to create custom characters for special symbols.
- Cost-Effective: Widely available and inexpensive for many applications.
Character LCDs come in various standard sizes, such as:
- 8×1, 8×2
- 16×1, 16×2
- 20×2, 20×4
- 40×4
The first number indicates characters per line, and the second number indicates the number of lines.
Creating custom characters enhances the display's functionality by allowing unique symbols or icons.
- Design the character on a 5×8 grid, marking which pixels should be on or off.
- Convert this design into a binary pattern representing each row.
- Upload the pattern to the LCD's CGRAM using specific commands.
- Display the custom character by writing its CGRAM address to the display.
This process is often done through microcontroller code libraries that simplify communication with the LCD.
Character LCDs are used in:
- Consumer electronics (microwaves, calculators, clocks)
- Industrial equipment (instrument panels, control systems)

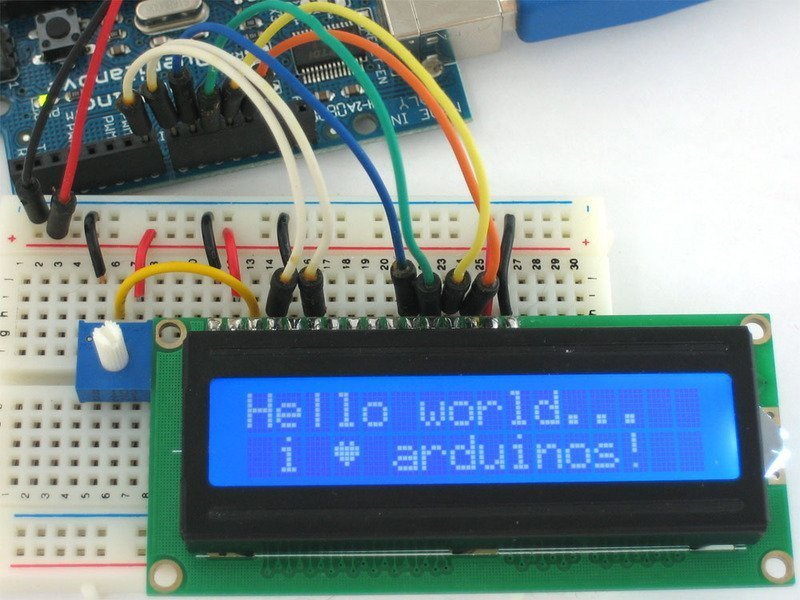

- Embedded systems (Arduino projects, microcontroller interfaces)
- Medical devices
- Telecommunication devices
Their ease of use and reliability make them ideal for displaying status messages, menus, and simple data.
Understanding how does a character LCD screen work reveals the elegant use of liquid crystal technology combined with smart controller chips to display readable characters efficiently. From the twisted nematic effect controlling light polarization to the controller's management of pixel matrices and custom character generation, character LCDs provide a robust and cost-effective solution for many display needs. Their simplicity, low power consumption, and customization options ensure they remain relevant in various applications despite the rise of more complex graphical displays.
A character LCD displays predefined characters in a fixed grid (e.g., 16×2), while a graphical LCD can control individual pixels to display arbitrary images and graphics.
Typically, you can create up to 8 custom characters simultaneously, stored in the CGRAM of the LCD controller.
The HD44780 controller manages the display operations, including character generation, pixel control, and communication with the microcontroller.
Contrast is usually adjusted by varying the voltage on the LCD's contrast pin (Vo), often using a potentiometer.
Yes, the character set programmed into the controller can include various language characters, depending on the font table used.
