In modern vehicles, the integration of LCD screens with navigation systems has revolutionized the driving experience by providing drivers with clear, interactive, and real-time information. Understanding how an LCD screen interfaces with the navigation system involves exploring the hardware connections, communication protocols, software integration, and user interaction mechanisms that work together to deliver seamless navigation functionality.

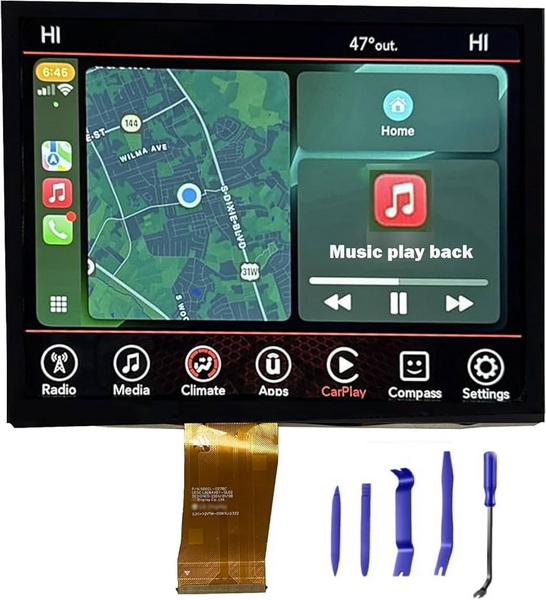

An LCD (Liquid Crystal Display) screen in a navigation system serves as the visual interface that displays maps, routes, vehicle information, and interactive controls. These screens are typically high-resolution TFT (Thin-Film Transistor) LCDs, offering sharp images, vibrant colors, and responsive touch capabilities. The LCD screen replaces traditional analog gauges and physical buttons, providing a centralized hub for navigation, media, and vehicle settings.

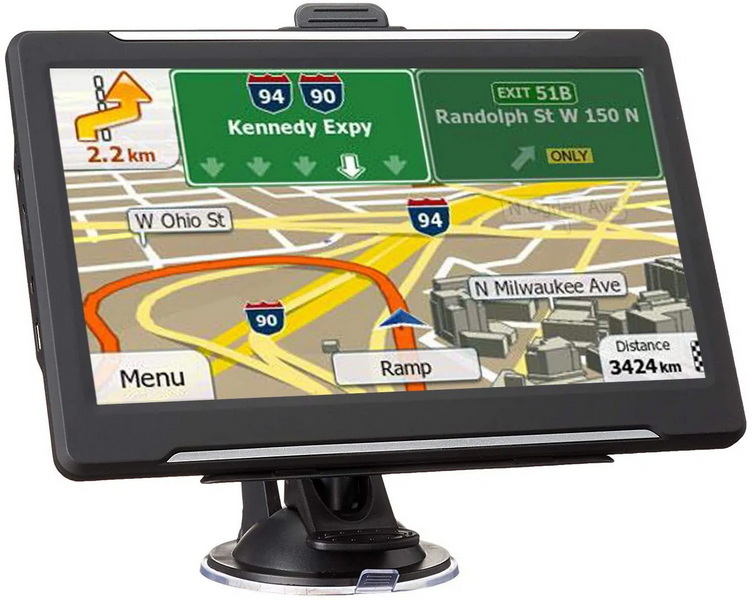

The LCD screen displays real-time maps with turn-by-turn directions, traffic updates, points of interest, and route options. It allows users to interact with the navigation system via touch inputs, voice commands, or steering wheel controls. This interaction enables destination input, route adjustments, zooming in and out of maps, and accessing additional vehicle information.
The physical connection between the LCD screen and the navigation system's processing unit is crucial. Several interface technologies are used depending on the screen size, resolution, and system requirements.
- Display Interfaces: Common LCD interfaces include RGB, SPI (Serial Peripheral Interface), MCU parallel, LVDS (Low-Voltage Differential Signaling), and MIPI DSI. For automotive navigation systems, high-speed interfaces like LVDS or MIPI DSI are preferred due to their ability to handle high-resolution video data with minimal electromagnetic interference.
- Touchscreen Integration: Most navigation LCDs are equipped with capacitive or resistive touchscreens. The touch sensor communicates touch events to the navigation system's processor, allowing user interaction.
- Backlight and Power: The LCD screen includes a backlight module for visibility under various lighting conditions and requires proper power management integrated with the vehicle's electrical system.
The navigation system's processor sends image data and receives touch inputs via communication protocols tailored for high efficiency and reliability.
- Data Transfer: The processor transfers frame buffer data to the LCD controller using the chosen interface (e.g., LVDS or RGB). This data represents the visual content like maps and UI elements.
- Touch Data: Touchscreen controllers communicate touch coordinates and gestures back to the processor via protocols such as I2C or SPI.
- Control Signals: Additional control signals manage screen brightness, sleep modes, and calibration.
The navigation system software handles rendering maps, user interface elements, and processing user inputs to update the display dynamically.
- Graphics Rendering: The navigation software renders high-resolution maps and overlays navigation cues like arrows, street names, and traffic alerts.
- User Interface (UI): The UI is designed for ease of use, with large buttons, swipe gestures, and voice command integration to minimize driver distraction.
- Real-Time Data: Integration with GPS receivers and real-time traffic services ensures the displayed information is current and accurate.
- Multi-Display Coordination: Some systems use multiple LCDs (e.g., a central display and instrument cluster display) connected via high-speed Ethernet to share navigation data seamlessly.
The LCD screen facilitates intuitive user interaction through:
- Touch Input: Users can tap, swipe, pinch to zoom, and drag to interact with maps and menus.
- Voice Commands: Voice recognition systems allow hands-free control of navigation functions.
- Steering Wheel Controls: Buttons on the steering wheel can manipulate navigation without taking hands off the wheel.
- Gesture Recognition: Advanced systems support gesture controls to enhance safety.
The quality of the LCD screen directly impacts the clarity of the navigation information. High pixel density ensures that map details, street names, and icons are sharp and easy to read at a glance. Automotive-grade LCDs are designed to maintain color accuracy and contrast under varying lighting conditions, which is critical for safe driving.
How does a LCD screen interface with the navigation system also involves minimizing latency between input commands and visual updates. A responsive system ensures that when a driver interacts with the touchscreen or voice commands, the navigation display updates immediately without lag, which is essential for real-time decision-making on the road.
Automotive LCD screens and their associated electronics must be optimized for low power consumption to avoid draining the vehicle's battery. Additionally, thermal management is crucial since LCDs and processors generate heat during operation, and automotive environments can experience extreme temperatures. Proper heat dissipation mechanisms ensure longevity and consistent performance.
Modern navigation systems do not operate in isolation. The LCD screen often interfaces with other vehicle systems such as the audio system, climate control, and advanced driver-assistance systems (ADAS). This integration allows for unified control and display of various functions, enhancing the overall user experience.
- Enhanced Visual Clarity: High-resolution LCDs provide sharp, colorful maps and clear route guidance.
- Interactive Control: Touchscreen interfaces enable quick and intuitive navigation adjustments.
- Real-Time Updates: Integration with live traffic data improves route efficiency and safety.
- Multifunctional Displays: Besides navigation, LCDs manage media, vehicle diagnostics, and communication.
- Safety Features: Integration with driver assistance systems provides alerts and warnings directly on the screen.
- Screen Size and Visibility: Balancing screen size for readability without causing distraction.
- Glare and Lighting: Ensuring screen visibility in direct sunlight and nighttime conditions via adaptive brightness and anti-glare coatings.
- System Latency: Minimizing delay between user input and screen response.
- Durability: Automotive LCDs must withstand temperature extremes and vibrations.
- Software Compatibility: Ensuring that software updates and navigation data formats remain compatible with the LCD hardware over the vehicle's lifespan.
As automotive technology advances, the interface between LCD screens and navigation systems is expected to evolve with:
- Higher Resolution and OLED Displays: Offering better contrast ratios and wider viewing angles.
- Augmented Reality (AR) Integration: Overlaying navigation cues directly onto the real-world view, enhancing situational awareness.
- Artificial Intelligence (AI): Providing predictive route guidance and personalized navigation experiences.
- Wireless Connectivity: Enabling seamless updates and integration with smartphones and cloud services.
- Flexible and Curved Displays: Improving ergonomics and aesthetics inside the vehicle cabin.
Understanding how does a LCD screen interface with the navigation system reveals a complex yet elegant integration of hardware, communication protocols, software, and user interaction design. The LCD screen acts as the critical visual and interactive element that transforms raw navigation data into a user-friendly experience. Through high-speed interfaces, responsive touchscreens, and sophisticated software, modern vehicles offer drivers clear, real-time navigation guidance that enhances safety, convenience, and driving pleasure. As technology evolves, LCD screens in navigation systems will continue to advance, incorporating higher resolutions, better connectivity, and smarter interaction methods, ultimately shaping the future of in-vehicle navigation and driver assistance.
Common interfaces include LVDS, RGB parallel, SPI, and MIPI DSI. LVDS and MIPI DSI are favored for their high-speed data transfer and noise immunity, essential for high-resolution automotive displays.
The touchscreen is layered on top of the LCD panel and communicates touch events to the navigation processor via protocols like I2C or SPI. Capacitive touchscreens detect finger proximity and support multi-touch gestures, while resistive touchscreens respond to pressure.
The navigation system's processor receives GPS and traffic data, renders maps and directions using software, and sends the visual output to the LCD screen in real-time, updating the display dynamically as the vehicle moves.
Yes, many modern navigation systems integrate voice recognition, allowing drivers to input destinations and control navigation functions hands-free, complementing the touchscreen interface.
Automotive LCDs use adaptive brightness controls, anti-glare coatings, and sometimes transflective technology to maintain screen readability in bright sunlight and reduce eye strain during nighttime driving.
