Liquid Crystal Displays (LCDs) are ubiquitous in modern electronic devices, from smartphones and laptops to televisions and digital monitors. Understanding how does LCD screen activate pixels is essential to grasp how these devices create vibrant, sharp images through millions of tiny controllable points called pixels. This article explores the intricate process behind pixel activation in LCD screens, breaking down the technology, components, and mechanisms involved.
An LCD is a flat-panel display technology that uses liquid crystals to modulate light and produce images. Unlike older cathode-ray tube (CRT) displays, LCDs rely on controlling light transmission through layers of liquid crystal molecules sandwiched between polarizing filters and glass substrates.

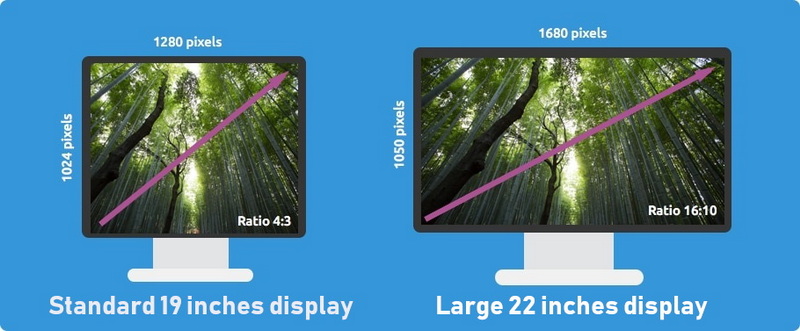

Each pixel in an LCD is composed of three sub-pixels: red, green, and blue (RGB). These sub-pixels combine to create the full spectrum of colors visible on the screen. The pixels are arranged in a grid or matrix, with millions of pixels working together to form detailed images.
The core of LCD technology lies in the liquid crystal layer. Liquid crystals have properties between those of liquids and solid crystals. They can change their molecular orientation when subjected to an electric field, which directly affects how they interact with polarized light.
LCDs use two polarizing filters placed perpendicular to each other. Without the liquid crystal layer, light passing through the first polarizer would be blocked by the second. However, the twisted arrangement of liquid crystals rotates the polarization of light, allowing it to pass through the second filter and be visible to the viewer.
When voltage is applied to a pixel, the electric field causes the liquid crystal molecules to untwist and align along the field. This stops the rotation of polarized light, so the second polarizer blocks the light, making the pixel appear dark.
Each pixel is controlled by applying a voltage across the liquid crystal layer. By varying the voltage, the degree of molecular untwisting changes, adjusting the amount of light passing through. This modulation enables the display of different shades and colors by controlling the brightness of each sub-pixel.
In passive matrix LCDs, pixels are controlled by intersecting conductive rows and columns. Activating a pixel involves applying voltage at the intersection of a row and column. However, this method has slower response times and less precise control, leading to lower image quality.
Modern LCDs predominantly use active matrix technology, where each pixel is paired with a thin-film transistor (TFT) and a capacitor. This setup allows precise control of the voltage applied to each pixel, enabling faster response times, sharper images, and better color reproduction.
- The display is organized into rows (gate lines) and columns (data lines).
- A row line is activated, turning on the transistors in that row.
- Voltage signals corresponding to the image data are sent through the column lines.
- Each transistor charges the capacitor at its pixel, maintaining the voltage until the next refresh cycle.
- This stable voltage controls the orientation of the liquid crystals at each pixel, modulating light accordingly.
A uniform backlight (usually LEDs) emits white light that passes through the LCD layers.
The light is polarized in one direction by the first polarizing filter.
- Without voltage, liquid crystals are twisted, rotating the polarized light by 90 degrees.
- The rotated light passes through the second polarizer, making the pixel appear bright.
- When voltage is applied, the liquid crystals untwist, blocking light from passing through the second polarizer, making the pixel appear dark.
Each sub-pixel has a color filter (red, green, or blue). By controlling the voltage to each sub-pixel, the intensity of each color is adjusted, producing the desired pixel color.
Millions of pixels simultaneously modulate light to form images, videos, and animations on the screen.
The conventional method where one gate (row) and one drain (column) control each pixel. Only one row is activated at a time, and column data lines set the pixel voltages.
More complex driving schemes exist to improve refresh rates, reduce power consumption, and enhance image quality by controlling multiple pixels or rows simultaneously.
- Voltage Precision: Accurate voltage control is crucial for precise liquid crystal orientation.
- Response Time: Faster switching of liquid crystals reduces motion blur.

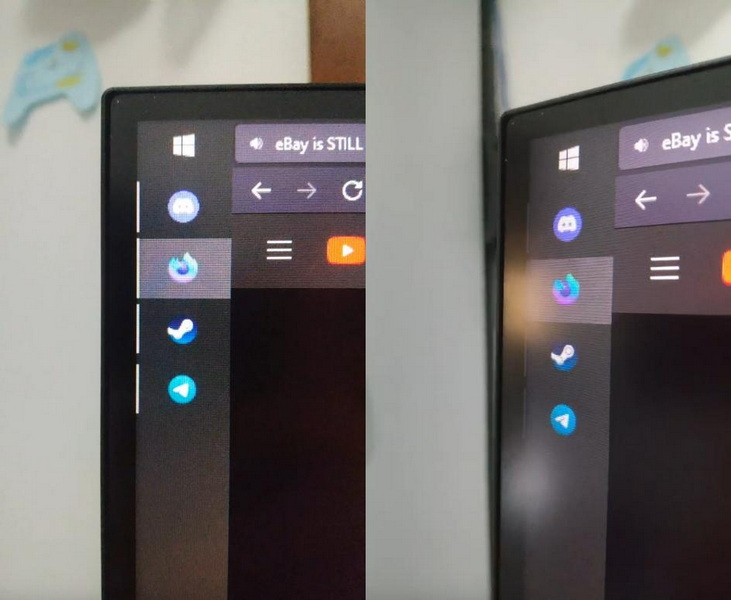

- Viewing Angles: The way liquid crystals modulate light affects how colors and brightness appear from different angles.
- Temperature: Liquid crystals' behavior changes with temperature, affecting response times and display performance.
Understanding how does LCD screen activate pixels reveals the sophisticated interplay of electrical signals, liquid crystal molecular orientation, and light polarization that creates the images we see on modern displays. Each pixel's activation involves precise voltage control through thin-film transistors, which manipulate the liquid crystals to modulate light passing through color filters. This technology enables high-resolution, vibrant displays that are integral to countless devices today.
When a pixel is activated, an electric voltage is applied across the liquid crystal layer in that pixel. This voltage changes the orientation of the liquid crystal molecules, altering how they rotate polarized light. Depending on the voltage, the pixel allows more or less light to pass through the second polarizer, controlling the pixel's brightness and color.
Active matrix uses a thin-film transistor and capacitor at each pixel, allowing individual and constant voltage control. This results in faster response times, sharper images, and better color accuracy, whereas passive matrix controls pixels by intersecting row and column lines, which is slower and less precise.
Each pixel has red, green, and blue sub-pixels because these are the primary colors of light. By varying the intensity of each sub-pixel, the display can produce a wide range of colors through additive color mixing, enabling full-color images.
The backlight provides the source of white light that passes through the LCD layers. Pixel activation controls how much of this light is allowed to pass through each pixel by adjusting the liquid crystals' orientation, effectively turning pixels on or off or modulating their brightness.
LCD pixels can block most of the backlight by aligning the liquid crystals to prevent light from passing through the second polarizer, making the pixel appear black. However, because of the backlight and imperfect blocking, LCD blacks are often less deep than those in OLED displays.
