Liquid Crystal Display (LCD) technology in projectors is a fascinating blend of optics, electronics, and materials science that enables the projection of bright, colorful images onto large screens. Understanding how does LCD screen in projectors work involves exploring the components inside the projector, the light manipulation process, and how images are formed and projected. This article provides a comprehensive explanation of the technology behind LCD projectors, their working principles, advantages, and common questions.

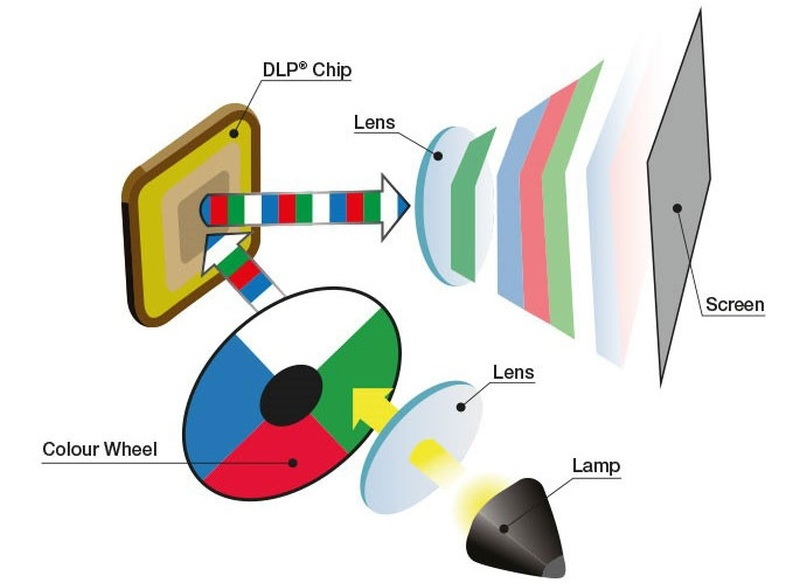

An LCD projector uses liquid crystal display panels to modulate light and create images. Unlike other projection technologies such as Digital Light Processing (DLP), which reflect light, LCD projectors transmit light through liquid crystal panels to produce images. The core of this technology lies in the manipulation of light waves by liquid crystals, which can control the intensity and color of light passing through them.
The LCD screen in a projector is not a single screen but rather a set of three small LCD panels, each dedicated to one of the primary colors of light: red, green, and blue. These panels work together to produce the full spectrum of colors seen in the projected image. Each panel is finely tuned to handle its specific color channel, allowing for precise control over color reproduction and brightness.
The process begins with a powerful white light source, often a metal-halide lamp, LED, or laser. This light source emits broad-spectrum white light, which needs to be controlled and split into its component colors. The intensity and quality of this light source are crucial because they directly affect the brightness and clarity of the projected image.
Before reaching the LCD panels, the white light is first polarized. Polarization filters allow only light waves oscillating in a particular direction to pass through, increasing the efficiency of the light modulation process inside the LCD panels. This step is essential because liquid crystals manipulate polarized light, so controlling the polarization state of the incoming light optimizes the image quality.
After polarization, the white light passes through a series of dichroic mirrors. These mirrors are specialized optical components that reflect certain wavelengths (colors) of light while allowing others to pass through.
- The first dichroic mirror reflects the red component of the light while allowing the green and blue components to pass.
- The second mirror separates the green light from the blue.
- This process results in three distinct beams of light: red, green, and blue.
This precise separation of colors is fundamental to producing vivid and accurate color images. Each color beam is then sent to its respective LCD panel for modulation.
Each of the three colored light beams is directed towards its respective LCD panel. These panels are made of glass layers sandwiching liquid crystals. Each panel contains millions of pixels, and each pixel can be electrically controlled to either block or allow light to pass through.
When an electrical current is applied to the liquid crystals in a pixel, their orientation changes, which affects how much light passes through that pixel. By varying the electrical charge, the projector can control the brightness and color intensity of each pixel. This selective blocking and passing of light modulates the image for each color channel independently. The rapid and precise control over millions of pixels allows for the creation of detailed and dynamic images.
After modulation, the three colored light beams exit their respective LCD panels carrying the image information for red, green, and blue channels. These beams are then recombined using a dichroic prism or combiner cube, which overlaps the three images perfectly to form a single full-color image. The alignment of these images is critical to avoid color fringing or blurring, ensuring a sharp and cohesive final image.
The combined image is then projected through a lens system that magnifies the image and focuses it onto a screen. The lens ensures that the image is sharp and clear at the desired projection distance. Many projectors include adjustable lenses that allow users to zoom, focus, and correct image distortion to suit different environments and screen sizes.
- Usually a high-intensity metal-halide lamp, LED, or laser.
- Provides the white light needed for color separation.
- The quality and lifespan of the light source significantly impact the projector's performance and maintenance requirements.
- Separate white light into red, green, and blue components.
- Reflect or transmit specific wavelengths to direct light appropriately.
- Their precision coatings are engineered to maximize efficiency and color purity.
- Three panels, each for red, green, and blue.
- Contain liquid crystals controlled electrically to modulate light.
- Pixels act as tiny shutters controlling light intensity.
- The resolution of these panels determines the sharpness and detail of the projected image.
- Recombines the three colored images into one.
- Ensures color accuracy and image alignment.
- Designed to minimize light loss and maintain image brightness.
- Magnifies and focuses the final image onto the screen.
- Includes polarizing lenses to enhance brightness.
- Some lenses feature motorized zoom and focus for ease of use.
- Bright Images: LCD projectors often produce brighter images than other technologies because light passes directly through the panels rather than being reflected.
- Color Accuracy: Using three separate LCD panels allows for precise color control and vibrant color reproduction.
- Sharpness: LCD projectors deliver sharp and detailed images, making them suitable for presentations and home theaters.
- Cost-Effectiveness: Generally, LCD projectors are more affordable than some competing technologies due to simpler manufacturing processes.
- Reduced Rainbow Effect: Unlike some DLP projectors, LCD projectors do not suffer from the rainbow effect, which is a visual artifact some viewers notice.
- Screen Door Effect: Due to the structure of the LCD panels, some projectors may show a grid-like pattern known as the screen door effect, where the spaces between pixels become visible.
- Contrast Ratio: LCD projectors can struggle with deep blacks, resulting in lower contrast compared to other technologies, which may affect image depth in dark scenes.
- Bulkiness: They tend to be larger and heavier, making portability a challenge.
- Maintenance: Components like lamps and LCD panels degrade over time, requiring replacement to maintain image quality.
- Heat Sensitivity: LCD panels can be sensitive to heat, so effective cooling systems are necessary to ensure longevity and consistent performance.
Liquid crystals are unique materials that exhibit properties between those of liquids and solid crystals. In LCD projectors, these crystals respond to electrical signals by changing their orientation, which in turn affects how light passes through them. This ability to control light at a microscopic level allows for the precise modulation of images. The speed at which liquid crystals can change orientation also influences the refresh rate and motion clarity of the projected image.
Polarization is a critical step in LCD projection technology. By filtering light waves to oscillate in a single plane, polarization enhances the efficiency of light modulation. This process reduces light loss and improves the brightness and clarity of the projected image. Without proper polarization, the liquid crystals would not effectively control light transmission, leading to dimmer and less accurate images.
To achieve the best image quality, LCD projectors often include calibration mechanisms that adjust the alignment and color balance of the three LCD panels. Proper calibration ensures that colors are accurately reproduced and that the combined image is free from color fringing or misalignment. Some advanced projectors offer automatic calibration features that maintain optimal performance over time.
LCD projectors are widely used in various settings, including business presentations, classrooms, home theaters, and large venue events. Their ability to produce bright, sharp images with accurate colors makes them versatile tools for visual communication. For example, in educational environments, LCD projectors help display detailed diagrams and videos clearly, while in home theaters, they deliver immersive cinematic experiences.
Understanding how does LCD screen in projectors work reveals a sophisticated interplay of light manipulation and electronic control. By splitting white light into red, green, and blue components, modulating each color through liquid crystal panels, and recombining them, LCD projectors create bright, colorful images suitable for a variety of uses from business presentations to home cinema. While they have some limitations such as the screen door effect and maintenance needs, their advantages in brightness and color fidelity make them a popular choice in projection technology. As LCD technology continues to evolve, improvements in panel resolution, light sources, and calibration methods will further enhance the viewing experience.
Liquid crystals in the LCD panels act as light modulators. By changing their orientation when an electrical charge is applied, they control the amount of light passing through each pixel, effectively creating the image by blocking or allowing light in varying degrees.
Colors are created by splitting white light into red, green, and blue components using dichroic mirrors. Each color passes through its dedicated LCD panel where the image is modulated. The three colored images are then combined to form a full-color image.
Using three separate panels allows each primary color to be controlled independently, improving color accuracy and brightness. This separation helps produce richer and more vibrant images compared to single-panel systems.
The screen door effect occurs due to the visible grid of pixels on the LCD panels, especially noticeable when sitting close to the screen or on larger projections. It looks like a fine mesh or grid overlaying the image.
Polarization ensures that only light waves vibrating in a certain direction pass through the LCD panels. This increases the efficiency of light modulation and brightness of the projected image by reducing unwanted light scatter.
