How Does LCD Screen Make Contact with Circuit Board?

Views: 222     Author: Wendy     Publish Time: 2025-06-01      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

Common Methods of LCD Screen to Circuit Board Connection

>> Surface Mount Technology (SMT)

>> Chip On Board (COB)

>> Tape Automated Bonding (TAB)

>> Chip On Glass (COG)

>> Chip On Film (COF)

How Does LCD Screen Make Contact with Circuit Board? Detailed Connection Types

>> Elastomeric Connector (Zebra Connector)

>> Flexible Printed Circuit (FPC) Connectors

>> Pin Connectors

>> Tape Carrier Package (TCP) and Chip On Glass (COG) Structures

Practical Considerations in LCD to PCB Connections

>> Alignment and Pressure

>> Cleaning Contacts

>> Enclosure Design

>> Repair and Replacement

Conclusion

FAQ

>> 1. What is an elastomeric connector and how does it work?

>> 2. How does a flexible printed circuit (FPC) connect an LCD to a PCB?

>> 3. What are the advantages of Chip On Glass (COG) technology?

>> 4. Why is pressure important in LCD to PCB connections?

>> 5. How can I improve a flaky LCD connection caused by poor contact?

Liquid Crystal Displays (LCDs) are ubiquitous in modern electronic devices, from smartphones to industrial instruments. A critical aspect of LCD functionality is the electrical connection between the LCD screen itself and the circuit board that controls it. Understanding how does LCD screen make contact with circuit board is essential for designers, repair technicians, and enthusiasts alike. This article explores the various methods and technologies used to establish this vital connection, their advantages, drawbacks, and practical considerations.

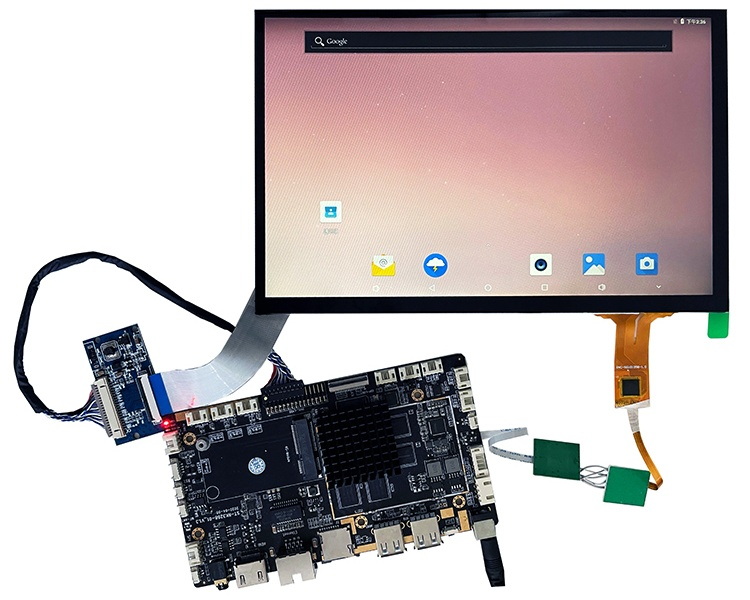

10.1inch LCD Display Touch Screenx

Common Methods of LCD Screen to Circuit Board Connection

Surface Mount Technology (SMT)

Surface Mount Technology is one of the traditional methods used to connect LCD screens to circuit boards. In SMT, components are mounted directly onto the surface of the PCB, and the LCD contacts are soldered to corresponding pads on the board.

- Advantages: High reliability and strong mechanical connection.

- Disadvantages: Larger size and higher cost, which can limit miniaturization of LCD modules.

SMT is often used in applications where durability is paramount, but it is gradually being replaced by more compact and cost-effective methods.

Chip On Board (COB)

COB involves bonding the LCD driver chip directly onto the PCB, followed by wire bonding and encapsulation with protective resin.

- Advantages: Reduces module size and cost by eliminating the need for separate packaging.

- Disadvantages: Requires precise manufacturing processes and specialized equipment.

This method is commonly used in compact devices where space-saving is critical.

Tape Automated Bonding (TAB)

TAB uses a flexible tape carrier package (TCP) to connect the LCD driver IC to the LCD and PCB via anisotropic conductive adhesive.

- Advantages: Lightweight, compact, and reliable.

- Disadvantages: Requires specialized bonding equipment and processes.

TAB is favored in high-volume manufacturing for its balance of performance and cost.

Chip On Glass (COG)

COG technology bonds the driver IC directly onto the glass substrate of the LCD.

- Advantages: Minimizes size, allows for thin and lightweight displays, and supports mass production.

- Disadvantages: Complex manufacturing and repair processes.

COG is widely used in consumer electronics like smartphones and PDAs.

Chip On Film (COF)

COF mounts the driver IC on a flexible printed circuit film, which then connects to the LCD.

- Advantages: High integration, flexibility, and space-saving.

- Disadvantages: Emerging technology with higher production complexity.

COF is gaining traction for advanced displays requiring flexible or curved form factors.

How Does LCD Screen Make Contact with Circuit Board? Detailed Connection Types

Elastomeric Connector (Zebra Connector)

One of the most interesting and frequently used methods, especially in low-cost or compact devices, is the elastomeric connector, often called a zebra connector.

- Structure: Alternating layers of conductive and insulating rubber form a flexible "foam rubber sandwich."

- Connection Method: Mechanical compression presses the elastomeric connector between the LCD contacts and the PCB pads.

- How It Works: The conductive layers in the elastomer align with the metalized contacts on the LCD glass and the PCB, allowing electrical signals to pass through.

- Advantages: Easy assembly and long service life; suitable for fine pitch connections.

- Disadvantages: Requires precise pressure and alignment; poor contact can cause flaky or intermittent display issues.

This connector relies on the physical compression force to maintain electrical contact, making the enclosure design crucial to ensure consistent pressure.

Flexible Printed Circuit (FPC) Connectors

Flexible printed circuits are thin, flexible films with conductive traces that connect the LCD to the PCB.

- Connection Method: Heat seal (heat and pressure), soldering, or mechanical compression.

- Advantages: Lightweight, thin, and flexible; supports complex routing.

- Disadvantages: Requires careful handling and precise bonding.

FPC connectors are common in devices where space constraints and flexibility are important.

Pin Connectors

Pin connectors use plated metal pins soldered to the PCB and mated with corresponding sockets or connectors on the LCD assembly.

- Advantages: Simple, reliable soldered connection; suitable for small batch production.

- Disadvantages: Larger pitch size and less suitable for very fine pitch applications.

Pin connectors are often used in industrial or larger displays where mechanical robustness is prioritized.

Tape Carrier Package (TCP) and Chip On Glass (COG) Structures

TCP and COG connections involve heat and pressure fitting using anisotropic conductive films (ACF) or adhesives.

- TCP: The driver IC is mounted on a tape carrier that connects to the LCD and PCB.

- COG: The driver IC is bonded directly on the glass of the LCD.

Both methods enable high-resolution displays with thin profiles but require specialized manufacturing processes.

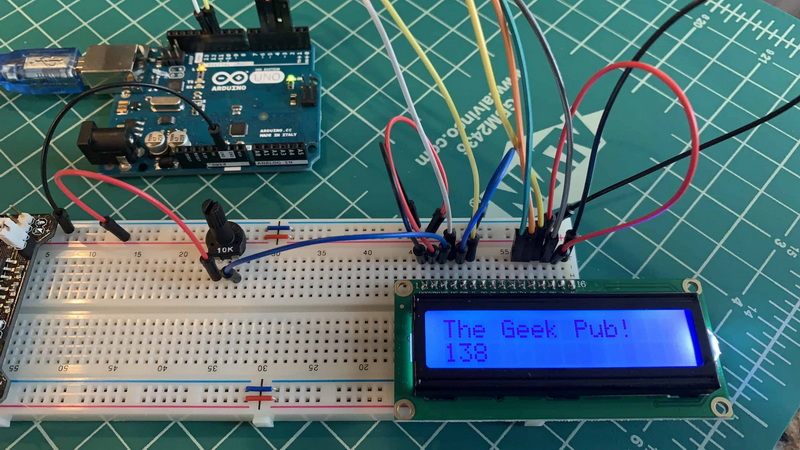

Arduino LCD Display Wiring 0001 hero scaled

Practical Considerations in LCD to PCB Connections

Alignment and Pressure

For connection methods relying on mechanical compression, such as elastomeric connectors, proper alignment and consistent pressure are crucial. Misalignment or insufficient pressure can cause intermittent contact, leading to display flickering or failure.

Cleaning Contacts

Oxidation or contamination on contact surfaces can degrade connection quality. Cleaning with isopropyl alcohol, pencil erasers, or distilled water can improve contact reliability, especially for elastomeric connectors.

Enclosure Design

The device enclosure often plays a role in maintaining the connection pressure. Some designs include foam pads or rubber cushions to press the elastomeric connector firmly between the LCD and PCB.

Repair and Replacement

Connections like elastomeric connectors can be challenging to repair due to their delicate nature and reliance on mechanical pressure. More permanent connections like SMT or soldered pin connectors are easier to service but less flexible.

Conclusion

Understanding how does LCD screen make contact with circuit board reveals a variety of connection technologies tailored to different application needs. From traditional soldered SMT and pin connectors to advanced methods like COG and COF, each approach balances size, cost, reliability, and manufacturability. Elastomeric connectors offer a unique solution for compact and low-cost devices but require careful mechanical design to ensure consistent contact. As LCD technology evolves, connection methods continue to advance, enabling thinner, lighter, and more integrated display modules.

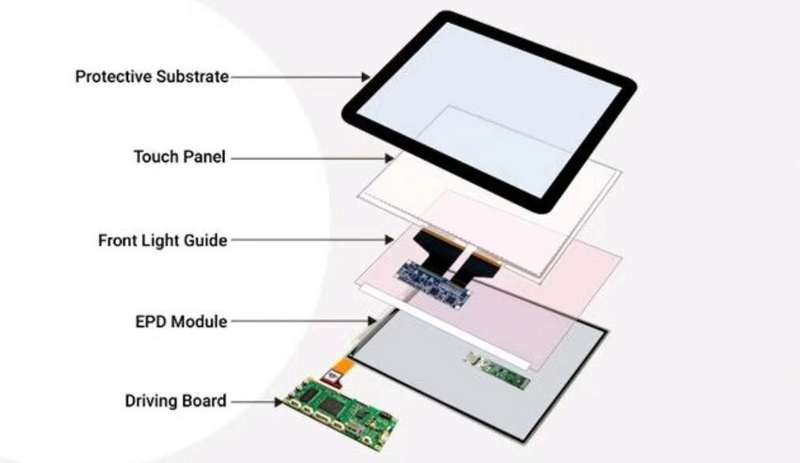

Liquid Crystal Display Board Connection

FAQ

1. What is an elastomeric connector and how does it work?

An elastomeric connector, also known as a zebra connector, is a flexible rubber strip with alternating conductive and insulating layers. It works by being compressed between the LCD contacts and PCB pads, allowing electrical signals to pass through the conductive layers. Proper pressure and alignment are essential for reliable contact.

2. How does a flexible printed circuit (FPC) connect an LCD to a PCB?

An FPC is a thin, flexible film with conductive traces that connect the LCD to the PCB. The connection is typically made by heat sealing, soldering, or mechanical compression, providing a lightweight and flexible interface suitable for compact devices.

3. What are the advantages of Chip On Glass (COG) technology?

COG bonds the driver IC directly on the glass substrate of the LCD, reducing module size and thickness. It is ideal for high-resolution, thin, and lightweight displays commonly used in portable electronics.

4. Why is pressure important in LCD to PCB connections?

Pressure ensures that connectors relying on mechanical compression, such as elastomeric connectors, maintain consistent electrical contact. Insufficient pressure can cause intermittent connections and display issues.

5. How can I improve a flaky LCD connection caused by poor contact?

Cleaning the contacts with isopropyl alcohol or a pencil eraser can remove oxidation and dirt. Additionally, ensuring proper alignment and applying additional pressure inside the device enclosure can improve contact reliability.
