Liquid Crystal Displays (LCDs) have become an essential part of modern technology, found in devices ranging from smartphones and computer monitors to televisions and digital signage. The question of how is a LCD screen made involves understanding a complex, multi-step manufacturing process that combines advanced materials, precise engineering, and meticulous assembly. This article provides a detailed explanation of the entire process, from raw materials to the finished product, illustrating the intricate craftsmanship behind everyday screens.

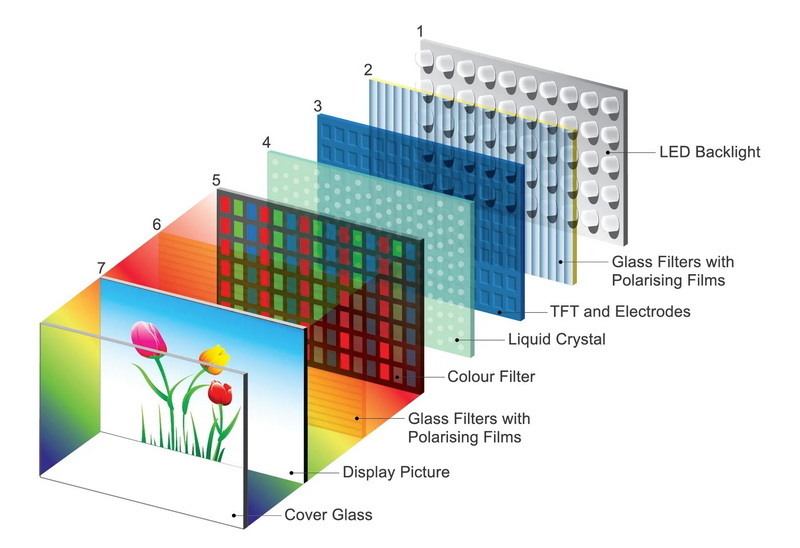

To understand how is a LCD screen made, it is important first to grasp the fundamental structure of an LCD. An LCD screen is composed of several layers working together:
- Two glass substrates (panels) sandwiching a thin layer of liquid crystal material.
- Thin Film Transistors (TFTs) embedded on one substrate to control each pixel.
- Color filters that generate red, green, and blue subpixels.
- Polarizing filters that manage light polarization.
- A backlight that illuminates the screen, as LCDs do not emit light by themselves.
The liquid crystals inside the panel respond to electrical signals by changing their orientation, which modulates light passing through the display to produce images. The manufacturing process involves fabricating these components and assembling them with extreme precision.
The manufacturing process begins with preparing the glass substrates, which serve as the foundation for the LCD. Two types of glass plates are used:
- Array substrate: This contains the TFTs that control pixel activation.
- Color filter substrate: This includes the color filters and a black matrix to separate pixels.
Both substrates undergo thorough cleaning and polishing to ensure the surfaces are free from dust and contaminants. This step is critical because any imperfection can affect the display's quality and longevity.
The array substrate is coated with a transparent conductive material, typically Indium Tin Oxide (ITO). Next, a thin layer of amorphous silicon is deposited using chemical vapor deposition (CVD). Photolithography—a process adapted from semiconductor manufacturing—is then used to etch and pattern this layer, creating the TFT array.
Each TFT acts as a microscopic switch controlling an individual pixel's light transmission. The fabrication involves multiple precise steps, including:
- Formation of gate electrodes.
- Deposition of source and drain electrodes.
- Creation of contact holes for electrical connections.
This precise patterning ensures that each pixel can be independently controlled for accurate image display.
The color filter substrate is coated with a black matrix to define pixel boundaries and prevent color bleeding. Red, green, and blue color filters are then applied to their respective pixel areas using photolithography. The precision of this step is crucial for producing vivid, accurate colors on the screen.
Both glass substrates are coated with a thin layer of polyimide, which is then rubbed in a specific direction to align the liquid crystal molecules. This alignment is essential because it determines how the liquid crystals will twist and untwist in response to electrical signals, controlling light passage.
The rubbing directions on the two substrates are perpendicular to each other, creating the twisted nematic effect characteristic of many LCDs.
The two substrates are assembled into a sandwich structure, separated by tiny spacers that maintain a precise gap. This gap is critical because it determines the behavior of the liquid crystals and ultimately the display's optical performance.
The edges are sealed with a special adhesive, leaving a small opening for liquid crystal injection. Assembly is typically conducted in a cleanroom to prevent dust contamination.
Liquid crystal material is injected into the gap between the glass substrates. This process is often performed in a vacuum chamber to avoid air bubbles that could cause display defects.
The liquid crystals have properties between those of liquids and solids, allowing them to change orientation when an electric field is applied, thus modulating light.
Polarizing filters are attached to the outer surfaces of the LCD panel. These filters control the polarization of light entering and exiting the liquid crystal layer, enabling the display to show images by selectively blocking or allowing light.
The polarizers are oriented at 90 degrees to each other to maximize light control.
Because LCDs do not emit light themselves, a backlight is added behind the panel to illuminate the display. The backlight typically consists of light-emitting diodes (LEDs) arranged to provide uniform brightness.
The quality and uniformity of the backlight are vital for the overall display brightness and color accuracy.
After assembly, each LCD panel undergoes extensive testing to ensure it meets quality standards. Tests include:
- Checking for dead pixels or defects.
- Measuring color accuracy and brightness uniformity.
- Verifying the electrical functionality of the TFT array.
Only displays that pass these rigorous tests proceed to be integrated into consumer devices.
The entire manufacturing process of LCD screens occurs in cleanrooms, environments with controlled levels of dust, humidity, and temperature. Even microscopic particles can cause defects in the thin film layers or liquid crystal alignment, leading to dead pixels or color inconsistencies.
Modern LCD manufacturing has evolved to include various enhancements such as:
- In-Plane Switching (IPS): Improves viewing angles and color reproduction by changing the liquid crystal alignment method.
- High-Resolution Panels: Require even finer photolithography to create smaller pixels.
- Energy-Efficient Backlights: Use LED technology to reduce power consumption.
These advancements reflect ongoing improvements in the manufacturing process to meet consumer demands for better display quality.
Manufacturing LCD screens involves materials like indium and liquid crystals, which require responsible sourcing and disposal. Many manufacturers are adopting greener processes and recycling programs to reduce environmental impact.
The process of how is a LCD screen made is a remarkable blend of material science, precision engineering, and cleanroom assembly. From preparing glass substrates and fabricating thin film transistors to injecting liquid crystals and integrating backlights, each step is meticulously executed to produce the high-quality displays that power our digital world. This complex manufacturing process enables LCDs to deliver sharp images, vibrant colors, and energy efficiency in a slim form factor, making them indispensable in modern electronics.
LCD screens primarily use glass substrates coated with indium tin oxide (ITO), liquid crystal material, color filters (red, green, blue), polarizing filters, and a backlight source such as LEDs.
Photolithography is used to pattern the thin film transistor array and color filters with high precision, enabling individual pixel control and accurate color reproduction.
Liquid crystals are injected into the gap between two glass substrates in a vacuum chamber to avoid air bubbles, ensuring uniform distribution and optimal display performance.
Polarizers control the orientation of light waves entering and exiting the liquid crystal layer, enabling the modulation of light necessary for image formation.
Spacers of precise thickness are placed between the two glass substrates during assembly to maintain a uniform gap critical for proper liquid crystal function.
