Liquid Crystal Displays (LCDs) are ubiquitous in modern electronic devices, from smartphones and laptops to televisions and industrial equipment. Understanding how is does an LCD screen wired is essential for both electronics enthusiasts and professionals who want to grasp the fundamentals of display technology or integrate LCDs into their projects. This comprehensive article explores the wiring structure of LCD screens, explaining their internal wiring grid, types of LCDs, wiring for microcontroller interfacing, and practical wiring examples, concluding with frequently asked questions to clarify common doubts.
At the core of every LCD screen is a complex network of wires that power and control the millions of tiny pixels responsible for producing images. The wiring is designed to deliver electrical signals to each pixel, enabling it to modulate light and display the intended picture.
How is does an LCD screen wired internally? The fundamental wiring structure consists of two sets of conductive wires arranged in a grid pattern: vertical wires on one side of the screen and horizontal wires on the opposite side. Each pixel in the LCD panel is located at the intersection of one vertical and one horizontal wire. The vertical wires typically carry the positive electrical signals, while the horizontal wires carry the negative signals, or vice versa, depending on the design.
This grid arrangement allows selective addressing of each pixel by energizing the corresponding vertical and horizontal wires. For example, activating the wire in column 5 vertically and row 10 horizontally will power the pixel at that intersection. This wiring scheme is crucial for controlling the display at a pixel level.
Beneath the wiring grid lies the pixel layer, which contains liquid organic material — the liquid crystals. These crystals do not emit light themselves but control the passage of backlight through polarization. When voltage is applied via the wiring, the liquid crystals align in a way that either blocks or allows light to pass, creating the visible image on the screen.
Higher resolution LCDs require more wires because they have more pixels. For instance, a 1080p LCD panel with over two million pixels uses thousands of wires: vertical wires correspond to the number of columns multiplied by the three color subpixels (red, green, blue), and horizontal wires correspond to the number of rows. This results in a dense wiring mesh with hundreds of wires per inch along the edges of the screen.
How is does an LCD screen wired varies depending on the type of LCD technology used. The two main types are passive-matrix and active-matrix LCDs, each with distinct wiring and control mechanisms.
Passive-matrix LCDs use a simple grid of vertical and horizontal wires to control pixels. At each intersection, the pixel is addressed by applying voltage across the corresponding wires. However, passive-matrix displays lack individual pixel transistors, so pixels cannot be controlled independently with precision. This results in slower response times, lower contrast, and limited resolution.
The wires in passive-matrix LCDs are often made from Indium Tin Oxide (ITO), a transparent conductive material deposited on glass substrates. The wiring grid forms a matrix where each pixel is switched on or off by the combined voltage from its row and column wires.
Active-matrix LCDs are more advanced and feature a thin-film transistor (TFT) at each pixel intersection. This transistor acts as a switch, allowing each pixel to be controlled individually by the wiring network. The wiring still consists of vertical and horizontal conductive lines, but with additional connections to the transistors.
This design enables faster response times, higher resolution, better color reproduction, and improved contrast. Active-matrix LCDs include various subtypes such as Twisted Nematic (TN), In-Plane Switching (IPS), and Vertical Alignment (VA), all relying on sophisticated wiring to control pixels precisely.
When integrating an LCD screen with microcontrollers like Arduino, understanding how is does an LCD screen wired externally is crucial. Unlike the internal wiring grid, external wiring involves connecting the LCD module pins to the microcontroller to send commands and data for display control.
One of the most popular LCD modules for hobbyists and developers is the 16x2 character LCD, which displays 16 characters per line on two lines. This LCD uses a standard Hitachi HD44780 controller or compatible, with a 16-pin interface.
How is does an LCD screen wired to a microcontroller? The 16-pin interface includes:
- Power pins: Ground (GND) and +5V (VCC)
- Contrast adjustment pin (VO)
- Control pins: Register Select (RS), Read/Write (RW), and Enable (E)
- Data pins: D0 to D7 (eight data lines, often only D4 to D7 used in 4-bit mode)
- Backlight pins: LED+ and LED- for screen illumination

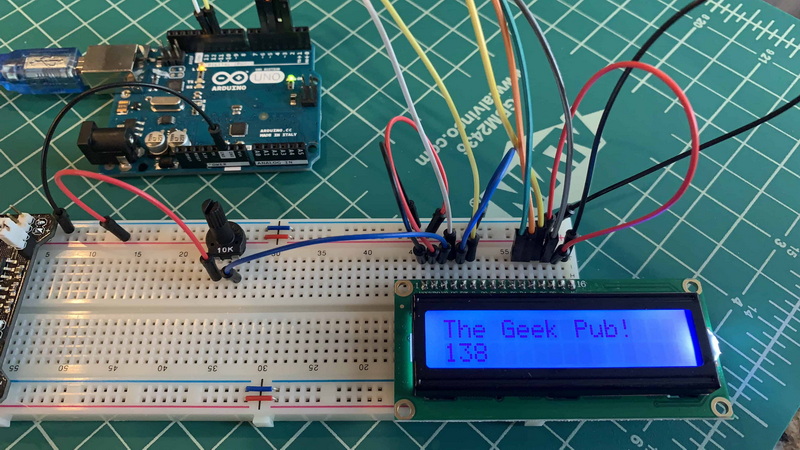

1. Power Supply: Connect the LCD's ground pin to the microcontroller's GND and the VCC pin to +5V power.
2. Contrast Control: A 10k potentiometer is connected to the VO pin to adjust the display contrast by varying voltage.
3. Control Pins:
- RS pin is connected to a digital output pin on the microcontroller to select instruction or data register.
- RW pin is typically connected to GND to set write mode permanently.
- Enable pin is connected to another digital pin to latch data/commands.
4. Data Pins: In 4-bit mode (common to save pins), pins D4-D7 are connected to four digital pins on the microcontroller. In 8-bit mode, all eight data pins are connected.
5. Backlight: The LED+ pin connects to +5V through a current-limiting resistor (usually 220 ohms), and LED- connects to GND.

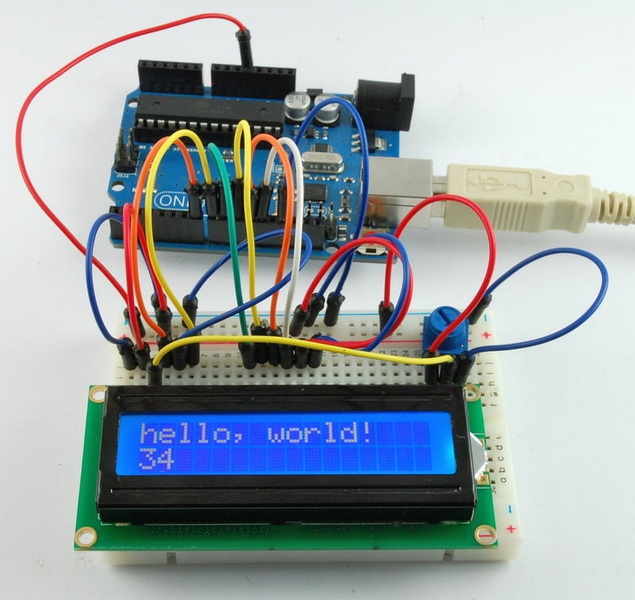

- LCD RS to Arduino pin 12
- LCD Enable to Arduino pin 11
- LCD D4 to Arduino pin 5
- LCD D5 to Arduino pin 4
- LCD D6 to Arduino pin 3
- LCD D7 to Arduino pin 2
- RW to GND
- VSS to GND
- VCC to +5V
- VO to potentiometer wiper (other potentiometer pins to +5V and GND)
- Backlight LED+ through resistor to +5V, LED- to GND
This wiring allows the Arduino to send commands and data to the LCD, controlling what appears on the screen.
The internal wiring of an LCD screen is fabricated on glass substrates using thin conductive layers. The wiring is not soldered in the traditional sense but is created by depositing thin metallic or transparent conductive films.
- Chip-On-Glass (COG): The driver chips are mounted directly onto the glass substrate of the LCD, connecting to the wiring grid using conductive adhesives.
- Tape Automated Bonding (TAB): Flexible circuits with wiring traces are bonded to the LCD glass edges to interface the wiring grid with external electronics.
The wiring uses materials like Indium Tin Oxide (ITO) for transparency and thin metallic layers for conductivity. These wires are extremely fine to achieve high pixel density.
Maintaining uniform spacing between glass plates and wiring layers is critical to avoid image distortion. Spacer balls ensure consistent cell gap, and the wiring must be precisely aligned to the pixel matrix.
When wiring an LCD screen, especially for DIY or prototyping projects, several factors affect performance and reliability.
- Correct Pin Connections: Miswiring can damage the LCD or prevent it from displaying correctly.
- Contrast Adjustment: Proper wiring of the potentiometer to the VO pin is essential for readable display.
- Backlight Power: Use appropriate resistors to avoid burning out the backlight LEDs.
- Signal Timing: The microcontroller must follow the LCD's timing protocol for commands and data.
- Use of Libraries: Programming libraries like LiquidCrystal for Arduino simplify communication with the LCD by handling low-level wiring protocols.
Understanding how is does an LCD screen wired reveals the intricate network of vertical and horizontal wires that power millions of pixels to create images. Internally, LCDs use a grid wiring system with vertical and horizontal conductive lines, with active-matrix displays employing transistors at each pixel for precise control. Externally, wiring an LCD screen to microcontrollers involves connecting power, control, data, and backlight pins correctly to enable communication and display control. Whether for industrial applications or hobby projects, mastering the wiring principles of LCDs is fundamental for effective use and integration.
The vertical wires run along one edge of the screen, and the horizontal wires run along the opposite edge, forming a grid. Each pixel is located at the intersection of one vertical and one horizontal wire, allowing selective addressing of pixels by applying voltage across these wires.
Passive-matrix LCDs use a simple grid of vertical and horizontal wires without individual pixel transistors, resulting in slower response and lower resolution. Active-matrix LCDs have thin-film transistors at each pixel, allowing individual pixel control and better display performance.
Connect the LCD's power pins to 5V and GND, use a potentiometer for contrast control connected to the VO pin, connect control pins RS, RW, and Enable to Arduino digital pins (RW usually grounded), and connect data pins D4-D7 to Arduino digital pins for 4-bit communication. Also, wire the backlight pins with a resistor to 5V and GND.
The wiring uses transparent conductive materials like Indium Tin Oxide (ITO) on glass substrates, along with thin metallic conductive layers. These materials enable fine wiring necessary for high-resolution displays.
A potentiometer connected to the VO pin adjusts the contrast of the LCD screen by varying the voltage applied to the liquid crystal layer, ensuring the displayed characters or images are visible and clear.
