Liquid Crystal Displays (LCDs) are an integral part of modern electronic devices, from smartphones and laptops to televisions and digital signage. Understanding how is LCD screen made reveals a complex, precise manufacturing process that combines advanced materials science, photolithography, and assembly techniques. This article explores in detail the step-by-step process of manufacturing LCD screens, highlighting the key components, technologies, and quality controls involved. Whether you are a technology enthusiast, a student, or a professional, this guide will provide a thorough understanding of how is LCD screen made.

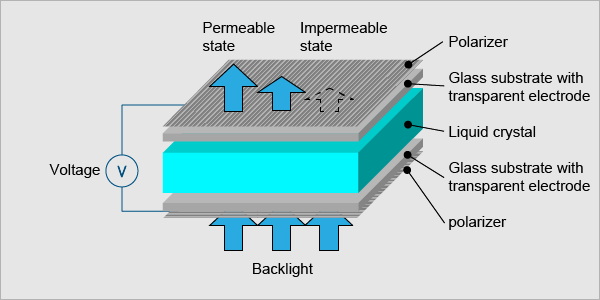

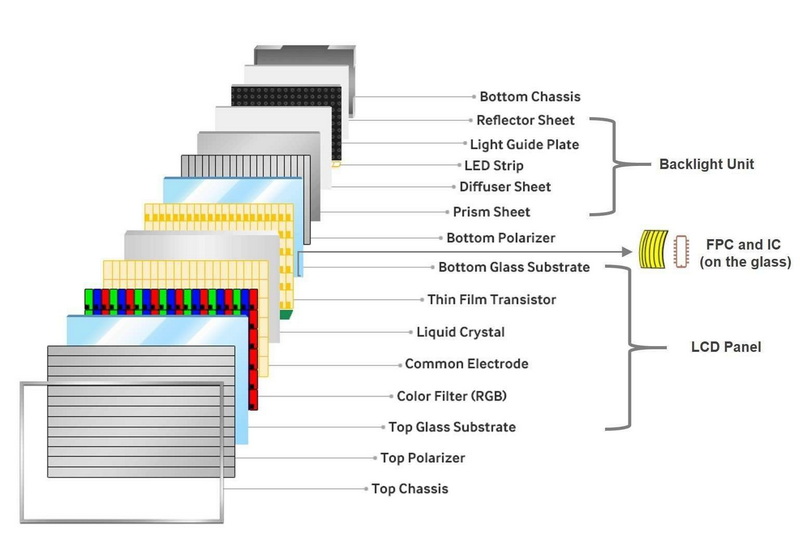

Before diving into how is LCD screen made, it is essential to understand what an LCD screen is. An LCD screen is a flat-panel display technology that uses liquid crystals to modulate light and produce images. Unlike OLEDs, LCDs do not emit light by themselves; instead, they manipulate light from a backlight to create visible images. The core components of an LCD include two glass substrates, liquid crystal material sandwiched between them, thin-film transistors (TFTs) to control pixels, color filters, polarizing films, and a backlight unit.
The production of an LCD screen is a marvel of modern engineering, involving a series of highly specialized and precise steps. Each stage of the process is designed to ensure that the final product delivers exceptional image quality, durability, and energy efficiency. Let's explore these stages in greater detail to fully appreciate how is LCD screen made.

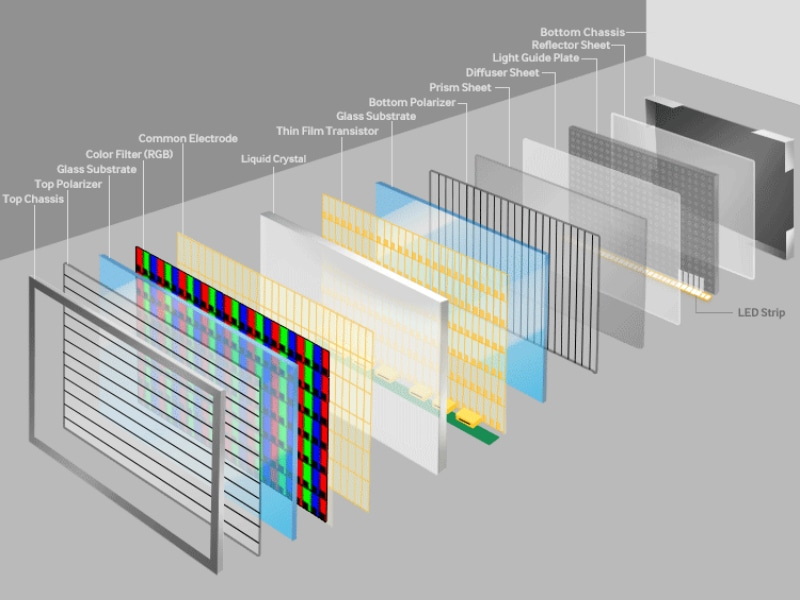

The production of an LCD screen involves multiple intricate steps, each requiring precision and cleanroom conditions. The process can be broadly divided into three main stages: substrate preparation and TFT array fabrication, color filter production, and cell assembly with liquid crystal injection, followed by module assembly and testing.
The glass substrates serve as the foundational layers of the LCD panel. Their quality directly impacts the performance and longevity of the display. Manufacturers use ultra-pure glass that undergoes rigorous cleaning and polishing to achieve a flawless surface. This step is crucial because even microscopic particles can cause defects that affect the display's clarity and uniformity.
The foundation of an LCD screen is two thin glass substrates, often called the array substrate and the color filter substrate. The manufacturing process begins with preparing these glass plates:
- Cleaning and Polishing: The glass substrates undergo thorough cleaning to remove dust, oils, and contaminants that could affect display quality. Polishing ensures a smooth surface for subsequent layers.
- Sizing and Shaping: The glass is cut and shaped to the required dimensions for the final LCD panel.
This preparation is critical because any impurities or irregularities can cause defects in the display.
The thin-film transistor (TFT) backplane is the heart of the LCD screen, controlling the light modulation of each pixel. The fabrication process is akin to semiconductor manufacturing, requiring cleanroom environments and advanced photolithography techniques. The precision in this step ensures that millions of transistors operate flawlessly to produce sharp and vibrant images.
The array substrate is where the thin-film transistor (TFT) backplane is created. TFTs act as tiny electronic switches that control each pixel's light modulation. The fabrication involves:
- Coating with Transparent Conductive Layer: A layer of indium tin oxide (ITO), a transparent and conductive material, is deposited on the glass.
- Deposition of Semiconductor Layer: Amorphous silicon (a-Si) or other semiconductor materials are deposited on top of the ITO layer using chemical vapor deposition (CVD).
- Photolithography Patterning: Using photolithography, a process similar to semiconductor manufacturing, multiple layers are patterned to form the gate, source, and drain electrodes of the TFTs. This involves coating the substrate with photoresist, exposing it to ultraviolet light through masks, developing the pattern, and etching away unwanted material.
- Formation of Contact Holes and Passivation Layers: Additional layers are added and patterned to protect the TFTs and provide electrical connections.
This step is repeated multiple times with extreme precision to build millions of transistors corresponding to pixels on the screen.
Color filters are essential for producing the rich and accurate colors we see on LCD screens. The process involves applying red, green, and blue pigments in precise patterns, separated by a black matrix to prevent color bleeding. This meticulous patterning ensures that each pixel displays the correct color intensity and hue.
The color filter substrate is prepared separately to provide the red, green, and blue subpixels necessary for color display:
- Black Matrix Application: A black matrix is printed on the glass to separate pixels and prevent light leakage.
- Color Filter Patterning: Using photolithography, red, green, and blue color filter materials are applied and patterned precisely onto the substrate.
- Alignment Film Coating: A layer of polyimide is applied and rubbed to create microscopic grooves that help align the liquid crystal molecules later.
The alignment of liquid crystals is a delicate process that determines the screen's ability to modulate light effectively. By rubbing the polyimide layers in specific directions, manufacturers create microscopic grooves that guide the liquid crystals into uniform alignment. The vacuum injection process then fills the cell with liquid crystal material, ensuring no air bubbles disrupt the display.
Both substrates undergo a liquid crystal alignment process:
- Alignment Film Rubbing: The polyimide layers on both substrates are rubbed in specific directions to ensure the liquid crystals will align uniformly.
- Spacer Application: Tiny spacers are sprayed onto the substrates to maintain a consistent gap between them, essential for uniform liquid crystal thickness.
- Cell Assembly: The two substrates are carefully aligned and bonded together with a sealant, leaving a small opening for liquid crystal injection.
- Liquid Crystal Injection: Liquid crystal material is injected into the gap between the substrates using a vacuum filling process. This ensures the liquid crystals fill the space evenly without air bubbles.
- Sealing: The injection opening is sealed with adhesive to prevent leakage.
Polarizing films are critical components that control the light passing through the LCD. These films filter light waves, allowing only those aligned in a particular direction to pass through. This selective filtering is what enables the liquid crystals to modulate light and create visible images on the screen.
Polarizing films are attached to the outer surfaces of the glass substrates. These polarizers control the orientation of light passing through the liquid crystal layer, enabling the modulation of light to create images.
Since LCDs do not emit light on their own, the integration of a backlight module is essential. Modern LCDs typically use LED backlights, which offer energy efficiency and improved brightness. The assembly process also involves attaching driver ICs and flexible circuit boards, which control the display's operation and interface with other device components.
An LCD panel by itself does not emit light, so it requires a backlight module:
- Backlight Integration: A backlight unit, typically composed of LEDs or cold cathode fluorescent lamps (CCFLs), is attached behind the LCD panel to provide illumination.
- Driver and Circuit Board Attachment: The LCD panel is connected to driver integrated circuits (ICs) and flexible printed circuit boards (FPCBs) using anisotropic conductive films.
- Final Assembly: The LCD panel, backlight, and electronics are assembled into a module ready for installation in devices.
Quality control is paramount in LCD manufacturing. Each module undergoes extensive testing to ensure color accuracy, uniformity, and the absence of defects such as dead pixels or uneven backlighting. Reliability tests simulate long-term usage to guarantee that the screens maintain performance over time.
After assembly, the LCD modules undergo rigorous testing:
- Color Accuracy and Uniformity: Tests ensure that colors are displayed correctly and evenly across the screen.
- Defect Inspection: Screens are checked for dead pixels, uneven backlighting, and other defects.
- Burn-in and Reliability Testing: Modules are subjected to extended operation to verify durability.
Only after passing these tests are the LCD screens shipped to manufacturers and consumers.
Throughout the manufacturing process of an LCD screen, maintaining a contaminant-free environment is critical. Even the smallest particle of dust or a speck of oil can cause defects that degrade image quality or cause pixel failures. Therefore, all fabrication steps, especially photolithography and liquid crystal injection, are performed in cleanrooms with controlled temperature, humidity, and air purity.
Advances in materials and processes continue to improve how is LCD screen made. For example, newer LCDs use advanced liquid crystal materials that allow faster response times and wider viewing angles. Improvements in backlighting, such as quantum dot enhancement films, have boosted color accuracy and brightness. Additionally, manufacturing techniques have evolved to produce larger and thinner panels with higher resolutions.
Manufacturers are increasingly focusing on making the LCD production process more environmentally friendly. This includes reducing the use of hazardous chemicals, recycling glass substrates, and improving energy efficiency in both manufacturing and the final product. The shift from CCFL to LED backlighting has significantly lowered power consumption in LCD screens.
In summary, understanding how is LCD screen made provides insight into a highly sophisticated manufacturing process. The combination of advanced materials, precise photolithography, and meticulous assembly techniques results in the high-quality displays that power our modern electronic devices. As technology advances, LCD manufacturing continues to evolve, improving display performance and energy efficiency. The complexity and precision involved explain why LCD technology remains a dominant display method in electronics worldwide.
LCD screens mainly use glass substrates coated with indium tin oxide (ITO), amorphous silicon for TFTs, liquid crystal materials, color filter pigments, polarizing films, and backlight components such as LEDs.
Photolithography is used to pattern the thin-film transistor layers on the array substrate and to create the color filter patterns on the color filter substrate. It involves coating substrates with photosensitive materials and exposing them to UV light through masks to etch precise circuit and color patterns.
Proper alignment of liquid crystal molecules ensures that they can effectively modulate light when an electric field is applied. This alignment is achieved by rubbing polyimide layers on the substrates, which creates grooves that guide the orientation of the liquid crystals.
Liquid crystal is injected through a small opening in the sealed cell using a vacuum filling process. This technique ensures the liquid crystal fills the gap evenly without air bubbles, which could impair display performance.
Since LCDs do not emit light themselves, the backlight provides the necessary illumination. It is usually an array of LEDs or fluorescent lamps placed behind the LCD panel to shine light through the liquid crystal layer and color filters, making the images visible.
