Understanding how LCD touch screens work is essential in today's technology-driven world. From smartphones and tablets to industrial control panels, these devices have become ubiquitous, enabling intuitive interaction through touch. This article explores in depth how LCD touch screens operate, their components, technologies involved, and practical applications. We will also address common questions to provide a thorough understanding of this fascinating technology.
An LCD touch screen combines two distinct technologies: the Liquid Crystal Display (LCD) and the touch-sensitive layer that detects user input.
LCD stands for Liquid Crystal Display. It is a flat-panel display technology widely used in electronic devices such as laptops, smartphones, tablets, and monitors. An LCD works by manipulating liquid crystals sandwiched between layers of glass or plastic. These crystals do not emit light themselves but control the passage of light from a backlight to create images.
The main components of an LCD include:
- Backlight: Usually made of LEDs, it provides the light source behind the screen.
- Liquid Crystal Layer: Contains millions of liquid crystals that twist or align in response to electric voltage to control light passage.
- Polarizing Filters: Positioned before and after the liquid crystal layer to control light polarization.
- Color Filters: Divide each pixel into red, green, and blue sub-pixels to produce a full range of colors.
The LCD creates images by adjusting the orientation of liquid crystals to either block or allow light to pass through the color filters, forming the desired picture on the screen.
A touch screen is an input device layered on top of the display that detects and responds to touch. It enables users to interact directly with what is shown on the screen by using fingers, styluses, or other objects.
The touch-sensitive layer is called a digitizer. It is transparent and converts physical touch into digital signals that the device's processor interprets.
Understanding how LCD touch screens work requires examining both the display and the touch detection technologies and how they integrate.
1. Backlight Illumination: The LED backlight emits white light that passes through the layers of the screen.
2. Polarization: The first polarizing filter allows light waves vibrating in one direction to pass.
3. Liquid Crystal Manipulation: When no voltage is applied, liquid crystals twist the polarized light by 90 degrees, allowing it to pass through the second polarizing filter. When voltage is applied, crystals align to block the light.
4. Color Filtering: Color filters allow only specific wavelengths (red, green, blue) to pass, creating colored pixels.
5. Image Formation: By controlling voltage across each pixel, the LCD modulates brightness and color to form images.
There are several types of touch screen technologies, but the most common in LCD touch screens are resistive and capacitive.

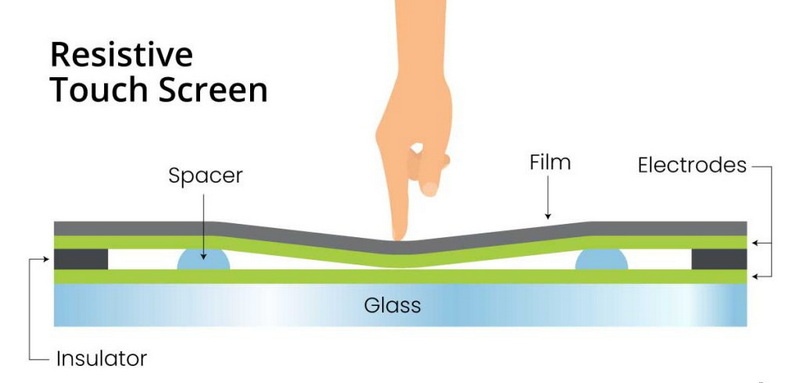

- Comprise two flexible layers separated by a gap.
- When pressed, the layers make contact, changing electrical resistance.
- The device detects the touch position based on this change.
- Works with any object (finger, stylus, gloved hand).
- Less sensitive and less durable compared to capacitive.

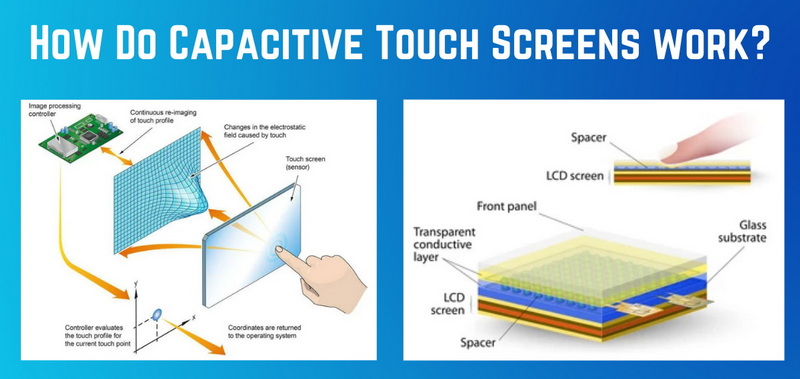

- Use a transparent conductive layer, typically made of indium tin oxide.
- The screen holds a small electrical charge.
- When a finger touches the screen, it draws some charge away due to the body's conductivity.
- Sensors around the screen detect the change in capacitance to locate the touch point.
- Supports multi-touch and gestures.
- More sensitive and durable than resistive.
- Does not work with regular gloves unless they are conductive.
The touch-sensitive digitizer is laminated on top of the LCD panel. The display shows images, while the digitizer detects touch without interfering with image quality. The device's processor combines the input data from the digitizer with the visual output from the LCD to provide a seamless interactive experience.
- Cost-effective and simple technology.
- Good for environments where users wear gloves or use styluses.
- Lower clarity and responsiveness.
- Most common in modern devices.
- Supports multi-touch.
- High clarity and responsiveness.
- Requires conductive touch (usually human finger).
- Use ultrasonic waves on the glass surface.
- Touch absorbs waves, detected by sensors.
- Can be activated by finger, gloved hand, or stylus.
- Scratch-resistant and durable.
- Use infrared light beams across the screen.
- Touch interrupts beams, detected by sensors.
- Durable and works with any input.
- Enhanced User Experience: Intuitive interaction with devices via tapping, swiping, and pinching.
- High Display Quality: Brightness, color accuracy, and resolution provide sharp visuals.
- Multi-Touch Support: Enables gestures and multiple simultaneous inputs.
- Versatility: Used in smartphones, tablets, industrial controls, retail POS systems, and medical devices.
- Accessibility: Supports assistive technologies and customizable settings.
- Durability: Resistant to scratches, spills, and environmental factors.
- Capacitive screens may not work with non-conductive gloves.
- Resistive screens can be less responsive and have lower image clarity.
- Touch screen layers add complexity and cost.
- Repairs can be expensive if either LCD or touch layer is damaged.
Understanding how LCD touch screens work reveals the sophisticated interplay between display technology and touch input detection. The LCD provides vibrant, sharp images by manipulating liquid crystals and backlighting, while the touch screen layer detects user input through electrical changes or pressure. Together, they create interactive devices that have transformed how we communicate, work, and entertain ourselves. Advances in touch screen technologies continue to improve responsiveness, durability, and user experience, making LCD touch screens indispensable in modern electronics.
An LCD is a display technology that shows images by controlling light through liquid crystals, while a touch screen is an input layer that detects touch interactions. The two work together but serve different functions.
It uses a transparent conductive layer charged with electricity. When a finger touches the screen, it draws some charge away, and sensors detect this change to locate the touch point.
Resistive touch screens can work with gloves because they respond to pressure. Capacitive touch screens usually do not work with regular gloves unless the gloves have conductive fingertips.
Liquid crystals do not emit light themselves, so a backlight provides the illumination that passes through the crystals and filters to create visible images.
Multi-touch allows multiple fingers to interact simultaneously, enabling gestures like pinch-to-zoom and rotation, enhancing usability and enabling more complex interactions.
