Liquid Crystal Display (LCD) technology has become a cornerstone of modern electronic devices, from smartphones and televisions to industrial equipment and automotive dashboards. When discussing LCD screens, a common question arises: how many modules are in an LCD screen? This question touches on the structure, components, and assembly of LCD displays, which can vary depending on the type and size of the screen.

In this comprehensive article, we will explore what constitutes an LCD screen, the concept of modules within it, the typical number of modules in various LCD types, and related technical details. We will also provide a conclusion summarizing the key points and a detailed FAQ section addressing common questions related to LCD modules.

Number Of Modules In LCD Display

Understanding LCD Screens and Modules

What Is an LCD Screen?

An LCD screen is a flat-panel display device that uses liquid crystal molecules sandwiched between two glass substrates. These molecules modulate light when electrically driven, enabling the display of images and text. The screen itself is composed of several key layers and components, including polarizers, color filters, thin-film transistors (TFTs), and a backlight source that illuminates the display.

What Is an LCD Module?

An LCD module (also known as an LCD display module or Liquid Crystal Module - LCM) is a complete assembly that includes the LCD panel itself along with additional components such as the backlight unit, driver ICs, connectors, printed circuit boards (PCBs), and sometimes a frame or housing. Essentially, the LCD module is the fully functional display unit ready to be integrated into electronic devices.

The difference between an LCD panel and an LCD module is crucial: the panel is just the display glass with liquid crystals and electrodes, while the module includes the panel plus all supporting electronics and mechanical parts needed for operation.

How Many Modules in an LCD Screen?

Single-Module vs. Multi-Module LCD Screens

When asking how many modules in an LCD screen, it is important to clarify the context:

- Standard consumer LCD screens, such as those in smartphones, laptops, or TVs, typically consist of a single LCD module. This module integrates the LCD panel, backlight, driver circuits, and connectors into one compact unit.

- Large or specialized LCD displays (e.g., video walls, large industrial monitors) may be constructed by tiling multiple LCD modules together. In such cases, each module acts as a smaller display unit, and several modules combine to form one large screen.

Thus, the number of modules in an LCD screen depends on the application and size. A typical smartphone or laptop screen has one module, while large-scale displays may have dozens or even hundreds of modules arranged in a matrix.

Internal Structure: Pixels, Sub-Pixels, and Driver ICs

Inside a single LCD module, the screen is composed of millions of pixels, each made up of sub-pixels (red, green, and blue). These pixels are controlled by thin-film transistors (TFTs) arranged in a matrix on the glass substrate. The module contains driver ICs that manage the electrical signals to each pixel.

For example, a 1080p LCD panel has over two million pixels, each individually controlled. The driver ICs are integrated within the module to handle this complexity. The module itself is therefore a highly integrated unit, not subdivided into smaller modules internally.

Components of an LCD Module

To understand how many modules are in an LCD screen, it helps to know the main components that make up one module:

1. LCD Panel

The core part of the module, consisting of the liquid crystal layer sandwiched between two glass substrates with electrodes and polarizers. It includes the pixel matrix and TFT arrays that control individual pixels.

2. Backlight Unit

Since liquid crystals do not emit light, the backlight provides uniform illumination from behind the panel. This can be LED-based in modern LCDs, and its brightness is controlled to enhance display quality.

3. Driver Electronics

The driver ICs and circuits control the voltage applied to each pixel, managing the image display. These are often integrated on the glass (COG - Chip-On-Glass) or on flexible printed circuits attached to the panel.

4. Connectors and PCB

The module includes connectors to interface with the device's mainboard and a PCB that houses the driver ICs and other control electronics.

5. Structural Components

Frames, polarizers, and protective layers complete the module, making it ready for installation.

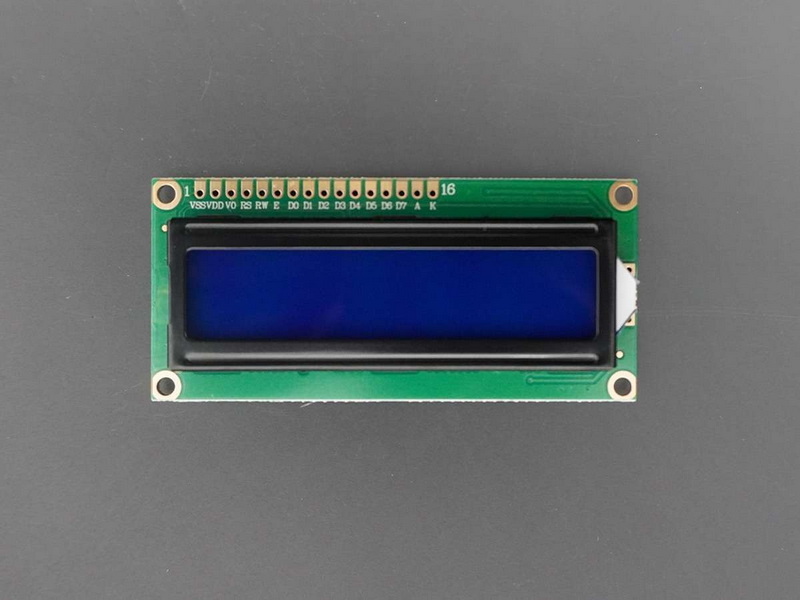

Internal Modules Of LCD Screen

How Many Modules Are There in Different Types of LCD Screens?

Small Displays (Smartphones, Tablets, Laptops)

These devices use one integrated LCD module per screen. The module size varies according to the device, but the entire display is a single unit.

Large TVs and Monitors

Modern large LCD TVs and monitors also use one large LCD module that integrates all components. The screen size can be up to 85 inches or more, but it is still a single module manufactured as one piece.

Video Walls and Large-Scale Displays

In commercial or industrial applications, very large displays are made by combining multiple LCD modules, each acting as a tile. For example, a video wall might use dozens of 55-inch LCD modules tiled together to create a massive screen.

How Are LCD Modules Connected and Controlled?

Each LCD module contains driver ICs that control the pixels via a grid of horizontal (gate) and vertical (source) lines. The number of driver ICs depends on the resolution and size of the panel. For example, a Full HD (1920x1080) panel might have six source driver ICs to handle all the source lines.

The modules are connected to the host device via flexible printed circuits and connectors, often using interfaces like LVDS or eDP. The control signals manage the timing and voltage to create the desired image on the screen.

Factors Affecting the Number of Modules in an LCD Screen

- Screen Size: Larger screens may require multiple modules if the display is constructed as a tiled assembly.

- Application: Consumer devices typically have one module; industrial or commercial displays may have multiple.

- Resolution: Higher resolution screens require more complex driver ICs but do not necessarily increase the number of modules.

- Design Technology: Advances in manufacturing allow larger single modules, reducing the need for multiple modules in big screens.

Advances in LCD Module Technology

As technology progresses, the design and integration of LCD modules continue to evolve. Manufacturers strive to produce thinner, lighter, and more energy-efficient modules without compromising display quality. Some notable advancements include:

Integration of Touch Panels

Many modern LCD modules come integrated with touch-sensitive layers, creating touchscreen displays. This integration adds complexity but remains part of a single module, not multiple modules.

Higher Refresh Rates and HDR Support

Newer LCD modules support higher refresh rates for smoother motion and High Dynamic Range (HDR) for better color and contrast. These features require more sophisticated driver ICs and backlight control but do not change the module count.

Flexible and Curved LCD Modules

Flexible LCD modules are emerging, allowing screens to bend or curve. These are still single modules but represent a shift in design possibilities.

Maintenance and Repair Considerations

Understanding how many modules are in an LCD screen is also important for maintenance and repair:

- For devices with a single LCD module, if the screen is damaged, the entire module usually needs replacement.

- In multi-module displays like video walls, individual modules can be replaced without affecting the entire screen, which reduces repair costs and downtime.

Environmental and Manufacturing Impact

The production of LCD modules involves complex manufacturing processes that include depositing thin films, assembling multiple layers, and integrating electronics. The number of modules used in a display impacts manufacturing complexity and cost.

Single large modules require precision and yield control to avoid defects that can ruin the entire panel. Multi-module displays allow for modular manufacturing and easier scalability.

Conclusion

To answer the question how many modules in an LCD screen, the typical scenario is that an LCD screen consists of one integrated LCD module that includes the LCD panel, backlight, driver electronics, and connectors. This is true for most consumer electronics such as smartphones, laptops, and TVs.

However, for very large displays or video walls, multiple LCD modules are tiled together to form a single large screen. Each module is a complete display unit, and the number of modules depends on the overall size and resolution required.

Understanding the structure of an LCD module and its components helps clarify why the concept of "how many modules in an LCD screen" varies by application. The module is the fundamental building block of LCD displays, integrating all necessary parts for image display in one compact unit.

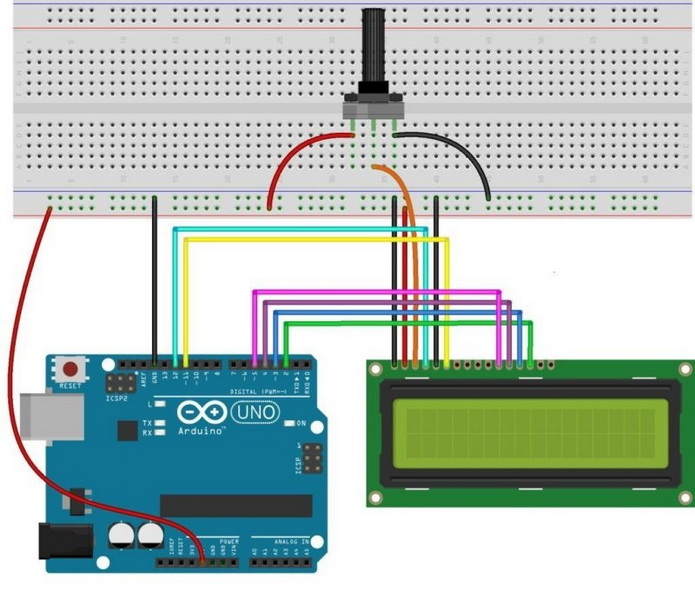

LCD Module Structure Details

FAQ

1. How many pixels does an LCD module typically have?

An LCD module can have millions of pixels. For example, a 1080p module has about 2 million pixels arranged in a matrix of 1920 columns and 1080 rows. Each pixel includes three sub-pixels (red, green, blue) controlled by thin-film transistors.

2. What is the difference between an LCD panel and an LCD module?

An LCD panel is just the glass substrate with liquid crystals and electrodes, while an LCD module includes the panel plus backlight, driver ICs, connectors, and sometimes a frame, making it a complete display unit ready for use.

3. Can large LCD screens be made from multiple modules?

Yes, very large displays like video walls are made by assembling multiple LCD modules tiled together. Each module acts as a smaller screen, and together they form one large display.

4. What are the main components inside an LCD module?

The main components are the LCD panel (liquid crystals and glass substrates), backlight unit, driver electronics (ICs), connectors, and structural parts like frames and polarizers.

5. How are pixels controlled in an LCD module?

Pixels are controlled by thin-film transistors arranged in a matrix on the glass substrate. Driver ICs send electrical signals along gate (row) and source (column) lines to activate each pixel, modulating light to form images.
