When working with a Raspberry Pi 3 (Pi3) and an LCD screen, understanding the current draw is crucial for designing a reliable power supply and ensuring stable operation. This article explores in detail how much current an LCD screen connected to a Pi3 typically draws, factors influencing this current draw, and best practices for powering your setup. We will also cover related questions and common concerns to provide a comprehensive resource.
Before diving into the current draw of the LCD screen, it is important to understand the baseline power consumption of the Raspberry Pi 3 itself. The Pi3 Model B, for example, typically consumes about 400mA during active use, with idle current around 300mA. The recommended power supply for the Pi3 is generally rated at 2.5A to accommodate the Pi and connected peripherals, including USB devices and displays.
This means that the Pi3 alone can draw up to approximately 1.3A under full load after accounting for USB peripherals, but typical desktop usage hovers around 400mA. The power supply must be capable of providing sufficient current to avoid instability, crashes, or reboots.

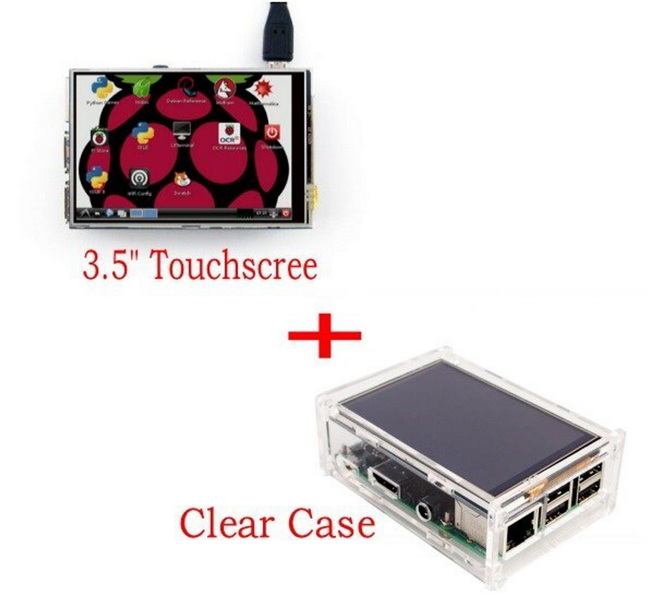

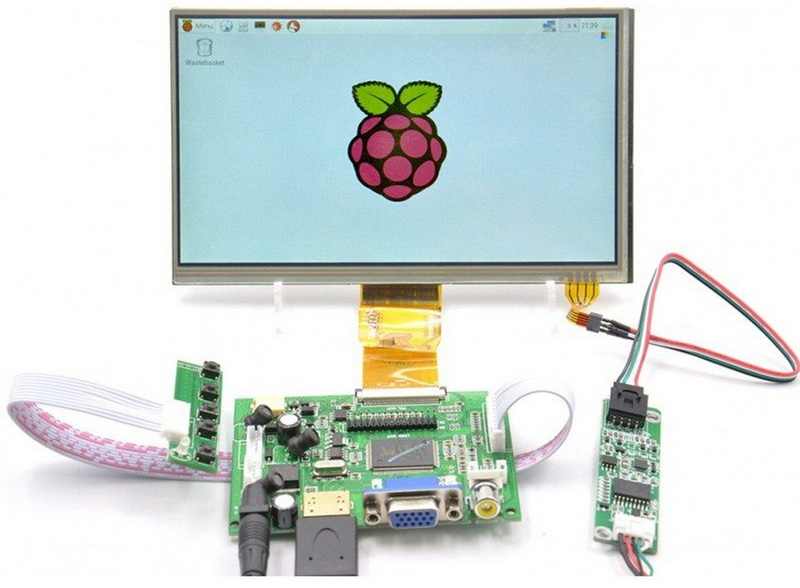

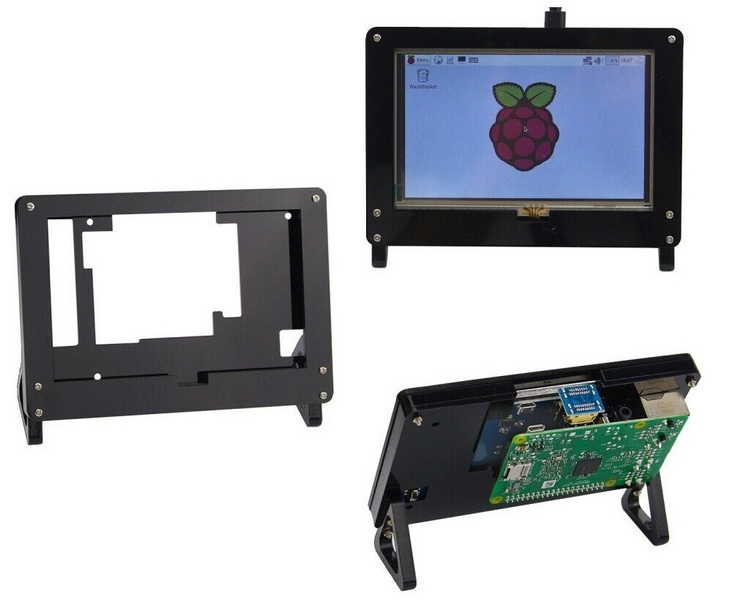

LCD screens vary widely in their current consumption depending on size, type, backlight, and usage. For Raspberry Pi projects, the official 7-inch Raspberry Pi touchscreen LCD is a common choice. This display typically draws about 500mA at 5V when in use. This figure includes the power needed for the LCD panel and its backlight.
Other smaller or simpler LCDs, such as character LCDs or monochrome displays, usually draw significantly less current, sometimes in the range of tens of milliamps without backlight and up to around 120mA when the backlight is on.
The backlight is often the largest contributor to the LCD's power consumption. For example, some TFT LCD backlights can draw between 120mA to 160mA at around 3.3V or 4V, depending on the LED configuration and resistor values used to limit current. If the backlight is turned off or dimmed, the overall current draw can drop substantially.
- Raspberry Pi 3 typical current draw: ~400mA active
- Official 7-inch LCD screen current draw: ~500mA
- Backlight current (typical): 120mA to 160mA (included in above estimate)
- Total combined current draw: Approximately 900mA to 1A under typical use
This means a power supply rated at 2.5A is sufficient to power the Pi3 and the LCD screen together with some headroom for other peripherals.
Larger screens or those with higher resolutions generally consume more power. TFT LCDs with LED backlights consume more current than monochrome or OLED displays. For example, a 2.2-inch TFT might draw around 120mA, while a 7-inch touchscreen can draw up to 500mA.
Adjusting the backlight brightness directly affects current draw. Dimming the backlight reduces power consumption, which can be beneficial for battery-powered projects.
Displays showing static images or minimal changes use less power than those with frequent updates or animations. However, the difference is usually minor compared to backlight consumption.
Using a stable and adequately rated power supply ensures the Pi3 and LCD operate without voltage drops that can cause instability. The Pi3's onboard fuse limits current to about 2.5A to protect the board.
Given the combined current draw of the Pi3 and LCD screen, a power supply capable of delivering at least 2.5A at 5V is recommended. This allows sufficient current for the Pi, LCD, and additional USB peripherals or sensors.
If powering the LCD screen separately, it is advisable to use a dedicated regulated 5V supply or power the display directly from the main supply to avoid overloading the Pi3's power lines.
Higher current draw typically correlates with increased heat generation. Both the Raspberry Pi 3 and the LCD screen produce heat during operation, especially when the backlight is at full brightness. Ensuring proper ventilation or adding heat sinks can help maintain optimal operating temperatures and prevent thermal throttling or damage.
For portable or battery-powered Pi3 projects, understanding how much current draw for LCD screen Pi3 setups is vital to estimate battery life accurately. Since the LCD backlight consumes a significant portion of the power, reducing brightness or using low-power display alternatives can extend battery life considerably.
Powering an LCD screen and Pi3 from the same source can sometimes cause electrical noise or voltage fluctuations, especially if the power supply is inadequate. Using quality cables, proper grounding, and possibly separate power lines for the display can help maintain signal integrity and reduce display flickering or glitches.
If the power supply cannot provide enough current for the Pi3 and LCD screen, symptoms may include random reboots, screen flickering, dim or blank display, and USB device disconnections. Monitoring voltage levels with a multimeter or using software tools to check for undervoltage warnings can help diagnose power issues.
- Upgrade to a higher-rated power supply (at least 2.5A at 5V)
- Use powered USB hubs for peripherals
- Power the LCD screen separately with a regulated supply
- Reduce backlight brightness to lower current draw
- Check and replace low-quality or thin power cables that cause voltage drops
Understanding how much current draw for LCD screen Pi3 setups is essential for ensuring stable and reliable operation. The Raspberry Pi 3 typically draws around 400mA, while an official 7-inch LCD screen adds approximately 500mA. Including backlight current, the total current can approach 1A under normal usage. Therefore, a 2.5A power supply is recommended to provide sufficient current with headroom for peripherals.
Adjusting backlight brightness and choosing appropriate LCD types can help manage power consumption, especially in battery-powered or portable projects. Always ensure your power supply is stable and capable of delivering the required current to avoid system instability. Additionally, consider thermal management and power quality to maintain optimal performance and longevity of your Pi3 and LCD setup.
The Raspberry Pi 3 typically draws about 300mA at idle and up to 400mA under normal active load without peripherals attached.
The official 7-inch Raspberry Pi touchscreen LCD usually consumes around 500mA at 5V, including the backlight.
You can power small LCD screens from the Pi3's 5V pins if the total current draw remains within the Pi's power budget. For larger screens like the 7-inch official display, it is better to use a dedicated power supply or power the screen directly from the main 5V supply to avoid overloading the Pi.
Backlight brightness significantly impacts current consumption. Higher brightness increases current draw (typically 120mA to 160mA for many LCD backlights), while dimming or turning off the backlight reduces power usage.
A 5V power supply rated at least 2.5A is recommended to safely power a Raspberry Pi 3 along with an LCD screen and other peripherals, providing enough current headroom for stable operation.
