Setting up a 3.5-inch TFT LCD display with Volumio on a Raspberry Pi can enhance your audio experience by providing a user-friendly interface. This guide will walk you through the entire process, from hardware setup to software configuration, ensuring that you can enjoy your music with an interactive display.
Volumio is a popular open-source music player designed for high-resolution audio playback. It is particularly well-suited for Raspberry Pi devices, making it a favorite among audiophiles and DIY enthusiasts. The 3.5-inch TFT LCD display allows users to interact with Volumio visually, providing an intuitive interface for browsing music libraries, adjusting settings, and controlling playback.
The combination of Volumio and a TFT LCD display not only enhances the aesthetic appeal of your audio setup but also significantly improves user interaction. With the touch functionality of the display, users can easily navigate through their music collections without needing to rely solely on a keyboard or mouse. This is especially beneficial for those who prefer a clean and minimalistic setup.
To get started, you will need the following components:
- Raspberry Pi (preferably model 3B or later)
- 3.5-inch TFT LCD Display (compatible with GPIO)
- MicroSD Card (at least 8GB)
- Power Supply for Raspberry Pi
- Ethernet Cable (or Wi-Fi connection)
- Computer for initial setup
In addition to these basic components, consider acquiring a case for your Raspberry Pi to protect it from dust and damage. A case can also help in managing heat dissipation, which is crucial during extended use.
1. Download Volumio Image: Visit the Volumio website and download the latest image for Raspberry Pi.
2. Burning the Image: Use software like Balena Etcher or Win32 Disk Imager to write the Volumio image to your microSD card.
3. Insert MicroSD Card: Once the image is burned, insert the microSD card into your Raspberry Pi.
4. Power Up: Connect your Raspberry Pi to power and wait for it to boot up.
During this initial setup phase, ensure that you have a stable internet connection available, as this will be necessary for downloading updates and additional plugins later on.
1. Connect to Network: Connect your Raspberry Pi to your network using an Ethernet cable or configure Wi-Fi through the Volumio web interface.
2. Access Volumio Interface: Open a web browser and navigate to `http://volumio.local` or use the IP address assigned to your Raspberry Pi.
3. Basic Setup: Follow the on-screen instructions to set up your music library and preferences.
The initial configuration process is straightforward but crucial for ensuring that Volumio operates smoothly with your music collection. You may want to connect an external hard drive or USB stick containing your music files during this step.
1. Access Settings: In the Volumio web interface, go to `Settings > Plugins`.
2. Install Touch Display Plugin: Find and install the Touch Display plugin from the Miscellanea section. This may take some time as it downloads necessary files.
3. Enable SSH: Go to `http://volumio.local/dev` and enable SSH for remote access.
The Touch Display plugin is essential as it allows the TFT LCD display to function correctly with Volumio, enabling touch interactions that enhance usability.

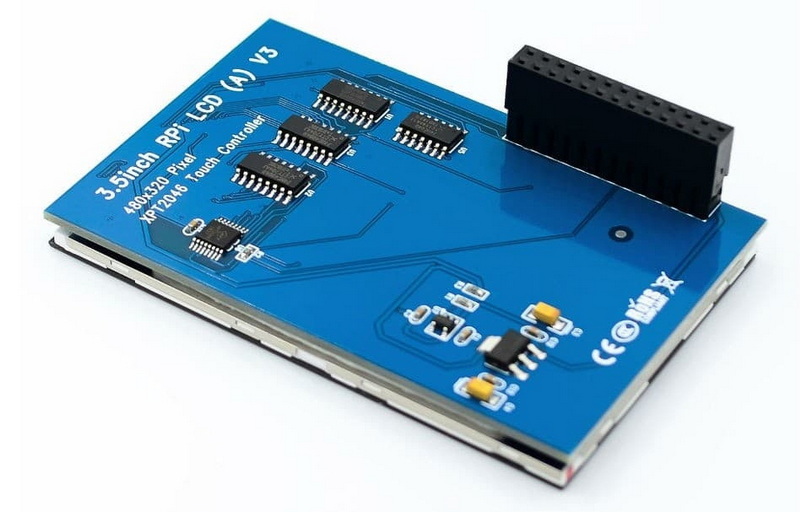

1. Wiring Connections: Connect the 3.5-inch TFT LCD display to the GPIO pins on your Raspberry Pi according to the manufacturer's instructions.
2. Powering Up: Ensure that all connections are secure, then power up your Raspberry Pi again.
Proper wiring is critical for ensuring that your display functions correctly. Take care in following the pin configuration provided by the manufacturer of your TFT display, as incorrect connections can lead to malfunctions or even damage components.
1. Open Terminal via SSH: Use a terminal application like PuTTY to connect via SSH using default credentials (`username: volumio`, `password: volumio`).
2. Clone Required Repository: You will need specific files from repositories that support touchscreen functionalities.
3. Install Dependencies: Ensure that all necessary dependencies are installed so that the display can communicate effectively with Volumio.
4. Edit Configuration File: Open configuration files related to display settings and adjust them according to your needs, such as rotation or resolution settings based on how you want your interface displayed.
5. Reboot Your Device: After making changes, rebooting ensures that all configurations take effect properly.
This step is crucial as it ensures that all settings are applied correctly before testing out functionality on your TFT display.
1. After rebooting, check if the display shows the Volumio interface clearly and responsively.
2. If touch functionality is not aligned correctly, you may need to calibrate it using specific calibration tools available within Linux environments.
Testing touch functionality is essential because an unresponsive screen can hinder user experience significantly. Calibration tools help align touch inputs accurately with visual outputs on-screen.
- If you see a blank or white screen after booting up, ensure all connections are secure and verify that you've installed all necessary drivers correctly.
- If touch input does not respond correctly, revisit calibration settings or check if you need to adjust rotation settings in both configuration files and within the Touch Display plugin settings in Volumio.
Common issues can often be resolved by double-checking connections and configurations; however, persistent problems may require deeper investigation into logs or community forums dedicated to Volumio users.
To further enhance your experience with Volumio and your TFT display:
- Explore additional plugins available in Volumio for added functionality such as visualizers or integration with online streaming services.
- Customize themes in Volumio for a more personalized interface; this can include changing colors, layouts, and fonts based on personal preference.
- Regularly check for updates on both Volumio and any plugins you are using; updates often include new features and bug fixes that can improve performance significantly.
By taking advantage of these enhancements, you can create an audio system tailored specifically to your needs while enjoying an aesthetically pleasing interface through your TFT display.
To get the most out of your Volumio setup:
- Organize your music collection into folders by artist or genre.
- Use supported formats like FLAC or WAV for high-resolution audio playback; these formats maintain sound quality better than compressed formats like MP3.
- Consider integrating cloud services where possible; some plugins allow streaming from cloud storage solutions directly into Volumio's interface without needing local storage space on your device.
Creating a well-organized media library not only makes navigation easier but also ensures you can quickly find what you're looking for without frustration during playback sessions.
Volumio offers several advanced features that can elevate your listening experience:
- Multi-Room Audio Support: If you have multiple Raspberry Pis set up throughout your home, you can synchronize them using multi-room audio capabilities within Volumio.
- Integration with Smart Home Devices: Explore options for integrating Volumio with smart home systems such as Google Home or Amazon Alexa for voice control capabilities.
- Audio Filters and Equalizers: Utilize built-in equalizer settings within Volumio's interface to customize sound profiles based on personal preferences or specific genres of music being played.
These advanced features allow you not only to enjoy high-quality audio but also provide flexibility in how you interact with music across different environments in your home.
Setting up a 3.5-inch TFT LCD display with Volumio on a Raspberry Pi can significantly enhance your audio experience by providing an intuitive touch interface for music control and navigation. By following this guide step-by-step, you should be able to enjoy a fully functional setup that allows you to engage with your music library effortlessly while customizing it according to personal preferences and needs.
- A TFT LCD display provides a visual interface for navigating music libraries, adjusting settings, and controlling playback without needing an external monitor or keyboard.
- Yes, while this guide focuses on a 3.5-inch display, other sizes can also work as long as they are compatible with Raspberry Pi and have appropriate drivers available.
- Ensure all connections are secure, verify that you've installed necessary drivers correctly, and check configuration files for errors.
- Yes, Volumio supports various themes that can be installed via its plugin system allowing users to customize their interface's look and feel.
- You can improve touch accuracy by calibrating your touchscreen using tools like xinput_calibrate, adjusting settings in both configuration files and plugin options until touch input aligns correctly with visual output.
