Adding a touchscreen to a MIPI display involves several steps, from selecting the right components to integrating them into a functional system. The MIPI Display Serial Interface (DSI) is a widely used protocol for data transfer between processors and displays in mobile devices. It supports both command and video modes, allowing for efficient communication with the display controller. In this article, we will explore how to integrate a touchscreen with a MIPI display, focusing on key considerations and technical details.
The process begins with selecting a compatible touchscreen controller, such as those using I2C or SPI interfaces, which are commonly used for touch input. The choice of controller depends on factors like the type of touch technology (capacitive or resistive) and the desired level of precision. Once the components are chosen, the next step is hardware integration, which involves connecting the MIPI display and the touchscreen controller to the device's processor.
The MIPI DSI protocol is crucial for communicating with the display. It operates in two primary modes: Command Mode and Video Mode. Command Mode is used for sending commands to the display registers, while Video Mode is for real-time pixel data streaming. Understanding these modes is essential for configuring the display driver and ensuring seamless communication between the processor and the display.
To integrate a touchscreen with a MIPI display, follow these key steps:
1. Selecting Components: Choose a MIPI display and a touchscreen controller that are compatible with your device's processor. Ensure the MIPI version supported by the display matches the processor's capabilities. For instance, if your processor supports MIPI DSI-2, ensure the display also supports this version for optimal performance.

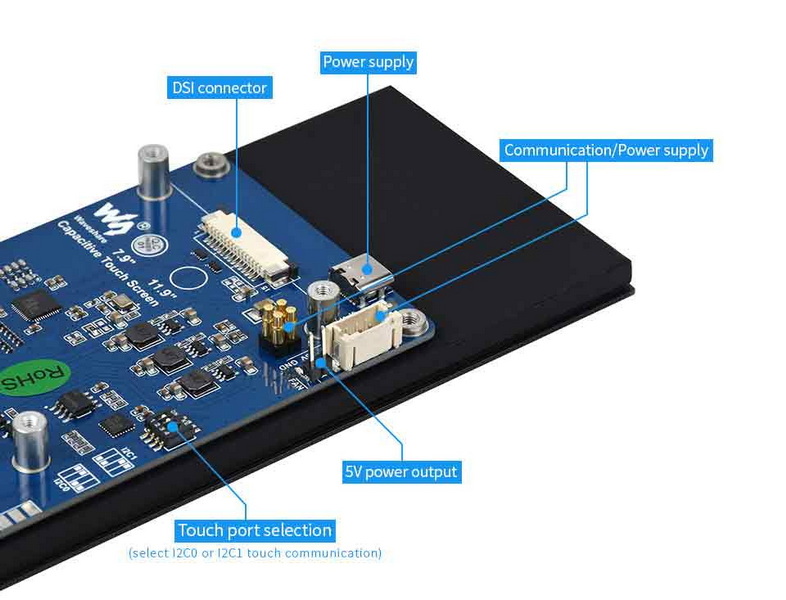

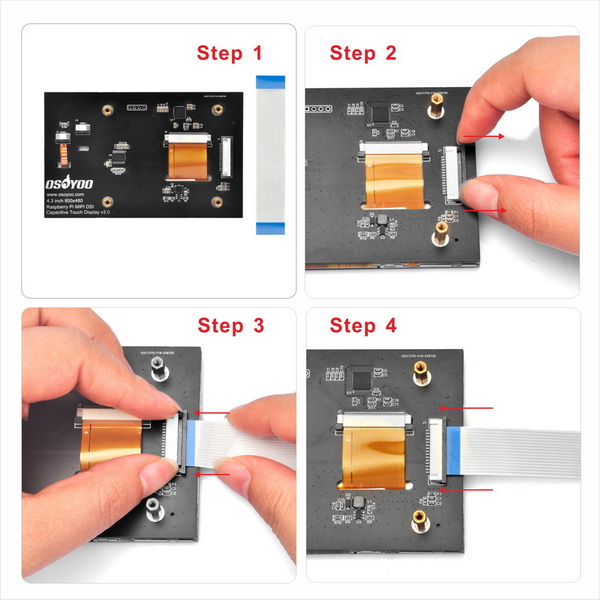

2. Hardware Integration: Connect the MIPI display to the processor using high-quality cables or flexible printed circuits (FPCs). Similarly, connect the touchscreen controller, typically via I2C or SPI interfaces. It is crucial to ensure that all connections are secure and properly shielded to prevent signal interference.
3. Software Configuration: Obtain the necessary drivers for the MIPI display and the touchscreen controller. Configure the display controller to communicate with the MIPI display using the DSI protocol. This involves setting up communication parameters and initializing the display. For example, you may need to configure the display resolution, frame rate, and pixel format.
4. System Integration: Update the device's operating system or firmware to recognize and support the new display and touchscreen. This may involve modifying display drivers or adding support in the user interface. For Linux-based systems, this often requires updating kernel modules and device tree configurations.
5. Testing and Optimization: Thoroughly test the integrated system to ensure proper functionality and optimize performance as needed. This includes verifying display quality, touch accuracy, and responsiveness. Optimization may involve tweaking display settings or adjusting touch sensitivity.
Developing a custom display driver for a MIPI display involves creating a kernel module that communicates with the display controller. For Raspberry Pi devices, using the `vc4_dsi` driver is essential for initializing other display devices on the MIPI DSI interface. The kernel version must support the MIPI DSI interface; typically, kernel versions 4.0 and above are suitable for this purpose. This process requires a good understanding of Linux kernel development and device driver programming.
Integrating a touchscreen controller requires programming the controller to communicate with the touch sensor. This often involves configuring I2C or SPI interfaces and handling touch events in the operating system. For example, you might need to write a device driver to manage touch data and pass it to the operating system for processing.
Power management is another critical aspect of integrating a touchscreen with a MIPI display. Both the display and the touchscreen controller consume power, and efficient power management can significantly extend battery life in portable devices. Techniques such as dynamic voltage and frequency scaling (DVFS) can be used to adjust power consumption based on system activity.
One common challenge is managing both display and touch input simultaneously. This requires efficient use of system resources and careful synchronization to prevent conflicts between the display engine and the touch controller. For instance, ensuring that touch events are processed promptly without interrupting display updates is crucial for maintaining a responsive user interface.
Ensuring compatibility between the MIPI display, touchscreen controller, and device processor is crucial. Incompatible components can lead to integration issues and poor performance. Compatibility checks should include both hardware and software aspects, such as ensuring that the processor supports the required MIPI version and that the operating system can handle the touchscreen controller.
Debugging and troubleshooting are essential steps in the integration process. Common issues include incorrect wiring, driver configuration errors, and compatibility problems. Using tools like logic analyzers or oscilloscopes can help diagnose issues with signal integrity or timing. Additionally, reviewing system logs and kernel messages can provide insights into software-related problems.
Implementing multi-touch support requires advanced touch controllers capable of detecting multiple touch points simultaneously. This involves sophisticated algorithms to track and interpret touch gestures accurately. For instance, recognizing pinch-to-zoom or swipe gestures requires precise tracking of multiple fingers.
Gesture recognition is another advanced feature that can enhance user interaction. This involves developing software that can interpret touch patterns and translate them into specific actions. For example, recognizing a swipe gesture to switch between screens or a tap gesture to select an item.
Display calibration is important for ensuring optimal image quality. This involves adjusting parameters such as brightness, contrast, and color balance to match the display's capabilities and environmental conditions. Calibration tools can help automate this process by analyzing display output and adjusting settings accordingly.
Adding a touchscreen to a MIPI display requires careful planning, precise hardware integration, and thorough software configuration. Understanding the MIPI DSI protocol and selecting compatible components are key to a successful integration. By following these steps and addressing common challenges, developers can create robust and efficient systems that combine the benefits of MIPI displays with the interactivity of touchscreens.
The MIPI DSI protocol is used for data transfer between a processor and a display in mobile devices, supporting both command and video modes.
Choose a touchscreen controller that matches your device's processor capabilities and supports the desired touch technology (e.g., capacitive or resistive).
Common interfaces for touchscreen controllers include I2C and SPI.
Ensure that the MIPI version supported by the display is compatible with the processor's hardware and software capabilities.
Common challenges include ensuring compatibility, handling display and touch input simultaneously, and debugging integration issues.
