In today's digital age, we are surrounded by screens of all sizes, from smartphones and tablets to laptops and televisions. Two of the most common display technologies you'll encounter are TFT (Thin Film Transistor) and LCD (Liquid Crystal Display). While these terms are often used interchangeably, there are important distinctions between them that affect performance, image quality, and user experience. In this comprehensive guide, we'll explore the world of TFT and LCD displays, comparing their features, advantages, and applications.
LCD, or Liquid Crystal Display, is a flat-panel display technology that uses liquid crystals to produce images. These displays work by manipulating light through a layer of liquid crystals sandwiched between two polarizing filters. When an electric current is applied, the crystals align to either block or allow light to pass through, creating the images we see on screen.
LCDs have been widely used in various electronic devices for decades due to their relatively low power consumption, thin profile, and ability to produce clear images. However, traditional LCD technology has some limitations, such as slower response times and narrower viewing angles compared to newer display technologies.
TFT, or Thin Film Transistor, is not a separate display technology but rather an enhancement to LCD technology. TFT displays are a type of active-matrix LCD that uses thin-film transistors to improve image quality and response time. In a TFT display, each pixel is controlled by one to four transistors, allowing for more precise control over the liquid crystals and resulting in better overall performance.
The key advantages of TFT displays over traditional LCDs include:
1. Improved image quality and sharpness
2. Faster response times
3. Better color reproduction
4. Wider viewing angles
5. Higher contrast ratios
While all TFT displays are LCDs, not all LCDs are TFT displays. Let's break down the main differences between these technologies:
TFT displays generally offer higher resolution and better image quality compared to standard LCDs. The individual control of pixels in TFT displays allows for sharper images, more vibrant colors, and improved overall clarity. This makes TFT displays particularly suitable for applications that require high-quality visuals, such as gaming, graphic design, and video playback.
One of the significant advantages of TFT displays is their improved viewing angles. Traditional LCDs often suffer from color shifting and reduced contrast when viewed from off-center angles. TFT displays, especially those using IPS (In-Plane Switching) or VA (Vertical Alignment) technologies, offer much wider viewing angles without significant loss of image quality.
Additionally, TFT displays typically have higher contrast ratios, which means they can produce deeper blacks and brighter whites, resulting in more dynamic and visually appealing images.
Response time refers to how quickly a pixel can change from one color to another, while refresh rate indicates how many times per second the display updates its image. TFT displays generally have faster response times and higher refresh rates compared to standard LCDs. This results in smoother motion, reduced motion blur, and a more responsive user experience, which is particularly important for gaming and fast-paced video content.
While TFT displays offer superior performance in many aspects, they typically consume more power than traditional LCDs. This is due to the additional transistors and more complex circuitry required to control individual pixels. However, advancements in display technology have led to more energy-efficient TFT displays, narrowing the gap in power consumption between TFT and standard LCD screens.

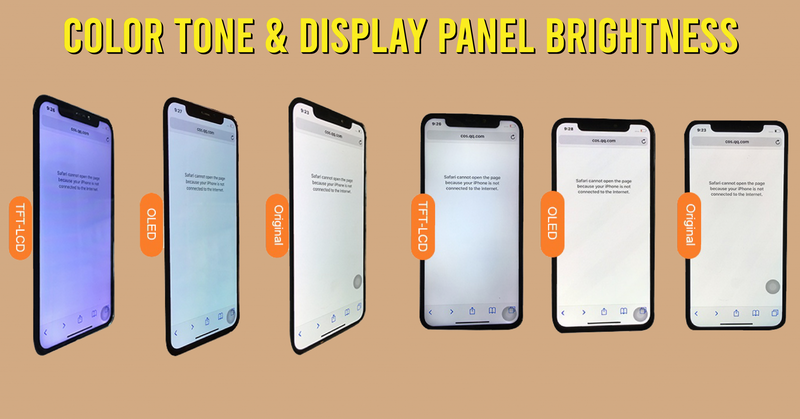

TFT displays excel in color reproduction, offering a wider color gamut and more accurate color representation compared to basic LCDs. This is particularly noticeable in high-end TFT displays that use technologies like IPS or quantum dot enhancement. These displays can produce more vibrant and lifelike colors, making them ideal for professional applications such as photo editing and graphic design.
In terms of brightness, TFT displays generally have an edge over standard LCDs. The ability to control each pixel individually allows for more precise backlight management, resulting in higher peak brightness and better overall luminance control.
When discussing TFT displays, it's important to understand the different panel types available, as they each have their own strengths and weaknesses:
IPS panels are known for their excellent color accuracy and wide viewing angles. They offer consistent colors and contrast even when viewed from off-center angles, making them ideal for professional use and multi-viewer scenarios. However, IPS panels typically have slower response times compared to other types, which can result in some motion blur in fast-paced content.
VA panels provide the best contrast ratios among LCD technologies, producing deep blacks and bright whites. They offer good color reproduction and viewing angles, though not quite as wide as IPS panels. VA panels have improved significantly in terms of response times, making them a popular choice for gaming monitors and TVs.
TN panels are the oldest and most common type of LCD panel. They offer the fastest response times and highest refresh rates, making them popular for gaming. However, TN panels suffer from limited viewing angles and poorer color reproduction compared to IPS and VA panels.
In the world of mobile devices, the competition between display technologies is fierce. While TFT-LCD displays have been widely used in smartphones, newer technologies like AMOLED (Active-Matrix Organic Light-Emitting Diode) have gained popularity. Let's compare these technologies:
TFT-LCD displays are still commonly used in budget and mid-range smartphones. They offer good brightness, decent color reproduction, and are cost-effective to produce. However, they typically can't match the contrast ratios and color vibrancy of AMOLED displays.
AMOLED displays use organic compounds to produce light when an electric current is applied. This technology offers several advantages over LCD:
- Perfect blacks and infinite contrast ratios
- Vibrant colors and high saturation
- Potential for energy savings, especially when displaying dark content
- Thinner and more flexible display possibilities
However, AMOLED displays can be more expensive to produce and may be susceptible to burn-in over time.
Many high-end LCD smartphones use IPS-LCD technology, which offers improved viewing angles and color reproduction compared to standard TFT-LCD displays. While not as contrast-rich as AMOLED, IPS-LCD screens provide a good balance of performance and cost-effectiveness.
To better understand the differences between these display technologies, watch this informative video comparison:
As technology continues to advance, we're seeing new innovations in display technology that build upon the foundations of LCD and TFT:
Quantum dot technology enhances LCD displays by using nano-sized semiconductor particles to produce more precise colors. This results in a wider color gamut and improved brightness, rivaling the performance of OLED displays.
These technologies use tiny LEDs as individual pixels, offering the potential for even better contrast, brightness, and energy efficiency than current LCD and OLED displays.
Advancements in OLED and other display technologies are enabling the creation of flexible and foldable screens, opening up new possibilities for device form factors and user interactions.
The world of display technology is complex and ever-evolving. While TFT displays represent a significant improvement over traditional LCDs, offering better image quality, faster response times, and wider viewing angles, the choice between display technologies often depends on the specific application and user requirements.
For everyday use in smartphones, tablets, and laptops, modern TFT-LCD displays, particularly those using IPS technology, offer excellent performance and value. However, for applications requiring the highest level of color accuracy, contrast, and motion handling, newer technologies like OLED and its variants may be preferable.
As consumers, understanding the differences between these display technologies can help us make more informed decisions when purchasing electronic devices. Whether you prioritize color accuracy, motion clarity, power efficiency, or cost-effectiveness, there's likely a display technology that fits your needs.
A: TFT is a type of LCD, specifically an active-matrix LCD. TFT displays generally offer better performance than passive-matrix LCDs, including improved image quality, faster response times, and wider viewing angles.
A: The main advantages of TFT displays include sharper images, better color reproduction, faster response times, wider viewing angles, and higher contrast ratios.
A: AMOLED displays often provide better contrast ratios, more vibrant colors, and potential energy savings compared to TFT-LCD. However, TFT-LCD displays can offer good performance at a lower cost and may have advantages in brightness and longevity.
A: IPS panels offer the best color accuracy and viewing angles, VA panels provide the highest contrast ratios, and TN panels offer the fastest response times but with limited viewing angles and color reproduction.
A: Quantum dot displays enhance LCD technology by using nano-sized particles to produce more precise colors, resulting in a wider color gamut and improved brightness, rivaling the performance of OLED displays.
