Finding the part number for an LCD screen is essential for various reasons, including repairs, replacements, or upgrades. This guide will provide you with comprehensive steps and insights on how to locate your LCD screen part number effectively.
LCD screen part numbers are typically composed of several components that give information about the manufacturer, screen size, resolution, and type. Familiarizing yourself with these components can simplify the identification process.
- Manufacturer Code: The first few letters indicate the manufacturer (e.g., "LP" for LG, "LTN" for Samsung).
- Screen Size: The next three digits typically represent the diagonal size of the screen in inches (e.g., "156" for a 15.6-inch screen).
- Additional Information: Following the size, there may be letters indicating resolution and panel type (e.g., "WH" for 1366x768 resolution).
1. Power Down Your Device:
Ensure that your laptop or monitor is turned off and unplugged to avoid any electrical hazards.
2. Remove the Screen:
If you are dealing with a laptop, carefully remove the bezel around the screen using a plastic pry tool to avoid damaging clips. This step is crucial as most part numbers are located on the back of the LCD panel.

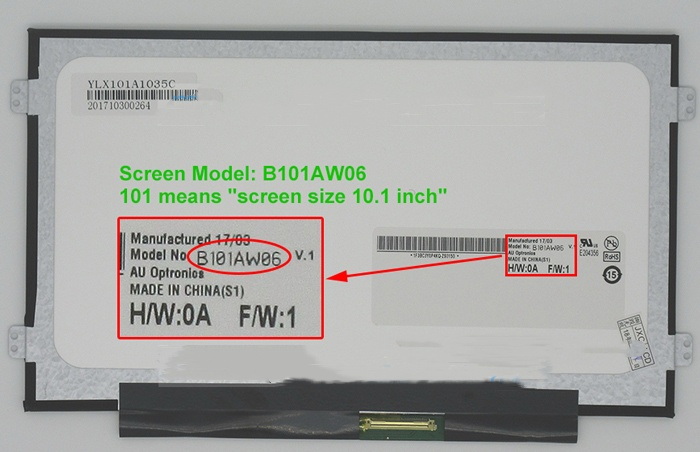

3. Locate the Label:

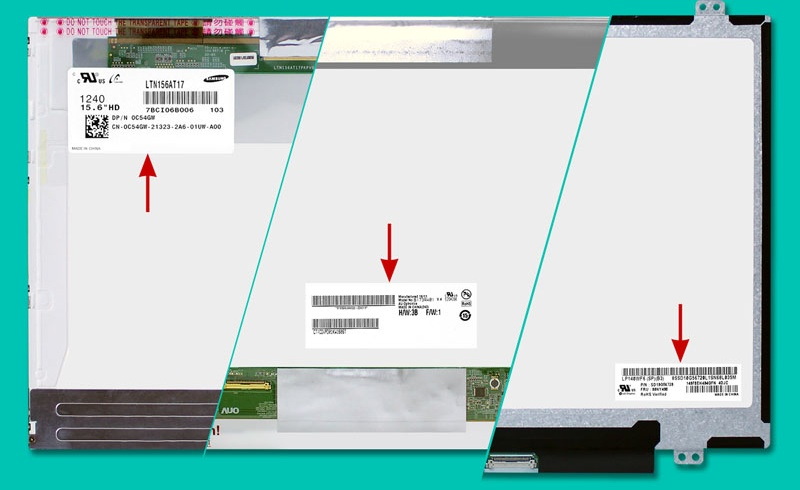

Look for a sticker or label on the back of the LCD panel. This label will typically contain:
- Manufacturer's name
- Model number
- Screen size
- Serial number
For example, an LG display might show `LP156WH4(TL)(A1)`, indicating it's a 15.6-inch screen.
4. Record the Information:
Write down the model number and any other relevant details. This information is essential when searching for replacements or compatible screens.
5. Using Software Tools:
If you are not comfortable disassembling your device, you can use software tools like HWiNFO to find your LCD model number:
- Download and install HWiNFO from its official website.
- Run HWiNFO and allow it to scan your system.
- Expand the “Monitor” section in the left panel.
- Select your specific monitor to view detailed information, including the model number.
If you cannot access the physical label on the screen, consider these alternative methods:
- Display Settings:
Right-click on your desktop and select Display settings. Scroll down and click on Advanced display settings to view monitor details under “Display information,” which may include model information.
- Manufacturer Documentation:

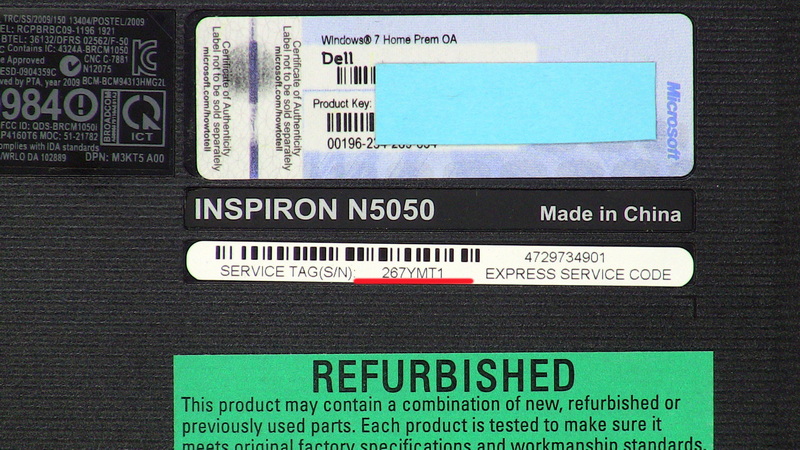

Check the user manual that came with your laptop or monitor or visit the manufacturer's website and enter your device's serial number or model number to access specifications that may include screen details.
- Professional Assistance:
If you're still unable to locate your LCD model number, consider seeking help from a technician who can disassemble your device safely.
Familiarizing yourself with common manufacturers and their respective codes can simplify identifying your LCD model number:
| Manufacturer | Code |
|---|---|
| AU Optronics | B |
| BOE Hydis | HB |
| Chi Mei / Innolux | N |
| Chunghwa | CLAA |
| HannStar | HSD |
| LG Display | LP |
| Samsung | LTN |
| Sharp | LQ or LM |
| Toshiba | LTM or LTD |
Finding your LCD screen part number is crucial for ensuring compatibility when replacing or upgrading screens. By following the outlined steps—removing the screen, locating labels, using software tools, or consulting documentation—you can efficiently identify your LCD model number.
If you're unable to locate it physically, consider using software tools like HWiNFO or checking display settings on your device.
Yes, you can check display settings or use software tools that provide detailed hardware information without needing to disassemble anything.
No, each manufacturer has a unique code structure; familiarize yourself with these codes for accurate identification.
If the label is unreadable, take clear photos of any visible numbers and consult with a professional who can help identify it based on those images.
While it can be safe if done carefully, ensure you follow proper guidelines and precautions to avoid damaging components or voiding warranties.
By understanding these aspects of finding an LCD screen part number, you can confidently proceed with repairs or replacements as needed.
