Repairing an LCD screen on an Android device can be a daunting task, but with the right tools and techniques, it is entirely possible to do it yourself. This guide provides a comprehensive step-by-step process for fixing your Android LCD screen, along with tips, visuals, and videos to enhance your understanding.
LCD (Liquid Crystal Display) screens are the visual components of most modern smartphones, including Android devices. These screens are made up of liquid crystals that align to produce images when electric currents pass through them. Due to their delicate nature, they can easily crack or malfunction due to impacts, pressure, or environmental factors.
There are several types of LCD screens used in Android devices:
- TFT (Thin Film Transistor): Commonly used in budget devices; offers decent quality but lower color accuracy.
- IPS (In-Plane Switching): Provides better color reproduction and wider viewing angles; found in mid-range to high-end devices.
- AMOLED (Active Matrix Organic Light Emitting Diode): While technically not an LCD, AMOLED screens are often compared due to their vibrant colors and deep blacks.
Understanding these types can help you choose the right replacement screen for your device.
Before beginning the repair process, gather the following tools and materials:
- Screwdriver Set: A precision screwdriver set is essential for opening your device.
- Plastic Pry Tools: These help in safely separating the screen from the body without causing damage.
- Heat Gun or Hair Dryer: Useful for loosening adhesive.
- Replacement LCD Screen: Ensure it is compatible with your specific device model.
- Tweezers: For handling small components.
- Microfiber Cloth: To clean the screen before reassembly.
- Adhesive Strips or Glue: To secure the new screen in place after installation.
- Anti-static Wrist Strap: To prevent static electricity from damaging internal components.
When purchasing replacement parts, consider buying from reputable suppliers to ensure quality and compatibility. Reading reviews and checking return policies can also save you from future headaches.
1. Assess the Damage: Determine if the screen is cracked, shattered, or unresponsive.
2. Power Off the Device: Always turn off your phone before starting any repair.
3. Remove the Battery (if applicable): This prevents any electrical issues during repair.
4. Backup Your Data: If possible, back up your important data before starting the repair process.
1. Use a Heat Gun: Apply heat around the edges of the screen to soften the adhesive holding it in place. Be careful not to overheat any components.
2. Pry Open the Device: Carefully insert a plastic pry tool between the screen and the body to lift it gently without damaging internal components.
3. Disconnect Cables: Once opened, locate and disconnect the LCD cables from the motherboard using tweezers for precision.

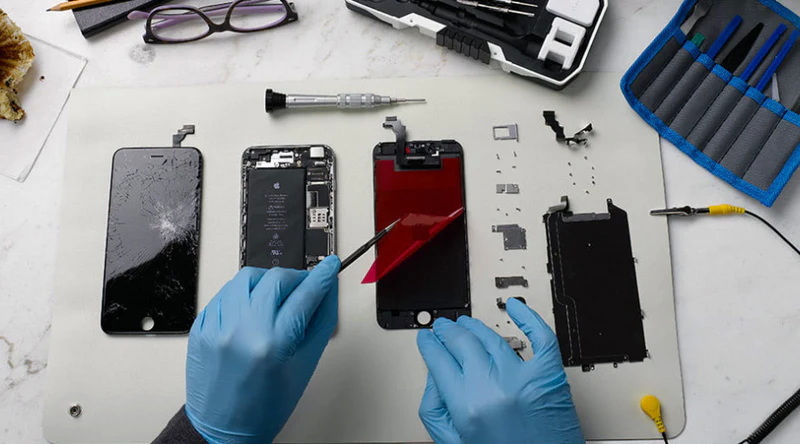

1. Remove Damaged Screen: Lift out the broken LCD screen carefully while ensuring no other components are disturbed.
2. Install New Screen:
- Align the new screen with the connectors on the motherboard.
- Securely connect all cables, ensuring they click into place.
3. Test Functionality (Optional): Before sealing everything, power on your device to check if the new screen works properly.
1. Apply Adhesive: Use appropriate adhesive around the edges of the new screen to ensure a strong bond once pressed into place.
2. Seal the Device: Press down firmly and ensure everything is aligned correctly; this may require some patience as you want to avoid gaps.
3. Reinsert Screws: Securely fasten all screws back into place using your screwdriver set.
After reassembling your device:
1. Power on your phone by pressing and holding the power button.
2. Check for touch responsiveness by swiping across different areas of the screen.
3. Verify clarity of visuals by displaying various colors and brightness settings.
4. If everything works as expected, clean off any fingerprints or dust using a microfiber cloth.
If you encounter issues post-repair, consider these troubleshooting tips:
- Screen Not Responding: Ensure all connections are secure; try reconnecting cables carefully.
Troubleshooting Connections
- Display Flickering: This could indicate a loose connection or faulty replacement part; check all connections again and consider replacing if necessary.
- Touch Sensitivity Issues: If touch sensitivity is inconsistent, verify that you installed a compatible digitizer along with the LCD; sometimes both parts need replacement together.
- Screen Color Distortion: If colors appear washed out or distorted, double-check that you have connected all cables properly; incorrect connections can lead to display issues.
To prolong your device's life after repair:
- Use a protective case to shield against future drops or impacts.
- Consider applying a tempered glass screen protector for added protection against scratches and cracks.
- Avoid exposing your device to extreme temperatures or moisture that could affect internal components.
Repairing an LCD screen on an Android device can save you time and money while providing a rewarding experience as you learn valuable DIY skills. By following this guide carefully and utilizing proper tools, you can successfully restore your device to its original functionality.
Remember that patience is key during this process; rushing through repairs can lead to mistakes that may cause further damage to your device.
You will need a screwdriver set, plastic pry tools, a heat gun or hair dryer, replacement LCD screen, tweezers, microfiber cloth, adhesive strips or glue, and an anti-static wrist strap.
Yes! With careful attention to detail and following instructions closely, many users successfully complete this repair themselves.
Check specifications from reputable suppliers or manufacturers that confirm compatibility with your specific Android model.
Double-check all connections inside your device; ensure that cables are securely connected and that no components were damaged during disassembly.
It is advisable not to use your phone until repairs are complete to avoid further damage.
By equipping yourself with knowledge and skills outlined in this guide, you can tackle common smartphone repairs confidently! Whether you're facing a minor crack or a complete display failure, understanding how to fix an LCD screen empowers you as a smartphone owner and enthusiast!
