Digital cameras have become indispensable tools for capturing our precious moments, whether during travel, family events, or professional projects. However, the LCD screen, being one of the most fragile components, is susceptible to damage. A cracked or malfunctioning LCD screen can render your camera virtually unusable, which can be frustrating. Fortunately, in many cases, you can fix the LCD screen yourself, saving the cost of professional repair or a new camera. This guide provides a comprehensive, step-by-step approach to diagnosing and repairing LCD screens on digital cameras.
Before starting any repair, gather all necessary tools and parts[1]. Having everything at hand will streamline the process and minimize potential issues.
- Replacement LCD Screen: Ensure the replacement screen is compatible with your camera model[3]. Purchase it from a reputable online retailer.
- Small Screwdriver Set: A micro cross screwdriver set is essential for disassembling the camera[7].
- Plastic Pry Tools: These tools help to open the camera casing without causing damage.
- Lint-Free Cloth: Use this with a screen-cleaning agent to clean the screen surface[3].
- Gaffer Tape or Glue: Non-liquid, strong removable glue or gaffer tape may be needed[7].
- Wooden Toothpicks: These can be used to unglue and disconnect parts without causing damage[7].
- Small Container: Keep screws and small parts organized.
Before diving into hardware repairs, try simple troubleshooting steps[1]. Software glitches can often cause screen issues, and these can be resolved without opening the camera.
1. Power Cycle the Camera: Turn off your camera, remove the battery, wait for a few minutes, and then restart it[3].
2. Factory Reset: If the screen issue persists, perform a factory reset. Consult your camera manual for instructions[3].
1. Touchscreen Issues: If your camera has a touchscreen, recalibrate it via the settings menu[3].
1. Dust and Grime: Clean the screen with a lint-free cloth dampened with a screen-cleaning agent[3].
1. Remove Battery and Memory Card: Always start by removing the battery and memory card to prevent electrical damage[1].
2. Remove Screws: Locate and remove all external screws from the sides, bottom, and front of the camera[1]. Keep these screws organized to ensure you can reassemble the camera correctly.
1. Pry Open the Casing: Use plastic pry tools to gently separate the camera's front and back housings[1]. Be patient and work slowly to avoid cracking the plastic.
2. Detach Side and Bottom Panels: Carefully remove the side and bottom panels, which are often fragile[1].

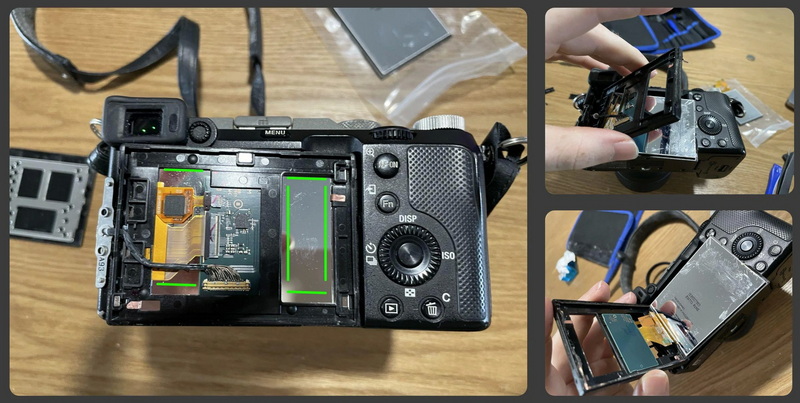

1. Detach LCD and Backlight: Slide the LCD and backlight unit from underneath the snaps holding it in place[1]. You may need to gently pry in some spots.
2. Expose Ribbon Cable: Fold the backlight and LCD over to expose the ribbon cable connecting it to the camera's circuit board[1].
1. Unplug Ribbon Cable: Carefully unplug the LCD ribbon cable from the socket. Wiggle it gently back and forth to ease it out without causing damage[1].
2. Remove LCD: With the ribbon cable detached, remove the broken LCD screen[1].
1. Attach Ribbon Cable: Align the new LCD screen's ribbon cable with the connector on the camera's circuit board[1]. Gently push it in until it is fully seated.
2. Secure LCD and Backlight: Slide the LCD and backlight back into their original positions, ensuring they are secured by the snaps[1].
1. Reattach Housings: Carefully align and snap the front and back housings of the camera back together[1].
2. Reinstall Screws: Replace all the screws you removed earlier, making sure each goes into its original location[1].
3. Reinstall Side and Bottom Panels: Snap the side and bottom panels back into place[1].
1. Insert Battery and Memory Card: Re-insert the battery and memory card[1].
2. Power On: Turn on the camera to test the new LCD screen[1].
3. Functionality Check: Check the screen for proper display, color accuracy, and touch responsiveness (if applicable).
Replacing a cracked LCD screen on a digital camera is a challenging but rewarding task. By following these steps, you can save money and extend the life of your camera. Always take your time, be gentle with the components, and double-check each step to ensure a successful repair.
- You will need a replacement LCD screen, a small screwdriver set, plastic pry tools, a lint-free cloth, screen-cleaning agent, gaffer tape or glue, and wooden toothpicks[3][7].
- Ensure the replacement screen is compatible with your camera model[3]. Check the camera's manual or the manufacturer's website for the exact model number.
- Go back to Step 2 and double-check every connection[1]. Ensure the ribbon cable is properly seated in the connector.
- Yes, but it requires extra care. Follow the same steps, but be especially cautious with the touchscreen components[3].
- Common issues include stripping screws, cracking the camera casing, and damaging the ribbon cable[1]. Take your time and be gentle to avoid these problems.
