Glass touchscreen displays have become increasingly popular due to their durability, clarity, and responsiveness. These displays are widely used in various applications, from smartphones and tablets to interactive kiosks and through-glass interactive touch screens. The integration of glass with touch technology provides a smooth, scratch-resistant surface that enhances user experience. In this article, we will explore how to make a glass touchscreen display, focusing on the key components and techniques involved.
Creating a glass touchscreen display involves several steps, including selecting the right materials, assembling the components, and ensuring proper calibration. The process requires a good understanding of both the hardware and software aspects of touchscreen technology. For instance, understanding how capacitive touchscreens work is crucial, as they are the most common type used in modern devices.
Touchscreen technology can be broadly categorized into two main types: resistive and capacitive. Resistive touchscreens rely on physical pressure to register touch inputs, while capacitive touchscreens use the conductive properties of the human body to detect touch. Glass touchscreen displays typically use capacitive technology due to its higher sensitivity and accuracy.
Capacitive touchscreens consist of a layer of glass coated with a transparent conductive material, such as indium tin oxide (ITO). When a user touches the screen, their body acts as a conductor, altering the capacitance of the screen at the point of contact. This change is detected by sensors embedded in the screen, allowing the device to determine the exact location of the touch. The capacitive technology also supports multi-touch gestures, making it ideal for modern smartphones and tablets.
Resistive touchscreens, on the other hand, use two conductive layers separated by a thin gap. When pressure is applied to the screen, the two layers come into contact, completing a circuit and registering a touch event. While less common in modern devices, resistive touchscreens are still used in certain applications where durability and simplicity are prioritized. For example, they are often found in industrial control panels or point-of-sale terminals.
To make a glass touchscreen display, you will need several key components:

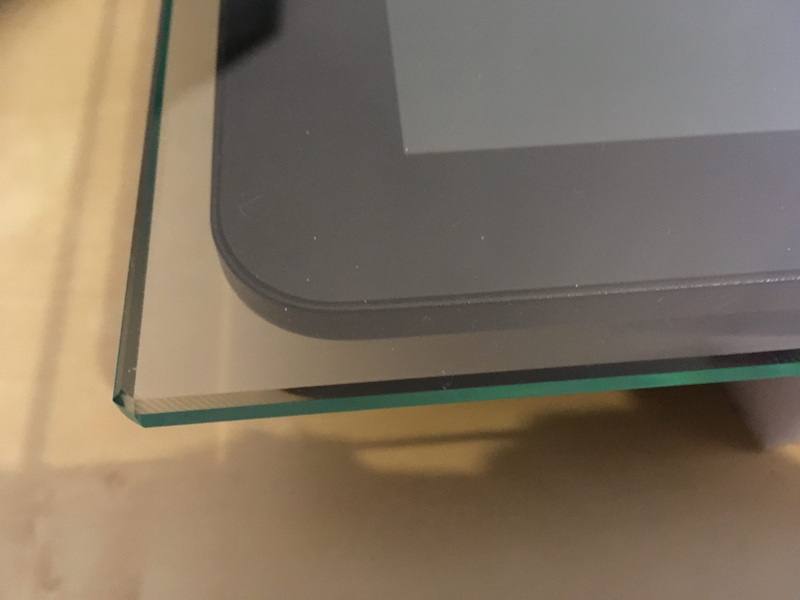

- Glass Panel: A thin layer of glass serves as the outermost surface of the touchscreen. It provides a smooth interface for users and protects the underlying components. The glass should be tempered to enhance durability and prevent shattering.
- Conductive Coating: A transparent conductive oxide (TCO) like ITO is applied to the glass to enable capacitive sensing. This coating must be evenly distributed to ensure consistent touch detection across the screen.
- Sensors and Controller: These components detect changes in capacitance and translate them into digital signals that the device can understand. The controller processes these signals to determine the exact coordinates of the touch event.
- Display Panel: This is typically an LCD or OLED display that shows visual content to the user. The choice between LCD and OLED depends on factors such as brightness requirements, power consumption, and color accuracy.
Assembling a glass touchscreen display involves carefully mounting the glass panel over the display panel, ensuring there are no air gaps or obstructions. The conductive coating and sensors are integrated into the glass layer, and the controller is connected to process touch inputs. This assembly process requires precision to ensure that all components are properly aligned and securely fastened.
After assembly, the touchscreen must be calibrated to ensure accurate touch detection. This involves running software routines that map the screen's coordinates to the device's display. Testing is crucial to identify any issues with sensitivity or accuracy. Calibration may need to be adjusted based on environmental factors, such as temperature and humidity, which can affect the performance of the touchscreen.
To improve the performance of a glass touchscreen display, several advanced techniques can be employed:
- Anti-Glare Coatings: These reduce reflections and improve visibility in bright environments. Anti-glare coatings are particularly useful for outdoor applications or in areas with high ambient light.
- Fingerprint Resistance: Special coatings can minimize fingerprint marks, enhancing the overall user experience. These coatings reduce the visibility of smudges and make cleaning easier.
- Optical Bonding: This process involves bonding the glass layer directly to the display panel, reducing glare and improving optical clarity. Optical bonding enhances the display's contrast and color accuracy by eliminating air gaps between layers.
When creating a glass touchscreen display, several challenges may arise:
1. Inaccurate Touch Detection: This can be resolved by recalibrating the screen or checking the sensor connections. Ensuring that the conductive coating is evenly applied is also crucial for consistent touch detection.
2. Unresponsive Areas: Ensure that the conductive coating is evenly applied and that there are no air gaps between layers. This can prevent areas of the screen from being unresponsive to touch inputs.
3. Scratches and Durability: Using high-quality glass with scratch-resistant coatings can mitigate these issues. Regular cleaning and maintenance can also extend the lifespan of the touchscreen.
Glass touchscreen displays are versatile and can be applied in a variety of settings:
- Consumer Electronics: Smartphones, tablets, and smartwatches are common examples where glass touchscreens are used.
- Industrial Applications: Glass touchscreens are used in control panels for machinery and equipment due to their durability and resistance to environmental factors.
- Public Kiosks: Interactive kiosks in public spaces, such as malls or airports, often use glass touchscreens for their robustness and ease of use.
As technology advances, we can expect further innovations in touchscreen displays. For instance, advancements in materials science may lead to more efficient conductive coatings or stronger glass materials. Additionally, the integration of AI and machine learning can enhance touch recognition and user interface customization.
Creating a glass touchscreen display requires careful attention to detail and a thorough understanding of both the hardware and software components involved. By selecting the right materials, assembling the components correctly, and ensuring proper calibration, you can create a highly responsive and durable touchscreen display. Whether for personal projects or commercial applications, the techniques outlined here provide a solid foundation for building effective glass touchscreen displays.
A glass panel, conductive coating (such as ITO), sensors, a controller, and a display panel are the primary materials required.
Capacitive touchscreens use the body's conductivity to detect touch, while resistive touchscreens rely on physical pressure to register inputs.
Calibration involves running software routines that map the screen's coordinates to the device's display, ensuring accurate touch detection.
Common challenges include inaccurate touch detection, unresponsive areas, and durability issues due to scratches.
Techniques such as anti-glare coatings, fingerprint resistance, and optical bonding can improve visibility and user experience.
