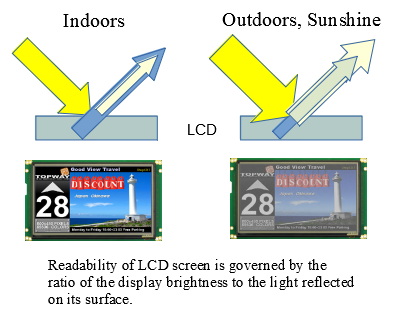

Outdoor visibility of LCD screens remains a persistent challenge due to glare, reflections, and ambient light overpowering display brightness. Whether for smartphones, industrial equipment, or digital signage, achieving sunlight readability requires a combination of advanced display technologies, optical treatments, and practical adjustments. Below, we explore actionable strategies to enhance LCD screen visibility in direct sunlight, supported by technical insights and real-world solutions.
The most straightforward method to combat sunlight is to overpower ambient light with a high-brightness LCD panel:
- High-Brightness LED Backlights: Displays with 1,000–3,000 nits (cd/m²) significantly outperform standard screens (200–500 nits). For example, industrial-grade TFT LCDs use powerful LED arrays to achieve 1,500+ nits, ensuring visibility even under direct sunlight.
- Efficient Light Guides: Optimized light guide plates distribute backlight uniformly, reducing hotspots and improving brightness efficiency.
Minimizing reflections from the screen surface is critical:
- Anti-Glare (AG) Coatings: Etched surfaces scatter incoming light, converting specular reflections into diffuse ones. AG treatments improve contrast by up to 50% in bright environments.
- Anti-Reflective (AR) Coatings: Multi-layer AR films reduce surface reflections to <2%, preserving color accuracy and contrast.
- Optical Bonding: Laminating the LCD with a touch panel or cover glass using optically clear adhesives (OCA) eliminates air gaps, cutting reflections by 60–80%.
High contrast ensures readability by differentiating bright and dark elements:
- Dynamic Backlight Control: Adjusts brightness locally to maintain contrast ratios >1,000:1.
- Polarizer Optimization: High-transmittance polarizers improve light efficiency, boosting perceived contrast.
| Technology | Impact on Sunlight Readability |
|---|---|
| High Brightness | Overpowers ambient light (1,000+ nits) |
| Optical Bonding | Reduces reflections by 60% |
| AG/AR Coatings | Improves contrast by 30–50% |
For everyday users, simple adjustments can mitigate sunlight interference:
1. Adjust Viewing Angle: Position the screen perpendicular to sunlight to minimize glare.
2. Use a Sunshade or Hood: Physical barriers block direct light. DIY options include cardboard enclosures or commercial hoods.
3. Enable Maximum Brightness: Temporarily override auto-brightness settings for maximum output.
4. Wear Polarized Sunglasses: Reduces glare but may alter color perception; however, they can significantly enhance visibility in bright conditions.
5. Opt for Dark Themes: High-contrast interfaces (e.g., white text on black) improve legibility against bright backgrounds.
In more demanding environments like construction sites or outdoor kiosks, additional measures may be necessary:
Prolonged sun exposure causes overheating, leading to LCD degradation:
- Cooling Systems: Active fans or heat sinks maintain operating temperatures below 50°C.
- IR/UV Filters: Block 95% of infrared and ultraviolet radiation, preventing color shifts and component damage.
- Ambient Light Sensors: Automatically adjust brightness based on surroundings to maintain optimal visibility in changing lighting conditions.
- Transflective LCDs: Combine reflective and transmissive modes, leveraging sunlight to enhance backlight efficiency while maintaining readability in lower light.
To ensure optimal performance over time:
- Regular Cleaning: Remove dust and fingerprints to maintain anti-reflective properties.
- Avoid Direct Sunlight When Not in Use: Shield screens or power them off to prevent heat damage.
- UV-Resistant Films: Apply protective layers to prevent yellowing and contrast loss over time.
The future of outdoor display technology is promising with several innovative solutions:
- MicroLED Displays: Offer brightness levels exceeding 3,000 nits with lower power consumption.
- E-Ink in Color: Reflective displays that excel in direct sunlight without requiring backlighting are ideal for static content.
- OLED with Boosted Brightness: New panels achieve up to 2,000 nits while maintaining deep blacks.
When selecting a display for outdoor use, consider the following factors:
- Brightness Levels: A minimum of 1,000 nits is typically required for effective outdoor visibility.
- Contrast Ratio: Higher ratios enhance readability by improving differentiation between light and dark elements.
- Color Accuracy: Displays must maintain true colors even under bright conditions; this is crucial for applications like advertising where visual fidelity matters.
Different technologies offer various advantages:
- Transflective Displays: Ideal for environments where both bright sunlight and dim indoor lighting are present.
- OLED Displays: Known for their superior color reproduction and contrast ratios but may require careful consideration regarding brightness levels outdoors.
- E-Ink Displays: Best suited for applications where static images are displayed since they do not require power when showing an image.
Sunlight-readable displays find applications across various industries:
- Digital Signage: Used extensively in outdoor advertising where high visibility is paramount.
- Agricultural Equipment: Many modern tractors and farming machinery utilize sunlight-readable displays for operational efficiency.

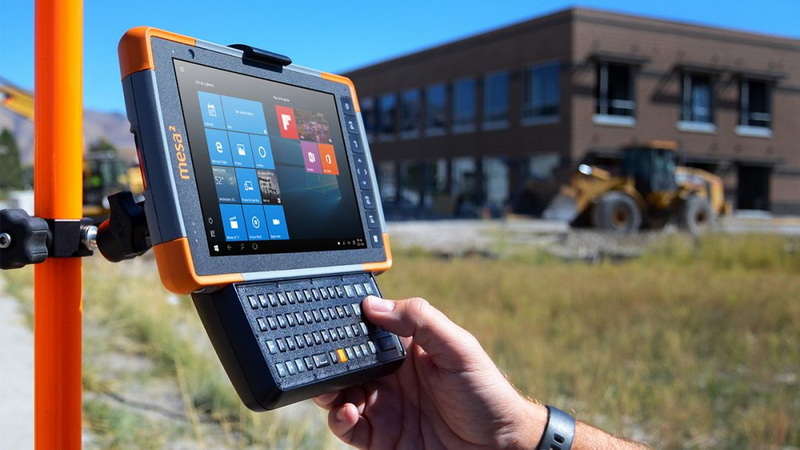

- Smartphones and Tablets: Devices designed for outdoor use often incorporate advanced technologies to ensure usability under bright conditions.
Achieving sunlight readability for LCD screens demands a multi-faceted approach that includes boosting brightness, reducing reflections, optimizing contrast, and integrating adaptive technologies. While high-brightness industrial displays (1,000+ nits) are ideal for critical applications like digital signage or rugged tablets used outdoors, everyday users can leverage anti-glare films, adjustable hoods, and smart settings on their devices to improve visibility significantly.
Future advancements in MicroLED technology and transflective displays promise even better outdoor visibility with lower energy demands while maintaining high color fidelity.
Higher brightness (measured in nits) allows displays to compete with ambient light effectively; a display rated at 1,500 nits can remain visible under direct sunlight compared to standard screens that may appear washed out at lower brightness levels.
Yes! Anti-glare coatings diffuse reflections significantly; however, their effectiveness can vary based on quality—higher-end products typically provide better results.
Yes! Optical bonding and aftermarket high-brightness backlights can retrofit screens; however, this process requires technical expertise and may not be cost-effective compared to purchasing purpose-built displays.
Many devices come equipped with ambient light sensors that adjust brightness based on surrounding light levels; disabling auto-brightness settings can help achieve maximum visibility when needed.
Modern OLEDs can outperform most LCDs due to their higher brightness capabilities (up to 2,000 nits), but they are generally more expensive and less common in rugged applications compared to traditional high-brightness LCDs.
