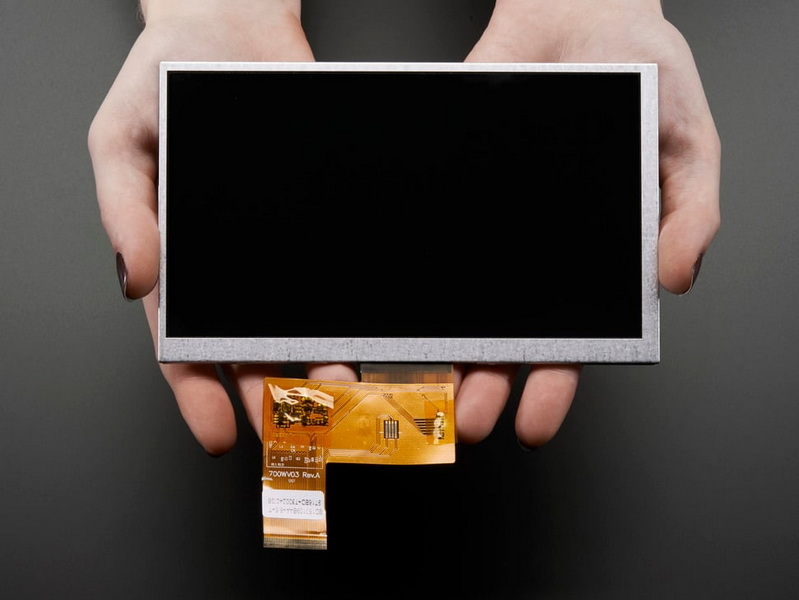

The 5.0-inch 40-pin 800x480 TFT display without touchscreen is a versatile and high-resolution display commonly used in various consumer electronics, such as miniature TVs, GPS devices, handheld games, and car displays. This display offers an impressive resolution of 800x480 pixels, providing ample space for detailed graphics and text. It features an LED backlight and supports 24-bit color through its 40-pin connector, which includes 8 red, 8 green, and 8 blue parallel pins. However, it requires a constant refresh rate and specific hardware support to function properly.
- Resolution and Color Capability: The display offers a resolution of 800x480 pixels, which is ideal for applications requiring detailed graphics. It supports 24-bit color, allowing for a wide range of colors to be displayed.
- Backlight Requirements: The LED backlight requires a constant-current mode boost converter capable of reaching up to 24V, unlike smaller displays that can operate with a 5V supply.
- Interface and Compatibility: The display uses a 40-pin connector but lacks built-in controllers or RAM. It is designed for continuous pixel clocking and requires dedicated hardware or a fast processor to manage its video timing requirements.
Using this display effectively involves several steps and considerations:
1. Choosing the Right Driver Board: The Adafruit RA8875 driver board is recommended for interfacing this display with most microcontrollers, including Arduino. This board handles the complex video RAM and timing requirements, making it easier to integrate the display into projects.
2. Setting Up the Backlight: The backlight requires a boost converter to reach the necessary voltage. A breakout board like the 40-pin TFT Friend can help manage the backlight by providing an adjustable current setting.
3. Connecting to a Microcontroller: While high-end processors like those in the BeagleBone can natively support this display, most small microcontrollers will need additional hardware support. Directly wiring the display to a processor without proper support is not recommended.
4. Software Considerations: Depending on the microcontroller used, specific software libraries and configurations may be necessary to control the display. For example, using the display with a Raspberry Pi might involve configuring DPI settings.
5. Power Supply and Safety: Ensure that the power supply can handle the display's requirements, especially for the backlight. Incorrect voltage levels can damage the display.
If the display does not turn on, check that the backlight is properly powered and that the boost converter is set to the correct voltage. Ensure all connections are secure and that the display is receiving the necessary signals from the driver board or microcontroller.
Color issues might arise if the display is not properly configured for 24-bit color. Verify that the microcontroller or driver board is set to output the correct color depth and that all color pins are correctly connected.
The display requires a constant refresh rate of 60Hz. If the display flickers or appears unstable, check that the refresh rate is correctly set in the software or driver board configuration.
Ensure that the microcontroller used can handle the display's video timing requirements. If not, consider using a driver board like the RA8875 to manage these tasks.
Adjusting the backlight brightness may require modifying the current setting on the breakout board. Refer to the breakout board's documentation for instructions on how to adjust the backlight current safely.
For more advanced users, integrating this display into projects like portable game consoles or interactive kiosks can be rewarding. The display's high resolution and color capability make it suitable for complex graphics and user interfaces. However, these projects often require additional components such as speakers, buttons, and enclosures to create a fully functional device.
When using this display with a Raspberry Pi, it is crucial to configure the DPI settings correctly. This involves ensuring that the display resolution and mode are properly set to match the display's capabilities. Failure to do so may result in an unclear or distorted image, as seen in some troubleshooting cases where users overlooked these settings.
DIY projects involving this display can range from simple prototypes to complex systems. For instance, creating a portable game console requires integrating the display with a microcontroller or single-board computer, along with controls and a power source. The display's compact size and high resolution make it ideal for such projects.
Troubleshooting common issues with the display involves checking several key components:
- Power Supply: Ensure that the power supply is adequate for both the display and any additional components like driver boards or microcontrollers.
- Connections: Verify that all connections are secure and not loose. This includes the 40-pin connector and any additional wiring for the backlight.
- Software Configuration: If using a microcontroller or single-board computer, ensure that the software is correctly configured to support the display's resolution and refresh rate.
For more complex issues, advanced troubleshooting techniques may be necessary. This could involve using oscilloscopes to check signal integrity on the display's interface pins or debugging software to identify configuration errors.
In the future, we can expect to see advancements in display technology that might simplify the integration of high-resolution displays like this one. Trends such as improved driver boards and more powerful microcontrollers will make it easier for developers to create complex projects without needing extensive hardware knowledge.
The advancements in display technology will have a significant impact on DIY projects. With easier integration and more accessible tools, hobbyists will be able to create sophisticated devices that were previously beyond their reach. This could lead to a surge in innovative projects that leverage high-resolution displays for interactive interfaces.
Beyond DIY projects, these displays will also see increased use in industry applications. For example, in automotive systems, high-resolution displays are becoming essential for navigation and entertainment systems. The ability to easily integrate these displays into custom systems will enhance the development of such applications.
For long-term use, it's important to consider factors such as display durability and power efficiency. Ensuring that the display is properly mounted and protected from environmental factors can extend its lifespan. Additionally, optimizing power consumption through efficient backlight management can help reduce overall energy costs.
The 5.0-inch 40-pin 800x480 TFT display without touchscreen offers a high-resolution display solution for various projects, from consumer electronics to DIY prototypes. However, its use requires careful consideration of hardware and software requirements, including the need for a suitable driver board and proper backlight management. By understanding these requirements and using the right tools, developers can effectively integrate this display into their projects.
A: The resolution of the display is 800x480 pixels.
A: No, this version of the display does not include a touchscreen.
A: The display uses an LED backlight that requires a constant-current mode boost converter.
A: Most small microcontrollers cannot directly support this display due to its video timing requirements. A driver board like the RA8875 is recommended.
A: Adjusting the backlight brightness typically involves modifying the current setting on a breakout board designed for this purpose.
