The Raspberry Pi is a versatile single-board computer that can be used for various applications, from simple projects to complex systems. Adding an LCD screen allows for real-time interaction and data display, making your projects more engaging and informative.
The 16x2 character LCD is a popular choice for beginners due to its simplicity and low cost. It displays two lines of text, each containing up to 16 characters.
Features:
- Simple text display
- Low power consumption
- Ideal for displaying system metrics
The 3.5-inch touchscreen is perfect for projects requiring a graphical interface.
Features:
- Touch functionality
- Resolution: 480x320 pixels
- Directly pluggable into Raspberry Pi GPIO pins
This display is designed specifically for the Raspberry Pi, providing a seamless integration experience.
Features:
- HDMI connection
- High resolution (800x480)
- Multi-touch support
To get started, you will need the following components:
- Raspberry Pi (any model)
- LCD Screen (choose from the types mentioned above)
- Power Supply (suitable for your Raspberry Pi)
- Connecting Wires (jumper wires for GPIO connections)
- Breadboard (optional, for prototyping)
- SD Card (with Raspbian OS installed)

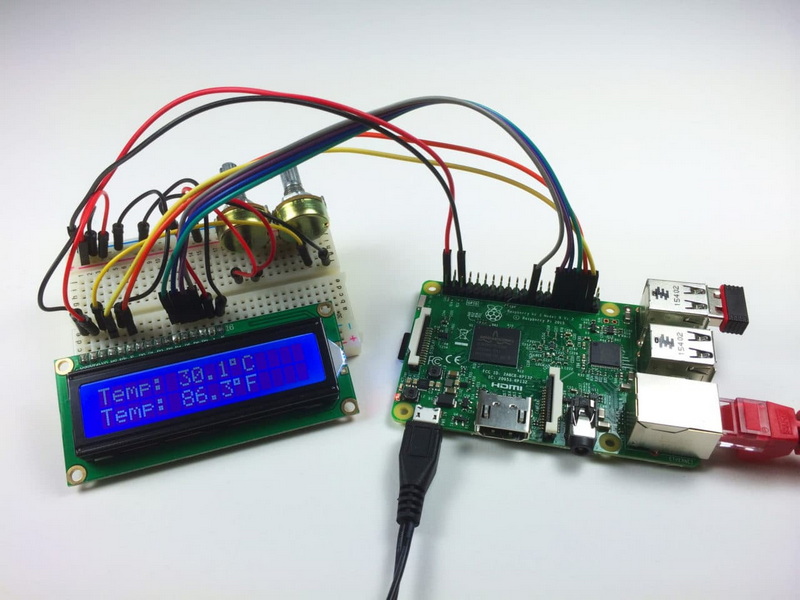

1. Connect the VSS pin on the LCD to GND on the Raspberry Pi.
2. Connect the VDD pin to +5V on the Raspberry Pi.
3. Connect the VO pin to a potentiometer wiper (for contrast adjustment).
4. Connect RS, RW, E, and D4-D7 pins to GPIO pins as per your circuit design.
| LCD Pin | Raspberry Pi GPIO |
|---|---|
| VSS | GND (Pin 6) |
| VDD | 5V (Pin 2) |
| VO | Potentiometer wiper |
| RS | GPIO25 (Pin 22) |
| RW | GND |
| E | GPIO24 (Pin 18) |
| D4-D7 | GPIO23-22 (Pins 16-15) |
1. Plug the touchscreen directly into the GPIO pins on the Raspberry Pi.
2. Ensure that SPI is enabled in the Raspberry Pi configuration settings.
1. Connect the display to the HDMI port on your Raspberry Pi.
2. Power it through USB or GPIO pins.
Once the hardware setup is complete and the necessary libraries are installed, you can start programming the LCD screen to display information.
Ensure you have a suitable development environment set up on your Raspberry Pi. You can use a text editor like Nano or a more advanced IDE (Integrated Development Environment) like Thonny. Thonny is particularly useful as it comes pre-installed with many Raspberry Pi OS versions and provides a user-friendly interface for writing and running code.
For character LCDs, the basic operations include initializing the LCD, clearing the display, setting the cursor position, and writing text. Most libraries provide functions for these operations, making it easy to control the LCD.
For touchscreen displays, you can create simple GUIs using libraries like Tkinter or Pygame. Tkinter is a built-in Python library for creating graphical user interfaces, while Pygame is a library specifically designed for creating games and multimedia applications.
With touchscreen displays, you can implement advanced features such as button presses, touch gestures, and graphical elements. This allows you to create interactive applications that respond to user input.
Encountering issues is a common part of the development process. Here are some common problems and their solutions:
- White Screen on Startup: This often indicates a driver issue. Ensure that you have installed the correct drivers for your specific display model.
- No Display Output: Check all connections to ensure they are secure. Also, verify that the power supply is adequate.
- Incorrect Text Display: Ensure your code is correctly sending data to the LCD. Double-check your GPIO pin assignments and library configurations.
- Touch Not Responding: Verify that the touch drivers are installed and configured properly. Calibrate the touchscreen if necessary.
- Inaccurate Touch Response: This can be due to incorrect calibration or driver issues. Reinstall the drivers and recalibrate the screen.
- Flickering Display: This can be due to an unstable power supply. Use a higher-quality power supply or add a capacitor to stabilize the voltage.
- Intermittent Display: Check all wiring connections to ensure they are secure. Loose connections can cause intermittent display issues.
Using an LCD screen with Raspberry Pi can be applied to various projects:
Create a dashboard to display real-time system metrics such as CPU usage, memory usage, and network activity. This project is useful for monitoring the performance of your Raspberry Pi and identifying potential issues.
Build an interactive kiosk with a touchscreen display to provide information or services to users. This can be used in public places to display maps, schedules, or other relevant information.
Develop a smart home display to control and monitor various devices in your home. This can include displaying temperature, humidity, and controlling lights or appliances.
Integrating an LCD screen with your Raspberry Pi opens up numerous possibilities for interactive projects. Whether you're displaying simple text or creating complex graphical interfaces, understanding how to set up and program these screens is essential for any maker or hobbyist.
You can use character LCDs, touchscreen displays, and official HDMI displays with Raspberry Pi.
Yes, depending on your display type, you may need specific libraries or drivers installed.
Yes, but you may need additional configurations depending on how you connect them.
For character displays, adjust the potentiometer; for others, check software settings or hardware controls.
Python is commonly used due to its extensive libraries; however, you can also use C/C++ or Java depending on your project needs.
By following this guide, you'll be well-equipped to use an LCD screen with your Raspberry Pi effectively!
