When designing embedded systems, one of the critical decisions involves selecting the right display module. The 3.2 inch TFT LCD touchscreen display has become a popular choice for many embedded applications due to its compact size, vibrant colors, and ease of integration. This article explores whether a 3.2 inch TFT LCD display is a good fit for embedded systems by examining its features, advantages, limitations, and typical use cases. We will also address common questions to help you make an informed decision.
A 3.2 inch TFT LCD touchscreen display is a small-sized color display module that uses Thin Film Transistor (TFT) technology to provide sharp, vibrant images with touch input capabilities. The 3.2 inch measurement refers to the diagonal size of the display screen, making it compact enough for handheld and embedded devices.
These displays typically feature resolutions such as 240×320 pixels or higher, with some advanced models offering resolutions up to 1024×768 pixels. The touchscreen can be resistive or capacitive, enabling interactive user interfaces for embedded systems.
- Compact Size: The 3.2 inch form factor is ideal for space-constrained embedded systems.
- High Resolution: Common resolutions like 240×320 or even 1024×768 provide clear and detailed visuals.
- Vibrant Colors: TFT technology delivers rich color reproduction with high contrast ratios.
- Wide Viewing Angles: Many 3.2 inch TFT LCDs offer wide viewing angles, though this can vary by model.
- Touchscreen Capability: Resistive or capacitive touch options enable user interaction.
- Multiple Interface Options: Interfaces such as SPI, MIPI, or parallel bus make integration flexible.
- Brightness: Typical brightness ranges from 300 to 1000 nits, suitable for indoor and some outdoor use.
- Operating Temperature Range: Usually supports -20°C to +70°C, sufficient for many embedded environments.
The small size of a 3.2 inch TFT LCD touchscreen display makes it highly versatile for embedded systems where space is limited. It fits well in handheld devices, portable instruments, and compact control panels without compromising display quality.
Despite its size, the 3.2 inch TFT LCD offers impressive resolution and color fidelity. For example, some models provide resolutions up to 1024×768 pixels with a contrast ratio of 1200:1, delivering sharp and vivid images that enhance user experience.

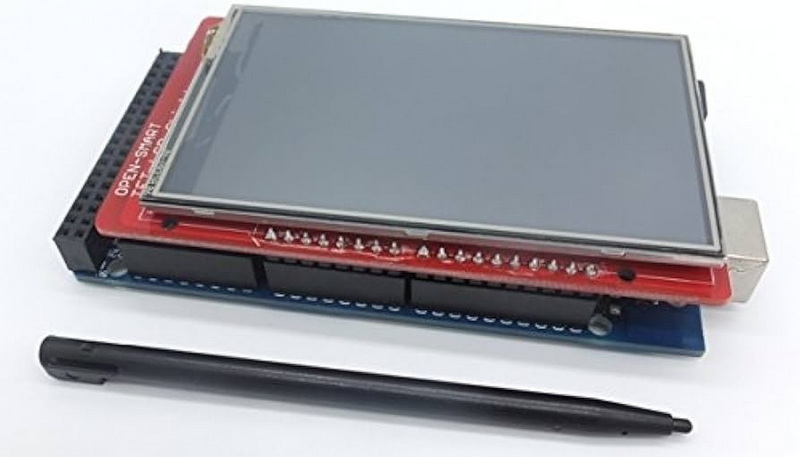

Touchscreen functionality adds an interactive dimension to embedded systems, allowing users to navigate menus, input data, or control devices directly on the display. Capacitive touchscreens offer smooth multi-touch support, while resistive touchscreens are cost-effective and work with any stylus or finger.
Many 3.2 inch TFT LCD modules come with standard interfaces like SPI or MIPI and are compatible with popular microcontrollers and single-board computers such as Arduino, Raspberry Pi, and ARM-based platforms. This simplifies hardware and software integration.
Especially with the availability of high-quality 3.2 inch TFT LCD displays from manufacturers in China, these modules provide a good balance between performance and affordability, making them attractive for both hobbyists and commercial embedded projects.
While TFT technology provides good color and brightness, many 3.2 inch TFT LCD displays have limited viewing angles compared to IPS panels. Colors and brightness may shift when viewed off-center, which can be a drawback in multi-user or variable-angle scenarios.
The 3.2 inch diagonal size is small, which may restrict the amount of information displayed at once. For applications requiring complex graphical interfaces or detailed data visualization, a larger display might be more suitable.
TFT LCDs typically consume more power than simpler display types like OLED or monochrome LCDs. For battery-powered embedded systems, this factor needs consideration to ensure acceptable battery life.
Touchscreen surfaces can be prone to scratches or damage if not properly protected, especially in industrial or rugged environments. Additional protective layers or enclosures may be necessary.
Programming and managing a 3.2 inch TFT LCD touchscreen can be complex. Developers often need to handle graphics libraries, touch event processing, and memory management, which requires learning and development time.
- Handheld Devices: Portable multimedia players, handheld gaming consoles, and remote controls.
- Industrial Control Panels: User interfaces for machinery, process monitoring, and automation systems.
- Smart Home Controllers: Touchscreen panels for controlling lighting, HVAC, and security.
- Educational Tools: Interactive learning devices and programming demonstration kits.

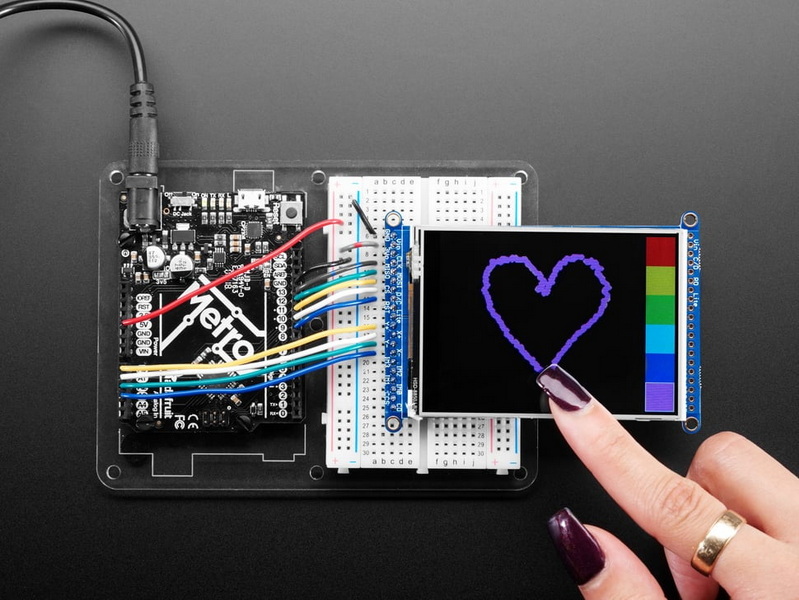

- DIY and Hobby Projects: Custom interfaces for Arduino, Raspberry Pi, and other microcontroller projects.
- Medical Devices: Compact displays for monitoring and diagnostic equipment.
Select a resolution that matches your application needs. Higher resolutions like 1024×768 offer better clarity but may require more processing power.
Decide between resistive and capacitive touch based on cost, responsiveness, and input method preferences.
Ensure the display supports an interface compatible with your microcontroller or embedded processor (SPI, MIPI, parallel, etc.).
Choose a display with adequate brightness (typically 300-1000 nits) and high contrast for your operating environment.
If multiple users or wide-angle viewing is required, consider displays with IPS technology or enhanced viewing angles.
Check the temperature range and durability features to match your embedded system's environment.
A 3.2 inch TFT LCD touchscreen display is generally a good choice for embedded systems that require a compact, colorful, and interactive display solution. Its balance of size, resolution, and touch capability makes it suitable for a wide range of applications from handheld devices to industrial controls. However, limitations such as viewing angle restrictions, small screen size, and power consumption should be carefully evaluated against your project requirements. With proper selection and integration, the 3.2 inch TFT LCD touchscreen display can significantly enhance the functionality and user experience of embedded systems.
Most 3.2 inch TFT LCD displays offer resolutions around 240×320 pixels, but some advanced models provide up to 1024×768 pixels, delivering sharper images for detailed applications.
Both types are available. Capacitive touchscreens offer multi-touch and better responsiveness, while resistive touchscreens are more affordable and work with any stylus or finger.
Yes, many 3.2 inch TFT LCD modules support standard interfaces like SPI and come with libraries compatible with Arduino and Raspberry Pi, facilitating straightforward integration.
Key limitations include limited viewing angles, small screen size for complex interfaces, higher power consumption, and potential fragility of the touchscreen surface.
They can be used outdoors if the brightness is sufficiently high (around 500-1000 nits) and if the display is protected against environmental factors. However, direct sunlight readability may still be challenging.
