The world of display technology is a constantly evolving landscape, with new innovations and improvements emerging regularly. Among the most prevalent display technologies today are OLED (Organic Light Emitting Diode) and LCD (Liquid Crystal Display). Both have their strengths and weaknesses, making the choice between them a complex one. This article aims to provide a comprehensive comparison of OLED and LCD screens, exploring their underlying technologies, key differences, advantages, and disadvantages. By the end, you should have a clear understanding of which display technology is better suited for your specific needs and preferences.

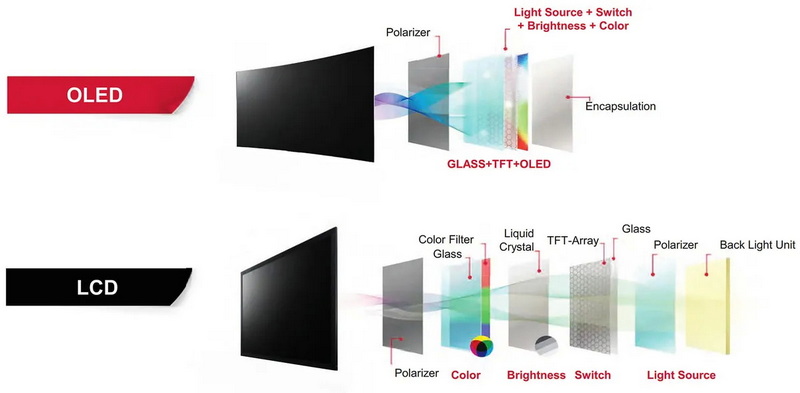

LCDs have been around for decades and are a mature technology widely used in various devices, from TVs and monitors to smartphones and laptops. LCDs work by using a backlight to illuminate liquid crystals, which then selectively block or transmit light to create an image. The liquid crystals themselves do not emit light; they merely control the passage of light from the backlight[4][7].
1. Backlight: An LCD panel requires a backlight, typically made up of LEDs (Light Emitting Diodes), to provide the necessary illumination[4][7].
2. Polarizing Filters: The light from the backlight passes through a polarizing filter, which ensures that the light waves vibrate in a specific direction.
3. Liquid Crystals: The polarized light then passes through the liquid crystal layer. These crystals can be twisted or aligned by applying an electric field, which alters the polarization of the light.
4. Color Filters: After the liquid crystals, the light passes through color filters (red, green, and blue) that create the individual colors of the image.
5. Second Polarizing Filter: Finally, the light passes through a second polarizing filter, which is oriented perpendicular to the first. By controlling the alignment of the liquid crystals, the amount of light that passes through this filter can be precisely controlled, creating the desired image.
- Brightness: LCDs are known for their high brightness levels, making them suitable for environments with a lot of ambient light[5].
- Cost-Effectiveness: LCDs are generally more affordable to manufacture than OLEDs, making them a budget-friendly option[5].
- Longevity: LCDs tend to have a longer lifespan than OLEDs, as the backlight and liquid crystals degrade more slowly[5].
- Mature Technology: LCD technology is well-established, with decades of research and development behind it, resulting in reliable and consistent performance.
- Black Levels: LCDs struggle to produce true blacks because the backlight always emits some light, even when a pixel is supposed to be black[9]. This results in a lower contrast ratio compared to OLEDs.
- Viewing Angles: The image quality of LCDs can degrade when viewed from off-center angles, with colors shifting and contrast decreasing[5].
- Contrast Ratio: LCDs have lower contrast ratios than OLEDs due to the backlight bleeding through, which affects the depth and richness of the image[5].
- Thickness: LCD panels tend to be thicker than OLED panels due to the need for a backlight.
OLEDs represent a newer display technology that has gained significant traction in recent years. Unlike LCDs, OLEDs do not require a backlight. Instead, each pixel in an OLED display is self-emissive, meaning it produces its own light when an electric current is applied[1][2].
1. Organic Materials: OLEDs are made from organic compounds that emit light when an electric current passes through them[1][2].
2. Pixel Structure: Each pixel in an OLED display consists of these organic materials sandwiched between two electrodes: an anode and a cathode.
3. Light Emission: When an electric current is applied, the organic materials emit light directly, without the need for a separate backlight.
4. Color Control: Different organic materials are used to produce red, green, and blue light, which are combined to create the full spectrum of colors.
5. Individual Pixel Control: Each pixel can be individually turned on or off, allowing for perfect blacks and incredibly high contrast ratios[5].
- Black Levels: OLEDs can achieve perfect blacks because each pixel can be completely turned off, resulting in an infinite contrast ratio[3][9].
- Viewing Angles: OLEDs offer wide viewing angles with consistent colors and contrast, even when viewed from extreme angles[1][5].
- Contrast Ratio: OLEDs have significantly higher contrast ratios than LCDs, producing more vibrant and lifelike images[1][5].
- Response Time: OLEDs have faster response times than LCDs, resulting in smoother motion and less motion blur, which is particularly beneficial for gaming and fast-paced content[1].
- Thickness: OLED panels can be made much thinner than LCD panels because they do not require a backlight[2].
- Less Harmful Blue Light: OLEDs emit 70% less harmful blue light, which can reduce eye strain[1].
- Cost: OLEDs are generally more expensive to manufacture than LCDs, making them a premium option[5].
- Longevity: OLEDs have a shorter lifespan than LCDs, particularly the blue organic materials, which degrade faster over time[2].
- Brightness: OLEDs typically have lower maximum brightness levels than LCDs, which can be a disadvantage in very bright environments[5].
- Sunlight Readability: OLEDs can be difficult to view in direct sunlight due to their lower brightness[2].

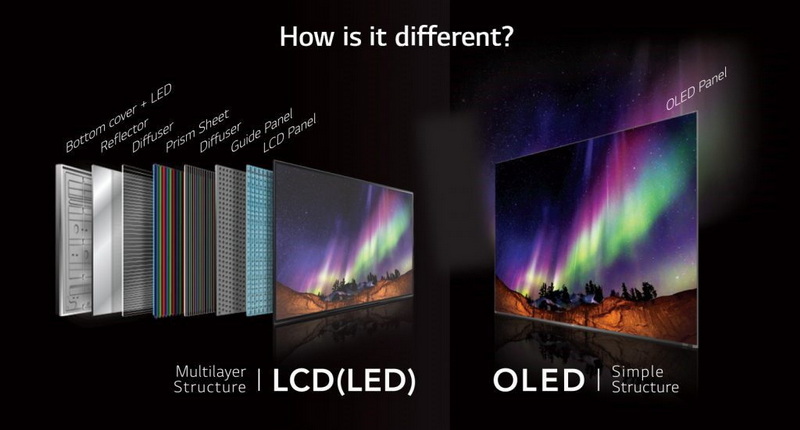

To make a more informed decision, let's summarize the key differences between OLED and LCD technologies in a table:
Feature | OLED | LCD |
Black Levels | Perfect blacks (pixels can be turned off) | Limited blacks (backlight always emits some light) |
Contrast Ratio | Infinite | Lower |
Viewing Angles | Wide | Narrower |
Brightness | Lower | Higher |
Response Time | Faster | Slower |
Thickness | Thinner | Thicker |
Cost | Higher | Lower |
Longevity | Shorter | Longer |
Blue Light | Emits less harmful blue light | Emits more harmful blue light |
Technology | Newer | Mature |
Self-Emissive | Yes | No |
Backlight | No | Yes |
Color Accuracy | More vibrant and lifelike, but can be overly saturated | More natural-looking, but may not be as vibrant or accurate |
Flexibility | Can be used in flexible displays | Generally rigid |
Energy Efficiency | More efficient in dark scenes due to individual pixel control | Less efficient as backlight illuminates entire display regardless |
When deciding between an OLED and an LCD screen, several factors should be taken into account:
- LCD: LCDs are generally more affordable, making them a good option for budget-conscious consumers[5].
- OLED: OLEDs are more expensive, so you'll need to be prepared to invest more for the superior image quality[5].
- Gaming and Movies: If you prioritize fast response times, high contrast ratios, and wide viewing angles for gaming and movie-watching, OLED is the better choice[1].
- General Use: For everyday tasks like browsing, word processing, and general media consumption, an LCD may suffice, especially if budget is a concern.
- Bright Environments: If you frequently use your device in bright environments, such as outdoors, an LCD with high brightness levels may be more suitable[5].
- Dark Environments: If you primarily use your device in dark environments, OLEDs excel due to their perfect black levels and high contrast ratios[3][9].
- Long-Term Use: If you need a display that will last for many years, an LCD may be a better option due to its longer lifespan[5].
- Frequent Upgrades: If you tend to upgrade your devices frequently, the shorter lifespan of OLEDs may not be a significant concern.
- Blue Light Sensitivity: If you are sensitive to blue light, an OLED display may be preferable, as it emits less harmful blue light[1].
- Prolonged Use: For extended periods of use, the reduced blue light emission of OLEDs can help reduce eye strain and improve sleep quality[1].
Ultimately, the choice between OLED and LCD depends on your specific needs and priorities. OLEDs offer superior image quality with perfect blacks, high contrast ratios, and wide viewing angles, making them ideal for gaming, movies, and professional applications where color accuracy is critical[3][9]. However, they are more expensive and have a shorter lifespan compared to LCDs[5].
LCDs, on the other hand, are more affordable, brighter, and have a longer lifespan, making them a practical choice for general use and bright environments[5]. While they cannot match the image quality of OLEDs, advancements in LCD technology have significantly improved their performance in recent years[9].
In conclusion, there is no definitive "better" display technology. It all comes down to your individual requirements and preferences.
The primary difference is that OLEDs are self-emissive, meaning each pixel produces its own light, while LCDs require a backlight to illuminate the liquid crystals[2][4]. This leads to significant differences in black levels, contrast ratios, and viewing angles[5].
OLED is generally better for gaming due to its faster response times, higher contrast ratios, and wider viewing angles, which result in smoother motion and more immersive visuals[1]. However, some gamers may prefer the higher brightness of LCDs, especially in well-lit environments[5].
OLED screens are susceptible to burn-in, which occurs when static elements are displayed for extended periods, causing permanent image retention[2]. However, modern OLED displays have implemented various technologies to mitigate this issue, such as pixel shifting and screen savers.
OLEDs can be more energy-efficient in dark scenes because they can turn off individual pixels, while LCDs always require a backlight[2]. However, in bright scenes, LCDs may be more energy-efficient due to their higher brightness levels.
OLED displays offer more accurate colors, higher contrast ratios, and wider viewing angles, which are essential for tasks such as graphic design, video editing, and photography[1][5]. The ability to see true blacks and subtle color gradations can significantly improve the quality of professional work.
OLED screens emit significantly less harmful blue light compared to LCD screens[1]. Blue light has been linked to eye strain, sleep disruption, and potential long-term vision problems. The reduced blue light emission in OLED screens can lead to less eye fatigue and better sleep quality, making them a preferable choice for users who spend long hours in front of a screen.
Viewing angles refer to how well the display maintains its image quality when viewed from off-center positions. OLED displays excel in viewing angles, maintaining consistent color accuracy and contrast even when viewed from extreme angles[1][5]. LCDs, on the other hand, often suffer from color shifting and reduced contrast when viewed from off-center, making OLEDs a better choice for collaborative viewing or when screen position is not directly in front of the user.
