The 3.5 inch TFT LCD touchscreen display module remains one of the most popular choices for embedded systems, DIY electronics, and industrial applications in 2025. Its compact size, vibrant color output, and interactive touch capabilities make it ideal for projects ranging from Arduino and Raspberry Pi interfaces to automotive and IoT devices. This comprehensive article explores the best 3.5 inch TFT LCD touchscreen display modules available in 2025, their key features, technical specifications, and how to choose the right one for your needs.

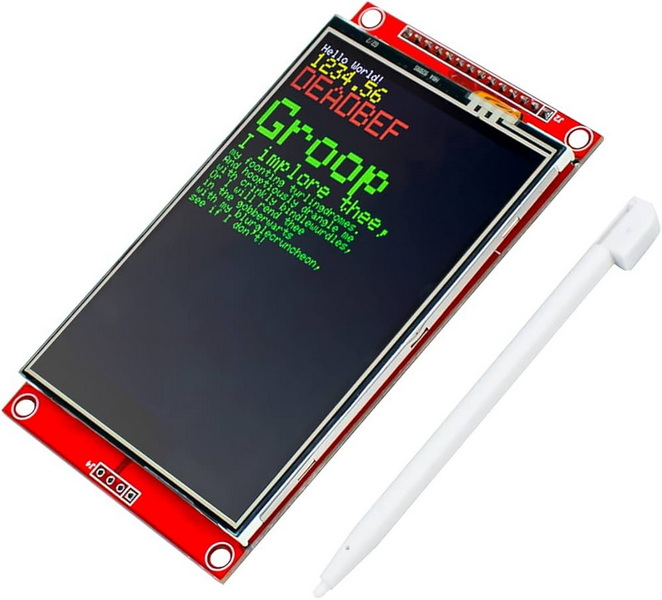

Before diving into the best options, it's important to understand what a 3.5 inch TFT LCD touchscreen display module offers. TFT (Thin Film Transistor) LCDs provide high-quality color displays with fast refresh rates and wide viewing angles. The 3.5 inch diagonal size strikes a balance between screen real estate and compactness, making it suitable for handheld and embedded devices.
These modules typically feature:
- Resolution: Commonly 320x240 or 480x320 pixels, delivering sharp images and text.
- Touchscreen Technology: Resistive or capacitive touchscreens, enabling user interaction.
- Driver ICs: Popular driver ICs include ILI9488, ILI9486, and HX8357, which control display functions.
- Interface Options: SPI, 8-bit or 16-bit parallel interfaces for communication with microcontrollers.
- Backlight: LED backlight with brightness levels often exceeding 300 cd/m² for clear visibility.
- Power Supply: Usually 3.3V or 5V operation compatible with most microcontrollers.
The HiLetgo 3.5 inch TFT LCD module is a versatile display designed for Arduino Mega and similar microcontrollers. It offers a resolution of 480x320 pixels with a 16-bit parallel interface, driven by popular ICs such as HX8357B or ILI9486. While this module does not include a touchscreen, it is favored for its bright, colorful display and ease of integration in DIY projects.
- Resolution: 480x320 pixels
- Interface: 16-bit parallel
- Driver IC: HX8357B / ILI9486
- Touchscreen: No
- Operating Voltage: 3.3V/5V
- Ideal for: Arduino projects requiring high resolution and vivid colors
This display module is tailored for Raspberry Pi users, featuring a 480x320 resolution and resistive touchscreen technology. It supports all Raspberry Pi versions and offers plug-and-play compatibility. The resistive touchscreen allows precise control, and the display boasts good brightness and color reproduction.
- Resolution: 480x320 pixels
- Touchscreen: Resistive
- Compatibility: Raspberry Pi (all versions)
- Driver IC: ST7796 or similar
- Features: Stylus included, robust construction, good customer support
- Usage: Raspberry Pi interactive projects
For projects demanding superior visual quality, the Newhaven Display 3.5 inch IPS TFT LCD module is an excellent choice. It features an IPS panel with wide viewing angles, 320x240 resolution, and a capacitive touchscreen supporting multi-touch gestures. The module includes EMI shielding and a high brightness LED backlight rated at 900 nits, making it sunlight readable.
- Resolution: 320x240 pixels
- Touchscreen: Capacitive (multi-touch)
- Brightness: 900 nits (sunlight readable)
- Controller: FocalTech FT5426 (touch)
- Interface: I2C for touch, RGB for display
- Ideal for: High-end interactive applications requiring multi-touch and outdoor visibility
This module offers a 320x240 RGB resolution with 16 million colors and supports both resistive and capacitive touchscreens. Its driver IC, NewVision NV3035C, supports multiple video input formats, making it versatile for various embedded systems. The module operates between -20°C and 70°C, suitable for industrial environments.
- Resolution: 320x240 pixels
- Touchscreen: Resistive or Capacitive options
- Driver IC: NewVision NV3035C
- Brightness: 600 cd/m²
- Operating Temperature: -20°C to 70°C
- Applications: Industrial, automotive, and consumer electronics
This IPS capacitive touchscreen module uses the ILI9488 driver and GT911 touch controller, supporting up to 5 touch points. It communicates via SPI and offers wide viewing angles with 16-bit color depth. The module is widely used in IoT devices, game consoles, and desktop event notifiers.
- Resolution: 480x320 pixels
- Touchscreen: Capacitive (multi-touch)
- Driver IC: ILI9488
- Touch Controller: GT911
- Interface: SPI (4-wire)
- Brightness: 300 cd/m²
- Operating Voltage: 3.3V to 5.5V
When selecting a 3.5 inch TFT LCD touchscreen display module in 2025, consider the following factors:
Higher resolution like 480x320 pixels provides sharper images and better detail compared to 320x240. Color depth (usually 16-bit or 18-bit) affects the richness of colors.
- Resistive Touchscreens: Work with stylus or finger pressure, generally cheaper, but less sensitive and no multi-touch.
- Capacitive Touchscreens: Support multi-touch gestures, more responsive and durable, but usually costlier.
Check if the module supports the interface your microcontroller or development board uses, such as SPI, 8/16-bit parallel, or RGB interface.
IPS panels provide better viewing angles and color consistency. High brightness (over 600 nits) is important for outdoor or brightly lit environments.
Popular driver ICs like ILI9488, ILI9486, and HX8357 have better community and library support, easing development.
- Onboard SD card slots for image storage
- EMI shielding for industrial use
- Operating temperature range for harsh environments
These modules are widely used in:
- DIY Electronics: Arduino and Raspberry Pi projects requiring interactive displays.
- Industrial Control Panels: Compact human-machine interfaces.
- Automotive Displays: Dashboards and infotainment systems.
- IoT Devices: Smart home controllers and portable gadgets.
- Gaming Consoles: Handheld devices with touch input.
- Educational Tools: Interactive learning devices.
The best 3.5 inch TFT LCD touchscreen display modules in 2025 combine high resolution, vivid color reproduction, responsive touch technology, and broad compatibility with popular microcontrollers. Whether you prioritize multi-touch capacitive screens for advanced applications or cost-effective resistive touchscreens for simple projects, there is a suitable module available. Modules like the Newhaven Display IPS capacitive touchscreen excel in outdoor readability and multi-touch, while the HiLetgo and Sanpyl modules offer excellent value for Arduino and Raspberry Pi enthusiasts. When choosing your display, consider resolution, touch technology, interface compatibility, and environment to ensure the best fit for your project.
Resistive touchscreens detect pressure from a finger or stylus and usually support single-touch input, making them cost-effective but less sensitive. Capacitive touchscreens detect changes in electrical charge, support multi-touch gestures, and provide more responsive and durable touch input, but are generally more expensive.
Yes, many 3.5 inch TFT LCD touchscreen modules are designed to be compatible with Arduino boards like the UNO and Mega. They often come with libraries such as MCUFRIEND_kbv or Adafruit GFX to facilitate programming and touch input handling.
Common resolutions include 320x240 pixels and 480x320 pixels. The higher 480x320 resolution offers better image clarity and is preferred for applications requiring detailed graphics.
Some models, especially those with IPS panels and high brightness LED backlights (around 900 nits), like the Newhaven Display module, are designed to be sunlight readable and maintain visibility in bright outdoor conditions.
Typically, these modules connect via SPI or parallel interfaces. Many come with drivers and support for Raspberry Pi OS variants. Installation involves wiring the display, installing the necessary drivers, calibrating the touchscreen, and configuring the system to recognize touch input.
