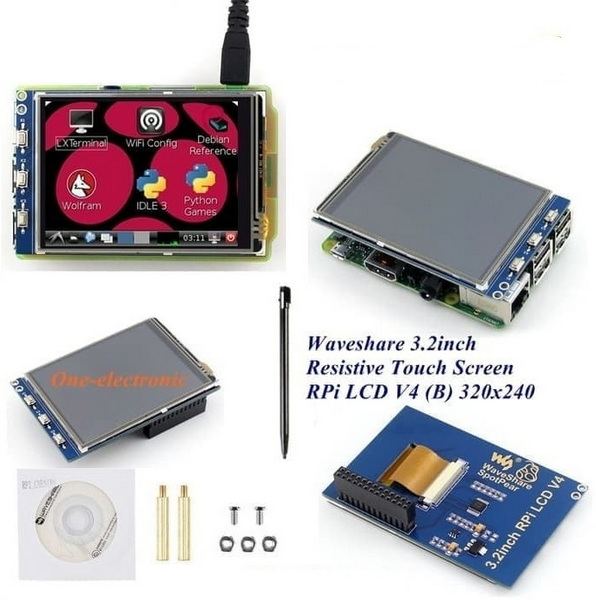

The 3.2 inch TFT LCD display module touchscreen for Raspberry Pi is a compact, versatile, and cost-effective solution to add a graphical interface to Raspberry Pi projects. With a 320×240 pixel resolution and resistive touch capability, this display module offers a bright, colorful screen that can be directly connected to the Raspberry Pi's GPIO pins via SPI interface. Its small size and ease of integration make it ideal for a wide range of applications, from portable devices to embedded systems. This article explores the best uses for this 3.2 inch TFT LCD display module touchscreen for Raspberry Pi, covering hardware features, software setup, and practical project ideas.
The 3.2 inch TFT LCD display module touchscreen for Raspberry Pi typically features:
- A 3.2-inch diagonal screen with 320×240 pixel resolution
- 16-bit color depth providing 65K colors for vivid display
- Resistive touch panel allowing finger or stylus input
- SPI (Serial Peripheral Interface) communication for easy connection to Raspberry Pi GPIO pins
- Built-in controller with RAM buffering to offload processing from the Pi
- Compatibility with Raspberry Pi models including B, B+, 2B, 3B, and 4
- Low power consumption and direct power from Raspberry Pi's 3.3V and 5V pins
- Support for Linux frame buffer drivers and popular Raspberry Pi operating systems such as Raspbian, Ubuntu MATE, Kali, and Retropie
- Additional features like user-defined buttons on some modules for enhanced control
This module is designed to be mounted directly on the Raspberry Pi's GPIO header, eliminating the need for external shields or power supplies, which simplifies hardware setup and reduces clutter.
Connecting the 3.2 inch TFT LCD display module touchscreen for Raspberry Pi involves wiring the SPI pins (MOSI, MISO, SCK, CE0/CE1) and power pins (3.3V, 5V, GND) correctly. Some models also require connections for touch panel interrupt and backlight control. The resistive touch panel uses SPI as well, enabling touch data to be communicated efficiently.
The module's compact size and mounting holes allow it to be securely attached to the Raspberry Pi, making it ideal for portable or embedded projects. The immersion gold plating on the PCB pins enhances durability and reduces wear during repeated connections.
To use the 3.2 inch TFT LCD display module touchscreen for Raspberry Pi, you need to:
- Enable the SPI interface on the Raspberry Pi via raspi-config or by editing the config.txt file.
- Install the appropriate drivers for the display and touch functionality. Many modules come with pre-built drivers compatible with Raspberry Pi OS and its derivatives.
- Use libraries such as FBTFT or Adafruit_TFT to interface with the display in programming languages like Python.
- Configure the framebuffer and touch input to enable graphical user interfaces or console display on the screen.
Proper driver installation ensures smooth display performance, touch responsiveness, and compatibility with various software environments.
The small footprint of the 3.2 inch TFT LCD display module touchscreen for Raspberry Pi makes it perfect for portable devices. Examples include:
- Handheld gaming consoles running RetroPie or similar emulators
- Portable media players for video and music playback
- Compact IoT devices with on-the-go status monitoring
- Mobile data loggers or environmental sensors with local display
The integrated touchscreen allows for user interaction without external peripherals, enhancing portability and usability. Its low power consumption and lightweight design mean it can be powered by battery packs, making it suitable for outdoor or mobile applications where a full-size monitor is impractical.
Many Raspberry Pi projects require a simple yet effective user interface. The 3.2 inch TFT LCD display module touchscreen for Raspberry Pi is ideal for:
- Home automation control panels
- Smart home monitoring systems displaying temperature, humidity, or security alerts
- Industrial equipment interfaces for status readouts and control inputs
- Custom handheld controllers or diagnostic tools
Its resistive touch screen supports precise input, and the color display improves the readability of data and graphics. The module's ability to display real-time information and accept touch commands allows developers to create intuitive control systems that replace bulky or expensive commercial touchscreens.
For learners and developers, this display module offers an accessible way to:
- Experiment with graphical programming on Raspberry Pi
- Develop touch-based applications and GUIs
- Learn about SPI communication and device driver installation
- Prototype interactive electronics projects with visual feedback
The module's compatibility with popular Raspberry Pi OS versions and driver support makes it a great educational tool. It encourages hands-on learning of embedded systems, user interface design, and hardware-software integration, which are essential skills in modern electronics and software development.
The 3.2 inch TFT LCD display module touchscreen for Raspberry Pi can be used in small kiosks or information terminals where space is limited, such as:
- Museum or exhibition interactive displays
- Retail product information terminals
- Queue management or ticketing systems
- Public transport schedule displays
Its compact size and touch capability allow for intuitive user interaction in confined spaces. The module's vivid color display helps attract users' attention and improves the overall user experience by offering responsive touch navigation and clear visuals.
Some 3.2 inch TFT LCD modules come with additional push buttons integrated into the display shield. This allows for:
- Creating custom control panels with both touch and physical button inputs
- Simplifying navigation in applications where touch alone may be insufficient
- Enhancing accessibility for users preferring tactile controls
These features are especially useful in industrial or rugged environments where touch screens alone might not be ideal. Physical buttons provide reliable input even when gloves are worn or in conditions where the resistive touchscreen might be less responsive.
Beyond the common uses, the 3.2 inch TFT LCD display module touchscreen for Raspberry Pi can be employed in various niche applications that benefit from its compact size and interactive capabilities.
For instance, it can serve as a compact weather station display, showing real-time weather data collected from sensors connected to the Raspberry Pi. This application provides immediate visual feedback on environmental conditions such as temperature, humidity, and atmospheric pressure, useful for both hobbyists and professionals.
Similarly, it can be integrated into DIY smart mirrors, providing users with customizable information such as time, calendar events, news updates, and weather forecasts. The touchscreen allows users to interact with the mirror interface to navigate different widgets or settings.
In robotics, this display module can act as a control interface, allowing operators to monitor robot status and send commands through the touchscreen. Its low power consumption and small footprint make it suitable for battery-powered robotic systems, drones, or autonomous vehicles where space and weight are critical.
Moreover, hobbyists can use this display to build custom digital photo frames, showcasing images stored on the Raspberry Pi with touch-based navigation to browse through albums. The vibrant colors and responsive touchscreen enhance the user experience, making it easy to switch photos or adjust settings.
To maximize the performance and usability of the 3.2 inch TFT LCD display module touchscreen for Raspberry Pi, consider the following tips:
- Ensure proper calibration of the resistive touchscreen to improve touch accuracy. Calibration tools are often included with driver packages or available through open-source software.
- Use lightweight graphical user interfaces to maintain smooth performance given the limited resolution and processing power. Avoid overly complex animations or high-resolution images that can slow down the display refresh.
- Protect the display with a suitable case or enclosure to prevent damage during portable use. A sturdy enclosure also helps reduce glare and dust accumulation on the screen.
- Regularly update drivers and software to benefit from performance improvements and bug fixes. Staying current with software ensures compatibility with the latest Raspberry Pi OS versions and applications.
- Experiment with different backlight brightness settings to balance visibility and power consumption. Lower brightness extends battery life in portable projects, while higher brightness improves outdoor readability.
The 3.2 inch TFT LCD display module touchscreen for Raspberry Pi is a versatile and practical component that enhances Raspberry Pi projects with a bright, colorful, and interactive display. Its compact size, ease of integration via SPI, and resistive touch capabilities make it suitable for a wide range of applications including portable devices, embedded system interfaces, educational tools, interactive kiosks, and custom control panels. With proper hardware connection and driver installation, this display module unlocks new possibilities for creating intuitive and visually appealing Raspberry Pi projects. Whether you are a hobbyist, educator, or professional developer, incorporating this display module can significantly improve the usability and functionality of your Raspberry Pi creations.
The 3.2 inch TFT LCD display module touchscreen is compatible with most Raspberry Pi models including Raspberry Pi B, B+, 2B, 3B, and 4. It connects directly to the GPIO pins, making it easy to integrate with these boards.
Drivers can be installed by enabling SPI on the Raspberry Pi and downloading the appropriate driver package from the manufacturer's GitHub repository or website. Installation usually involves running a shell script that configures the framebuffer and touch input.
Yes, while the 320×240 resolution is modest, the module supports video playback and image display through framebuffer drivers. It is suitable for simple video applications in portable or embedded projects.
Most 3.2 inch TFT LCD display modules for Raspberry Pi use resistive touch panels, which generally support single-point touch input rather than multi-touch.
It is recommended to use a 5V 2A power adapter to ensure stable power delivery to the Raspberry Pi and the 3.2 inch TFT LCD display module touchscreen, especially if additional peripherals are connected.
