Arduino touchscreen displays have become an essential component in many DIY electronics projects, enabling intuitive user interfaces and interactive controls. When selecting an Arduino touchscreen display, understanding the key features that influence performance, compatibility, and usability is critical. This article explores the top features to look for in an Arduino touchscreen display, providing a comprehensive guide for hobbyists, developers, and electronics enthusiasts.

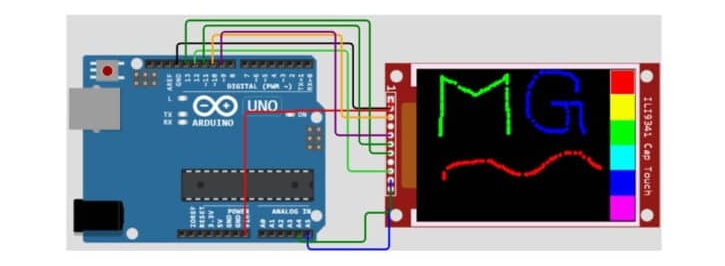

Interfacing Arduino To A 2.8-inch TFT Color Display With Touch

Display Technology and Type

TFT LCD Displays

Thin Film Transistor (TFT) LCD displays are among the most common types used with Arduino. These displays provide vibrant colors and relatively high resolution, making them suitable for projects that require detailed graphics or animations. TFT displays typically use liquid crystals to produce images and offer a wide color gamut, often supporting up to 65K or even 16.7 million colors, depending on the model. However, inexpensive TFT displays may suffer from viewing angle distortions or parallax errors when viewed from the side, which is usually acceptable for user interface applications where the user looks directly at the screen[1][3][4].

Resistive vs. Capacitive Touchscreens

Most Arduino touchscreen displays use resistive touch technology, which consists of two flexible layers that detect touch by pressure. Resistive touchscreens are cost-effective, compatible with styluses or gloved fingers, and generally simpler to interface with Arduino boards. However, they may not support multi-touch gestures and can be less sensitive compared to capacitive screens.

Capacitive touchscreens, which detect touch by measuring changes in electrical fields, offer multi-touch capabilities and higher sensitivity but are less common and more complex to integrate with Arduino due to hardware and software requirements.

For Arduino projects, resistive touchscreens remain the preferred choice due to their affordability and ease of use[1][3][4].

Screen Size and Resolution

The screen size and resolution directly affect the user experience and the complexity of the user interface you can design. Common Arduino touchscreen sizes range from 2.4 inches to 4 inches diagonally, with resolutions typically around 320x240 pixels for smaller screens and up to 480x320 pixels for larger ones.

A 3.5-inch or 4-inch display with 480x320 resolution offers a good balance between screen real estate and clarity, allowing for clear text, sharp images, and responsive touch interaction. Larger displays provide more space for complex interfaces but may increase power consumption and cost[3][4][7].

Communication Interface and Compatibility

SPI vs. Parallel Interfaces

Arduino touchscreen displays communicate with the microcontroller primarily via Serial Peripheral Interface (SPI) or parallel interfaces. SPI is a serial communication protocol that uses fewer pins (usually 5 pins) and is easier to wire but may be slower in rendering graphics compared to parallel interfaces.

Parallel interfaces (like 8-bit mode) require more pins (up to 12 or more) but can offer faster data transfer rates, which is beneficial for high-resolution displays or applications requiring quick screen updates. However, they consume more Arduino I/O pins, which may be limited on smaller boards like the Arduino Uno[1][7].

Board Compatibility

Compatibility with the Arduino board is crucial. Some displays are designed specifically for Arduino Uno, Mega, or Leonardo, with pinouts and libraries optimized accordingly. For example, the Arduino Mega 2560 offers more I/O pins, making it better suited for displays requiring parallel interfaces or additional peripherals like microSD cards.

MicroSD card slots on some touchscreen shields provide storage for images or data but may have compatibility issues with certain Arduino boards due to SPI pin differences[1][4].

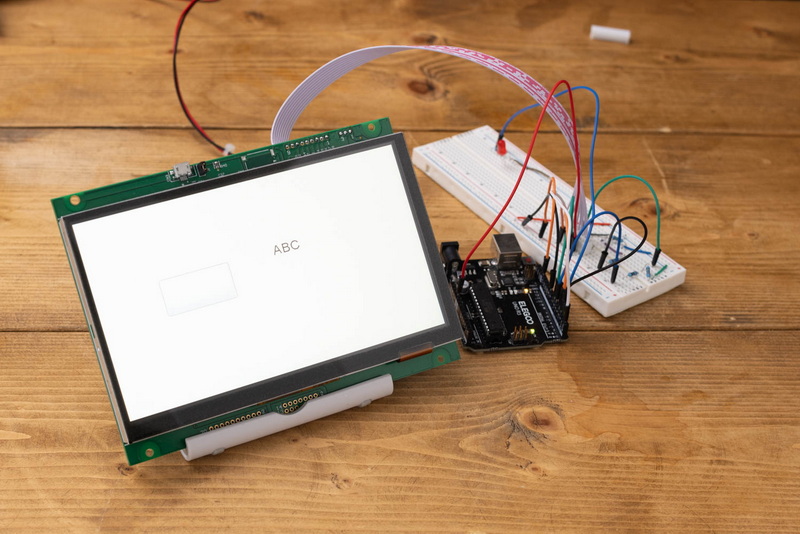

Capacitive Touchscreen Arduino

Touchscreen Controller and Responsiveness

The touchscreen controller chip manages the touch input and communicates the coordinates to the Arduino. Popular controllers include the XPT2046 for resistive touchscreens, which offers reliable and accurate touch detection.

Some shields integrate standalone touch controllers, improving touch performance and reducing the processing load on the Arduino. This results in smoother touch response and better user experience[4].

Color Depth and Visual Quality

Color depth refers to the number of colors the display can render. Common Arduino TFT displays support 65K colors (16-bit color depth), which is sufficient for most projects involving images, animations, or colorful interfaces.

Higher color depth (like 16.7 million colors) is available on some advanced displays but often requires more processing power and memory, which might be beyond the capabilities of standard Arduino boards[3][5].

Backlight and Brightness Control

Backlight quality affects the visibility of the display under various lighting conditions. Many Arduino touchscreen displays feature PWM (Pulse Width Modulation) backlight control, allowing users to adjust brightness to comfortable levels and save power.

Some displays have always-on backlights without control, which might be less flexible but simpler to use. Adjustable backlight is preferable for battery-powered or outdoor projects where ambient light varies[4][7].

Additional Features

MicroSD Card Slot

A microSD card slot on the touchscreen shield enables storing images, fonts, or program data externally. This feature is convenient for projects requiring large amounts of graphical data or persistent storage. However, microSD card functionality depends on the Arduino board's SPI pin compatibility and may not work seamlessly with all boards[1][4].

Multi-Touch and Gestures

Most Arduino touchscreen displays support single-point touch only. However, some advanced shields, like the Arduino GIGA Display Shield, support multi-touch and gesture recognition, allowing for more sophisticated user interaction such as pinch-to-zoom or swipe gestures. These features are more common in high-end displays and require compatible hardware and libraries[5].

Integrated Sensors and Peripherals

Some advanced Arduino touchscreen shields come with integrated sensors (e.g., IMU sensors) or peripherals like microphones, expanding the scope of possible projects. These features add complexity and cost but can be valuable for specific applications like gesture control or voice recognition[5].

Software and Library Support

The availability of well-documented, open-source libraries is vital for ease of development. Popular libraries like MCUFRIEND_kbv for TFT displays or Adafruit's GFX and TouchScreen libraries provide functions for drawing graphics, handling touch input, and managing display hardware.

Compatibility with Arduino IDE and example codes for popular boards (Uno, Mega, Nucleo) help reduce development time and troubleshooting[1][3][4][6].

Power Requirements and Voltage Compatibility

Arduino touchscreen displays typically operate at 3.3V or 5V logic levels. Ensuring voltage compatibility with your Arduino board is important to prevent damage.

Power consumption varies with display size, backlight brightness, and usage. For battery-powered projects, choosing a display with low power consumption and adjustable backlight is beneficial[3][4][7].

Durability and Build Quality

For projects exposed to harsh environments or frequent handling, the durability of the touchscreen and display is important. Resistive touchscreens are generally robust but can wear out with heavy use.

Some displays come with protective glass or coatings to enhance scratch resistance and longevity.

Conclusion

Choosing the right Arduino touchscreen display involves balancing several key features based on your project's requirements. The most important aspects include the type of display technology (TFT LCD with resistive touch is common), screen size and resolution (3.5 to 4 inches with 480x320 resolution is ideal for many applications), communication interface (SPI for simplicity or parallel for speed), and compatibility with your Arduino board.

Additional considerations like touchscreen controller quality, color depth, backlight control, microSD card support, and software libraries significantly impact usability and development ease. Advanced features like multi-touch, gesture support, and integrated sensors add value for complex projects but come at higher cost and complexity.

By carefully evaluating these features, you can select an Arduino touchscreen display that delivers excellent performance, ease of integration, and a satisfying user experience for your interactive electronics projects.

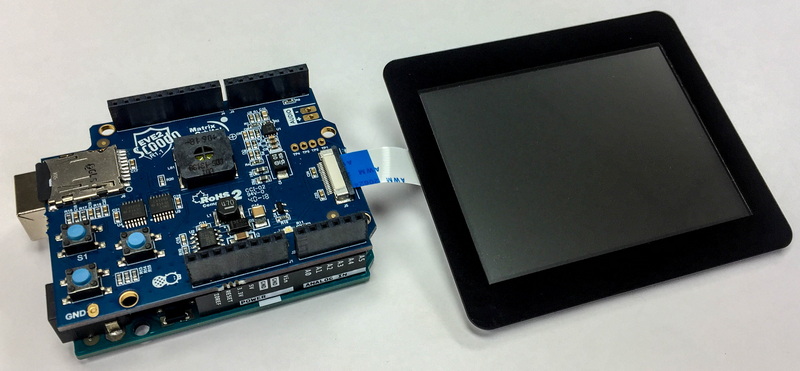

EVE Arduino Shield Scoodo
