Liquid Crystal Displays (LCDs) have become ubiquitous in modern technology, from television screens and computer monitors to handheld devices like smartphones and tablets[3][9]. Powering an LCD screen involves several key components working in concert to deliver the necessary voltages and currents for proper operation[1]. Understanding these components and their roles is crucial for anyone involved in electronics repair, design, or even just general interest in how these displays function.
LCD technology has undergone significant evolution since its inception. Early LCDs were simple, low-resolution displays, but advancements in materials, manufacturing processes, and driving techniques have led to high-resolution, energy-efficient displays with excellent color reproduction[3]. These advancements have directly impacted the power supply requirements and the components used to deliver that power.
Efficient power delivery is paramount in LCD screens for several reasons:
- Energy Conservation: Lower power consumption translates to longer battery life in portable devices and reduced energy bills for larger displays.
- Thermal Management: Inefficient power supplies generate heat, which can damage the LCD panel and other components.
- Performance: Stable and clean power is essential for consistent image quality and reliable operation.

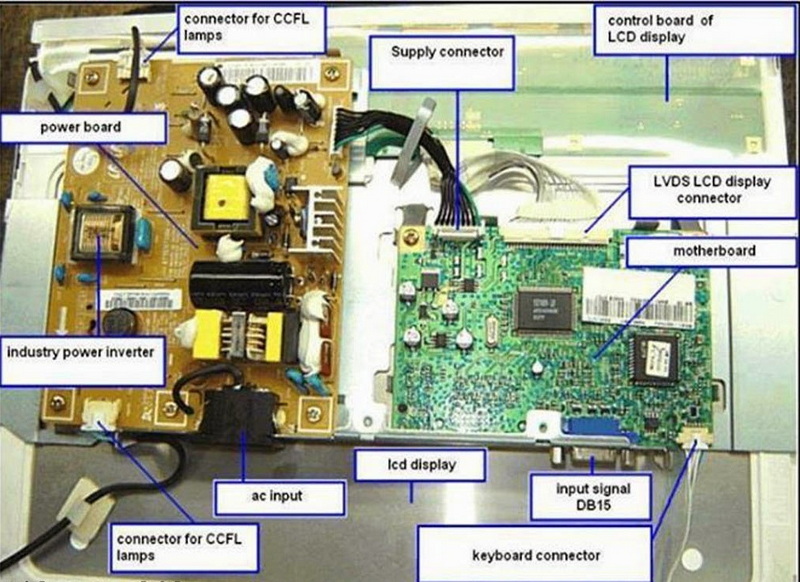

The power system of an LCD screen typically comprises several distinct components:

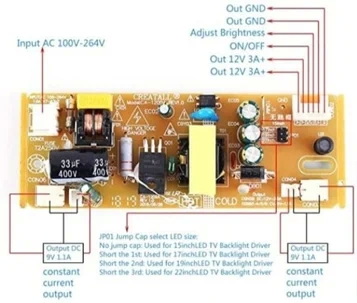

The primary function of the Power Supply Unit (PSU) is to convert the incoming AC voltage from a wall outlet into the DC voltages required by the LCD screen[1][4]. This conversion typically occurs in two stages:
- Switching Power Supply (AC/DC Converter): This stage converts the AC voltage (e.g., 110V or 220V) into a lower DC voltage, typically 12V, 14V, 18V, 24V, or 28V, depending on the specific LCD model[1][4].
- DC/DC Converter: This stage further converts the DC voltage from the switching power supply into the various voltage levels needed by different parts of the LCD, such as 5V, 3.3V, 2.5V, etc. These voltages power the driver board and the LCD panel itself[1][4].
The High-Voltage Board, also known as an inverter circuit, is responsible for generating the high-frequency, high-voltage AC required to power the backlight of the LCD panel[1][4].
- Function: It converts the low-voltage DC from the power supply into a high-voltage AC (often above 600V) needed to illuminate the backlight[1][4].
- Installation: High-voltage boards can be implemented as a dedicated circuit board or integrated with the switching power supply circuit[1].
The Driver Board, often referred to as the main board, is the central control unit of the LCD[4]. It receives signals from the input source (e.g., HDMI, VGA) and processes them to display the image on the LCD panel. Key components of the driver board include:
- Input Interface Circuit: This circuit receives the input signal (e.g., VGA, HDMI) from the source device.
- A/D Conversion Circuit: Converts analog signals to digital signals for processing.
- Clock Generator: Provides the timing signals necessary for the various circuits to operate synchronously.
- Scaler Circuit: Scales the input image to match the resolution of the LCD panel.
- Microcontroller Circuit (MCU): Controls the overall operation of the driver board.
- Output Interface Circuit: Sends the processed video signal to the LCD panel.
The LCD Panel is the core display component, comprising several layers that work together to create the visible image[4][3]. These layers include:
- Backlight: Provides the light source for the display. This can be CCFL (Cold Cathode Fluorescent Lamp) or LED (Light Emitting Diode).
- Polarizing Filters: Polarize the light to control its direction and intensity[6][9].
- Liquid Crystals: These are the substances that change their orientation in response to an electric field, thereby modulating the light passing through[3][6].
- Color Filters: These filters create the red, green, and blue sub-pixels that combine to form the full-color image.
- Thin Film Transistors (TFT): Control the voltage applied to each liquid crystal cell, allowing for precise control of the image[4].
The Keyboard and Control Board houses the buttons and controls that allow the user to adjust settings such as brightness, contrast, and color[4].
- Function: The key circuit makes or breaks the connection, and when the switch is pressed, the key electronic switch is turned on. When the hand is released, the key electronic switch is turned off. The switch signal output by the key switch is sent to the MCU on the driver board[4]. After being recognized by the MCU, the control signal is output to control the relevant circuit to complete the corresponding operation and action.
- Indicator Lights: Often included on the control board to indicate power status and other settings.
Voltage regulation is crucial to ensure that each component receives a stable and consistent voltage supply. Fluctuations in voltage can lead to:
- Image Distortion: Incorrect voltages can cause inaccurate color reproduction or flickering.
- Component Damage: Overvoltage can damage sensitive electronic components.
- Malfunctions: Unstable power can cause the LCD to freeze or shut down.
Power sequencing refers to the order in which different components are powered on and off. This is important to prevent damage and ensure proper operation. For example, the backlight should typically be powered on after the driver board has initialized[4].
Many LCD screens include a standby mode that allows them to consume minimal power when not in use[2]. This is typically achieved using a separate standby power supply that provides a low-voltage supply to the microcontroller and other essential circuits.
- Symptoms: No power, flickering screen, intermittent shut-off.
- Causes: Faulty capacitors, blown fuses, defective voltage regulators.
- Troubleshooting: Check the input voltage, examine the capacitors for bulging or leakage, test the voltage regulators with a multimeter.
- Symptoms: Dim screen, no backlight, uneven brightness.
- Causes: Faulty inverter, defective backlight lamp (CCFL or LED).
- Troubleshooting: Check the inverter output voltage, replace the backlight lamp.
- Symptoms: No image, distorted image, incorrect colors.
- Causes: Defective scaler chip, corrupted firmware, damaged connectors.
- Troubleshooting: Check the input signal, reflash the firmware, inspect the connectors for damage.
- Screwdriver Set: For disassembling the LCD screen.
- Multimeter: For testing voltages and continuity.
- Soldering Iron: For replacing components.
- Desoldering Pump/Wick: For removing components.
- Magnifying Glass: For inspecting small components.
- ESD Strap: To prevent electrostatic discharge damage.
1. Disassembly: Carefully disassemble the LCD screen, taking note of the location of each component.
2. Inspection: Visually inspect the components for signs of damage, such as bulging capacitors or burned resistors.
3. Testing: Use a multimeter to test the voltages and continuity of various circuits.
4. Component Replacement: Replace any defective components using a soldering iron.
5. Reassembly: Carefully reassemble the LCD screen, ensuring that all connections are secure.
The components responsible for powering an LCD screen are vital to its operation. From the power supply unit that converts AC voltage to the high-voltage board that drives the backlight and the driver board managing the image display, each component plays a crucial role. Understanding these components, their functions, and common issues is essential for maintaining and repairing LCD screens. By following the troubleshooting tips and repair techniques outlined in this guide, you can effectively diagnose and fix many common LCD screen problems.
The power supply converts AC voltage from the wall outlet into the various DC voltages required by the LCD screen, such as 5V, 12V, and 24V[1][4]. It ensures a stable and consistent power source for all components.
The high-voltage board converts the low-voltage DC from the power supply into a high-frequency, high-voltage AC required to power the backlight of the LCD panel[1][4].
The driver board receives input signals from the source, processes them, and sends the processed video signal to the LCD panel[4]. It controls the image display and manages settings like brightness and contrast.
Common symptoms include no power, flickering screen, intermittent shut-off, and distorted image[3]. These issues often stem from faulty capacitors or voltage regulators.
Yes, with the right tools and knowledge, you can repair many common LCD screen problems at home[3]. Essential tools include a screwdriver set, multimeter, soldering iron, and ESD strap.
