What Does An Lcd Screen Contain on The Inside?

Views: 222 Author: Wendy Publish Time: 2025-02-08 Origin: Site

Inquire

Content Menu

● Introduction

● Basic Components of an LCD Screen

● Detailed Look at Each Component

>> 1. Backlight

>> 2. Polarizing Filters

>> 3. Glass Substrates

>> 4. Electrodes

>> 5. Liquid Crystal Layer

>> 6. Color Filters

>> 7. Thin Film Transistor (TFT) Matrix

● How LCDs Work: A Step-by-Step Explanation

● Types of LCDs

● Advantages and Disadvantages of LCDs

● Conclusion

● Frequently Asked Questions

>> 1. What is the purpose of the polarizing filters in an LCD?

>> 2. How do liquid crystals control the brightness of a pixel?

>> 3. What are the different types of backlights used in LCDs?

>> 4. What is the function of the color filters in an LCD?

>> 5. What is a TFT matrix, and how does it improve LCD performance?

● Citations

Introduction

Liquid Crystal Displays (LCDs) are ubiquitous in modern technology[3]. From smartphones to televisions, laptops to digital watches, LCD screens are the dominant display technology[3][6]. Their slim profile, low power consumption (compared to older technologies like CRTs), and ability to produce sharp, bright images have made them indispensable[6]. But what exactly is inside an LCD screen? How does it work? This article delves into the internal structure and function of LCD screens, explaining the components and processes that create the images we see.

Liquid Crystal Displays Manufacturing

Basic Components of an LCD Screen

An LCD screen is a complex assembly of multiple layers, each with a specific function[7]. The primary components include:

- Backlight: The light source for the display[5]. LCDs do not produce their own light; they require an external light source to be visible[5].

- Polarizing Filters: These filters control the direction of light waves, ensuring that light passes through the liquid crystal layer in a controlled manner[3][8].

- Glass Substrates: Transparent glass layers that sandwich the liquid crystal layer and provide a stable structure[1][2].

- Electrodes: Conductive layers that apply an electric field to the liquid crystal, controlling the orientation of the liquid crystal molecules[1][2].

- Liquid Crystal Layer: The heart of the LCD, this layer contains liquid crystal molecules that change their orientation in response to an electric field, modulating the passage of light[1][5].

- Color Filters: These filters add color to the image by selectively transmitting red, green, and blue light[1][4].

- Thin Film Transistor (TFT) Matrix (in active matrix LCDs): An array of transistors that control the voltage applied to each pixel, enabling precise control over the image[4][8].

Detailed Look at Each Component

1. Backlight

The backlight is essential because LCDs do not emit light themselves[5]. The backlight shines light through the subsequent layers of the LCD, making the image visible. Common types of backlights include:

- LED (Light Emitting Diode): LEDs are the most common type of backlight in modern LCDs due to their energy efficiency, long lifespan, and compact size[4].

- CCFL (Cold Cathode Fluorescent Lamp): CCFLs were used in older LCDs but are less common now due to their higher power consumption and shorter lifespan.

2. Polarizing Filters

Polarizing filters are crucial for the operation of LCDs[3][8]. They work by only allowing light waves that are aligned in a specific direction to pass through[3]. An LCD typically has two polarizing filters:

- Vertical Polarizer: This filter only allows vertically aligned light to pass through[4].

- Horizontal Polarizer: This filter only allows horizontally aligned light to pass through[4].

The polarizers are oriented at 90 degrees to each other[3]. When light passes through the first polarizer, it becomes polarized in one direction. The liquid crystal layer then twists the light, and the second polarizer either allows or blocks the light based on the twist[1].

3. Glass Substrates

The glass substrates are transparent layers that provide a stable and flat surface for the other components[1][2]. These substrates are coated with a thin layer of indium tin oxide (ITO), which acts as an electrode[2][6]. The ITO layer is patterned to create the individual electrodes that control the voltage applied to the liquid crystal[2].

4. Electrodes

Electrodes are conductive layers that apply an electric field to the liquid crystal layer[1][2]. By controlling the voltage applied to the electrodes, the orientation of the liquid crystal molecules can be precisely controlled[1]. The electrodes are typically made of indium tin oxide (ITO), a transparent and conductive material[2].

5. Liquid Crystal Layer

The liquid crystal layer is the heart of the LCD[1][5]. Liquid crystals are substances that have properties between those of a conventional liquid and a solid crystal[5]. They can flow like a liquid but have their molecules arranged in an ordered structure like a crystal[5].

In an LCD, the liquid crystal molecules are typically aligned in a twisted nematic (TN) configuration[1]. When an electric field is applied, the molecules untwist, changing the polarization of light passing through the layer[1]. This change in polarization is what allows the LCD to control the brightness of each pixel[1].

6. Color Filters

Color filters are used to create color images[1][4]. Each pixel on an LCD screen is divided into three sub-pixels: red, green, and blue (RGB)[4]. Each sub-pixel has a color filter that only allows light of that color to pass through[4]. By controlling the brightness of each sub-pixel, the LCD can create a wide range of colors[4].

7. Thin Film Transistor (TFT) Matrix

In active matrix LCDs, a thin film transistor (TFT) is used to control the voltage applied to each pixel[4][8]. The TFT matrix allows for precise and rapid control of each pixel, resulting in sharper images and faster response times[8]. Active matrix LCDs are also known as TFT-LCDs[4].

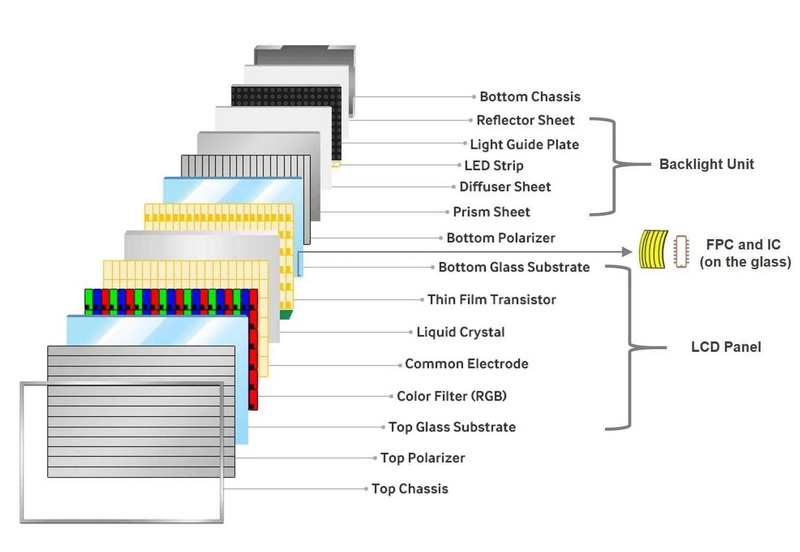

The structure of LCD

How LCDs Work: A Step-by-Step Explanation

1. Backlight Illumination: The backlight emits white light[5].

2. Polarization: The light passes through the first polarizing filter, becoming polarized in one direction[3].

3. Liquid Crystal Modulation: The polarized light passes through the liquid crystal layer, where the molecules twist the light based on the applied electric field[1].

4. Second Polarization: The twisted light passes through the second polarizing filter, which either allows or blocks the light depending on the amount of twist[4].

5. Color Filtering: The light passes through the color filters, creating red, green, and blue sub-pixels[1].

6. Image Formation: The combination of the sub-pixels creates the final image[4].

Types of LCDs

There are several types of LCDs, each with its own advantages and disadvantages:

- TN (Twisted Nematic): TN panels are the oldest and most common type of LCD[1]. They have fast response times but limited viewing angles and color accuracy[1].

- IPS (In-Plane Switching): IPS panels offer better viewing angles and color accuracy than TN panels but typically have slower response times.

- VA (Vertical Alignment): VA panels offer high contrast ratios and good viewing angles but can suffer from ghosting or blurring in fast-moving scenes.

Advantages and Disadvantages of LCDs

Advantages:

- Slim Profile: LCDs are much thinner and lighter than older display technologies like CRTs[6].

- Low Power Consumption: LCDs consume less power than CRTs and some other display technologies[6].

- Sharp Images: LCDs can produce sharp and detailed images[8].

Disadvantages:

- Limited Viewing Angles: Some LCDs, particularly TN panels, have limited viewing angles.

- Backlight Requirement: LCDs require a backlight, which can add to the cost and complexity of the display[5].

- Black Levels: LCDs can struggle to produce true black colors, as some light always leaks through the liquid crystal layer.

Conclusion

LCD screens are marvels of modern engineering, combining multiple layers of specialized materials to create the images we see every day. From the backlight that illuminates the display to the liquid crystals that modulate the light and the color filters that add vibrancy, each component plays a crucial role. Understanding the internal structure of an LCD screen provides a greater appreciation for the technology that powers our devices.

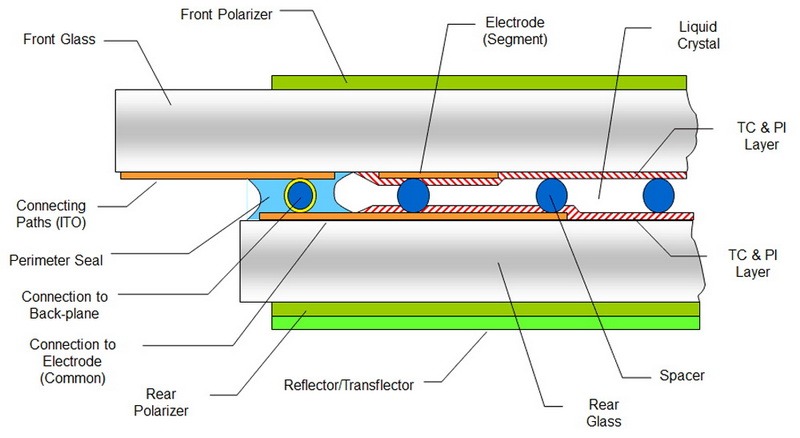

structure of a LCD screen

Frequently Asked Questions

1. What is the purpose of the polarizing filters in an LCD?

The polarizing filters control the direction of light waves, ensuring that light passes through the liquid crystal layer in a controlled manner[3][8]. They work by only allowing light waves that are aligned in a specific direction to pass through[3].

2. How do liquid crystals control the brightness of a pixel?

Liquid crystal molecules change their orientation in response to an electric field, modulating the polarization of light passing through the layer[1]. This change in polarization is what allows the LCD to control the brightness of each pixel[1].

3. What are the different types of backlights used in LCDs?

Common types of backlights include LED (Light Emitting Diode) and CCFL (Cold Cathode Fluorescent Lamp)[4]. LEDs are the most common type in modern LCDs due to their energy efficiency and long lifespan[4].
