In the digital era, Liquid Crystal Display (LCD) screens have become ubiquitous, integral to our daily lives through smartphones, laptops, televisions, and digital signage[1][3]. These screens present crisp images and vibrant colors, but few understand the complex technology enabling their functionality[1]. This article explores the inner workings of LCD screens, from their fundamental components to the science behind pixel formation and color filtering[1]. We will also cover the different types of LCD screens available today and their unique features[1].

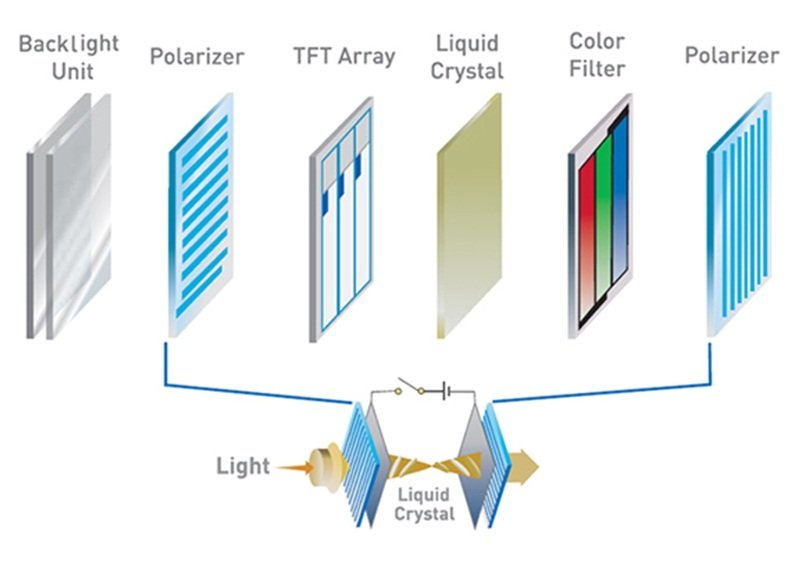

At the heart of every LCD screen, three primary components work in harmony to create the images we see[1].
The backlight provides the necessary light source for the display. Without it, the liquid crystal layer would be unable to manipulate light to create images[1]. Backlights are typically white and can be produced using Cold Cathode Fluorescent Lamps (CCFLs) or Light Emitting Diodes (LEDs)[9]. LEDs are increasingly favored due to their energy efficiency and environmental benefits[9]. The light from the backlight passes through several layers, including diffusers and reflectors, to ensure even distribution across the screen[9]. Diffusers spread the light, while reflectors redirect otherwise wasted light back towards the LCD panel, enhancing the display's efficiency[9].
The liquid crystal layer consists of tiny cells filled with liquid crystals, sandwiched between two polarizing filters[1]. These crystals change their orientation when an electric current is applied, manipulating the light from the backlight to create images[1][3]. The liquid crystals are responsive to electrical signals, altering their alignment and controlling the amount of light that passes through[3].
Color filters add color to the images created by the liquid crystal layer[1]. Each pixel on an LCD screen comprises three sub-pixels: one with a red filter, one with a green filter, and one with a blue filter[1]. By controlling the intensity of light passing through each sub-pixel, the screen can produce a wide range of colors[9].

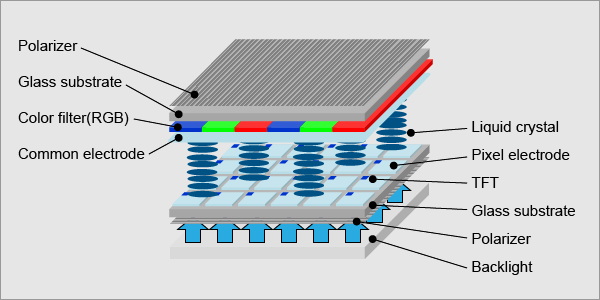

LCD panels consist of a polarizer, glass substrate, color filter, alignment film, liquid crystal material, and optical diaphragm[4]. The polarizer is crucial for the panel's ability to dim pixels[9].
The panels have flutes that direct the crystals, giving them a distinctive orientation[5].
The electrode layers are coated with a thin aligning layer of a polymer that causes the liquid crystal molecules in contact with them to align approximately parallel to the surface[2].
Together, all the components function to create the images seen on the LCD screen[4].
LCDs use liquid crystals between two transparent electrodes to display images[3]. When an electric current is applied, the liquid crystals move to control the amount of light passing through, creating the pictures on the screen[3].
LCD screens rely on the polarization of light[6]. Light travels in a specific direction and can be rotated, a phenomenon known as polarization[9]. LCDs use polarizing filters that only allow light through if it is angled or polarized at a certain angle[9].
Liquid crystals have the property of bending light[9]. In an LCD display, light from the backlight hits the first polarizing filter, passes through the liquid crystals where the light is bent, and then goes through the second polarizing filter[9]. The amount of voltage applied to the liquid crystals controls how much light is bent and, consequently, how much light is blocked by the second polarizing filter[9].
Each pixel on an LCD screen is made up of three sub-pixels: red, green, and blue[1]. These sub-pixels are controlled by a matrix of thin-film transistors (TFTs)[1]. TFT LCD modules ensure each liquid crystal pixel is driven by a thin film transistor, allowing for high speed, brightness, and contrast[7]. The high density of these sub-pixels makes it impossible for the naked eye to distinguish them individually, allowing their colors to blend and create millions of different colors[9].
TN LCDs are known for their fast response times and are commonly used in gaming monitors. However, they often have narrower viewing angles and lower color accuracy compared to other types[3].
IPS LCDs offer wider viewing angles and better color accuracy, making them suitable for graphic design and professional applications. They typically have slower response times than TN panels but provide a superior visual experience[3].
VA LCDs provide high contrast ratios and good viewing angles, falling between TN and IPS panels in terms of performance. They are often used in televisions and monitors where a balance of image quality and response time is desired[3].
LCD technology has evolved significantly, with LCD screens now displaying crisp images, bright colors, and vivid details[3]. This transformation is due to the liquid crystals that respond to electrical signals and change alignment when an electric current is applied[3]. This change affects the amount of light passing through, creating the images we see[3].
An LCD display requires specific voltages, often necessitating a power converter[9]. The main voltage is converted to an intermediate DC voltage, typically between 12 and 24V[7][9]. This power is then divided between the backlight and the microelectronics[9]. The micro-electronics handle signal processing and consist of a video signal receiver and a panel driver[7][9].
LCD screens have revolutionized how we view the world, thanks to their capacity to produce vibrant, clear visuals[3]. These displays rely on a combination of carefully orchestrated components, including backlights, liquid crystals, and color filters, to create images[1]. Whether it's the fast response times of TN panels or the wide viewing angles of IPS displays, LCD technology continues to evolve, providing solutions adapted to a wide array of applications[3]. Understanding the fundamental principles behind LCD screens enriches our appreciation of the technology that is now an indispensable part of modern life[1].
The lifespan of an LCD screen typically ranges from 30,000 to 60,000 hours[7]. This can be affected by usage patterns, brightness settings, and environmental conditions[7].
To clean an LCD screen, use a soft, lint-free cloth and avoid applying excessive pressure[4]. If necessary, use a specialized LCD cleaning solution[4]. Never spray liquid directly onto the screen[4].
LED backlighting offers several advantages over CCFL, including lower energy consumption, longer lifespan, and better color reproduction[9]. LEDs are also more environmentally friendly, as they do not contain mercury[9].
Yes, LCD screens can be recycled, but it is important to do so properly[4]. Many recycling centers accept LCD screens and will dismantle them to recover valuable materials[4]. Check with local recycling facilities for specific guidelines[4].
LCD (Liquid Crystal Display) and OLED (Organic Light Emitting Diode) screens differ in their fundamental technology[8]. LCDs use a backlight to illuminate liquid crystals, while OLEDs emit light directly from each pixel[8]. OLEDs typically offer better contrast, deeper blacks, and wider viewing angles than LCDs[8].
