The Official Raspberry Pi 7 Inch Touchscreen Display is a versatile and compact accessory designed to enhance the functionality of Raspberry Pi computers. It offers a range of features that make it ideal for creating interactive projects such as tablets, infotainment systems, smart mirrors, and educational tools. This article explores the key features of this touchscreen display, its technical specifications, setup process, and practical applications. Additionally, it provides a detailed overview of the raspberry pi 7 inch touchscreen display manual essentials to help users get the most out of this device.
The display features a 7-inch diagonal screen with a resolution of 800 by 480 pixels. It uses a true multi-touch capacitive touch panel that supports up to 10 simultaneous touch points. This capability allows for smooth, responsive interaction and supports complex gestures, making it suitable for a wide range of applications from simple touch interfaces to more sophisticated multi-touch controls.
The touchscreen connects to the Raspberry Pi through a ribbon cable that attaches to the DSI (Display Serial Interface) port on the Raspberry Pi board. Power is supplied directly from the Pi's GPIO pins, eliminating the need for an external power source. This integration simplifies wiring and reduces clutter, making the setup compact and portable.
Raspberry Pi OS includes built-in touchscreen drivers that enable full functionality of the display. These drivers support ten-finger touch input and provide an on-screen keyboard, which means users do not need to connect a physical keyboard or mouse to operate the device. This feature is particularly useful for creating standalone touchscreen projects.

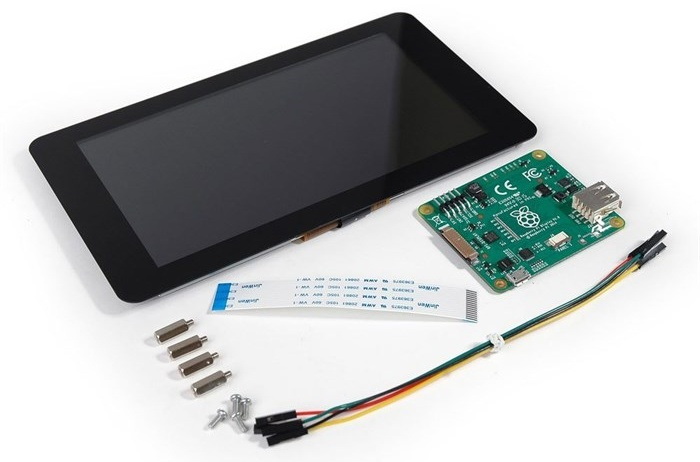

The display comes with an adapter board that handles power and signal conversion, as well as mounting hardware such as stand-offs and screws. Users can mount the Raspberry Pi board directly to the back of the touchscreen, creating an all-in-one unit. This design is ideal for embedded projects and portable devices.
The official touchscreen is compatible with most Raspberry Pi models that have a DSI port, including Raspberry Pi 2, 3, 4, and 5. It is not compatible with Raspberry Pi Zero or Raspberry Pi 400 due to hardware interface differences. The display is fully supported by the latest Raspberry Pi OS, ensuring seamless software integration and access to a variety of touch-enabled educational and programming tools.
| Feature | Specification |
|---|---|
| Display Size | 7 inches diagonal |
| Resolution | 800 x 480 pixels |
| Active Area | Approximately 155mm x 86mm |
| Touch Technology | Capacitive multi-touch (10 points) |
| Interface | Ribbon cable to DSI port |
| Power Supply | Powered from Raspberry Pi GPIO pins |
| Dimensions | 194mm x 110mm x 20mm (including standoffs) |
| Compatible Raspberry Pi Models | Pi 2, 3, 4, 5 (not Pi Zero or Pi 400) |
The display connects to the Raspberry Pi via a flat flexible cable (FFC) that plugs into the DSI port on both the display adapter board and the Raspberry Pi. The power connections are made using jumper wires from the Pi's GPIO pins to the adapter board, supplying 5V and ground.
The latest Raspberry Pi OS includes native support for the touchscreen. Users should ensure their system is updated by running system update commands. The on-screen keyboard can be installed via the package manager if it is not already present, providing a virtual keyboard for touch input.
The Raspberry Pi board can be mounted to the back of the touchscreen using the included stand-offs and screws. This creates a compact, integrated unit suitable for portable or embedded projects.
If the display orientation is incorrect, users can adjust the rotation settings by editing the Raspberry Pi's configuration file. This ensures the touchscreen input matches the display orientation.
- Tablet and Portable Devices: Transform your Raspberry Pi into a tablet-like device with touch interaction.
- Information Dashboards: Create smart home control panels or information kiosks.
- Educational Tools: Use touch-enabled educational software to facilitate learning and programming.
- Home Automation Interfaces: Develop IoT devices with visual touch controls.
- Media Centers: Build interactive entertainment systems with touch navigation.
The raspberry pi 7 inch touchscreen display manual typically includes:

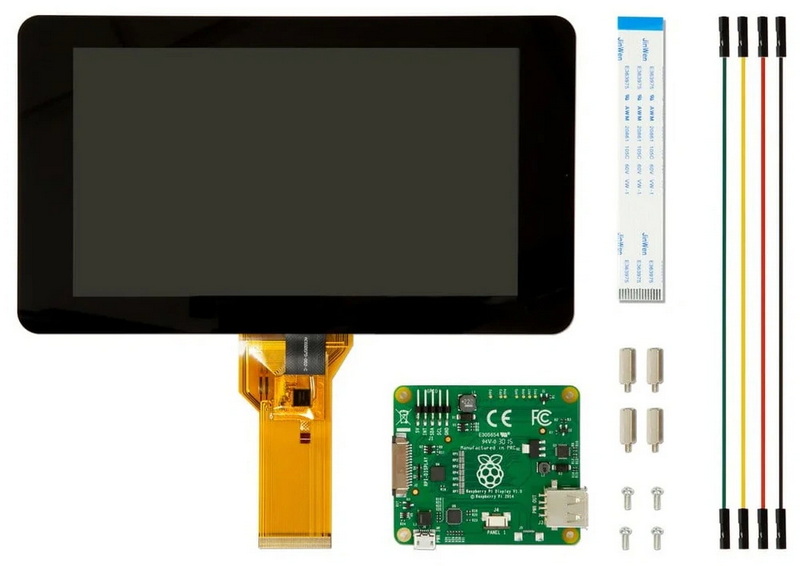

- A detailed parts list including the touchscreen, adapter board, ribbon cable, jumper wires, and mounting hardware.
- Step-by-step assembly instructions covering cable connections, mounting procedures, and software setup.
- Troubleshooting tips for common issues like display not powering on or touch input not responding.
- Configuration guidance for screen rotation and calibration.
- Safety and maintenance advice to ensure long-term reliability.
The Official Raspberry Pi 7 Inch Touchscreen Display is a powerful and flexible accessory that significantly expands the capabilities of Raspberry Pi computers. Its multi-touch capacitive screen, native OS support, and easy integration make it ideal for a wide range of interactive projects. Whether you are building a portable tablet, an information kiosk, or an educational tool, this display offers a reliable and user-friendly solution. The comprehensive raspberry pi 7 inch touchscreen display manual ensures users can set up and operate the device with ease, making it a valuable addition for both beginners and advanced users.
The official 7-inch touchscreen display is compatible with Raspberry Pi models 2, 3, 4, and 5. It is not compatible with Raspberry Pi Zero or Raspberry Pi 400 due to the absence of a DSI port on those models.
The display is powered directly from the Raspberry Pi's GPIO pins, specifically the 5V and ground pins, eliminating the need for an external power supply.
Yes, the touchscreen supports true capacitive multi-touch with up to 10 simultaneous touch points, allowing for complex gestures and interactions.
No, the Raspberry Pi OS includes an on-screen keyboard and touchscreen drivers, so you can operate the device without connecting a physical keyboard or mouse.
You can adjust the screen rotation by editing the Raspberry Pi's configuration file (`/boot/config.txt`) and adding the line `lcd_rotate=2` or another appropriate rotation value, then rebooting the system.
