Upgrading or replacing a laptop screen can be a daunting task. One common question that arises during this process is whether a 15.4-inch LCD screen can be installed on a 15.6-inch laptop. This article aims to provide a comprehensive overview of the compatibility issues, potential solutions, and factors to consider when attempting such a replacement. We will delve into the technical aspects, standardization challenges, and practical advice for a successful screen replacement.
Laptop screen sizes are typically measured diagonally in inches. The stated size represents the viewable area of the display. Common laptop screen sizes include 13.3-inch, 14-inch, 15.6-inch, and 17.3-inch. While a seemingly small difference of 0.2 inches might appear negligible, it can have significant implications for compatibility due to variations in screen dimensions, bezels, and mounting mechanisms.
Despite the apparent simplicity of screen sizes, laptop screens are not entirely standardized[1]. Customization is prevalent due to the compact nature of laptops. Original equipment manufacturers (OEMs) often source screens from various manufacturers, leading to differences in physical dimensions, connector types, and mounting points[1].

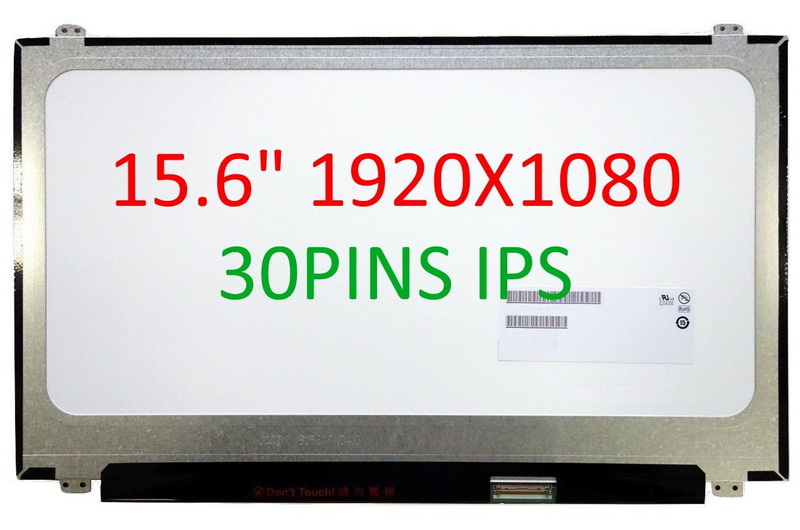

One of the critical factors in screen compatibility is the connector type. The connector is responsible for transmitting video signals and power from the laptop's motherboard to the screen. Common connector types include 30-pin, 40-pin, and eDP (Embedded DisplayPort). The pin count and connector location must match for the screen to function correctly.
The resolution of the screen, such as 1366x768 (HD) or 1920x1080 (Full HD), must be supported by the laptop's graphics processing unit (GPU). Additionally, the aspect ratio (e.g., 16:9) should be compatible with the laptop's display settings.

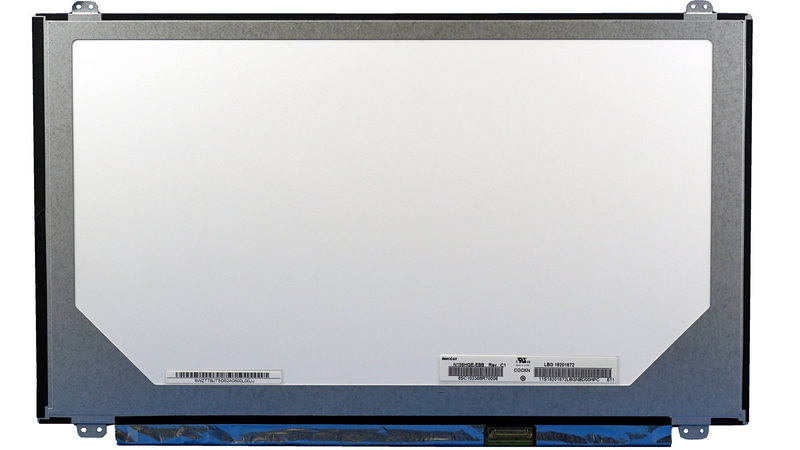

Even if the connector and resolution match, the physical dimensions of the screen must fit within the laptop's bezel. A 15.4-inch screen might have different dimensions compared to a 15.6-inch screen, leading to issues with mounting and alignment.
The bezel is the frame surrounding the screen. If the 15.4-inch screen has a smaller bezel than the original 15.6-inch screen, there might be gaps or misalignment issues. Conversely, a larger bezel could prevent the screen from fitting properly.
Laptop screens are typically secured using screws or clips. The mounting points on the replacement screen must align with those on the laptop's frame. Mismatched mounting points can make it difficult to secure the screen, leading to instability and potential damage.
Although less common, electrical compatibility issues can arise. The replacement screen must operate within the voltage and current specifications of the laptop's power supply. Incorrect electrical specifications can result in screen flickering, dimness, or even damage to the laptop's motherboard.

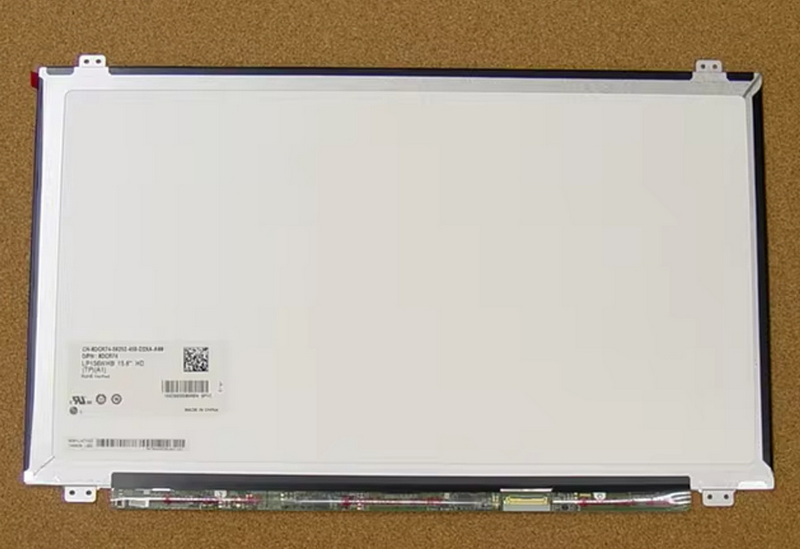

The most reliable way to ensure compatibility is to identify the model number of the original screen. This number is typically printed on a sticker located on the back of the screen. Once the model number is known, it can be used to search for an exact replacement or a compatible alternative.
Online marketplaces like eBay and AliExpress offer a wide selection of laptop screens[1][9]. When searching for a replacement, it is crucial to provide the laptop's model number and screen specifications. Many sellers list compatible screens and provide detailed information about their dimensions, connector types, and resolutions.
If uncertainty persists, consulting a professional laptop repair technician is advisable. Technicians have the expertise to identify compatible screens and perform the replacement safely.
Disclaimer: -Replacing a laptop screen requires technical skills and carries the risk of damaging the device. Proceed with caution and seek professional assistance if needed.-
- Small Phillips screwdriver
- Plastic pry tool or thin plastic card
- Anti-static wrist strap
- Replacement screen
1. Preparation:
- Power off the laptop and disconnect the power adapter.
- Remove the battery.
- Wear an anti-static wrist strap to prevent electrostatic discharge.
2. Bezel Removal:
- Use a plastic pry tool to gently separate the bezel from the screen.
- Start at one corner and work your way around the perimeter.
- Be careful not to damage the bezel or screen.
3. Screen Removal:
- Remove the screws securing the screen to the laptop's frame.
- Gently tilt the screen forward.
4. Connector Disconnection:
- Locate the connector on the back of the screen.
- Carefully disconnect the connector, being mindful of any locking mechanisms.
5. Screen Installation:
- Connect the replacement screen to the connector.
- Ensure the connector is fully seated and locked.
6. Screen Securing:
- Align the replacement screen with the mounting points.
- Secure the screen using the screws removed earlier.
7. Bezel Reattachment:
- Align the bezel with the screen and gently press it into place.
- Ensure all clips are engaged.
8. Testing:
- Reconnect the battery and power adapter.
- Power on the laptop and verify that the screen is functioning correctly.
Incorporate images demonstrating each step of the screen replacement process. This will provide a visual guide for readers, making the instructions easier to follow. Also, embed videos showcasing screen replacement techniques. Platforms like YouTube offer numerous tutorials that can be linked to enhance the article's instructional value.
If replacing the internal screen proves too challenging or costly, consider using an external monitor. External monitors offer a larger display area and can be connected via HDMI or VGA.
Laptop screen extenders are portable devices that attach to the laptop and provide additional screen real estate[7]. These extenders are useful for multitasking and can improve productivity.
While it may be technically possible to install a 15.4-inch LCD screen on a 15.6-inch laptop, it is generally not recommended due to potential compatibility issues. Variations in screen dimensions, connector types, and mounting points can lead to installation difficulties and functional problems. The best approach is to identify the original screen model and source an exact replacement or a verified compatible alternative.
The main factors include screen size, resolution, connector type, physical dimensions, and mounting points. Ensuring that the replacement screen matches these specifications is crucial for compatibility[1].
It is generally more difficult to find a compatible screen from a different laptop manufacturer due to customization[1]. Screens from the same manufacturer may have a higher chance of compatibility, but it is not guaranteed.
The model number is typically printed on a sticker located on the back of the screen. You may need to remove the screen from the laptop to see it[1].
The tools typically required include a small Phillips screwdriver, a plastic pry tool, and an anti-static wrist strap.
Replacing a laptop screen requires technical skills and carries the risk of damaging the device. If you are not comfortable with the procedure, it is best to seek professional assistance.
