Touchscreen devices have become ubiquitous in modern life, from smartphones and tablets to laptops and industrial control panels. These devices rely on the seamless interaction between two key components: the digitizer and the LCD screen[1]. While both are essential for a functional touchscreen, they serve distinct purposes[1]. Understanding the difference between a digitizer and an LCD screen is crucial for anyone looking to repair a device, develop touchscreen applications, or simply gain a deeper understanding of the technology we use every day[1].

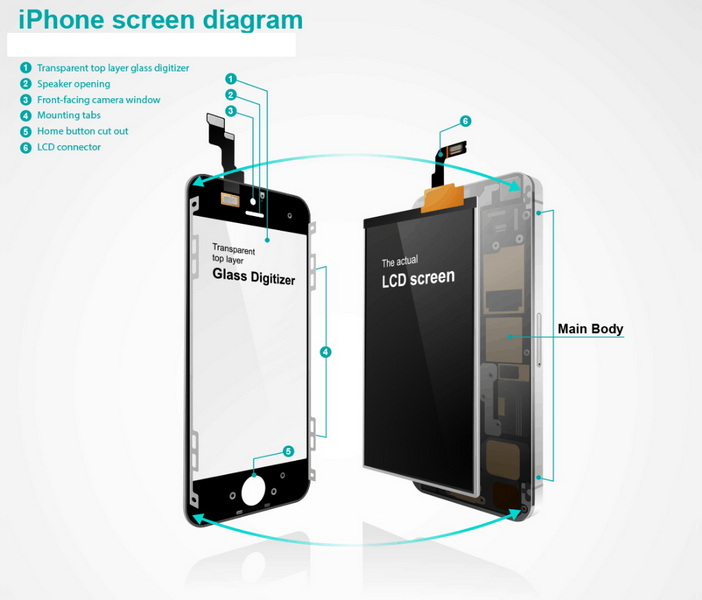

A digitizer is a component that converts analog touch signals into digital signals that a device can understand[1]. It is typically a layer of glass or plastic located on top of the LCD screen[1][3]. When you touch the screen, the digitizer detects the location and pressure of your touch and sends this information to the device's processor[3]. The processor then interprets the touch as a command and responds accordingly[1].
The functionality of a digitizer hinges on its ability to translate physical touch into digital data[4]. This process involves several key steps:
1. Touch Detection: The digitizer uses a grid of sensors to detect the point of contact on the screen[4]. These sensors can be capacitive, resistive, infrared, or surface acoustic wave (SAW), each with its own method of detecting touch[4].
2. Signal Conversion: Once a touch is detected, the digitizer converts the analog signal from the touch into a digital signal that the device's processor can understand[1]. This conversion involves sampling the analog signal at regular intervals and quantizing the samples into discrete digital values[2].
3. Data Transmission: The digitized touch data is then transmitted to the device's processor, which interprets the data as a command or input[1].
There are several types of digitizers, each with its own advantages and disadvantages:
- Capacitive Digitizers: These are the most common type of digitizer used in smartphones and tablets[4]. They rely on the electrical capacitance of the human body to detect touch. When a finger touches the screen, it creates a change in the electrical field, which is detected by the digitizer[4].
- Resistive Digitizers: These digitizers consist of two layers of electrically conductive material separated by a thin gap[4]. When a user touches the screen, the two layers are pressed together, creating an electrical connection. The location of the touch is determined by measuring the resistance at the point of contact[4].
- Infrared Digitizers: These digitizers use an array of infrared beams and sensors to detect touch. When a user touches the screen, it blocks one or more of the infrared beams, which is detected by the sensors[4].
- Surface Acoustic Wave (SAW) Digitizers: These digitizers generate acoustic waves on the surface of the screen. When a user touches the screen, it absorbs some of the acoustic wave energy, which is detected by sensors. The location of the touch is determined by measuring the change in the acoustic wave pattern[4].
Digitizers are used in a wide range of applications, including:
- Smartphones and Tablets: Digitizers are essential for the touch-based interfaces of smartphones and tablets[3].
- Laptops: Some laptops have touchscreens that use digitizers to allow users to interact with the device using their fingers or a stylus[3].
- Industrial Control Panels: Digitizers are used in industrial control panels to allow operators to interact with machinery and equipment[4].
- Interactive Whiteboards: Digitizers are used in interactive whiteboards to allow presenters to write and draw on the screen[10].
- Graphics Tablets: Graphics tablets use digitizers to allow artists and designers to create digital artwork[10].
An LCD (liquid crystal display) screen is a type of display that uses liquid crystals to produce images[1]. LCDs are commonly used in televisions, computer monitors, and mobile devices due to their thin profile, low power consumption, and high image quality[7].
LCD screens work by manipulating light using liquid crystals[1]. Here's a simplified breakdown of the process:
1. Backlight: An LCD screen requires a backlight to produce light because liquid crystals themselves do not emit light[1]. The backlight is typically made up of LED (light-emitting diode) bulbs that illuminate the entire screen[1].
2. Polarizing Filters: The light from the backlight passes through a polarizing filter, which aligns the light waves in a specific direction[1].
3. Liquid Crystals: The polarized light then passes through a layer of liquid crystals. Liquid crystals are substances that can be aligned by an electric field[1]. When an electric field is applied, the liquid crystals twist and change the polarization of the light passing through them[1].
4. Color Filters: The light then passes through a layer of color filters, which are red, green, and blue[1]. By controlling the amount of light that passes through each color filter, the LCD screen can produce a wide range of colors[1].
5. Second Polarizing Filter: Finally, the light passes through a second polarizing filter, which is oriented perpendicular to the first polarizing filter[1]. This filter blocks any light that has not been properly polarized by the liquid crystals[1]. By controlling the electric field applied to the liquid crystals, the LCD screen can control the amount of light that passes through each pixel, creating an image[1].
There are several types of LCD screens, each with its own advantages and disadvantages:
- TN (Twisted Nematic) LCDs: These are the most common and least expensive type of LCD screen. They have fast response times, but their viewing angles and color reproduction are not as good as other types of LCDs[7].
- IPS (In-Plane Switching) LCDs: IPS LCDs offer better viewing angles and color reproduction than TN LCDs. They are commonly used in high-end smartphones, tablets, and monitors[7].
- VA (Vertical Alignment) LCDs: VA LCDs offer high contrast ratios and good viewing angles. They are often used in televisions and monitors[7].
LCD screens are used in a wide range of applications, including:
- Televisions: LCD screens are the most common type of display used in televisions[7].
- Computer Monitors: LCD screens are used in computer monitors due to their high image quality and low power consumption[7].
- Mobile Devices: LCD screens are used in smartphones, tablets, and laptops[7].
- Digital Signage: LCD screens are used in digital signage displays in retail stores, airports, and other public places[4].
- Automotive Displays: LCD screens are used in automotive displays for navigation, entertainment, and instrument clusters[4].
The digitizer and LCD screen work in tandem to create a functional touchscreen device[1]. The digitizer detects the user's touch and sends the corresponding digital signal to the device's processor[1]. The processor then instructs the LCD screen to display the appropriate image or perform the requested action[1].
For example, when you tap an app icon on your smartphone, the digitizer detects the touch and sends the coordinates of the touch to the processor[3]. The processor then determines which app icon was touched and launches the app on the LCD screen[4].

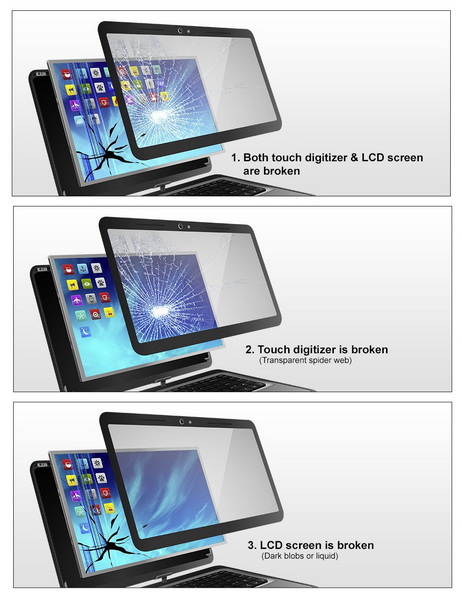

Understanding the distinct roles of the digitizer and LCD screen can greatly assist in diagnosing and resolving common touchscreen issues. Here are a few scenarios:
- Cracked Screen, Touch Still Works: If the glass on your device is cracked but the touchscreen still responds to your touch, the damage is likely limited to the glass panel or the digitizer[3].
- Touchscreen Not Responding: If the touchscreen is not responding to your touch, the problem could be with the digitizer, the connection between the digitizer and the device's processor, or the device's software[3].
- Display Issues (Dark Blobs, Lines): Issues like dark spots, lines, or distorted images typically indicate a problem with the LCD screen itself[9]. The digitizer might still be functional, but the display is compromised.
In conclusion, the digitizer and LCD screen are two distinct components that work together to create a functional touchscreen device[1]. The digitizer converts analog touch signals into digital signals, while the LCD screen displays images using liquid crystals[1]. Understanding the difference between these two components is essential for anyone looking to repair a touchscreen device or develop touchscreen applications[1].
Replacing a damaged digitizer or LCD screen can be a complex process, especially for modern devices where these components are often fused together[3]. While DIY repair kits are available, it's generally recommended to seek professional repair services to avoid further damage[3].
To protect your touchscreen device from damage, consider using a screen protector and a protective case[3]. Avoid exposing your device to extreme temperatures or moisture, and be careful not to drop it[3].
The lifespan of a digitizer and LCD screen can vary depending on usage and environmental factors. However, most modern touchscreen devices are designed to last for several years with proper care[4].
Yes, there are alternatives to LCD screens for touchscreen devices, such as OLED (organic light-emitting diode) screens[1]. OLED screens offer several advantages over LCD screens, including better color reproduction, higher contrast ratios, and wider viewing angles[7].
High humidity can affect a digitizer and LCD screen by causing condensation to form inside the device[4]. This condensation can damage the electronic components and cause the touchscreen to malfunction[4]. It is best to keep devices in environments that are not humid to help prevent damage[4].
