Liquid Crystal Displays (LCDs) have become the dominant display technology in the modern world[1]. From smartphones to televisions, computer monitors to car infotainment systems, LCDs are everywhere[1]. You may have noticed devices marketed as "LED" actually use LCD technology[1]. While LCDs are effective in creating displays, they rely on a crucial component: the backlight[1]. This article delves into why LCDs need backlights, the different types of backlights, and their impact on display quality.
The term "backlight" refers to an illumination system used in a display device[1]. Backlights are positioned behind the display layer to illuminate it[1]. Without a backlight, an LCD would appear dark and unviewable[1].
Not all display technologies require a backlight. For instance, Cathode Ray Tube (CRT) displays produce their own illumination[1]. CRT was once the leading display technology, but LCD has surpassed it in recent years[1].
Unlike CRT displays, LCDs cannot produce their own light[1]. LCDs use liquid crystals, which are organic materials. These liquid crystals don't illuminate; they need illumination from an external source—the backlight[1]. The backlight is essential; without it, the LCD screen would remain black[1].
Backlights illuminate display devices, but they achieve this in different ways[1]. Common types of backlights used in LCDs include:
- LED (Light-Emitting Diode): LED backlighting is popular for small LCD panels due to the small size of LEDs[7]. They are energy-efficient, have a long lifespan, and offer high brightness[7].
- CCFL (Cold Cathode Fluorescent Lamp): CCFLs are a cost-effective option often used in graphic displays[7]. They provide a bright white light and consume low power[7].
- EL (Electroluminescent): EL panels consist of multiple material layers that emit light when an electric current is applied[7]. They consume low power and produce no heat[7].
- Fiber Optic: Fiber optic backlights use woven fiber optic sheets bundled to an LED or halogen light source[7]. They offer uniform brightness and are suitable for custom display shapes[7].
- WLED (White LED): A white LED is used as the backlight source[1].
- WLED Array: An array of white LEDs is used for backlighting[1].
- RGB-LED: Red, Green, and Blue LEDs are used to create a full spectrum of colors[1].
Backlight Type | Advantages | Disadvantages |
LED | Energy-efficient, long lifespan, bright | Can be more expensive than CCFL |
CCFL | Cost-effective, bright | Less energy-efficient, contains mercury |
EL | Low power consumption, no heat | Requires an inverter, limited brightness |
Fiber Optic | Uniform brightness, custom shapes | Higher cost |
LED backlights come in two main configurations:

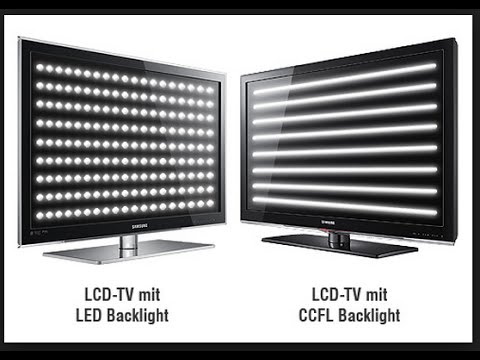

- Direct LED: LEDs are placed directly behind the LCD panel, evenly distributing light across the screen[2]. This provides uniform backlighting, enhanced contrast, and high brightness[2]. Direct LED supports local dimming, which enhances contrast and black levels[2].

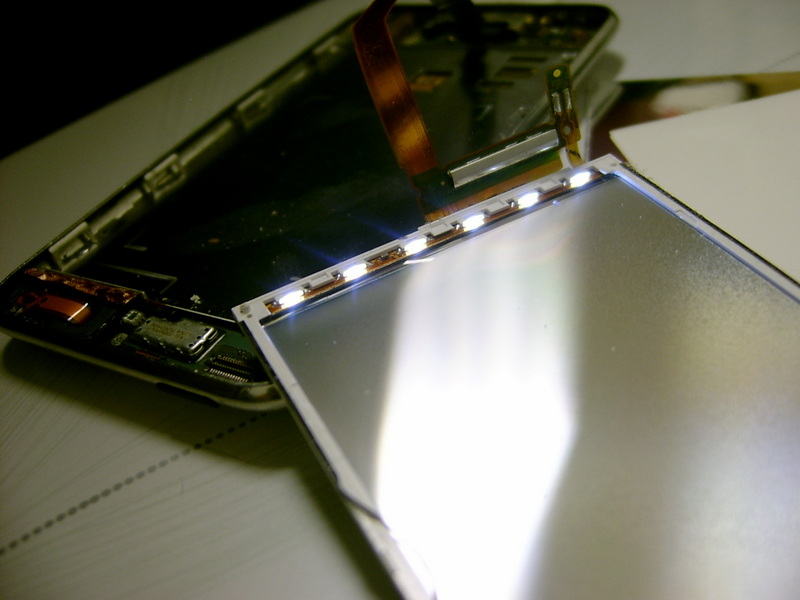

- Edge LED: LEDs are mounted along one edge of the light box, resulting in a thinner design[7]. Edge-lit configurations use fewer LEDs and consume less power than direct LED[7].
The backlight significantly affects the display's brightness, contrast, color performance, and energy consumption[2]. A good backlight ensures that the display is visible in various lighting conditions and that colors are accurately reproduced.
- Brightness: The backlight determines the maximum brightness of the display. Higher brightness is essential for outdoor visibility and HDR (High Dynamic Range) content.
- Contrast: Backlights supporting local dimming improve contrast by dimming or turning off specific areas of the backlight[2]. This results in deeper blacks and brighter whites.
- Color Performance: The type of backlight influences the color gamut of the display. RGB-LED backlights offer a wider color gamut than white LED backlights.
- Energy Consumption: The backlight is one of the most power-hungry components in an LCD[3]. LED backlights are more energy-efficient than CCFL backlights[7].

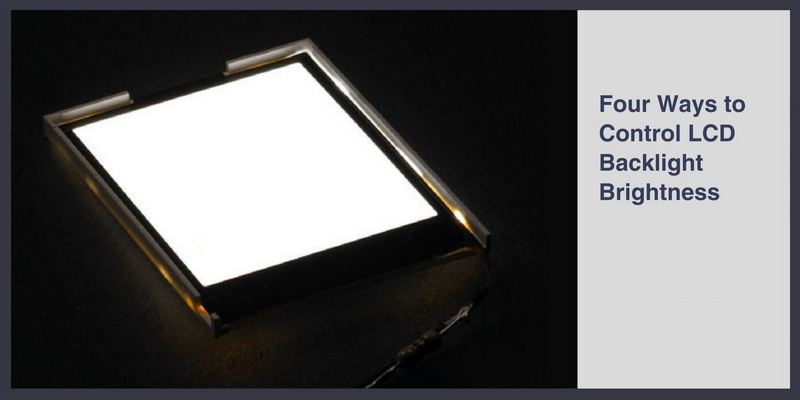

Several techniques are used to control the backlight and improve image quality and energy efficiency:
- Frame Dimming: Adjusts the brightness of the entire backlight based on the content displayed[9].
- Local Dimming: Individually controls multiple zones of the backlight[9]. This enhances dynamic contrast ratios but may reduce detail in small, bright objects on dark backgrounds[9].
It's important to distinguish LCDs from other display technologies like OLED (Organic Light Emitting Diode) and Plasma:
- OLED: OLED displays do not require a backlight because each pixel emits its own light[5]. This results in perfect blacks, high contrast, and wide viewing angles.
- Plasma: Plasma displays also do not require a backlight. They use small cells containing ionized gas to produce light[5]. Plasma displays offer high contrast ratios and wide viewing angles but are less energy-efficient than LCDs.
Feature | LCD | OLED | Plasma |
Backlight | Required | Not Required | Not Required |
Contrast | Good (with local dimming) | Excellent | Excellent |
Energy Efficiency | Good | Good | Fair |
Viewing Angles | Good | Excellent | Excellent |
Backlight technology continues to evolve. Researchers are exploring new materials and techniques to improve the efficiency, brightness, and color performance of LCD backlights. Quantum dot technology, for example, is being used to enhance the color gamut of LED backlights.
In summary, the backlight is a fundamental component of LCD screens. It provides the necessary illumination for the liquid crystals to create a visible image[1]. Different types of backlights, such as LED, CCFL, and EL, offer various advantages and disadvantages in terms of brightness, contrast, energy efficiency, and cost[7]. As display technology advances, backlights will continue to play a crucial role in enhancing the viewing experience on LCD screens.
LED (Light Emitting Diode) is a type of backlight used in LCD (Liquid Crystal Display) screens[8]. LCDs require a backlight to produce a visible image, and LEDs are often used for this purpose due to their energy efficiency and brightness[7]. So, an LED TV is actually an LCD TV that uses LEDs as its backlight[8].
Local dimming is a technique used in LED backlights where multiple zones of LEDs can be individually controlled[9]. This allows the display to dim the backlight in dark areas of the screen and brighten it in bright areas, resulting in improved contrast and black levels[2]. However, it may also reduce detail in small, bright objects on a dark background[9].
OLED (Organic Light Emitting Diode) displays do not require a backlight because each pixel emits its own light[5]. This results in several advantages over LCDs, including perfect blacks, higher contrast ratios, wider viewing angles, and faster response times[5].
The backlight is one of the most power-hungry components in an LCD[3]. Different backlight technologies have varying energy efficiencies. LED backlights are generally more energy-efficient than CCFL backlights[7]. Additionally, techniques like frame dimming and local dimming can help reduce energy consumption by dynamically adjusting the brightness of the backlight[9].
A diffuser is a component used in LCD backlights to evenly distribute the light from the light source (e.g., LEDs or CCFLs) across the display panel[7]. This helps to ensure uniform brightness and prevent hotspots or dark areas on the screen[2].
