The Raspberry Pi Zero is a compact and versatile single-board computer, ideal for various projects that require a small footprint. When it comes to integrating touchscreens with the Raspberry Pi Zero, selecting the right size and type of touchscreen is crucial for optimal performance and user experience. This article explores the best touchscreen options for the Raspberry Pi Zero, focusing on compatibility, functionality, and user experience.
The Raspberry Pi Zero, including its variants like the Zero W, is designed to be ultra-compact, making it perfect for embedded systems, IoT projects, and other applications where space is limited. It features a mini HDMI port, micro USB ports, and GPIO pins for connectivity. However, unlike other Raspberry Pi models, it lacks a DSI port, which is commonly used for connecting official Raspberry Pi touch displays.
For the Raspberry Pi Zero, compatibility is a key factor when choosing a touchscreen. Most official Raspberry Pi touch displays, such as the 7-inch 800x480 display, are not compatible with the Raspberry Pi Zero due to the lack of a DSI port. Instead, users often opt for HDMI or GPIO-connected touchscreens.

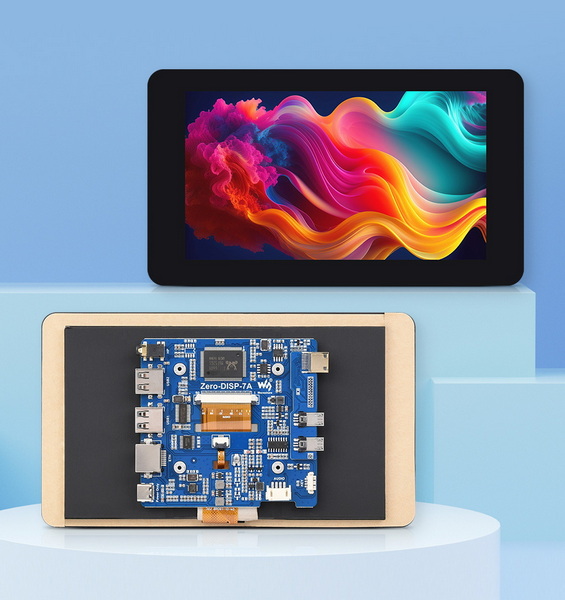

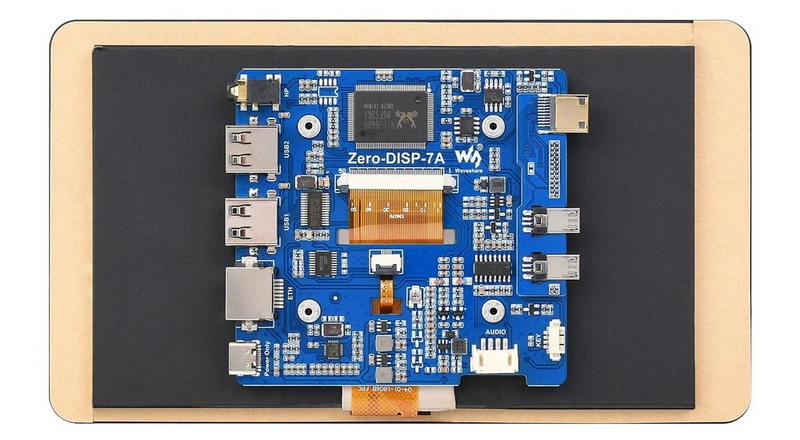

One popular option is the Waveshare 7-inch Touch Display Kit specifically designed for the Raspberry Pi Zero. This kit includes a 7-inch IPS display with a resolution of 1024x600 pixels and supports 5-point capacitive touch. It connects via mini HDMI and USB ports, providing an all-in-one solution for building compact projects.
Another option is the Kuman 7-inch LCD Touchscreen, which, although not officially supported for the Raspberry Pi Zero, can be made to work with some adjustments. Users need to use adapters for the HDMI connection and manually configure the GPIO pins to enable touchscreen functionality.
When deciding on the size of the touchscreen for the Raspberry Pi Zero, several factors come into play:

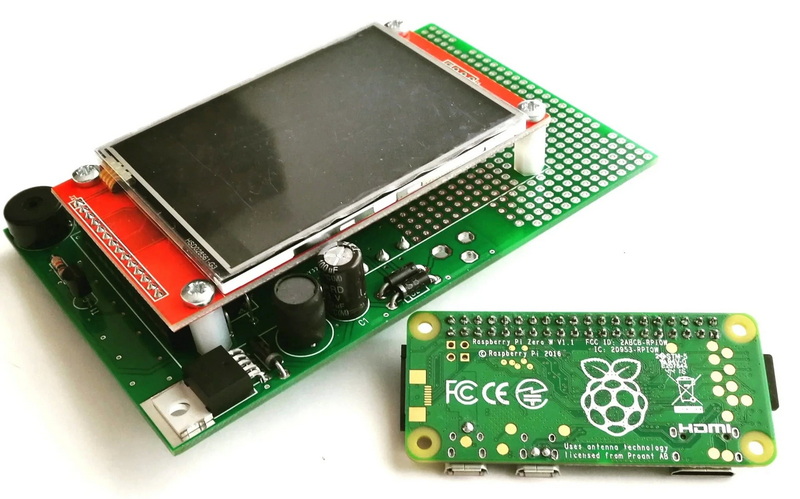

- Space Constraints: The size of the project area or enclosure often dictates the maximum size of the touchscreen. For compact projects, smaller screens like the 2.8-inch or 3.5-inch options might be more suitable. These smaller screens are ideal for projects such as handheld devices or wearable technology.
- Resolution and Clarity: Higher resolutions provide better clarity and user experience. For example, the Waveshare 7-inch display offers a resolution of 1024x600, which is suitable for most applications. Higher resolutions are particularly beneficial for projects that require detailed graphics or text, such as interactive kiosks or educational tools.
- Touch Functionality: Capacitive touchscreens generally offer better responsiveness and multi-touch capabilities compared to resistive screens. Capacitive touchscreens are more user-friendly and provide a smoother interaction experience, making them ideal for applications where user engagement is crucial.
The cost of the touchscreen can vary significantly based on size, resolution, and features. For instance, the Waveshare 7-inch kit is generally priced around $80 to $100, depending on the retailer and any discounts available. Smaller screens, like the 2.8-inch or 3.5-inch options, are typically more affordable, often priced between $10 and $30. The cost-effectiveness of smaller screens makes them appealing for projects with tight budgets or when multiple screens are needed.
The Raspberry Pi Zero's connectivity options limit the types of touchscreens that can be used. HDMI and GPIO connections are common, but users must ensure that the chosen touchscreen supports these interfaces. Some touchscreens may require additional adapters or cables to connect properly, which can add to the overall cost and complexity of the project.
Raspbian OS, the official operating system for Raspberry Pi, supports many touchscreens, but specific configurations may be required for non-standard displays. Users may need to adjust settings within the operating system to ensure proper display and touch functionality. This can involve tweaking display settings or installing additional drivers to support the touchscreen.
For displays not officially supported by the Raspberry Pi Zero, users often need to manually configure settings to ensure proper display and touch functionality. This can involve setting the HDMI mode or configuring GPIO pins for touch input. While this process can be challenging for beginners, it provides flexibility for using a wide range of touchscreens with the Raspberry Pi Zero.
Powering the display and the Raspberry Pi Zero can be a challenge, especially in battery-powered projects. Ensuring that the power supply is sufficient for both the Pi and the display is crucial. Users may need to use external power sources or batteries designed specifically for powering small electronics. Proper power management is essential to prevent overheating or shutdowns during operation.
The Raspberry Pi Zero, like other electronic devices, can generate heat during operation. When enclosed with a touchscreen, ensuring adequate cooling is important to prevent overheating. Users can implement passive cooling methods, such as using heat sinks or ventilation in the enclosure, to maintain optimal operating temperatures.
Touchscreens can be used to create interactive displays for various applications, such as digital signage, museum exhibits, or educational tools. The Raspberry Pi Zero's compact size makes it ideal for embedding in custom enclosures or kiosks, providing a cost-effective solution for interactive displays.
The Raspberry Pi Zero is well-suited for IoT projects due to its small size and low power consumption. When combined with a touchscreen, it can serve as a user interface for monitoring and controlling IoT devices. This setup is particularly useful in smart home automation systems or industrial control panels.
For handheld devices or portable projects, smaller touchscreens like the 2.8-inch or 3.5-inch options are ideal. These screens provide a compact user interface while maintaining the functionality needed for interactive applications. They are often used in wearable technology, handheld gaming consoles, or portable diagnostic tools.
Choosing the right touchscreen for the Raspberry Pi Zero involves considering factors such as compatibility, size, resolution, and cost. While official Raspberry Pi touch displays are not compatible with the Zero, options like the Waveshare 7-inch kit offer a viable solution for creating interactive projects. By understanding the limitations and capabilities of the Raspberry Pi Zero, users can select the most appropriate touchscreen for their needs.
The best touchscreen size depends on the project's requirements. For compact projects, smaller screens like 2.8 inches or 3.5 inches might be ideal, while larger projects can use 7-inch displays.
No, official Raspberry Pi touch displays are not compatible with the Raspberry Pi Zero due to the lack of a DSI port.
Touchscreens can be connected via HDMI for display output and GPIO pins for touch functionality. Some displays may require additional adapters or configurations.
Capacitive touchscreens offer better responsiveness and support multi-touch, while resistive screens are more affordable but less responsive.
Yes, but it requires manual configuration and the use of adapters to connect properly.
