The Raspberry Pi is a groundbreaking single-board computer that has empowered makers, educators, and hobbyists worldwide to create innovative projects. Its affordability and versatility make it an ideal platform for experimenting with technology. When combined with a 3.5 LCD touchscreen display module board for Raspberry Pi, the device transforms into a compact, interactive system that can be used in countless applications ranging from education to home automation.
The 3.5 LCD touchscreen display module board for Raspberry Pi is designed to provide a seamless user interface experience. Its compact size makes it perfect for projects where space is limited, yet it offers sufficient resolution and touch responsiveness for effective interaction. The display's compatibility with various Raspberry Pi models ensures that users can integrate it into existing setups or new builds with ease. Additionally, the touchscreen technology, whether resistive or capacitive, allows for intuitive control, making it accessible even for beginners.

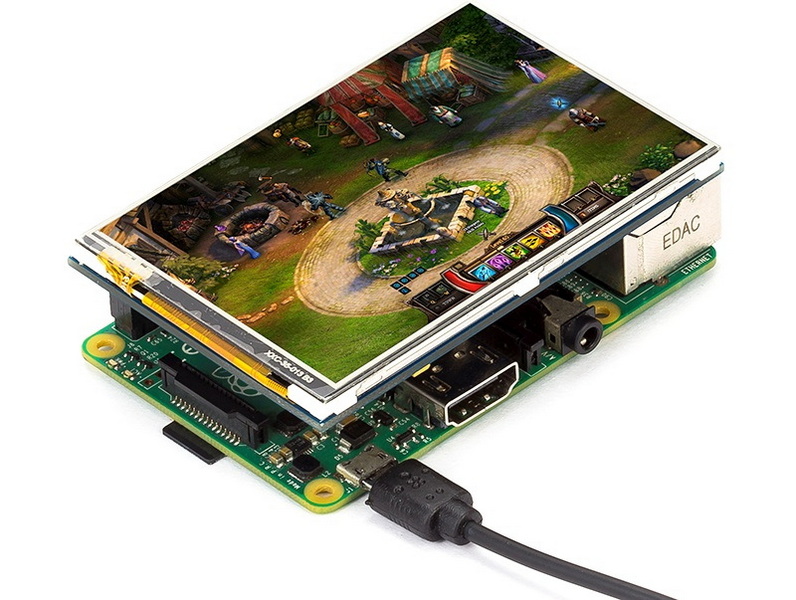

Typically, these modules connect directly to the Raspberry Pi's GPIO pins, streamlining the hardware setup without requiring complex wiring. The onboard backlight ensures clear visibility even in less-than-ideal lighting conditions, while the touch interface supports finger or stylus input, depending on the screen type. This combination of features makes the 3.5 LCD touchscreen display module board for Raspberry Pi a versatile choice for many interactive projects.
A portable tablet built from a Raspberry Pi and a 3.5 LCD touchscreen display module board for Raspberry Pi is a popular project that blends portability with functionality. This project can be enhanced by adding Bluetooth connectivity for wireless peripherals, external storage options such as USB drives or microSD cards for expanded media capacity, and custom user interfaces tailored for touch input. The compact size of the display makes it easy to hold and operate with one hand, while the touchscreen enables intuitive navigation without a keyboard or mouse.
This tablet can run lightweight operating systems optimized for touch, allowing users to browse the web, read e-books, or play simple games. The portability factor makes it ideal for educational purposes, fieldwork, or casual use on the go.
Integrating a 3.5-inch LCD touchscreen into a smart mirror project adds a compact control panel that displays essential information such as weather forecasts, news headlines, calendar events, and reminders. Users can interact with the display to customize the information shown or control other smart home devices connected to the system.
Advanced implementations can incorporate voice control and integration with popular smart home ecosystems, such as Alexa or Google Home, creating a futuristic and convenient interface. The small size of the touchscreen module fits neatly into the mirror frame without obstructing the reflective surface, maintaining the aesthetic appeal of the smart mirror.
Using the 3.5 LCD touchscreen display module board for Raspberry Pi, you can build a compact media player or internet radio device that supports a variety of audio formats and streaming services. The touchscreen interface allows users to browse playlists, select radio stations, and control playback easily.
This project is perfect for music enthusiasts who want a dedicated, portable device for audio streaming without the need for a full-sized monitor or keyboard. Additional features such as Bluetooth audio output, headphone jacks, and physical buttons can be integrated to enhance usability.
A Raspberry Pi-powered photo frame benefits significantly from the touch capabilities of a 3.5-inch touchscreen display. Users can swipe through photo galleries, zoom in on images, or access settings directly on the device. The photo frame can be programmed to pull images from local storage, USB drives, or cloud services like Google Photos or Dropbox.
Adding slideshow transition effects and customizable display durations enhances the viewing experience. The compact touchscreen allows the frame to be placed on desks, shelves, or mounted on walls without taking up much space.
Transforming a Raspberry Pi into a home automation hub with a 3.5 LCD touchscreen display module board for Raspberry Pi provides a centralized control panel for smart home devices. Users can monitor and control lighting, thermostats, security cameras, and other connected appliances through custom dashboards displayed on the touchscreen.
Real-time data visualization and alert notifications improve home security and energy management. The small footprint of the display makes it suitable for wall mounting in convenient locations or as a portable control device.
For healthcare enthusiasts or hobbyists, the 3.5 LCD touchscreen display module board for Raspberry Pi can be used to build a portable patient monitor. When paired with appropriate sensors, the Raspberry Pi can display vital signs such as heart rate, blood oxygen levels, and temperature.
Advanced versions of this project may include wireless sensor integration, data logging, and alerts for abnormal readings. The compact touchscreen provides a clear and interactive interface for monitoring health data in real time, making it useful for personal health tracking or educational demonstrations.
Setting up the 3.5 LCD touchscreen display module board for Raspberry Pi requires careful alignment with the Raspberry Pi's GPIO pins. The display usually connects directly to the GPIO header, providing power, video signals, and touch input data through SPI or DPI interfaces. Ensuring a secure and correct connection is essential to prevent display issues or damage.
Many users opt to house the Raspberry Pi and the touchscreen module in custom cases or mounts to protect the hardware and improve portability. Cases designed specifically for these modules often include ventilation and access points for ports and connectors.
Installing the correct drivers is crucial for the display to function properly. This process typically involves downloading driver packages from the manufacturer or trusted community sources, enabling necessary interfaces like SPI and I2C, and configuring the Raspberry Pi's operating system to recognize the display.
Calibration of the touchscreen is often required to ensure that touch inputs correspond accurately to the displayed content. This step improves user experience by preventing misalignment between touch points and screen response.
Common issues with the 3.5 LCD touchscreen display module board for Raspberry Pi include a blank or white screen, unresponsive touch input, or incorrect orientation. These problems can often be resolved by:
- Verifying that the display is properly connected to the GPIO pins.
- Ensuring that the correct drivers are installed and up to date.
- Calibrating the touchscreen input to correct alignment.
- Adjusting configuration files to set the correct screen resolution and orientation.
- Consulting community forums and official documentation for specific troubleshooting steps.
Some users may experience high CPU usage or slow response times due to driver inefficiencies. Using optimized drivers or lighter operating systems can mitigate these issues.
The advantages of using a 3.5 LCD touchscreen display module board for Raspberry Pi extend beyond its compact size and touch capabilities. Its low power consumption makes it ideal for battery-operated projects, enabling longer usage times without frequent recharging. This is especially valuable for portable devices like tablets or remote control panels.
The affordability of these modules allows hobbyists, educators, and students to experiment with interactive display projects without significant financial investment. This accessibility encourages learning and innovation in electronics and programming.
Moreover, the direct GPIO connection reduces the complexity of wiring and potential points of failure. This streamlined setup process makes it easier for beginners to get started and for experienced users to integrate the display into complex projects.
The versatility of the display supports a wide range of applications, from gaming and media playback to educational tools and industrial controls. Its compatibility with multiple Raspberry Pi models and operating systems further broadens its usability.
The 3.5 LCD touchscreen display module board for Raspberry Pi is a powerful and versatile accessory that significantly enhances the functionality of Raspberry Pi projects. Its compact size, touch capabilities, and ease of integration make it suitable for a wide variety of applications, including portable tablets, smart mirrors, media players, photo frames, home automation control panels, and healthcare monitoring devices.
By understanding the display's features, proper setup procedures, and troubleshooting techniques, users can unlock the full potential of their Raspberry Pi projects. The affordability and accessibility of the 3.5 LCD touchscreen display module board for Raspberry Pi empower makers of all skill levels to create interactive, portable, and innovative devices.
Most 3.5-inch LCD touchscreen modules are compatible with Raspberry Pi models including Pi Zero, Pi 2, Pi 3, Pi 4, and all B+ versions. Compatibility depends on the specific interface (GPIO SPI or HDMI) and driver support, but generally, these displays support all popular Raspberry Pi boards.
Driver installation usually involves downloading the manufacturer's driver package or community-supported repositories, enabling SPI and I2C interfaces, running installation scripts, and rebooting the Pi. Calibration may be needed for accurate touch response. Detailed instructions are often provided with the display or available online.
Yes, many 3.5-inch touchscreen displays support refresh rates sufficient for light gaming and emulators. However, some models have limited refresh rates or resolution that may affect gaming performance. Optimizing drivers and using compatible emulators can improve the gaming experience.
Resistive touchscreens respond to pressure and can be used with fingers, stylus, or any pointed object. Capacitive touchscreens detect electrical properties of the finger and support multi-touch gestures but usually require direct finger contact. Capacitive screens offer better clarity and responsiveness but may be more expensive.
Common fixes include verifying proper driver installation, checking physical connections, rebooting the Raspberry Pi, ensuring SPI and I2C are enabled, and calibrating the touch input. Editing configuration files to add overlays or transformation matrices may also resolve display or touch orientation issues.
