Embedded systems are integral to modern technology, powering everything from industrial machines to handheld devices. A critical component of many embedded systems is the display interface, which enables users to interact with the device effectively. Among the various display options available, the 3.5 inch TFT display with touchscreen stands out as a top choice for embedded systems. This article explores the reasons behind its popularity, technical features, applications, and how it enhances embedded projects.

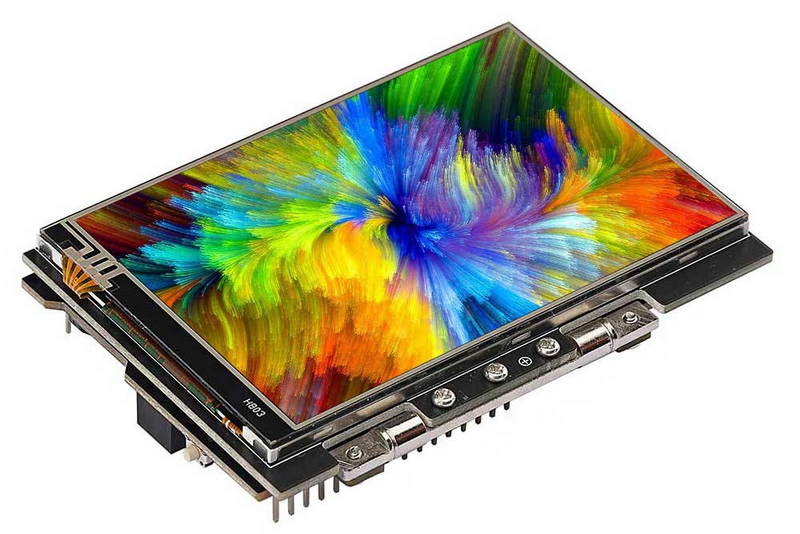

A 3.5 inch TFT display with touchscreen is a compact, thin-film transistor liquid crystal display that measures 3.5 inches diagonally. It integrates a touchscreen layer, allowing users to interact directly with the screen through touch gestures such as tapping, sliding, and multi-touch. These displays typically offer resolutions around 480x320 pixels and support 16-bit color depth, delivering sharp and vivid images suitable for detailed user interfaces.
- High Resolution and Color Depth: Most 3.5 inch TFT displays provide a resolution of 480x320 pixels and 16-bit color, enabling clear and vibrant visuals.
- Touchscreen Technology: Capacitive or resistive touchscreens are common. Capacitive touchscreens support multi-touch and more responsive interactions, while resistive touchscreens detect pressure and are often more cost-effective.
- Compact Size: The 3.5-inch size strikes a balance between usability and space constraints, making it ideal for embedded systems with limited room.
- Interface Compatibility: These displays commonly interface via SPI, parallel, or serial communication protocols, compatible with popular microcontrollers like Arduino, Raspberry Pi, and STM32.
- Durability: Many models feature rugged designs with scratch-resistant glass, wide operating temperature ranges, and resistance to dust and moisture, suitable for industrial environments.
- Low Power Consumption: TFT LCD technology is energy-efficient, supporting longer battery life in portable applications.
The 3.5 inch display size is particularly favored because it offers sufficient screen real estate for displaying detailed information, controls, and graphics without making the device bulky. It fits comfortably in handheld devices, industrial panels, and compact equipment, providing a user-friendly interface without compromising portability.
Integrating a touchscreen with the TFT display transforms static screens into interactive interfaces. Users can navigate menus, input data, and control functions intuitively through touch gestures. Capacitive touchscreens, especially, enable multi-touch capabilities, supporting complex interactions like pinch-to-zoom and swipe, enhancing the overall user experience.
TFT technology ensures excellent color reproduction and image clarity, which is crucial for applications requiring precise data visualization or graphical user interfaces. Some advanced 3.5 inch TFT displays incorporate IPS (In-Plane Switching) technology, offering wide viewing angles and consistent color accuracy even in bright or outdoor environments.
The 3.5 inch TFT display with touchscreen is highly versatile and used in various embedded system applications, including:
- Industrial Control Panels: For monitoring and controlling machinery with real-time data visualization.
- Handheld Devices: Such as portable diagnostic tools, gaming consoles, and wearable computers.
- Home Automation Systems: Providing intuitive control interfaces for smart home devices.
- Medical Equipment: Offering compact, reliable displays for patient monitoring and diagnostics.
- DIY and Maker Projects: Popular among hobbyists for creating interactive electronics projects.
Many 3.5 inch TFT displays come with extensive software libraries, example codes, and development tools compatible with popular microcontrollers and single-board computers. This support accelerates development time and reduces complexity, making it accessible for both professionals and hobbyists.
Compared to larger or higher-end display technologies, 3.5 inch TFT displays are relatively affordable while maintaining good performance. This cost efficiency makes them attractive for mass-produced embedded devices and budget-conscious projects.
The standard resolution of 480x320 pixels on a 3.5 inch screen provides a pixel density that ensures sharp text and detailed graphics. The 16-bit color depth supports 65,536 colors, which is sufficient for rich, vibrant images in most embedded applications.
- Capacitive Touchscreens: Detect touch through the electrical properties of the human body, enabling multi-touch and higher sensitivity. They are more durable and provide a smoother user experience.
- Resistive Touchscreens: Work by pressure applied to two conductive layers. They are more affordable and can be used with gloves or styluses but generally offer lower responsiveness.
3.5 inch TFT displays often use SPI or parallel interfaces for communication with microcontrollers. Some models include integrated driver boards with controllers like the Solomon Systech SSD1963, simplifying connection and control. The availability of built-in frame buffers and auto-initialization features further ease integration.
Many industrial-grade 3.5 inch TFT displays are designed to withstand harsh conditions, including temperature extremes, vibration, dust, and moisture. Features like optical bonding reduce reflections and improve readability, while chemically resistant coatings enhance longevity.
In industrial settings, these displays serve as human-machine interfaces (HMIs) on control panels, enabling operators to monitor processes and adjust parameters efficiently. Medical devices utilize compact 3.5 inch TFT touchscreens for portable diagnostic tools and patient monitoring systems, benefiting from their durability and clarity.
Portable gaming consoles, media players, and smart home controllers often incorporate 3.5 inch TFT displays for their vibrant colors and interactive capabilities. Their compact size suits handheld designs without sacrificing usability.

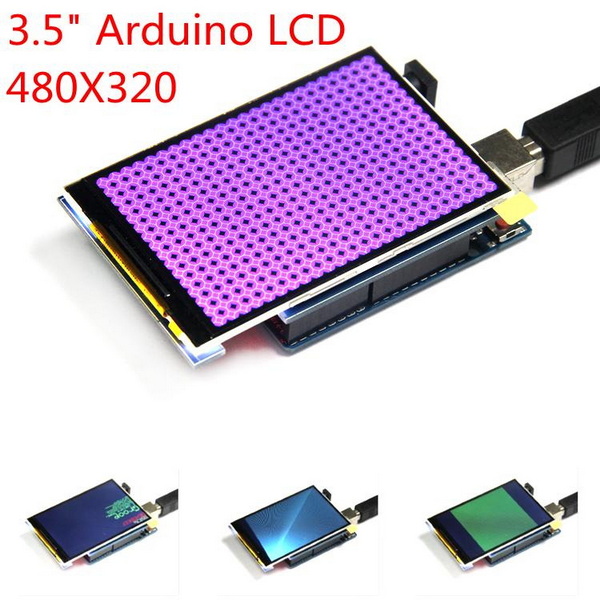

The 3.5 inch TFT display with touchscreen is a favorite among hobbyists for Arduino and Raspberry Pi projects. It allows creators to build interactive interfaces for weather stations, home automation, and simple games, supported by extensive open-source libraries and tutorials.
Compact 3.5 inch TFT touchscreens are used in vehicle dashboards and cockpit instrumentation, providing critical system information in a space-efficient format. Their rugged design and sunlight readability make them suitable for demanding environments.
- A compatible microcontroller or single-board computer (e.g., Arduino, Raspberry Pi, STM32)
- The 3.5 inch TFT display with touchscreen module
- Connecting cables or jumper wires
- Power supply appropriate to the display's voltage requirements
Popular libraries such as Adafruit GFX, MCUFRIEND, and TouchScreen.h facilitate programming the display and touchscreen. Calibration tools are often necessary to ensure accurate touch response, especially for resistive touchscreens.
Touchscreen calibration maps the raw touch coordinates to the display coordinates, ensuring precise interaction. Common troubleshooting steps include verifying wiring, ensuring correct library usage, and recalibrating the touchscreen if response is inaccurate.
The 3.5 inch TFT display with touchscreen has become a top choice for embedded systems due to its optimal size, excellent visual quality, interactive touchscreen capabilities, and versatility across a wide range of applications. Its balance of portability and usability, combined with cost-effectiveness and ease of integration, makes it an indispensable component for developers and hobbyists alike. Whether in industrial control, medical devices, consumer electronics, or DIY projects, this display enhances user experience by providing intuitive, vibrant, and reliable interfaces.
Most 3.5 inch TFT displays offer a resolution of 480x320 pixels, providing clear and detailed images suitable for embedded applications.
Yes, these displays are compatible with popular microcontrollers like Arduino and single-board computers such as Raspberry Pi, supported by various libraries and example codes.
Capacitive touchscreens support multi-touch and are more responsive, detecting touch through electrical properties. Resistive touchscreens detect pressure and are generally more affordable but less sensitive.
Calibration involves mapping touch input coordinates to the display coordinates, usually done via software tools or libraries like TouchScreen.h, ensuring accurate touch detection.
Yes, many 3.5 inch TFT displays are designed with rugged features such as wide temperature ranges, dust and moisture resistance, and optical bonding for sunlight readability, making them suitable for harsh environments.
