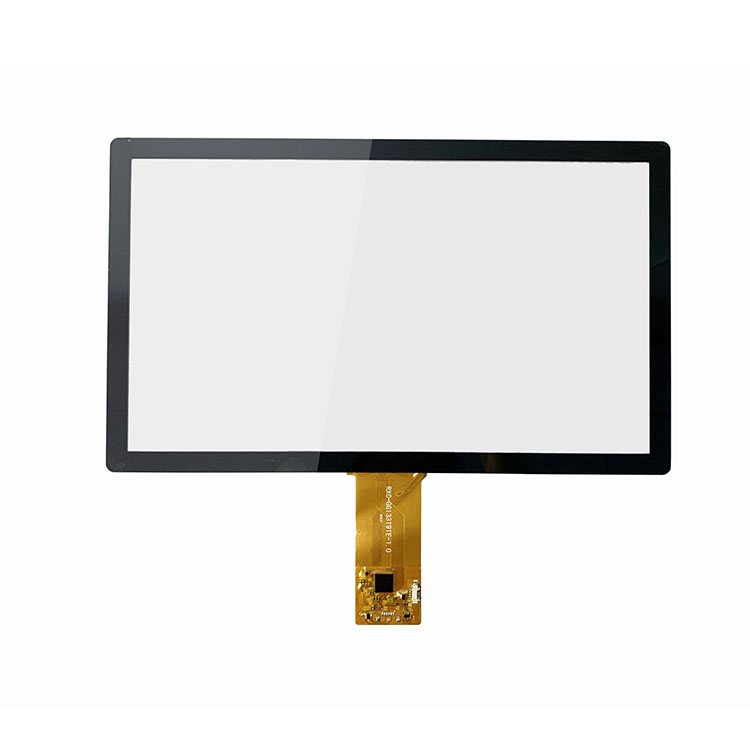

13.3 Capacitive Touch Screen

Category: 13.3 inch capacitive touch screen
Touch screen Model: RXC-GG133191E-2.0
IC: ILI2511
Interface: USB/I2C
Resolution: 1920X1200
Brand: RX
Type: G+G
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • RXC-GG133191E-2.0

  • Reshine Display

A capacitive touch screen is a type of touch-sensitive display that uses the principle of capacitance to detect and respond to touch inputs. It consists of a transparent panel with a layer of capacitive material that stores an electrical charge. When a conductive object, such as a finger or a stylus, comes into contact with the screen, the capacitance at that specific location changes, allowing the touch screen to determine the touch position.


Capacitive touch screens are widely used in various devices and applications, including smartphones, tablets, laptops, point-of-sale systems, kiosks, automotive displays, and interactive displays. They provide a responsive and intuitive user interface, enabling users to interact with digital content effortlessly.









Hot tags:13.3 capacitive touch screen, 13.3 projected capacitive touch screen, 13.3 large capacitive touch screen, 13.3 usb capacitive touch screen, touch screen with hdmi input, 13.3 inch portable monitor touch screen, touch screen monitor 13.3, 13.3 inch touch display, 13.3 medical touch screen monitor, ips lcd capacitive touchscreen, china, customized, suppliers, factory, manufacturers



Category: 13.3 inch capacitive touch screen

Touch screen Model: RXC-GG133191E-2.0

IC: ILI2511

Interface: USB/I2C

Resolution: 1920X1200

Brand: RX

Type: G+G

Dimensions: 318*189(±0.15)

Visual area: 294.2*165.65(±0.1)

Working temperature and humidity range: -20ºC~+70ºC

Storage temperature and humidity range: -30ºC~+80ºC

Transparency: ≥85%

Surface hardness: 6H

Voltage:5.0V

Applications: Touch screens for car navigation, smart home, medical equipment, smart education, etc.


1 VDD
2 D-
3 D+
4 GND
