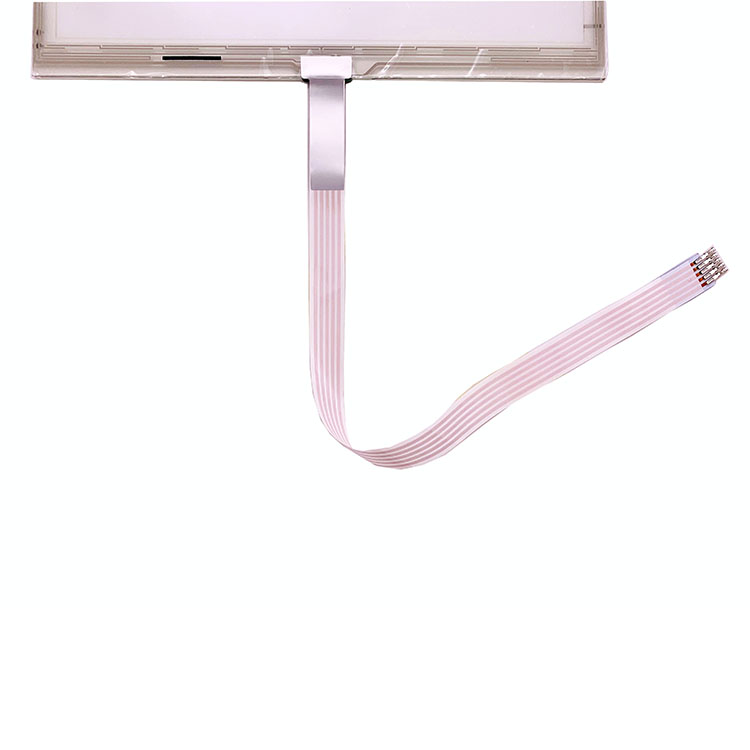

15 Resistive Touch Screen

Resistive touch screen Size: 15 inch
Working voltage: DC5V 1mA
Insulation resistance: ≥30-300Ω/25V (DC)
Linearity: ≤2.0%
Response time: <10ms
Light transmittance: ≥78%
绝缘电阻:≥30-300Ω/25V(直流)

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

15-inch 5 wire resistive touch screen Operation Principle:

15‘’ 5 wire working operating

A 5 wires resistive touch screen is a type of touchscreen technology that uses five main components to detect touch input.

It operates on the principle of changes in electrical resistance when pressure is applied to the screen.

The use of the additional X-axis layer in a 5-wire resistive touch screen helps to overcome some of the limitations of the 4-wire version.

It improves accuracy, durability, and reduces the occurrence of drift or false touches.



Product Spec:

15 RTP DRAWING

The 15-inch four-wire resistive touch screen structure is film+glass.

Outline Dimensions: 332mmX248.8mm, viewing area: 305.5mmX230.8mm.

Display error is less than ±1%, 100000 touch points per square inch, FPC flexible cable length is 353mm.



15'' 5 wire resistive touch screen Advantage:

 ● Increased Durability: Can withstand heavy usage without affecting performance.

 ● Improved Accuracy: Provides more precise and reliable touch input detection.

 ● Reduced Drift: Minimizes the occurrence of inaccurate or unintentional touch input.

 ● Wide Touch Sensitivity Range: Can detect input from various sources like fingers, styluses, or gloves.

 ● Cost-Effective: Offers improved performance at a more affordable price compared to other touch screen technologies.



15'' 5 wire resistive touch screen Application:

●  Retail server

●  Query machine

●  Office automation

●  Medical equipment

●  Sales terminal POS

●  Voting, ticket sales and lottery sales

●  Production control panel for automatic workshops/equipment



15'' 5 wire resistive touch screen Quality Assurance:

The raw materials of Reshine Display's 5wire resistive touch screen are all well-known brands in China, and are protected by FDS press-fits with different manufacturers' protective films.

The result is a longer use of Reshine Display's 5wire resistive touch screen life. 5wire resistive touch screen is highly sealed to IP65 standards, and each touch screen is tested for 3H pencil hardness by ASTM D3363. Already passed REACH, ROHS, ISO9001 etc certification.

Certifications-ISO9001, CTP, RTP


Company Strength:

Reshine Display founded in 2007, factory area of 10,000 square meters.

We use international advanced production equipment and has a 10,000-class (local hundred-level) production workshop.

We can provide resistive touch screen from 2.4inch to 21.5inch, capacitive touch screen from 2.4inch to 55inch, and TFT LCD screen.

Also provide touch screen with TFT LCD by air/frame and optical bonding.

Reshine Display factory


Our Showroom-RTP & PCAP
















Hot tags:15 resistive touch screen, 15 touch screen monitor, 75 touch monitor, digital signage touch screen, interactive touch screen, 15 capacitive touch screen, lcd 480x320, lcd display module, tft lcd display module, resistive touch screen android tablet, china, customized, suppliers, factory, manufacturers

经济高效:与其他触摸屏技术相比,以更实惠的价格提供更高的性能。
热门标签:15电阻触摸屏,15触摸屏显示器,75触摸显示器,数字标牌触摸屏,交互式触摸屏,15电容触摸屏,液晶屏480x320,液晶显示模块,tft液晶显示模块,电阻式触摸屏安卓平板电脑,中国、定制、供应商、工厂、制造商
经济高效:与其他触摸屏技术相比,以更实惠的价格提供更高的性能。
热门标签:15电阻触摸屏,15触摸屏显示器,75触摸显示器,数字标牌触摸屏,交互式触摸屏,15电容触摸屏,液晶屏480x320,液晶显示模块,tft液晶显示模块,电阻式触摸屏安卓平板电脑,中国、定制、供应商、工厂、制造商
热门标签:15电阻触摸屏,15触摸屏显示器,75触摸显示器,数字标牌触摸屏,交互式触摸屏,15电容触摸屏,液晶屏480x320,液晶显示模块,tft液晶显示模块,电阻式触摸屏安卓平板电脑,中国、定制、供应商、工厂、制造商
热门标签:15电阻触摸屏,15触摸屏显示器,75触摸显示器,数字标牌触摸屏,交互式触摸屏,15电容触摸屏,液晶屏480x320,液晶显示模块,tft液晶显示模块,电阻式触摸屏安卓平板电脑,中国、定制、供应商、工厂、制造商
热门标签:15电阻触摸屏,15触摸屏显示器,75触摸显示器,数字标牌触摸屏,交互式触摸屏,15电容触摸屏,液晶屏480x320,液晶显示模块,tft液晶显示模块,电阻式触摸屏安卓平板电脑,中国、定制、供应商、工厂、制造商
15寸5线电阻式触摸屏操作原理:
15寸5线电阻式触摸屏操作原理:
15寸5线电阻式触摸屏操作原理:
15寸5线电阻式触摸屏优点:
经济高效:与其他触摸屏技术相比,以更实惠的价格提供更高的性能。
15寸5线电阻式触摸屏优点:
● 经济高效:与其他触摸屏技术相比,以更实惠的价格提供更高的性能。
15寸5线电阻式触摸屏应用:
5 线电阻式触摸屏是一种触摸屏技术,使用五个主要组件来检测触摸输入。 它的工作原理是当对屏幕施加压力时电阻发生变化。 在 5 线电阻式触摸屏中使用额外的 X 轴层有助于克服 4 线版本的一些限制。 它提高了准确性、耐用性,并减少了漂移或误触的发生。 15寸5线电阻式触摸屏优点:
在 5 线电阻式触摸屏中使用额外的 X 轴层有助于克服 4 线版本的一些限制。
瑞翔显示
可以提供
● 提高耐用性:可以承受大量使用而不影响性能。
我们可以提供2.4英寸至32英寸的电阻式触摸屏,2.4英寸至55英寸的电容式触摸屏,以及TFT液晶屏。
15寸5线电阻式触摸屏优点:
● 投票、售票、销售彩票
● 减少漂移:最大限度地减少不准确或无意的触摸输入的发生。
瑞翔显示成立于2007年,工厂面积10000平方米。
我们可以提供2.4英寸至21.5英寸的电阻式触摸屏,2.4英寸至55英寸的电容式触摸屏,以及TFT液晶屏。
公司实力: 瑞翔显示成立于2007年,工厂面积10000平方米。 我们采用国际先进的生产设备,拥有万级(本土百级)生产车间。 我们可以提供2.4英寸至21.5英寸的电阻式触摸屏,2.4英寸至55英寸的电容式触摸屏,以及TFT液晶屏。 还通过空气/框架和光学粘合提供带有 TFT LCD 的触摸屏。 公司实力: 瑞翔显示成立于2007年,工厂面积10000平方米。 我们采用国际先进的生产设备,拥有万级(本土百级)生产车间。 我们可以提供2.4英寸至21.5英寸的电阻式触摸屏,2.4英寸至55英寸的电容式触摸屏,以及TFT液晶屏。 还通过空气/框架和光学粘合提供带有 TFT LCD 的触摸屏。
15'' 5线电阻式触摸屏质量保证:
结果是 Reshine Display 的 5 线电阻式触摸屏的使用寿命更长。 5线电阻式触摸屏高度密封,符合IP65标准,每个触摸屏都经过ASTM D3363的3H铅笔硬度测试。
已通过REACH、ROHS、ISO9001等认证。

Resistive touch screen Size: 15 inch

Working voltage: DC5V 1mA

Insulation resistance: ≥30-300Ω/25V (DC)

Linearity: ≤2.0%

Response time: <10ms

Light transmittance: ≥78%

Surface treatment: Matte anti-Newton ring.

Operating pressure: 20-150g

Operating temperature: -20℃~+70℃≤90%RH

Storage temperature: -30℃~+80℃≤90%RH

Surface hardness: ≥3H

Pencil dotting life: ≥35,000,000 times

Resistive touch screen application: industrial control, military field, commercial and super integrated equipment, security (smart home),

medical equipment, automation equipment, etc.


电阻式触摸屏应用:工业控制、军事领域、商业及超集成设备、安防(智能家居)、
1RT
2LT
3SG
4LL
5RL


15 inch resistive touch screen
