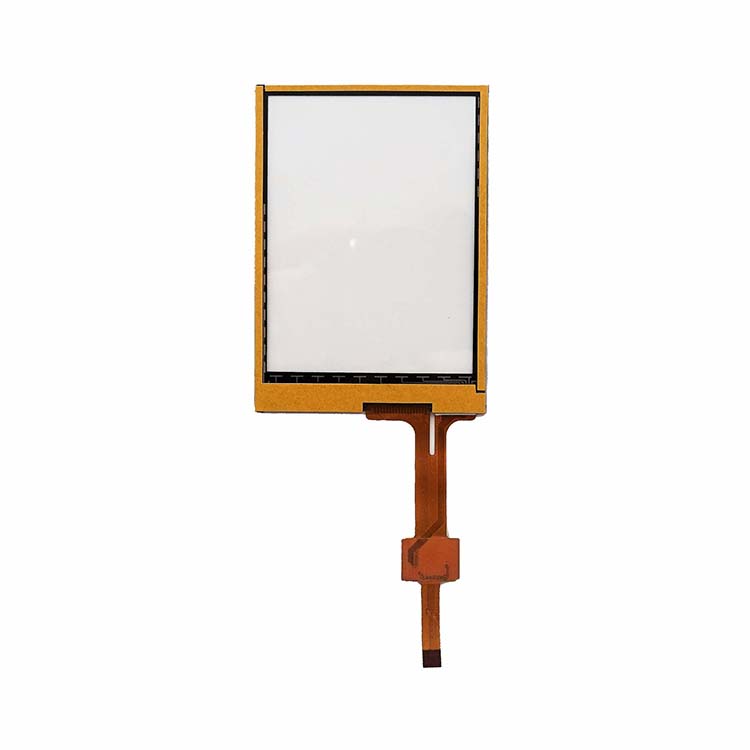

RXC-PG032100B-1.0
Reshine Display
A capacitive touch screen is a type of touch-sensitive display that uses the principle of capacitance to detect and respond to touch inputs. It consists of a transparent panel with a layer of capacitive material that stores an electrical charge. When a conductive object, such as a finger or a stylus, comes into contact with the screen, the capacitance at that specific location changes, allowing the touch screen to determine the touch position.
Capacitive touch screens are widely used in various devices and applications, including smartphones, tablets, laptops, point-of-sale systems, kiosks, automotive displays, and interactive displays. They provide a responsive and intuitive user interface, enabling users to interact with digital content effortlessly.
Resistive or capacitive touch screen which is best?
We manufacture resistive touch screen vs touchscreen with rich experiences, it's depends on client's application demands and application scenarios. Like touch screen display for car, 11.6 touch screen for automotive, capacitive monitor for HMI.
Hot tags:3.2 capacitive touch screen, 3.2 touch screen, 3.2 capacitive touch panel, multi touch capacitive screen, 3.2 capacitive touch panel spi, 3.2 capacitive touch screen arduino, hmi lcd, dmc touch, touchscreen elo, ir frame touch, china, customized, suppliers, factory, manufacturers
A capacitive touch screen is a type of touch-sensitive display that uses the principle of capacitance to detect and respond to touch inputs. It consists of a transparent panel with a layer of capacitive material that stores an electrical charge. When a conductive object, such as a finger or a stylus, comes into contact with the screen, the capacitance at that specific location changes, allowing the touch screen to determine the touch position.
Capacitive touch screens are widely used in various devices and applications, including smartphones, tablets, laptops, point-of-sale systems, kiosks, automotive displays, and interactive displays. They provide a responsive and intuitive user interface, enabling users to interact with digital content effortlessly.
Resistive or capacitive touch screen which is best?
We manufacture resistive touch screen vs touchscreen with rich experiences, it's depends on client's application demands and application scenarios. Like touch screen display for car, 11.6 touch screen for automotive, capacitive monitor for HMI.
Hot tags:3.2 capacitive touch screen, 3.2 touch screen, 3.2 capacitive touch panel, multi touch capacitive screen, 3.2 capacitive touch panel spi, 3.2 capacitive touch screen arduino, hmi lcd, dmc touch, touchscreen elo, ir frame touch, china, customized, suppliers, factory, manufacturers
Category: 3.2 inch capacitive touch screen
Touch screen Model: RXC-PG032100B-1.0
IC: FT5216MG7
Interface: IIC
Resolution: 240x320
Brand: RX
Type: P+G
Dimensions: 54.6*76.8(±0.05)
Visual area: 48.6*64.8(±0.15)
Working temperature and humidity range: -20ºC~+70ºC
Storage temperature and humidity range: -30ºC~+80ºC
Transparency: ≥80%
Surface hardness: 3H
Voltage: 2.8V ~ 3.3V
Applications: Touch screens for car navigation, smart home, medical equipment, smart education, etc.
Category: 3.2 inch capacitive touch screen
Touch screen Model: RXC-PG032100B-1.0
IC: FT5216MG7
Interface: IIC
Resolution: 240x320
Brand: RX
Type: P+G
Dimensions: 54.6*76.8(±0.05)
Visual area: 48.6*64.8(±0.15)
Working temperature and humidity range: -20ºC~+70ºC
Storage temperature and humidity range: -30ºC~+80ºC
Transparency: ≥80%
Surface hardness: 3H
Voltage: 2.8V ~ 3.3V
Applications: Touch screens for car navigation, smart home, medical equipment, smart education, etc.
1 | VDD |
2 | SCL |
3 | SDA |
4 | RST |
5 | WAKE |
6 | INT |
7 | GND |
8 | GND |
1 | VDD |
2 | SCL |
3 | SDA |
4 | RST |
5 | WAKE |
6 | INT |
7 | GND |
8 | GND |
