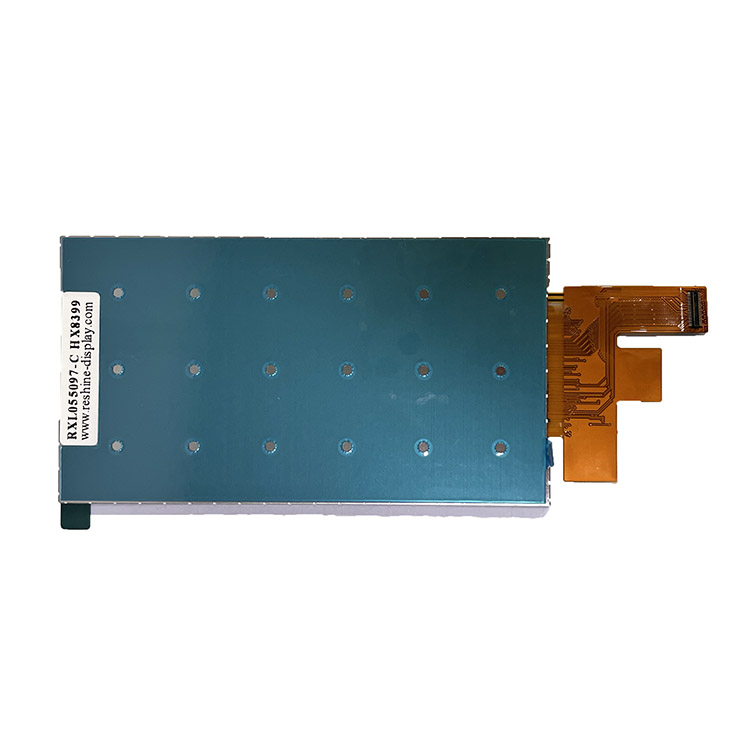

5.5 Inch Mipi Lcd Display

MIPI LCD Display size: 5.5 inch
Part Number:RXL055097-C
Resolution: 1080X1920
LCD Dimensions: 70.04mm*128.29mm*1.78mm
LCD viewing area: 68.04mm*120.96mm
Interface: 4Lane MIPI
Brightness: 350 nits
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • RXL055097-C

  • Reshine Display

A MIPI (Mobile Industry Processor Interface) TFT (Thin-Film Transistor) LCD (Liquid Crystal Display) display refers to a high-speed interface that is used in applications such as smart phones, tablets, smart watches, and other embedded display applications. The Mobile Industry Processor Interface Alliance (MIPI) developed a serial communication protocol known as the Display Serial Interface or DSI.


MIPI TFT LCD displays are commonly found in mobile devices, including smartphones, tablets, and wearable technology, due to their high-speed data transfer, low power consumption, and compact design advantages. They offer a visually appealing and power-efficient display solution for portable devices that require reliable and high-quality visuals.










Hot tags:5.5 inch mipi lcd display, 5.5 inch mipi lcd, lcd display panels, lcd graphic display module, tft lcd module display, mipi lcd display interface, mipi dsi lcd, lcd mipi dsi, mipi lcd panel, tft lcd dispay, china, customized, suppliers, factory, manufacturers



MIPI LCD Display size: 5.5 inch

Part Number:RXL055097-C

Resolution: 1080X1920

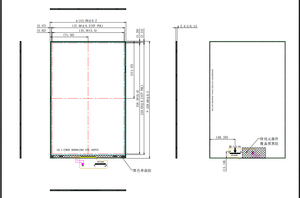

LCD Dimensions: 70.04mm*128.29mm*1.78mm

LCD viewing area: 68.04mm*120.96mm

Interface: 4Lane MIPI

Brightness: 350 nits

Driver IC:HX8299-C

Display Mode: Normal Black

Display color: 16M

Surface treatment: HC

Contrast: 1000:1 (typ.)

Viewing Direction:ALL

Working temperature: -20°C~+70°C

Storage temperature: -30°C~+80°C

Lead Time: Samples are in stock; Mass production 3-4 weeks

Whether to support customization: yes

Applications for MIPI LCDs:Mobile Devices,Automotive,wearable technology,Medical devices,

Industrial control,and Gaming devices.
