7 Lvds

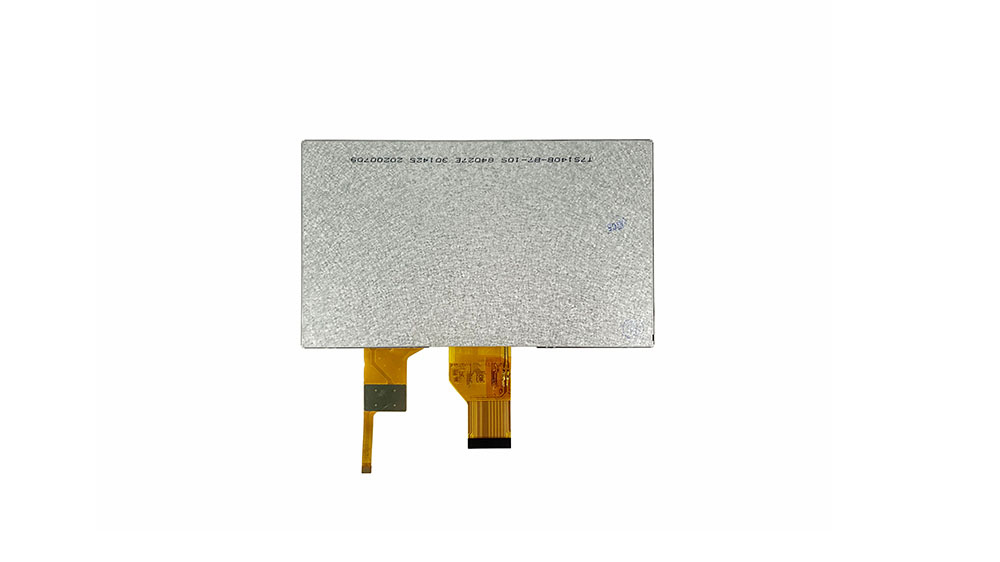

LVDS LCD Display size: 7.0 inch
Part Number:RXL070048-E
Resolution: 1024X600
LCD Dimensions: 164.9mm*100mm*2.73mm
LCD viewing area: 154.21mm*85.92mm
Interface: LVDS
Brightness: 550 nits
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • RXL070048-E

  • Reshine Display

LVDS stands for Low Voltage Differential Signaling, and it refers to a signaling technology commonly used in TFT LCD (Thin-Film Transistor Liquid Crystal Display) panels for transmitting data between the display driver and the display itself. An LVDS TFT LCD display utilizes this LVDS technology for data transmission, offering several benefits such as high-speed data transfer, low power consumption, and reduced electromagnetic interference.


LVDS TFT LCD displays have been widely adopted in various industries and applications, where their high-speed data transfer, low power consumption, and reduced electromagnetic interference are advantageous. They offer reliable and efficient display solutions for industrial, medical, professional, and other specialized fields.













Hot tags:7 lvds, 7 inch ips lvds display, 7inch hdmi lcd, 7 lvds display, 7 lcd display, mini hdmi lcd display, tft lcd lvds, 7 lvds lcd display, tft lcd module arduino, 7.0 tft lcd monitor, china, customized, suppliers, factory, manufacturers



LVDS LCD Display size: 7.0 inch

Part Number:RXL070048-E

Resolution: 1024X600

LCD Dimensions: 164.9mm*100mm*2.73mm

LCD viewing area: 154.21mm*85.92mm

Interface: LVDS

Brightness: 550 nits

Dot/pixel pitch: 0.0565(H)×RGB×0.1695(V)

Display Mode: Normal Black

Display color: 16M

Surface treatment: HC

Contrast: 1000:1 (typ.)

Angle of view: 80/80/80/80(typ.)

Working temperature: -20°C~+70°C

Storage temperature: -30°C~+80°C

Lead Time: Samples are in stock; Mass production 3-4 weeks

Whether to support customization: yes
