The Raspberry Pi Zero is a compact, low-cost single-board computer that has gained popularity for small-scale and embedded projects. One common question among Raspberry Pi enthusiasts and developers is whether the Pi Zero can run a touchscreen display smoothly. This article explores the capabilities, limitations, and practical considerations of using a Pi Zero touchscreen display, providing detailed insights into compatibility, performance, and best practices.
The Raspberry Pi Zero is a smaller, less powerful variant of the Raspberry Pi family designed for lightweight applications. It features a single-core or quad-core processor (depending on the model), limited RAM, and minimal ports compared to full-sized Raspberry Pi models. Its compact size and low power consumption make it ideal for portable and embedded projects.
When selecting a touchscreen for the Pi Zero, compatibility is a key factor. The official Raspberry Pi 7-inch DSI touchscreen display is not compatible with the Pi Zero because the Zero lacks a DSI port, which is required for direct connection[2]. Instead, users rely on HDMI or GPIO-connected touchscreens.
Popular alternatives include:

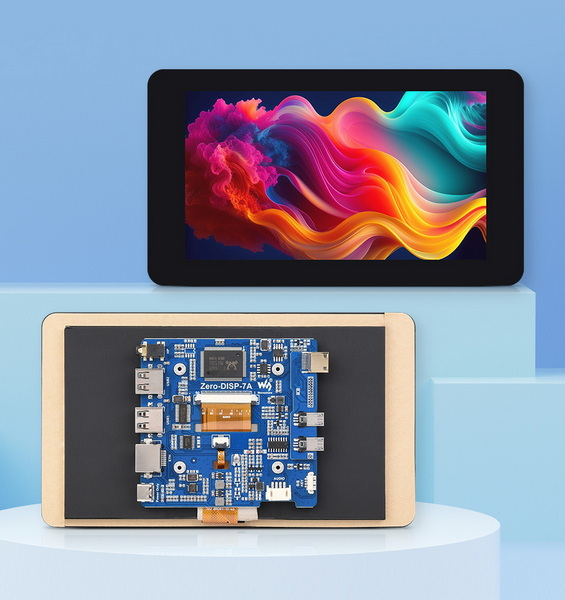

- Waveshare 7-inch Touch Display Kit: Offers a 1024x600 IPS display with 5-point capacitive touch, connecting via mini HDMI and USB ports, making it compatible with the Pi Zero.
- Kuman 7-inch LCD Touchscreen: Though not officially supported, it can work with the Pi Zero using HDMI adapters and manual configuration.
- Elecrow 5-inch 800x480 Resistive Touchscreen: Designed specifically for the Pi Zero and Zero 2W, this display supports resistive touch and includes a touch pen, with a 20-pin GPIO socket for expansion.
Since the Pi Zero lacks a DSI port, touchscreen displays must connect via:
- Mini HDMI for video output.
- USB or GPIO pins for touch input signals.
Adapters may be necessary, especially for HDMI connections, as many touchscreens use full-sized HDMI connectors.
The Pi Zero's CPU and GPU are modest compared to more powerful Raspberry Pi models. This limitation affects how smoothly it can run graphical interfaces, especially those requiring high resolution or complex animations.
- The Pi Zero can handle basic graphical user interfaces and simple touch interactions without significant lag.
- More demanding applications, such as web browsers running heavy JavaScript or multimedia-heavy interfaces, may experience sluggishness.
Higher resolution displays demand more from the GPU and CPU. For example:
- The Waveshare 7-inch display with 1024x600 resolution provides good clarity but may push the Pi Zero's limits in rendering smooth graphics.
- Smaller displays with lower resolution (e.g., 5-inch 800x480) are easier for the Pi Zero to drive smoothly.
- Capacitive touchscreens offer better responsiveness and multi-touch support but typically require more processing power to handle complex gestures.
- Resistive touchscreens are less sensitive but use simpler technology, which can be an advantage for the Pi Zero in terms of responsiveness and power consumption.
- Use a mini HDMI to HDMI adapter cable to connect the Pi Zero to the touchscreen display.
- Connect the touchscreen's USB or GPIO pins to the Pi Zero for touch input.
- Power supply considerations: Ensure the power supply can handle the Pi Zero and the touchscreen's combined power requirements.
- Modify the '/boot/config.txt' file to set the correct HDMI group, mode, and resolution to match the touchscreen's native resolution[3].
- Install necessary drivers or calibration tools for the touchscreen to function properly.
- For some displays, manual calibration of touch input may be required to align touch points accurately.
- Portable handheld devices.
- Simple control panels and kiosks.
- Educational tools and prototypes.
- Lightweight multimedia players.
- The Pi Zero may struggle with complex graphical applications or multitasking on a touchscreen.
- Some touchscreens require adapters and manual configuration, which can be a barrier for beginners.
- The lack of a DSI port limits options to HDMI and GPIO-connected displays, which may increase setup complexity.
- Use lightweight operating systems or minimal desktop environments to reduce CPU load.
- Limit background processes to free up resources.
- Choose smaller, lower-resolution displays to reduce graphical processing demands.
- Use resistive touchscreens for simpler projects where multi-touch is not critical.
- Ensure proper power supply to avoid performance drops.
The Raspberry Pi Zero can run a touchscreen display smoothly for many lightweight and simple applications, especially when paired with compatible HDMI-connected touchscreens like the Waveshare 7-inch or Elecrow 5-inch displays. While the Pi Zero lacks a DSI port and has limited processing power, careful selection of touchscreen size, resolution, and technology, along with proper hardware and software configuration, can enable a responsive and functional Pi Zero touchscreen display setup.
For projects requiring high responsiveness, multi-touch, or complex graphics, more powerful Raspberry Pi models may be better suited. However, for compact, low-cost, and low-power projects, the Pi Zero with a well-chosen touchscreen is a viable and effective solution.
No, the official 7-inch Raspberry Pi touchscreen requires a DSI port, which the Pi Zero lacks. Alternative HDMI-connected touchscreens must be used instead.
Smaller screens like 2.8-inch or 3.5-inch are ideal for compact projects, while 5 to 7-inch displays are suitable for projects needing more screen real estate. The choice depends on space constraints and performance needs.
Typically, the display connects via mini HDMI for video output, and touch input is handled through USB or GPIO pins. Adapters may be required to connect standard HDMI cables to the Pi Zero's mini HDMI port.
It depends on the touchscreen technology. Capacitive touchscreens can support multi-touch, but the Pi Zero's limited processing power may affect responsiveness. Resistive touchscreens generally do not support multi-touch but are simpler to use.
Use lightweight operating systems, reduce screen resolution if possible, minimize background tasks, and choose resistive touchscreens for simpler touch input. Proper power supply and correct configuration also help maintain smooth performance.
