TFT (Thin-Film Transistor) touchscreens are widely used in various applications due to their high resolution, vibrant colors, and interactive capabilities. One common question about these displays is whether they can display multiple images simultaneously. This article delves into the capabilities of TFT touchscreens, exploring their potential for multi-image display and the technical considerations involved.
TFT touchscreens are typically connected via SPI (Serial Peripheral Interface) or other communication protocols, which allow them to receive and display data from a microcontroller or computer. The ability to display multiple images at once depends on several factors, including the display's resolution, the processing power of the connected device, and the software or firmware used to manage the display.
Displaying multiple images on a TFT touchscreen involves several technical considerations:
1. Resolution and Pixel Density: Higher resolution displays can accommodate more detailed images, but displaying multiple images simultaneously requires sufficient pixel density to maintain image quality. Each image must be scaled or cropped to fit within the available resolution without compromising clarity. For instance, a display with a high pixel density can display multiple small images clearly, while a lower resolution display might struggle to maintain image quality when displaying multiple images.
2. Processing Power: The device controlling the TFT display, such as an Arduino or ESP32 microcontroller, must have enough processing power to handle multiple image data streams. This includes decoding image files, managing memory, and updating the display in real-time. More powerful microcontrollers can handle complex graphics and multiple images more efficiently than simpler ones.
3. Memory Constraints: The available memory on the microcontroller or connected storage devices (like SD cards) limits the number and size of images that can be stored and displayed. Larger images require more memory, which can be a constraint when displaying multiple images. For example, if the microcontroller has limited RAM, it might only be able to load a few small images at a time.
4. Software and Firmware: The software or firmware used to manage the display plays a crucial role. Libraries like TFT_eSPI for ESP32 or Adafruit's TFT library for Arduino provide functions to handle image display, but custom code may be needed to manage multiple images efficiently. These libraries often include optimizations for performance and memory usage.
5. SPI Interface: Most TFT displays use the SPI interface, which allows multiple displays to share the same SPI lines, except for the Chip Select (CS) pin, which must be unique for each display. This makes it possible to connect and control multiple displays with a single microcontroller, enhancing flexibility in complex applications.
Displaying multiple images on a single TFT touchscreen is feasible but requires careful management of display resources. Here are some strategies:
- Image Tiling: Images can be arranged in a grid or mosaic pattern, allowing multiple images to be displayed simultaneously. However, this requires precise control over image placement and scaling. For example, in a digital photo frame application, multiple thumbnails can be tiled across the screen to preview multiple images at once.
- Image Sequencing: Instead of displaying all images at once, they can be shown in sequence, with each image replacing the previous one after a set interval. This approach is simpler but may not be suitable for applications requiring simultaneous display. It is often used in presentations or slideshows where each image is displayed for a short duration.
- Partial Display: Only parts of multiple images can be displayed, such as thumbnails or key sections, to give an overview without fully rendering each image. This method is useful when the full image is not necessary for the user to understand the content.
In addition to the basic strategies, there are advanced techniques that can enhance the display of multiple images on TFT touchscreens:
- Layering and Transparency: Some displays support layering, where images can be overlaid with transparency effects. This allows for more complex visual compositions and interactive elements. However, it requires more processing power and sophisticated software management.
- Dynamic Image Loading: Images can be loaded dynamically based on user input or other conditions. This approach helps manage memory by only loading necessary images, reducing the strain on the microcontroller.
- Compression and Optimization: Using compressed image formats or optimizing images for size can help reduce memory usage and improve performance when displaying multiple images.
The ability to display multiple images on TFT touchscreens opens up a wide range of applications:
- Digital Signage: In retail or public spaces, TFT displays can show multiple images or messages simultaneously, enhancing visual impact and information delivery.

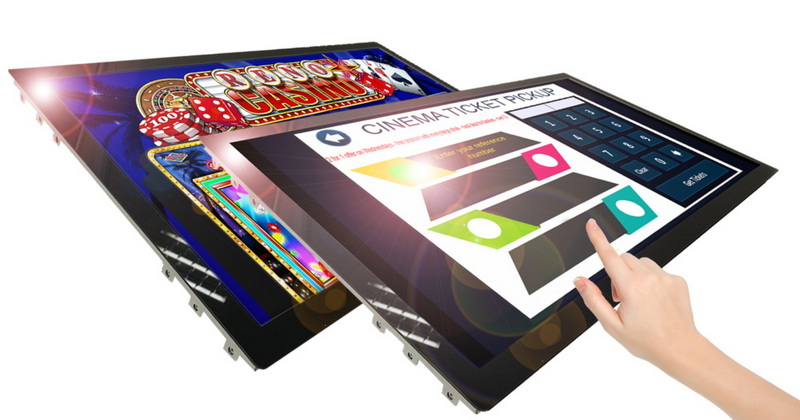

- Interactive Kiosks: Kiosks can display multiple options or images, allowing users to interact with different elements simultaneously.
- Medical Imaging: In medical applications, multiple images can be displayed side-by-side for comparison, aiding in diagnosis and analysis.
In conclusion, TFT touchscreens can display multiple images at once, but this capability is contingent upon several technical factors, including display resolution, processing power, memory availability, and software management. While displaying multiple images on a single screen is possible, connecting multiple TFT displays to a single microcontroller offers greater flexibility for complex applications. As technology advances, we can expect even more sophisticated methods for managing and displaying multiple images on TFT touchscreens.
A single TFT touchscreen can display multiple images simultaneously, provided it has sufficient resolution and processing power. However, managing multiple images requires careful software implementation to ensure smooth and efficient display.
Multiple TFT displays can be connected to a single microcontroller by sharing the same SPI lines but using different Chip Select (CS) pins for each display. This setup allows each display to be controlled independently.
Limitations include display resolution, processing power, and memory constraints. Higher resolution images or more complex graphics may require more powerful hardware to display smoothly.
Not all microcontrollers are suitable for handling multiple TFT displays. Microcontrollers like the ESP32, with its robust processing capabilities and multiple SPI interfaces, are better suited for such tasks than simpler devices like the Arduino Uno.
The SPI interface allows multiple displays to share the same data, clock, and slave select lines, but each display must have a unique Chip Select (CS) pin. This setup enables efficient communication between the microcontroller and multiple displays.
