The Raspberry Pi 7-inch touchscreen display is a popular accessory among Raspberry Pi enthusiasts who want to add an interactive interface to their projects. Whether building a portable device, a smart home controller, or a compact media center, the touchscreen offers a convenient way to interact with the Raspberry Pi without needing a separate monitor and mouse. However, a frequently asked question is: Can the Raspberry Pi 7 touchscreen run at 1080p resolution? This article will explore the capabilities and limitations of the Raspberry Pi 7 touchscreen display resolution, explain why 1080p is not achievable on this display, and discuss alternatives for users who require higher resolution touchscreens.
The official Raspberry Pi 7-inch touchscreen display features a native resolution of 800 by 480 pixels. This resolution is fixed by the physical hardware of the display panel and the communication interface it uses. The display connects to the Raspberry Pi primarily through the Display Serial Interface (DSI), which is a specialized interface designed for compact, low-power displays. The touchscreen draws power directly from the Raspberry Pi's GPIO pins, which means it does not require an external power source, making it highly convenient and integrated.
Despite the relatively large 7-inch diagonal size, the screen resolution remains at 800x480 pixels, which is considered low by modern standards. This resolution suffices for basic graphical user interfaces, simple games, and touch-based applications but falls short of the clarity and detail offered by Full HD (1920x1080 pixels) displays.
The inability of the Raspberry Pi 7 touchscreen to run at 1080p stems from several hardware and interface limitations:
- DSI Interface Bandwidth: The DSI port on the Raspberry Pi is designed to support display resolutions up to 720p (1280x720 pixels) at 60Hz. The official 7-inch touchscreen uses this interface but is limited to 800x480 pixels. The DSI interface cannot handle the data throughput required for 1080p resolution, which demands significantly more bandwidth.
- Physical Display Panel Resolution: The screen itself is manufactured with a fixed pixel count of 800x480. Even if the Raspberry Pi could output a higher resolution, the display cannot physically show more pixels than it contains. This is a fundamental hardware limitation.
- Driver and Firmware Constraints: The Raspberry Pi OS and its drivers are optimized for the native resolution of the touchscreen. Attempting to force a higher resolution usually results in scaling artifacts, distorted images, or unsupported display modes.
Because of these factors, the Raspberry Pi 7 touchscreen display resolution is inherently capped at 800x480 pixels.
The Display Serial Interface is a high-speed serial interface designed for connecting displays to embedded systems. It is optimized for low power consumption and compact wiring, which makes it ideal for small displays like the Raspberry Pi 7-inch touchscreen. However, the bandwidth of the DSI port is limited compared to HDMI or DisplayPort interfaces found on larger monitors.
The DSI interface on the Raspberry Pi supports a maximum resolution of 1280x720 pixels at 60Hz. The official 7-inch touchscreen utilizes a lower resolution panel (800x480) to reduce cost and power consumption while maintaining acceptable image quality for many applications.
The choice of an 800x480 pixel panel for the Raspberry Pi 7-inch touchscreen is partly driven by cost and availability. Higher resolution panels with touch capabilities tend to be more expensive and consume more power. For the Raspberry Pi Foundation, which aims to provide affordable hardware for education and hobbyists, this resolution strikes a balance between usability and cost.
For users who require higher resolution touchscreens, especially Full HD 1080p or beyond, there are several alternative options to consider.
The Raspberry Pi Touch Display 2 is an upgraded version of the official touchscreen, offering a resolution of 1280x720 pixels (720p HD). It retains the 7-inch size and uses the same DSI interface but pushes the resolution to the maximum supported by the Raspberry Pi's DSI port.
- Resolution: 1280 x 720 pixels
- Touch Capability: 5-point capacitive multi-touch
- Power: Drawn from the Raspberry Pi's GPIO pins
- Compatibility: Most Raspberry Pi models except the Zero series
While it does not reach 1080p, the Touch Display 2 offers a sharper and clearer image compared to the original 7-inch display, making it suitable for users who want better image quality without sacrificing integration and simplicity.

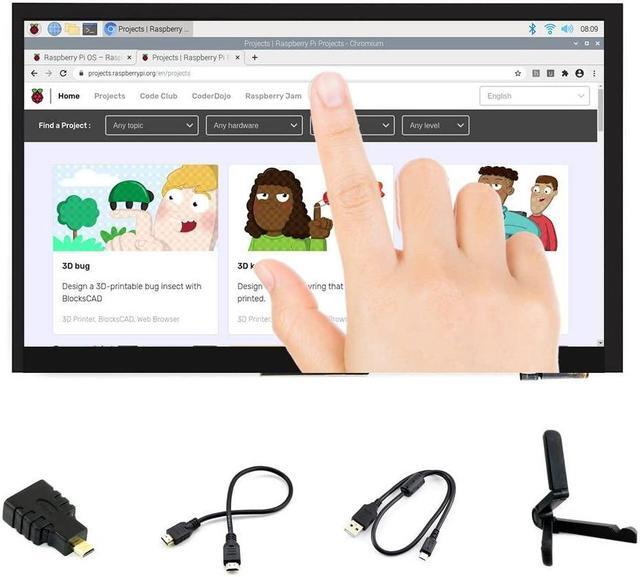

To achieve 1080p resolution or higher, users must use touchscreen displays that connect via the Raspberry Pi's HDMI port. These displays are available in various sizes, from 7 inches to 15 inches or more, and support Full HD and even 4K resolutions.
- Advantages:
- Support for Full HD (1920x1080) and higher resolutions.
- Larger screen sizes for better visibility and usability.
- Often use USB connections for touch input, separate from HDMI video.
- Disadvantages:
- Require external power supplies, increasing cable clutter.
- Additional USB connection needed for touch functionality.
- Bulkier and less integrated compared to DSI-connected displays.

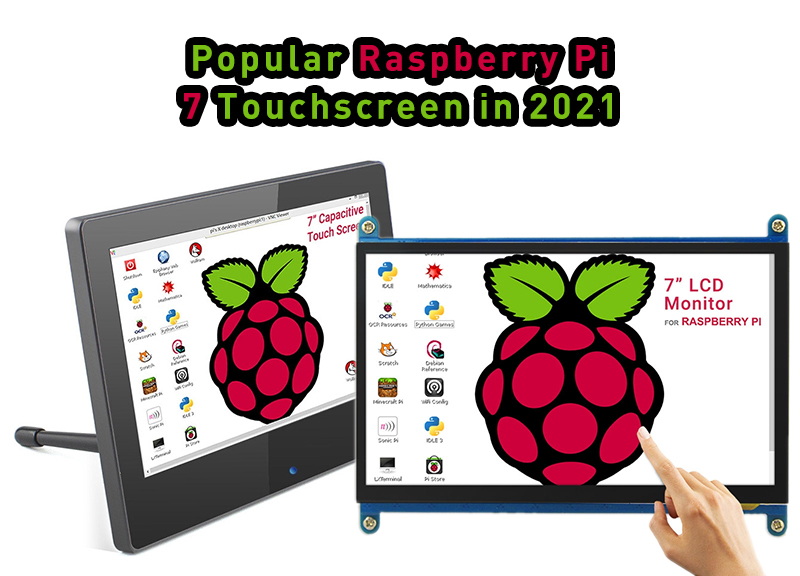

Examples of HDMI-connected touchscreens include models from Waveshare, SunFounder, and Elecrow, which offer capacitive touch panels with resolutions ranging from 1280x800 to 1920x1080 pixels.
Users sometimes find that their Raspberry Pi does not display the touchscreen at its native resolution by default. This can result in blurry images, stretched displays, or black bars around the screen.
To ensure the Raspberry Pi outputs the correct 800x480 resolution for the 7-inch touchscreen, users need to adjust the display settings. This often involves modifying configuration files on the Raspberry Pi's boot partition to specify the correct resolution and refresh rate.
When properly configured, the Raspberry Pi will output the native resolution without scaling, resulting in a clear and crisp display.
- Image Stretching or Distortion: This occurs when the system outputs a resolution that does not match the display's aspect ratio, causing the image to appear stretched horizontally or vertically. Adjusting the resolution settings to match 800x480 fixes this.
- No Native Resolution Option in GUI: The Raspberry Pi Configuration graphical interface may not list 800x480 as an option. In such cases, manual configuration is necessary.
- Touchscreen Calibration: Even with the correct resolution, touch input may be inaccurate if calibration is off. Calibration tools are available to fine-tune touch response.
The Raspberry Pi 7-inch touchscreen display is well suited for:
- Interactive kiosks and information terminals
- Portable Raspberry Pi tablets or handheld devices
- Simple gaming consoles or emulators
- Educational projects involving touch-based interaction
- Home automation control panels
- The low resolution of 800x480 pixels limits the detail and sharpness of images and text.
- Small screen size combined with low resolution can make productivity tasks like typing or spreadsheet editing challenging.
- Not suitable for watching Full HD videos or running applications that require high graphical fidelity.
- Compact and lightweight design
- Power-efficient, drawing power directly from the Raspberry Pi
- Integrated touch support with multi-touch capability
- Simple setup with minimal cables and no external power needed
The Raspberry Pi Foundation continues to innovate and improve its hardware offerings. While the original 7-inch touchscreen remains popular, newer displays with higher resolutions and better touch capabilities are emerging.
Though the DSI interface has bandwidth limitations, future Raspberry Pi models or display technologies might support higher resolutions through improved DSI standards or alternative interfaces. This could enable 7-inch or larger touchscreens with Full HD resolutions that maintain the compact, integrated form factor.
As more users demand higher resolution and larger displays, HDMI-connected touchscreens are becoming increasingly popular. These displays provide the flexibility of higher resolutions and sizes but require additional setup and power considerations.
The official Raspberry Pi 7-inch touchscreen display cannot run at 1080p resolution due to inherent hardware and interface limitations. Its native resolution is fixed at 800x480 pixels, which is sufficient for many basic projects but falls short of modern Full HD standards. For users who want higher resolution touchscreens, the Raspberry Pi Touch Display 2 offers a 720p upgrade, while HDMI-connected touchscreens provide Full HD and beyond at the cost of added complexity and power requirements.
Understanding the limitations and capabilities of the Raspberry Pi 7 touchscreen display resolution helps users make informed decisions when selecting displays for their projects, balancing resolution, size, touch functionality, and ease of integration.
No, the official 7-inch Raspberry Pi touchscreen display is limited to 800x480 pixels and cannot be configured to run at 1080p due to physical panel and interface constraints.
The highest resolution supported by the Raspberry Pi's DSI port is 1280x720 pixels (720p), which is available on the Raspberry Pi Touch Display 2.
You can adjust the Raspberry Pi's display settings to output the native 800x480 resolution by modifying the boot configuration files, ensuring the display runs without scaling or distortion.
Yes, HDMI-connected touchscreen displays support 1080p and higher resolutions but require external power and USB connections for touch input.
This may happen because the system defaults to a lower or incompatible resolution. Manually configuring the display settings is often necessary to achieve the native resolution.
